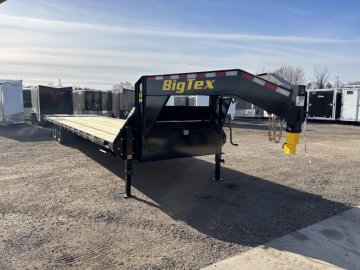

#### SINGLE WHEEL TANDEM AXLE GOOSENECK TRAILER

The 16GN from Big Tex Trailers is our super-duty, single-wheel gooseneck, delivering more cargo capacity without the need for dual-wheel axles. This model combines the Big Tex features you know and love, like a pierced beam, low-profile, high tensile steel frame, dual 12,000# drop-leg jacks, an integrated toolbox and Dexter Axles. Plus its also available with versatile Mega ramps - providing a professional-grade trailer that packs the punch you need for hard work at an exceptional value.

#### SPECS

AXLE (2) 8,000# Oil Bath w/Electric Brakes

JACK Dual 12,000# Drop Leg Side Wind (Bolted On)

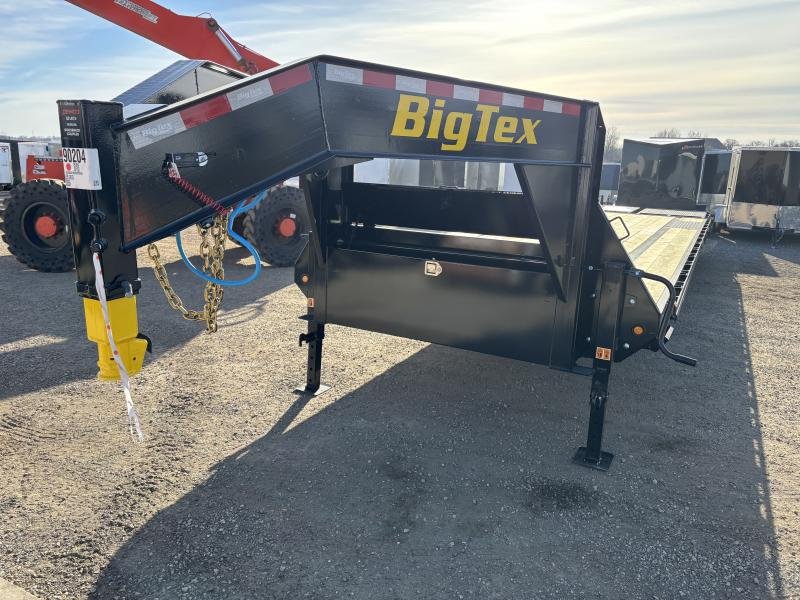

NECK 12" I-Beam, 14#

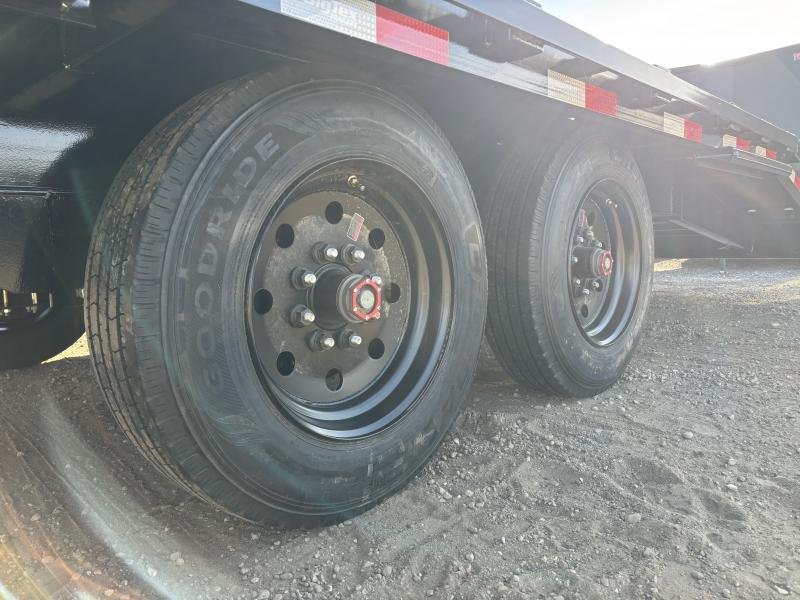

TIRES T215/75 R-17.5 Load Range H

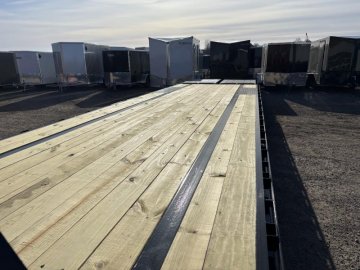

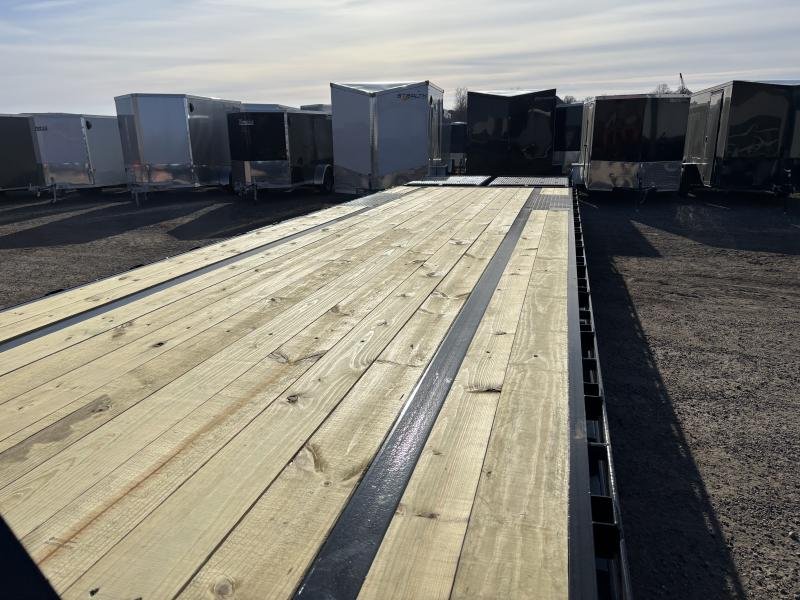

FLOOR 2" Treated Pine or Douglas Fir*

FRAME 12" I-Beam, 14# (16# on 28 Trailer and Longer)

WHEEL 17.5" x 6.75"; Black Mod 8 Bolt

FINISH Superior Quality Finish is Applied for a Highly Decorative and Protective Finish.

LIGHTS L.E.D. D.O.T.

COUPLER 2-5/16" Ball Adjustable Pipe

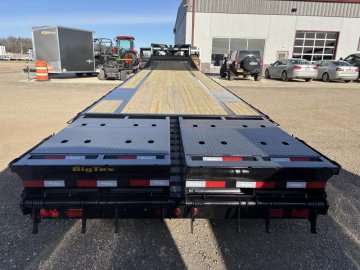

DOVETAIL 5 Cleated Dovetail w/5 Double Hinged, Spring-Assisted Flip-Over Ramps

G.V.W.R. 17,500#

ELEC. PLUG 7-Way RV

HITCH TYPE Gooseneck

SIDE RAILS 5" Channel w/Rub Rail, Stake Pockets, and Chain Spools

SUSPENSION Multi-Leaf Slipper Spring w/Equalizer

CROSSMEMBERS 3" Channel

FINISH (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish.

SAFETY CHAINS 3/8" Grd. 70 w/Safety Latch Hook (2 each)

G.A.W.R. (Ea. Axle) 8,000#
