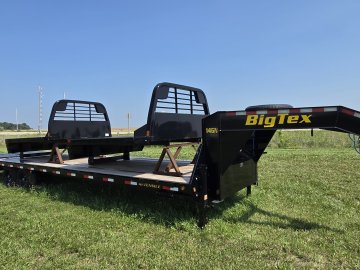

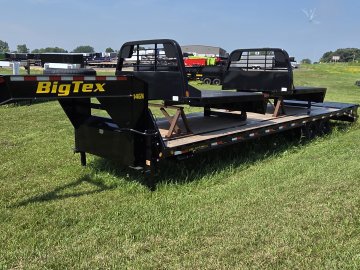

#### 14GN SINGLE WHEEL TANDEM AXLE GOOSENECK TRAILER

The 14GN from Big Tex Trailers is our medium-duty, single-wheel gooseneck. This model combines many of unique Big Tex features-low-profile decks, LED lights, treated floor, dual jacks and an adjustable coupler-providing a professional-grade trailer that delivers for an exceptional value.

#### SPECS

AXLE (2) 7,000# EZ Lube w/Electric Brakes

JACK Dual 12,000# Drop Leg Side Wind (Bolted On)

NECK 12" I-Beam, 14#

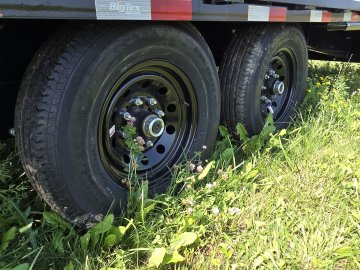

TIRE ST235/80 R-16 Load Range E

FLOOR 2" Treated Pine or Douglas Fir*

FRAME 12" I-Beam, 14#

WHEEL 16" x 6"; Black Mod 8 Bolt

FINISH Superior Quality Finish is Applied for a Highly Decorative and Protective Finish.

LIGHTS L.E.D. D.O.T.

COUPLER 2-5/16" Ball Adjustable Pipe

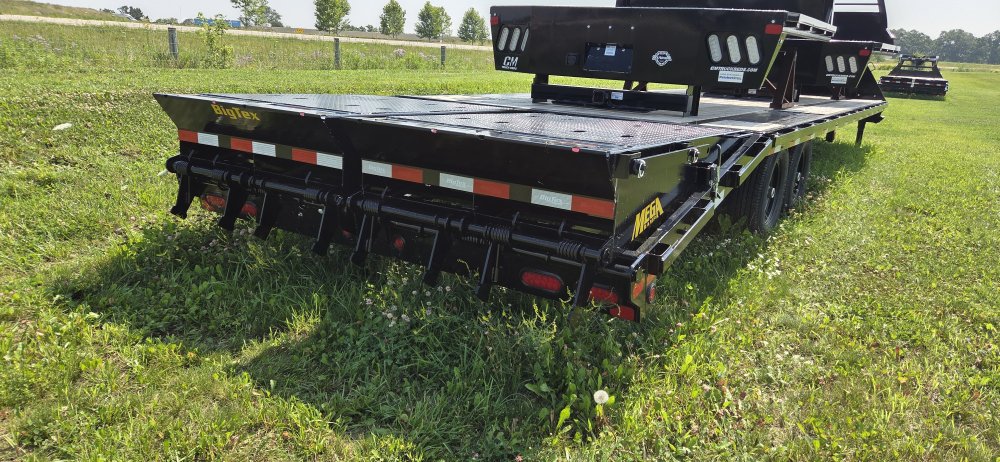

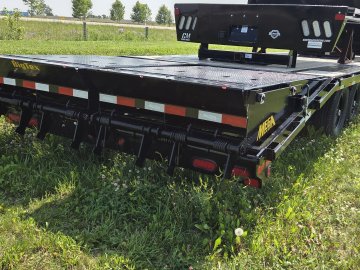

DOVETAIL 5 Cleated Dovetail w/5 Double Hinged, Spring-Assisted Flip-Over Ramps

G.V.W.R. 15,900#

ELEC. PLUG 7-Way RV

HITCH TYPE Gooseneck

SIDE RAILS 5" Channel w/Rub Rail, Stake Pockets, and Chain Spools

SUSPENSION Multi-Leaf Slipper Spring w/Equalizer

CROSSMEMBERS 3" Channel

FINISH (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish.

SAFETY CHAINS 3/8" Grd. 70 w/Safety Latch Hook (2 each)

G.A.W.R. (Ea. Axle) 7,000#
