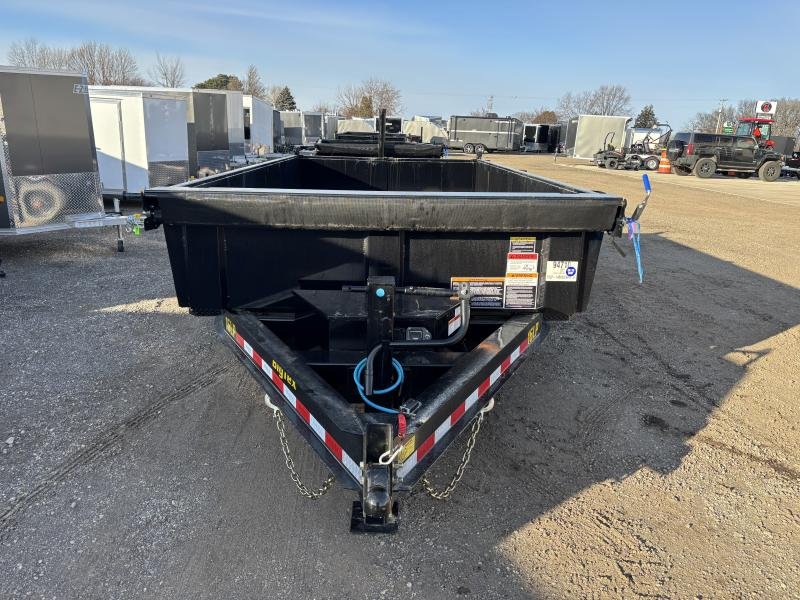

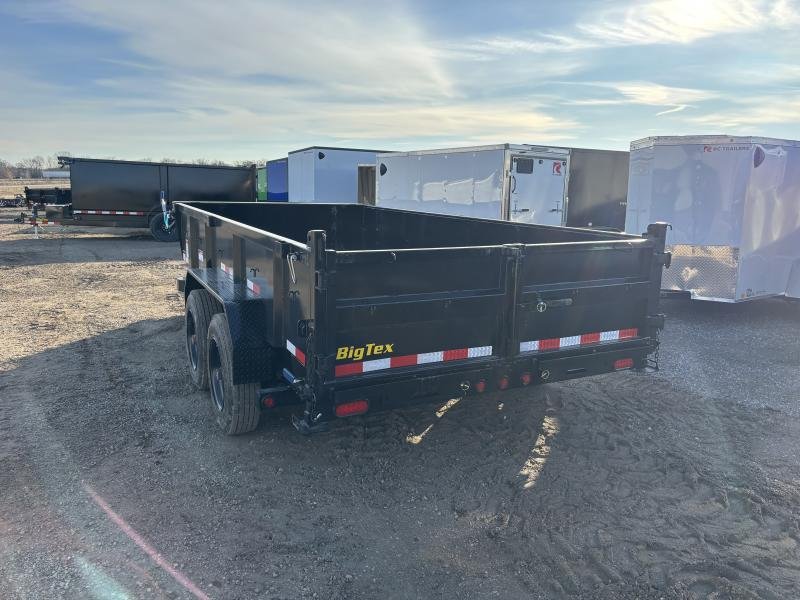

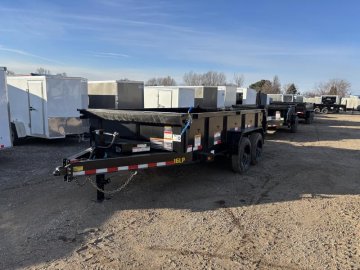

#### SUPER DUTY ULTRA LOW PROFILE DUMP

This super duty model combines durable construction and premium features with a user-friendly, ultra-low profile for easy loading and transporting.

#### SPECS

AXLE (2) 8,000# Oil-Bath w/ Elec. Brakes

JACK 12,000# Side Wind Drop Leg

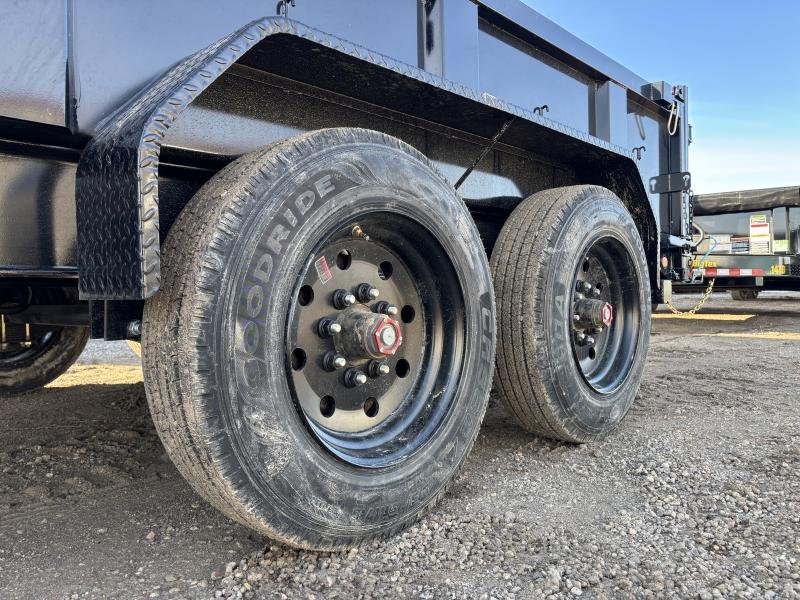

TIRES T215/75 R-17.5 Load Range E

FLOOR 7 Gauge Smooth Steel

WHEEL 17.5" x 6.75"; Black Mod 8 Bolt

FINISH Superior Quality Finish is Applied for a Highly Decorative and Protective Finish.

LIGHTS L.E.D. D.O.T. Stop, Tail, Turn and Clearance

TONGUE Integral with Frame (8" I-Beam, 10#)

COUPLER Adjustable 2-5/16" 18,000# Demco EZ Latch

FENDERS 9" x 72" 14Ga.Diamond Plate Double Square Broke

G.V.W.R. 17,500#

ELEC. PLUG 7-Way RV

HITCH TYPE Bumper Pull

MAIN FRAME 8" I-Beam, 10#

SUSPENSION Multi-Leaf Spring w/Equalizer

BED TOP RAIL 2" x 2" Square Tubing

FINISH (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish.

SAFETY CHAINS 3/8" Grd. 70 w/Safety Latch Hook (2 each)

DUMP BODY SIDES 24" Tall Sides (10 Gauge)

G.A.W.R. (Ea. Axle) 8,000#

DUMP BODY CROSSMEMBERS 3" Channel, 16" Centers
