#### 25GN HEAVY DUTY TANDEM DUAL GOOSENECK TRAILER

The 25GN from Big Tex Trailers features 12K heavy-duty axles with Dexter Adjustable suspension. This durable gooseneck trailer comes equipped with a low-profile pierced-beam frame, LED lights, adjustable dual jacks, a chain box and a crank-style adjustable coupler.

#### SPECS

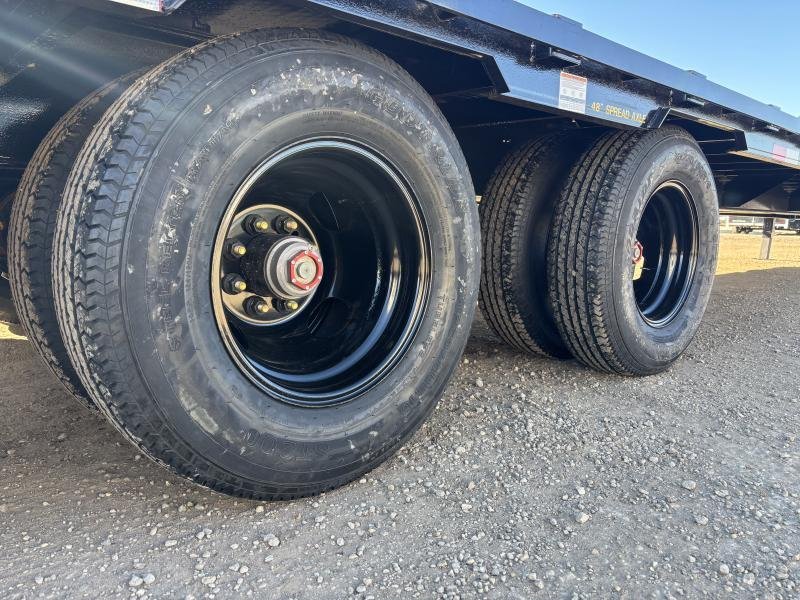

AXLE (2) 12,000# Dual Wheel w/ Electric Brakes (Oil Bath)

JACK Dual Two Speed Landing Gear (Bolted On)

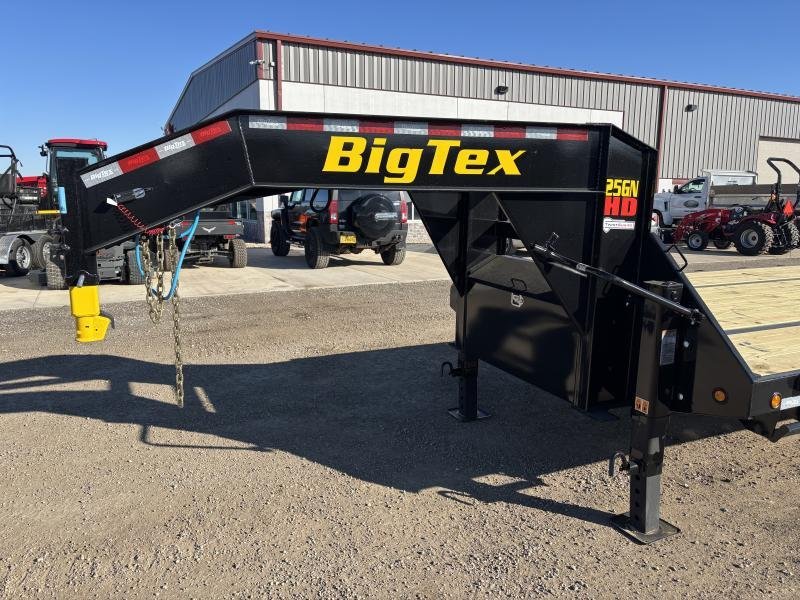

NECK 12" I-Beam, 19#

TIRES T235/80 R-16 Load Range E Dual

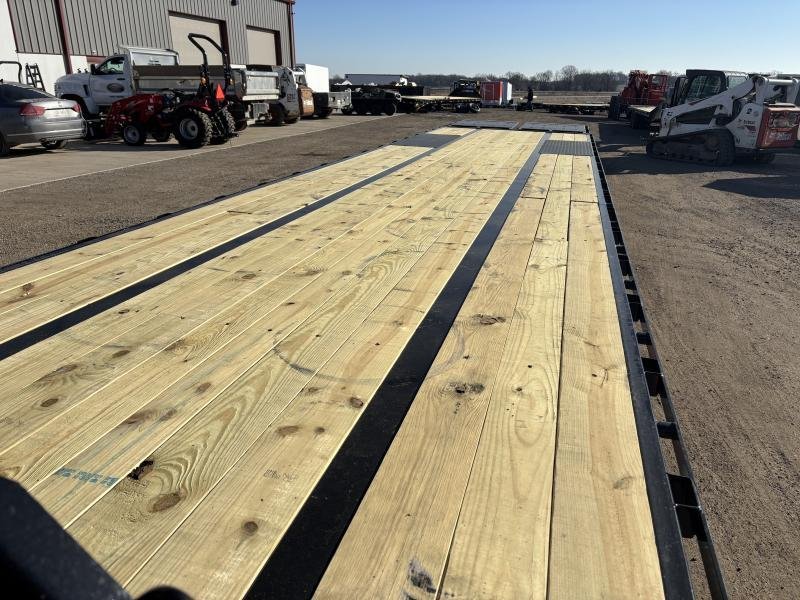

FLOOR 2" Treated Pine or Douglas Fir*

FRAME 12" I-Beam, 19#

WHEEL 16" x 6"; Black Dual Wheel 8 Bolt

FINISH Superior Quality Finish is Applied for a Highly Decorative and Protective Finish.

LIGHTS L.E.D. D.O.T. Stop, Tail, Turn & Clearance

COUPLER 2-5/16" Ball Adj. Square Crank Type

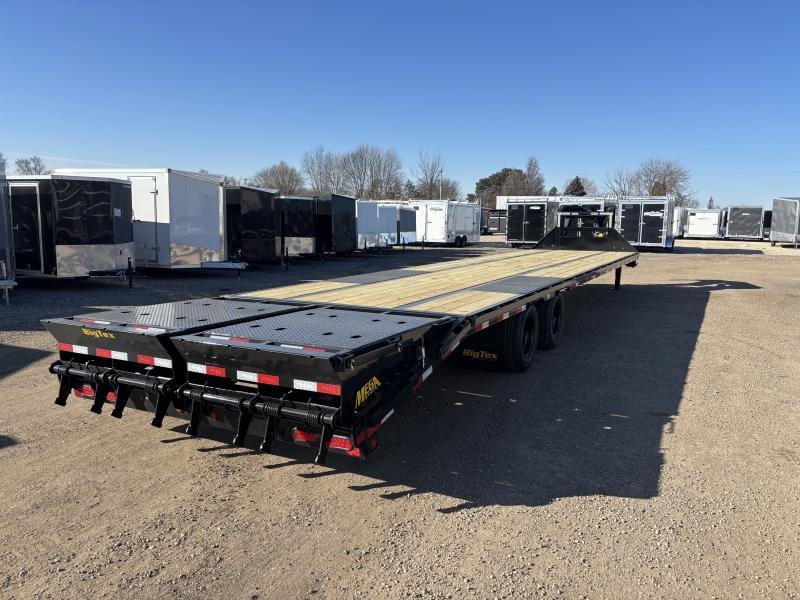

DOVETAIL 5 Cleated Dovetail w/5 Double Hinged, Spring-Assisted Flip-Over Ramps

G.V.W.R. 25,900#

ELEC. PLUG 7-Way RV

HITCH TYPE Gooseneck

SIDE RAILS 8" Channel w/Rub Rail, Stake Pockets on 24" Centers, and Chain Spools

SUSPENSION Heavy Duty 30,000# Adjustable

CROSSMEMBERS 3" Channel

FINISH (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish.

SAFETY CHAINS 3/8" Grd. 70 w/Safety Latch Hook (2 each)

G.A.W.R. (Ea. Axle) 12,000#
