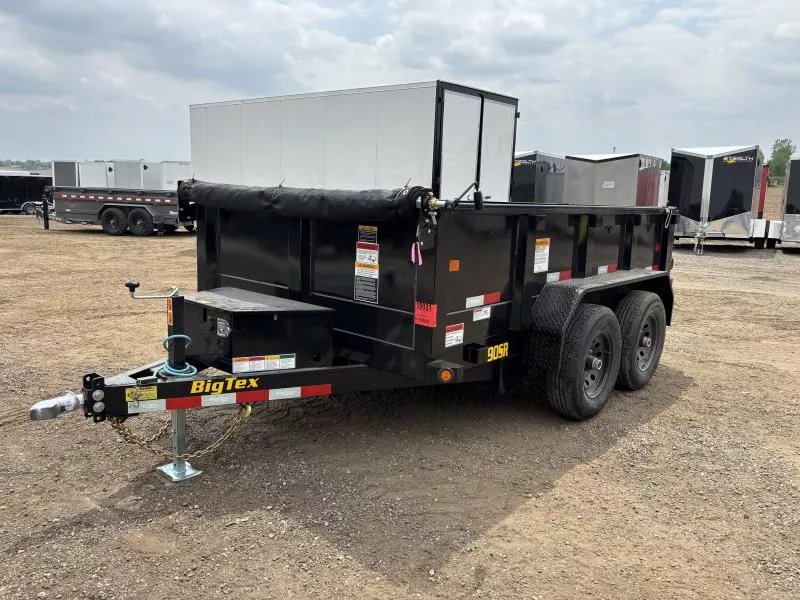

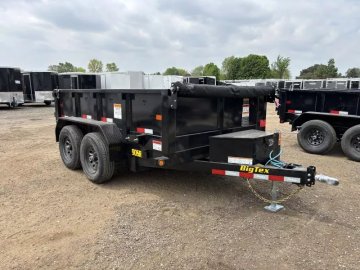

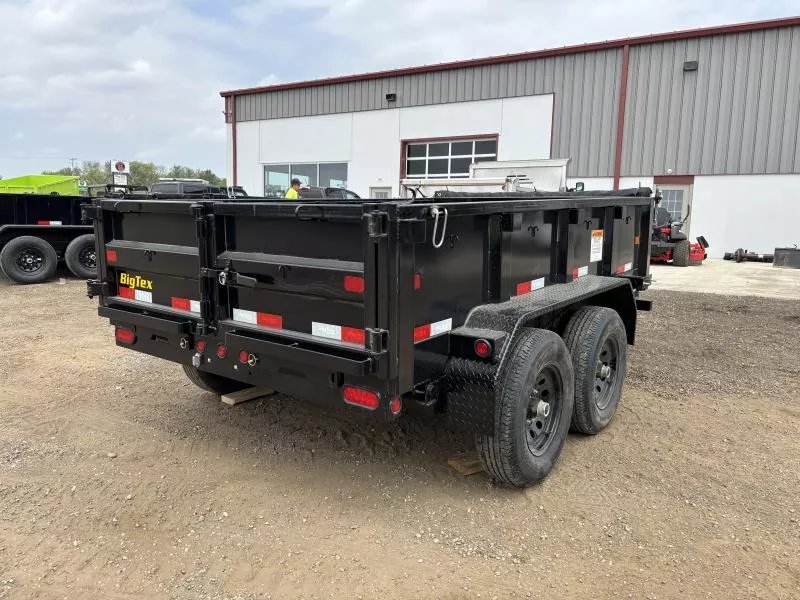

6'x10' Big Tex Trailers 90SR Dump
90SRTandem Axle Single Ram Dump
Give your back a break with the 90SR Tandem Axle Single Ram Dump Trailer, a light-duty trailer equipped with a straight ram hydraulic lifting system that makes dump outs easier than ever before. With the strength and durability needed for hauling and dumping mulch, dirt, and gravel, this reliable trailer is built to get the job done for those at home or on a farm. And if you need to haul small equipment, say no more. An optional slide-in ramp package allows you to easily transport a piece of smaller equipment to wherever needed.
2 - 5,200# Premium, Cambered Axles with Quick-Lubricating Hubs
Brakes - Forward Self-Adjusting Electric Brakes
Suspension - Multi-Leaf Slipper Spring w/ Equalizer
Tongue - 6" Channel
Coupler - Adjustable Forged
Safety Chains - 1/4" Grd. 70 w/Safety Latch Hook (2 each)
Jack - 8,000# Top Wind
Frame - 6x2 Rectangular Tubing ILO 6" channel
Cross-Members - 3" Channel on 16" Centers
Floor - 12 Gauge Smooth Steel
Fenders - 9" x 72" 14 Ga. Diamond Plate Double Square Broke
Stake Pockets - Stake Pockets Along Both Sides (Quantity Varies by Length)
Trailer Plug - 7-Way RV
Lights - Recessed, Grommet-Mounted L.E.D. Lighting
Wiring - Sealed, Modular Cold-Weather Wiring Harness

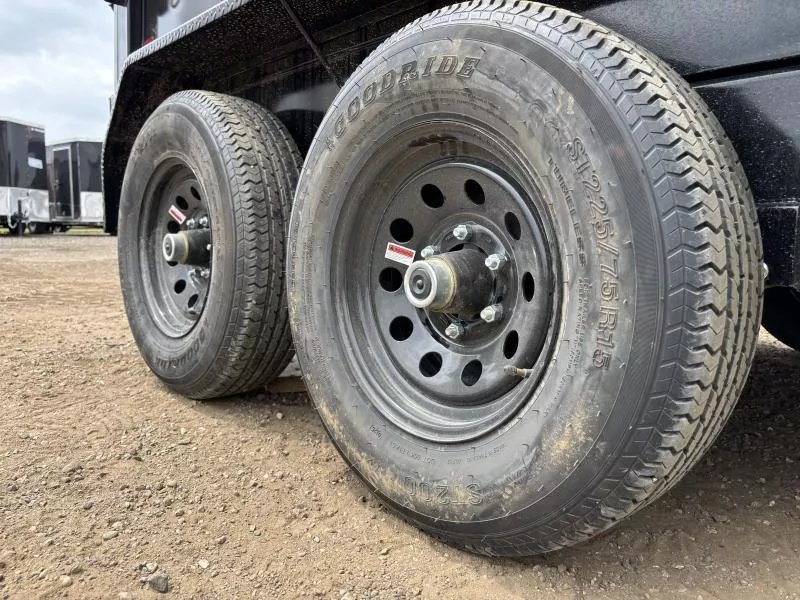

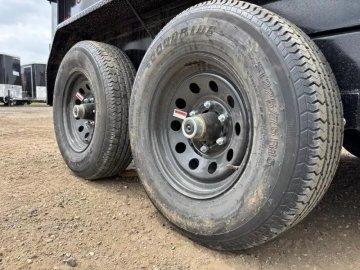

Tires - ST225/75 R-15 Load Range D Radial Tires
Bolt Pattern - 6-Lug
Wheels - Black Mod Steel
Spare Mount - Side Spare Tire Mount
Paint Type - Professional Finish w/ Primer Standard
Paint Color - Black
Tie-Downs - (4) 1/2" D-Rings Inside Bed to Secure Equipment Along Sides and Rear for Cargo Control
Break-Away Kit - Complete System with Breakaway Cable
Battery - 12V Deep Cycle
Charger - 5A 110V on Board Battery Charger

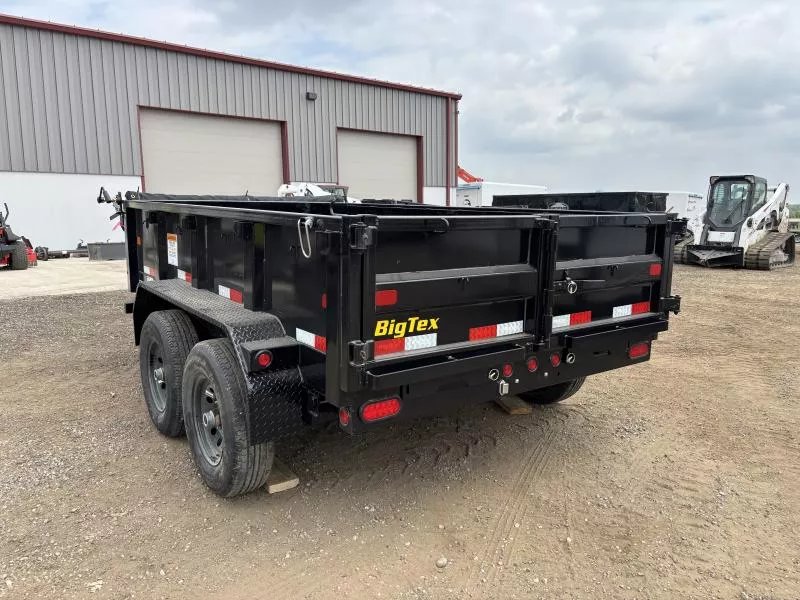

Gate - Double Rear Doors
J-Hooks - Along sides and rear for Cargo Control
Power - Power Up/Power Down & Gravity Down Hydraulic Pump
Ram - Self-Contained Single Cylinder Lift
Sides - 20" Tall Sides (12-Gauge)
Storage - Lockable Pump and Battery Box mounted in Front of Bed
Tarp - Fully-Formed Tarp Shroud with Tarp & Rear Tarp Rod Holders
Top Rail - 2" x 2" Square Tubing
