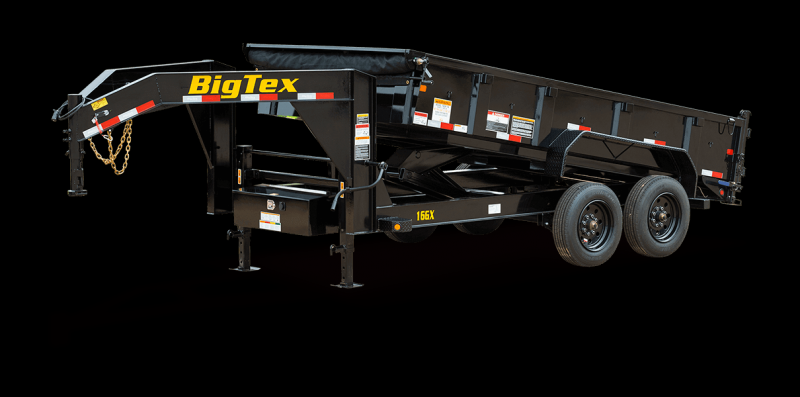

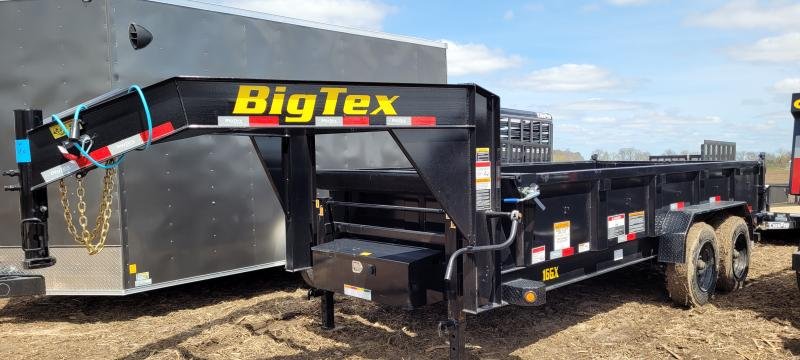

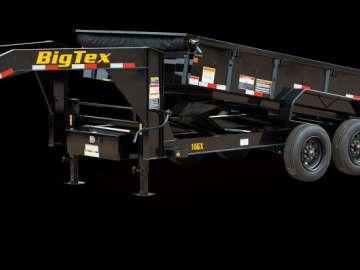

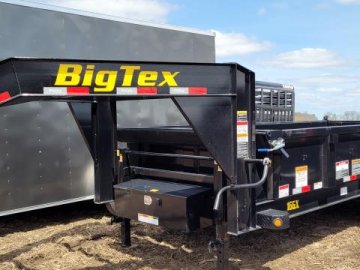

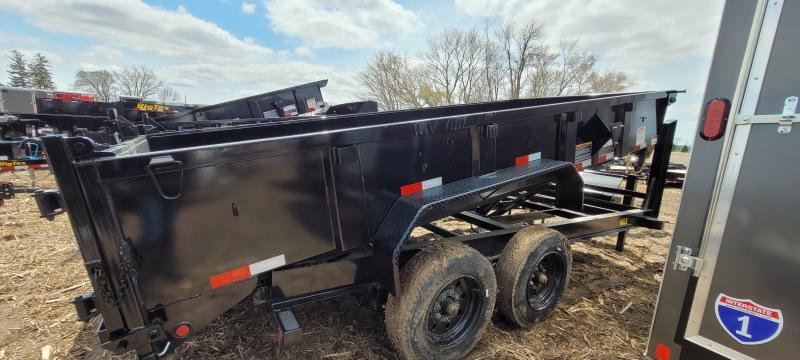

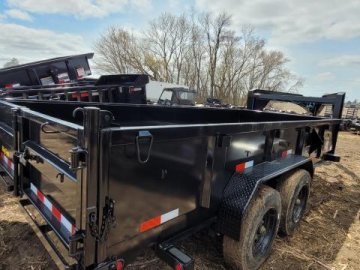

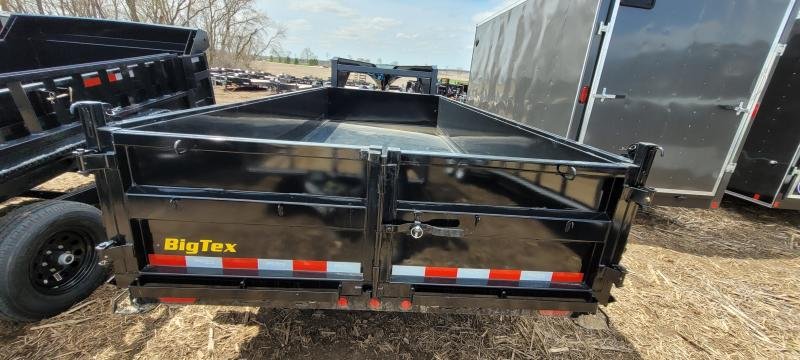

#### SUPER DUTY TANDEM AXLE GOOSENECK DUMP

The 16GX Super Duty Tandem Axle Gooseneck Dump from Big Tex Trailers is a heavy weight hauler with an 8" I-Beam frame and 10" I-Beam neck. Adding to the strength is the feature-rich performance of the dump box providing easy loading, securement, and unloading.

#### SPECS

AXLE (2) 7,000# EZ Lube w/Elec. Brake

JACK 12,000# Top Wind Drop Leg- OD; Dual 12,000# Drop Leg- Side Wind- OD GN

TIRES T235/80 R-16 Load Range E

FLOOR 10 Gauge Smooth Steel

WHEEL 16" x 6"; Black Mod, 8 Bolt

FINISH Superior Quality Finish is Applied for a Highly Decorative and Protective Finish.

LIGHTS L.E.D. D.O.T. Stop, Tail, Turn and Clearance

TONGUE Integral with Frame(12" I-Beam, 14# )

COUPLER Adj. 2-5/16" 18,000# Demco EZ Latch- OD; 2-5/16? Round Adj. Pin (25K) - OD GN

G.V.W.R. 17,500

ELEC. PLUG 7-Way RV

MAIN FRAME 12" I-Beam, 14#

SUSPENSION Multi-Leaf Slipper Spring w/Equalizer

FINISH (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish.

SAFETY CHAINS 3/8" Grd. 70 w/Safety Latch Hook (2 each)

DUMP BODY SIDES 18" Tall, Drop-Down Sides (12 Gauge)

DUMP BODY TOP RAIL 2" x 2" Square Tubing

G.A.W.R. (Ea. Axle) 7,000

DUMP BODY CROSSMEMBERS 3" Channel, 16" Centers
