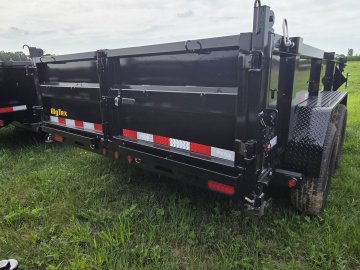

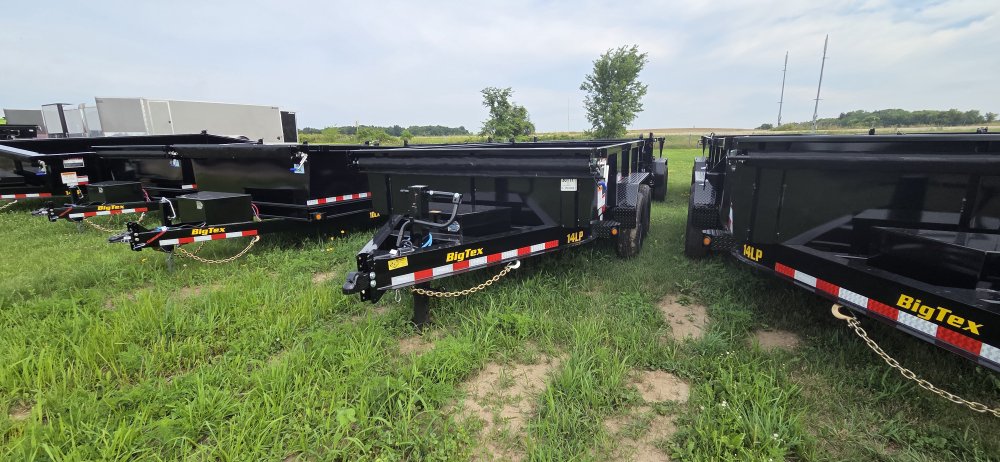

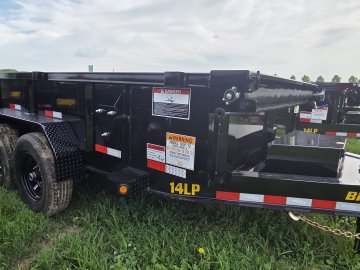

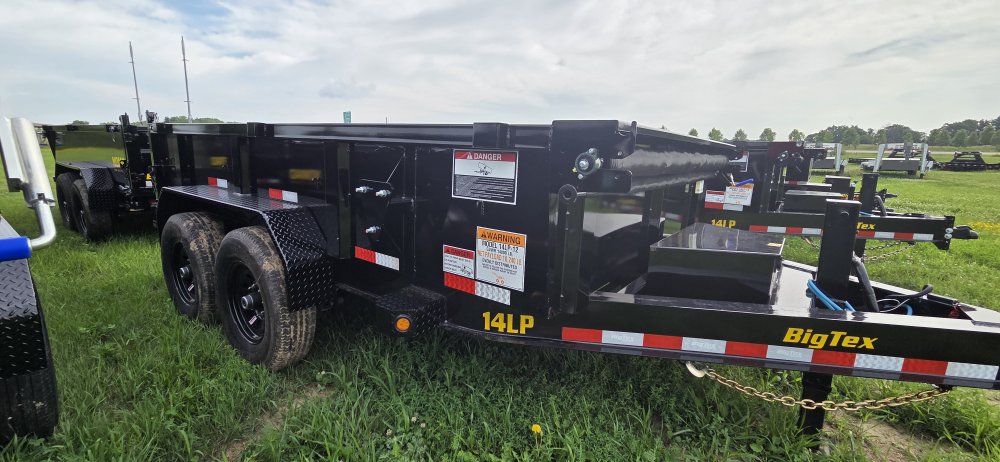

7'x12' Big Tex Trailers 14LP-12 Dump
Standard Feature
Axles
2 - 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs
Brakes
Forward Self-Adjusting Electric Brakes on Both Axles
Suspension
Multi-Leaf Slipper Spring w/ Equalizer

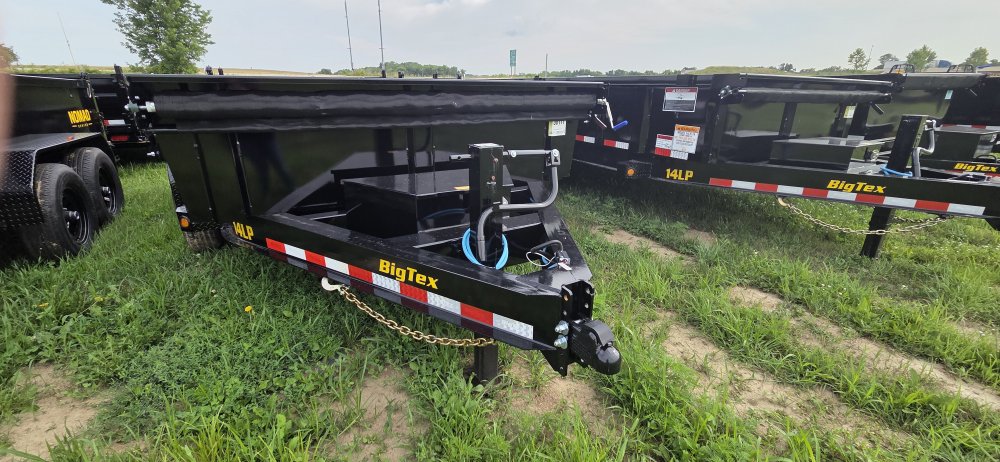

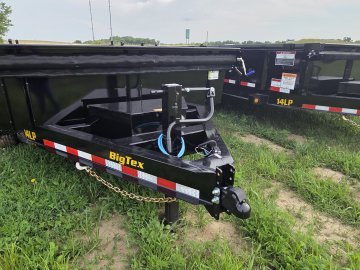

Tongue
8" Seamless I-Beam Integrated w/ Frame (10#)
Coupler
2-5/16" Ball, Adjustable Demco EZ Latch Coupler
Safety Chains
3/8" Grade 70 w/ Safety Latch Hook (2 ea)
Jack
12,000# Drop-Leg Jack (Side Wind)
Frame
8" Seamless I-Beam (10#)
Cross-Members
3" Channel on 16" Centers
Floor
10 Gauge Smooth Steel
Fenders
9" x 72" 14 Ga. Diamond Plate Double Broke
Ramps
6.5' Slide in Ramps with Integrated Ramp Door
Stake Pockets
Stake Pockets Along Both Sides (Quantity Varies by Length)
Trailer Plug
7-Way RV
Lights
Recessed, Grommet-Mounted L.E.D. Lighting
Wiring
Sealed, Modular Cold-Weather Wiring Harness

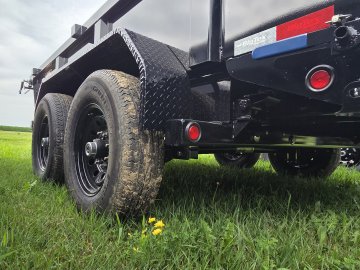

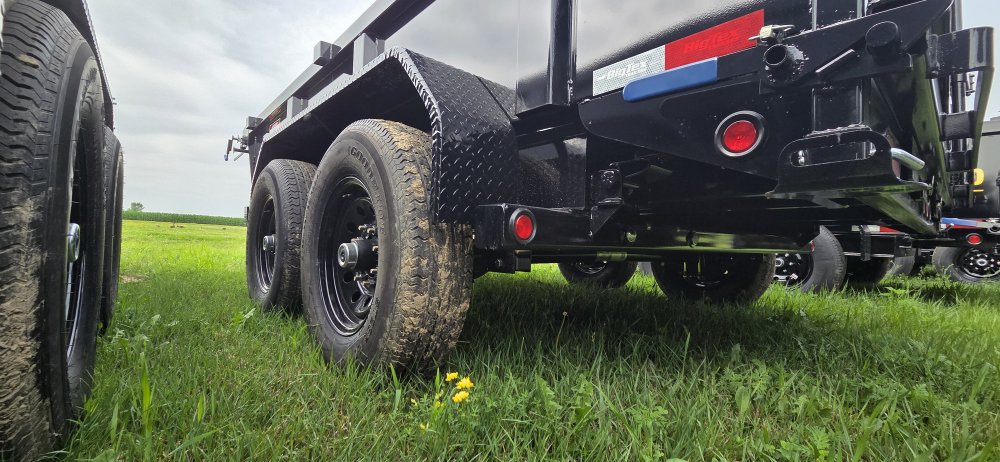

Tires
ST235/80 R-16 Load Range E Radial Tires
Bolt Pattern
8-Lug
Wheels
Black Mod Steel
Spare Mount
Side Spare Tire Mount
Spare Tire
Not Included
Paint Type
Professional Finish w/ Primer Standard
Paint Color
Black
Tie-Downs
(4) 1/2" D-Rings Inside Bed to Secure Equipment
Along Sides and Rear for Cargo Control
Break-Away Kit
Complete Breakaway System w/ Zip Breakaway Cable
Battery
12V Deep Cycle
Charger
5A 110V on Board Battery Charger

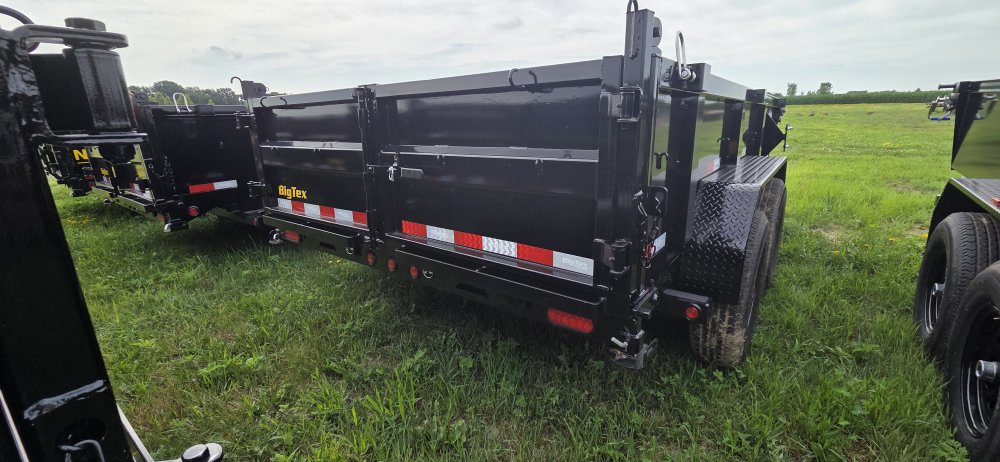

Gate
Rear Combo Gate (Barn Doors & Spreader Gate)
J-Hooks
Along sides and rear for Cargo Control
Power
Power Up/Power Down & Gravity Down Hydraulic Pump
Ram
Self-Contained Scissor
Sides
24" Tall (10 Ga) with formed Channel Supports
Stabilizers
Rear Stabilizer Stands
Steps
Convenient Side-Step to Access Top Rail
Storage
Lockable Pump and Battery Box mounted in Front of Bed
Tarp
Fully-Formed Tarp Shroud with Tarp & Rear Tarp Rod Holders
Top Rail
3"x 2" Rectangular Tubing
Steps & Handles
Convenient Side-Step to Access Top Rail
