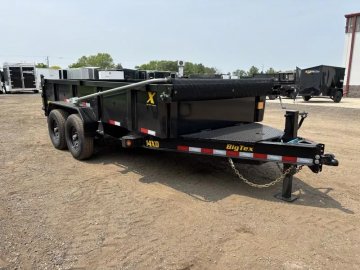

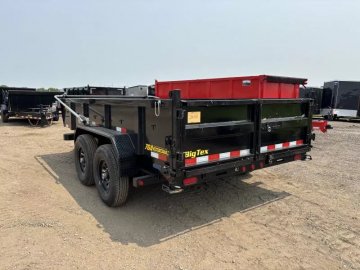

7'x14' Big Tex Trailers 14XD-14 Dump
Axles
2 - 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs
Brakes
Forward Self-Adjusting Electric Brakes on All Hubs
Suspension
Multi-Leaf Spring w/ Equalizer
Tongue
8" I-Beam (10#), Integral with Frame
Coupler
Adjustable 2-5/16" 18,000# Demco EZ Latch
Safety Chains
3/8" Grade 70 w/ Safety Latch Hook (2 ea)
Jack
12,000# Drop-Leg Jack (Side Wind)
Frame
8" I-Beam (10#)
Cross-Members
3" Channel on 16" Centers
Floor
7 Gauge Smooth Steel
Fenders
9" x 72" 14 Ga. Diamond Plate Double Square Broke
Ramps
6' Slide in Ramps with integrated Ramp Door
Stake Pockets
Stake Pockets Along Both Sides (Quantity Varies by Length)
Trailer Plug
7-Way RV
Lights
L.E.D. D.O.T. Stop, Tail, Turn & Clearance
Wiring
Sealed, Modular Cold-Weather Wiring Harness

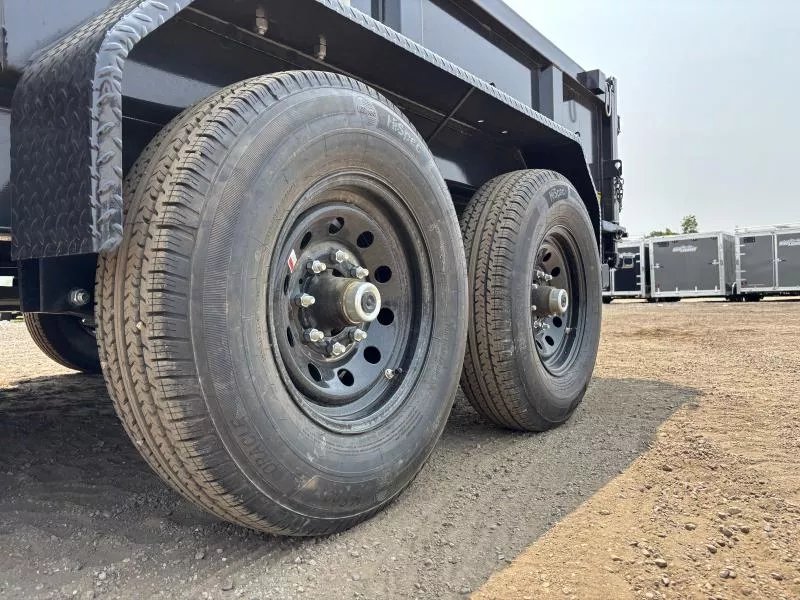

Tires
ST235/80 R-16 Load Range G, Oracle
Bolt Pattern
8-Lug
Wheels
Black Mod Steel
Spare Mount
Side Spare Tire Mount
Paint Type
Professional Finish w/ Primer Standard
Paint Color
Black
Tie-Downs
(4) 5/8" D-Rings Inside Bed to Secure Equipment
Along Sides and Rear for Cargo Control
Break-Away Kit
Complete Breakaway System w/ Zip Breakaway Cable
Battery
12V Deep Cycle
Charger
5A 110V on Board Battery Charger
Gate
Rear Combo Gate (Barn Doors & Spreader Gate)
J-Hooks
Along sides and rear for Cargo Control
Power
Power Up/Power Down & Gravity Down Hydraulic Pump
Ram
Self-Contained Scissor
Sides
24" Tall (10 Ga) with formed Channel Supports
Stabilizers
Rear Stabilizer Stands
Storage
Full Tongue Tool Box with Locking Lid
Tarp
Spring Loaded Swing Arm Tarp
Top Rail
3"x 2" Rectangular Tubing
