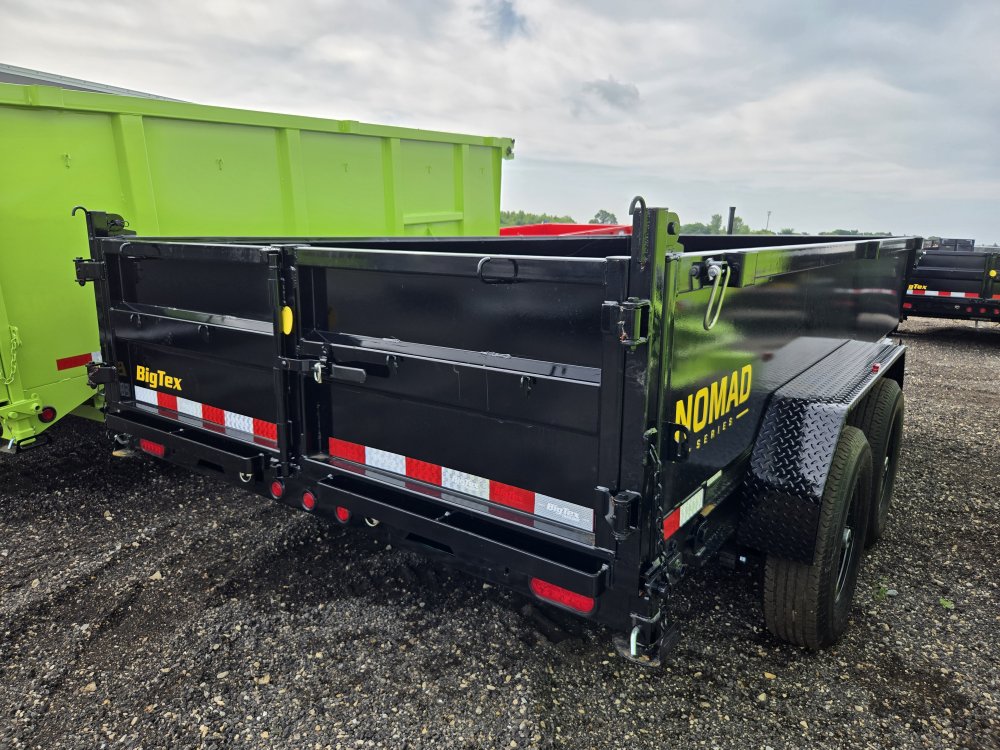

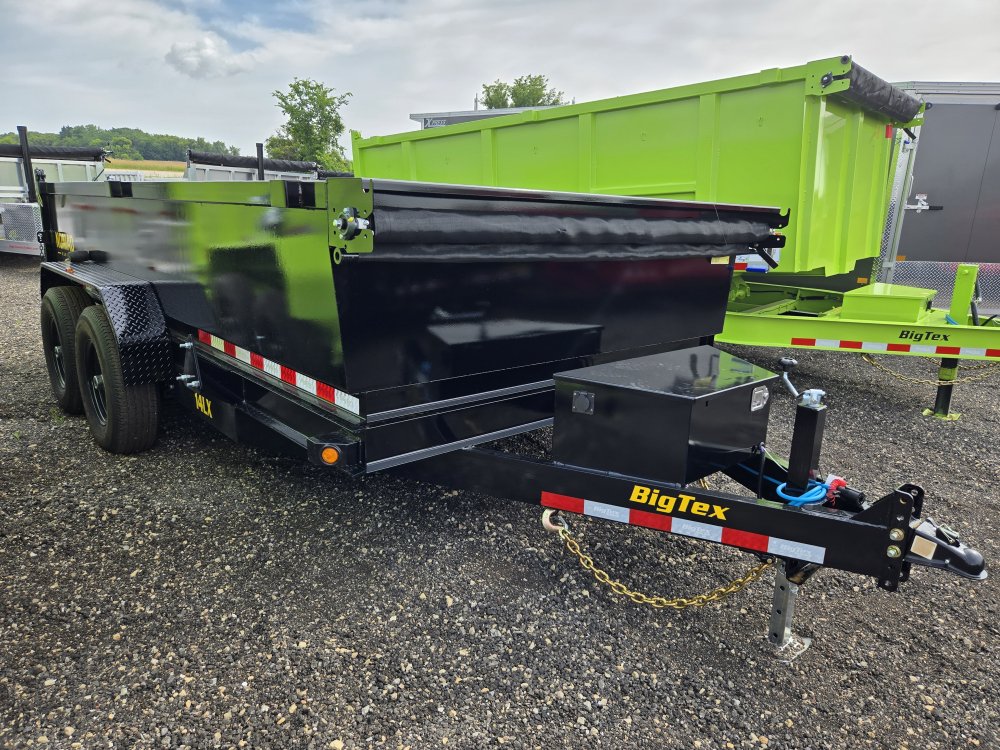

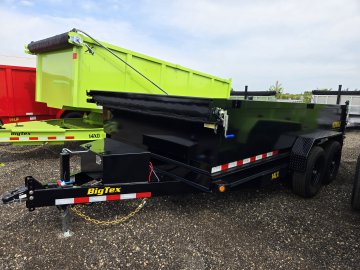

7'x14' Big Tex Trailers 14LX-14 Dump



Standard Feature

Axles

2 - 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs

Brakes

Forward Self-Adjusting Electric Brakes on All Hubs

Suspension

Multi-Leaf Spring w/ Equalizer

Tongue

6" Channel

Coupler

Adjustable 2-5/16" Coupler

Safety Chains

3/8" Grade 70 w/ Safety Latch Hook (2 ea)

Jack

7,000# Top Wind Drop Leg Jack

Frame

6" Channel

Cross-Members

3" Channel on 16" Centers

Floor

10 Gauge Smooth Steel

Fenders

9” x 72” 14 Ga. Diamond Plate Double Square Broke

Ramps

6.5' Slide in Ramps with Integrated Ramp Door

Stake Pockets

Stake Pockets Along Both Sides (Quantity Varies by Length)

Trailer Plug

7-Way RV

Lights

Recessed, Grommet-Mounted L.E.D. Lighting

Wiring

Sealed, Modular Cold-Weather Wiring Harness

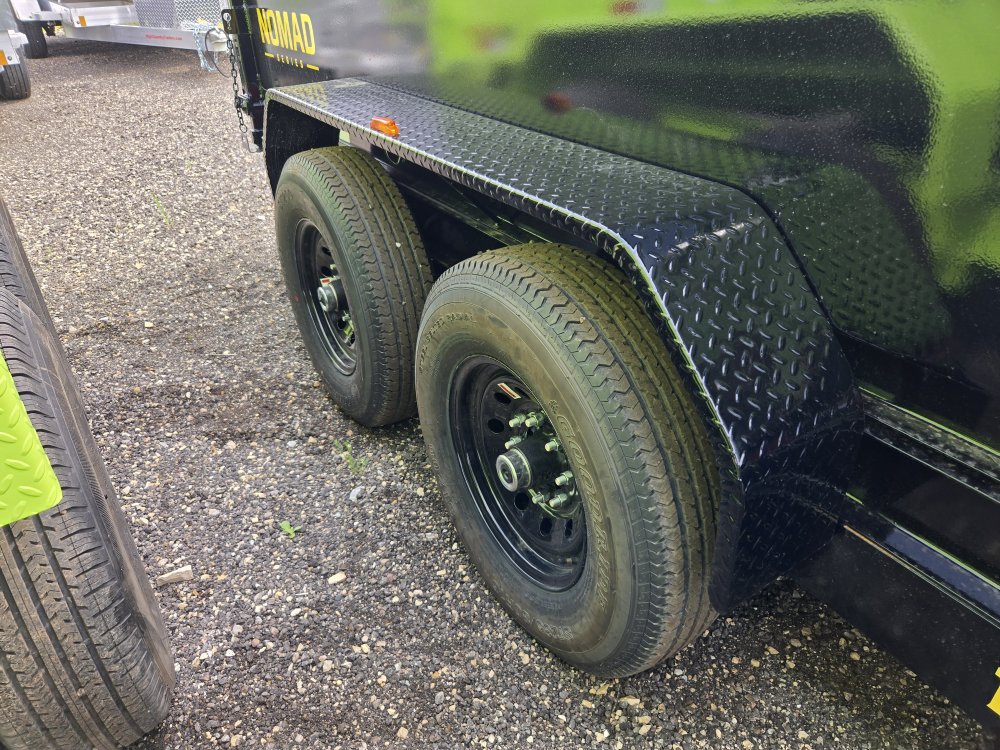

Tires

ST235/80 R-16 Load Range-E 10 Ply Radial Tires

Bolt Pattern

6 Bolt

Wheels

Black Mod Steel

Spare Mount

Side Spare Tire Mount

Spare Tire

Not Included

Paint Type

Professional Finish w/ Primer Standard

Paint Color

Black

Tie-Downs

(4) 1/2" D-Rings Inside Bed to Secure Equipment

Break-Away Kit

Complete System with Breakaway Cable

Battery

12V Deep Cycle

Charger

5A 110V on Board Battery Charger

Gate

Rear Combo Gate (Barn Doors & Spreader Gate)

J-Hooks

Along Rear for Cargo Control

Power

Power Up/Power Down & Gravity Down Hydraulic Pump

Ram

Self-Contained Scissor

Sides

24" Tall (10 Ga) with formed Channel Supports

Stabilizers

Rear Stabilizer Stands

Storage

Lockable Pump and Battery Box mounted in Front of Bed

Tarp

Fully-Formed Tarp Shroud with Tarp & Rear Tarp Rod Holders

Top Rail

3"x 2" Rectangular Tubing
