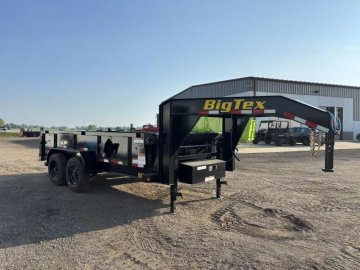

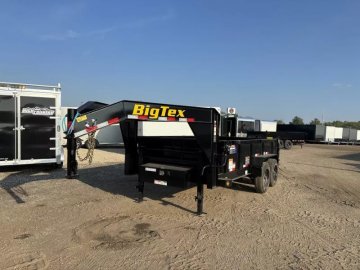

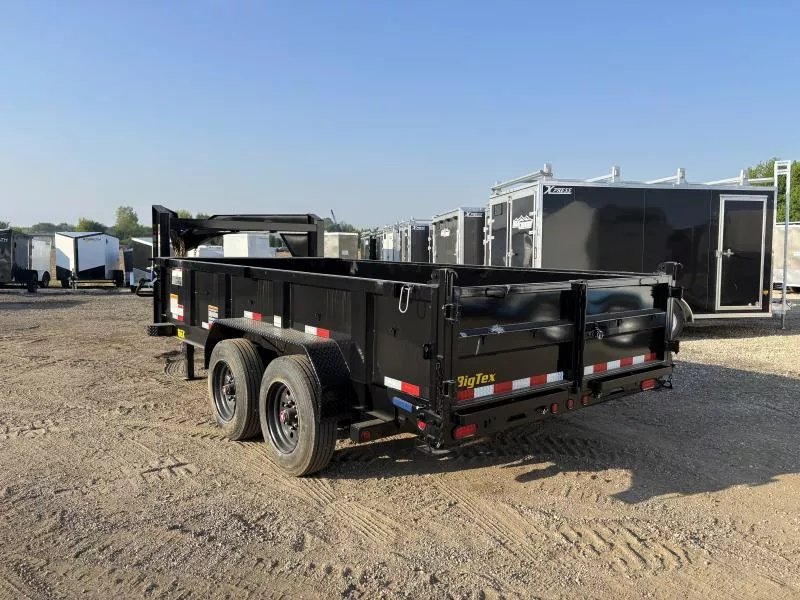

83"x168" Big Tex Trailers 16GX-14 Dump
{location.inventory_description
SUPER DUTY TANDEM AXLE GOOSENECK DUMP
The 16GX Super Duty Tandem Axle Gooseneck Dump from Big Tex Trailers is a heavy weight hauler with an 8" I-Beam frame and 10" I-Beam neck. Adding to the strength is the feature-rich performance of the dump box providing easy loading, securement, and unloading.
SPECS
AXLE (2) 7,000# EZ Lube w/Elec. Brake
JACK 12,000# Top Wind Drop Leg- OD; Dual 12,000# Drop Leg- Side Wind- OD GN

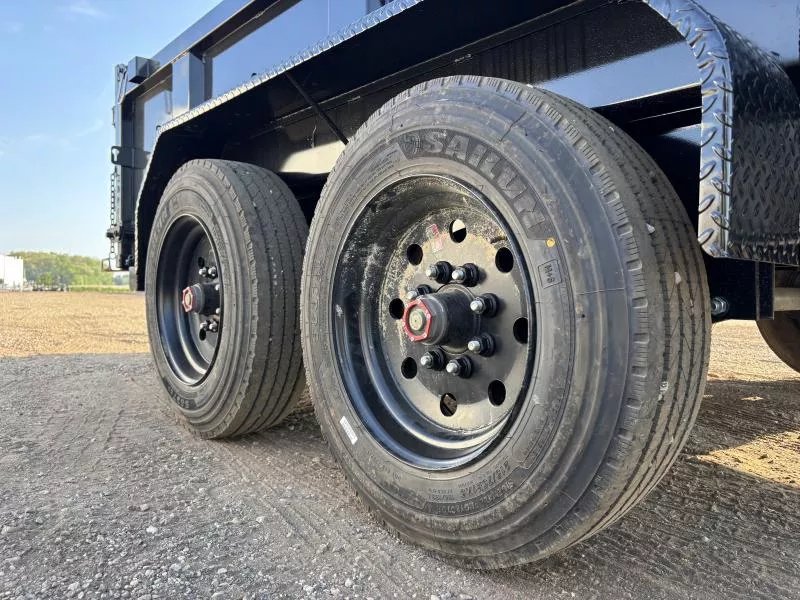

TIRES T235/80 R-16 Load Range E
FLOOR 10 Gauge Smooth Steel
WHEEL 16" x 6"; Black Mod, 8 Bolt
FINISH Superior Quality Finish is Applied for a Highly Decorative and Protective Finish.
LIGHTS L.E.D. D.O.T. Stop, Tail, Turn and Clearance
TONGUE Integral with Frame(12" I-Beam, 14# )
COUPLER Adj. 2-5/16" 18,000# Demco EZ Latch- OD; 2-5/16? Round Adj. Pin (25K) - OD GN
G.V.W.R. 17,500
ELEC. PLUG 7-Way RV
MAIN FRAME 12" I-Beam, 14#
SUSPENSION Multi-Leaf Slipper Spring w/Equalizer
FINISH (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish.
SAFETY CHAINS 3/8" Grd. 70 w/Safety Latch Hook (2 each)
DUMP BODY SIDES 18" Tall, Drop-Down Sides (12 Gauge)
DUMP BODY TOP RAIL 2" x 2" Square Tubing
G.A.W.R. (Ea. Axle) 7,000
DUMP BODY CROSSMEMBERS 3" Channel, 16" Centers
