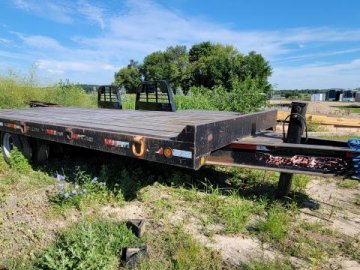

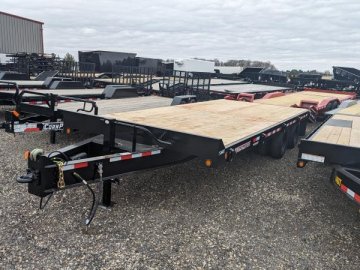

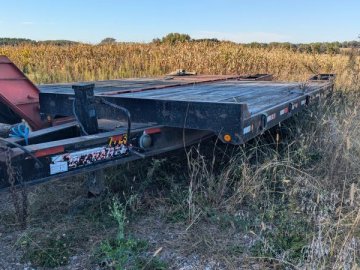

These premium TowmasterRegistered deck-over trailers are built more durable and more stylish to provide a great looking trailer that will last a long time. They are great for hauling heavy equipment of all types. If you need a lower profile trailer, the T-40LP gives you an extra 2-inches and lower loading angle. Two-way spring-assist ramps and wood protectors are standard.

## Description

### Standard Features:

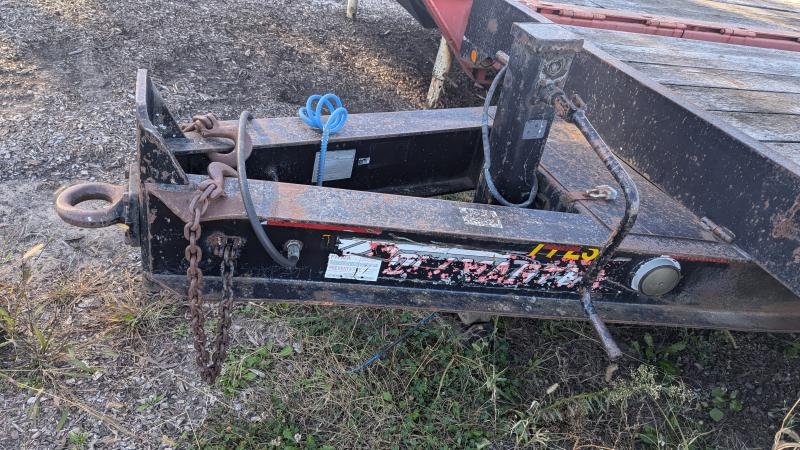

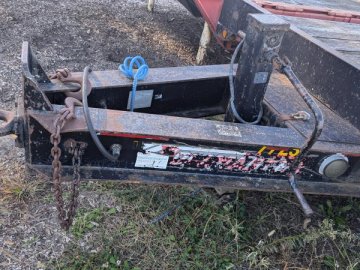

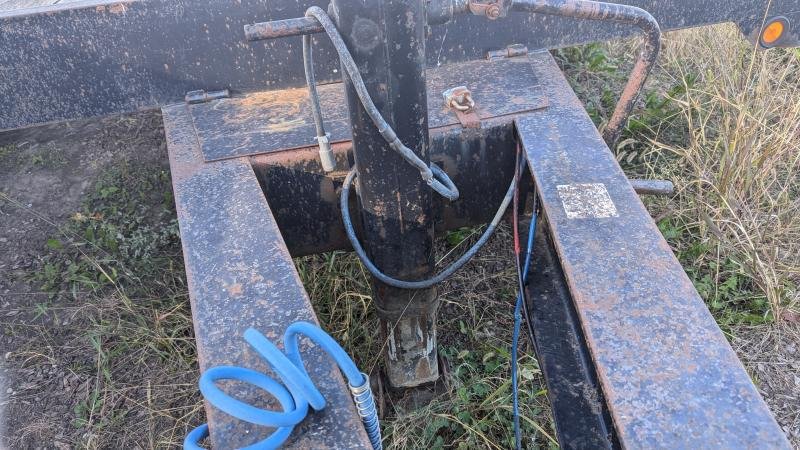

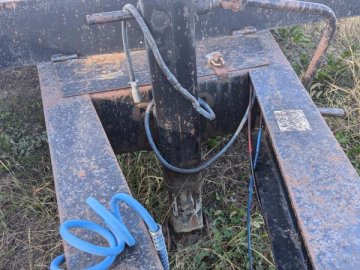

* Pintle hitch (adjustable height)

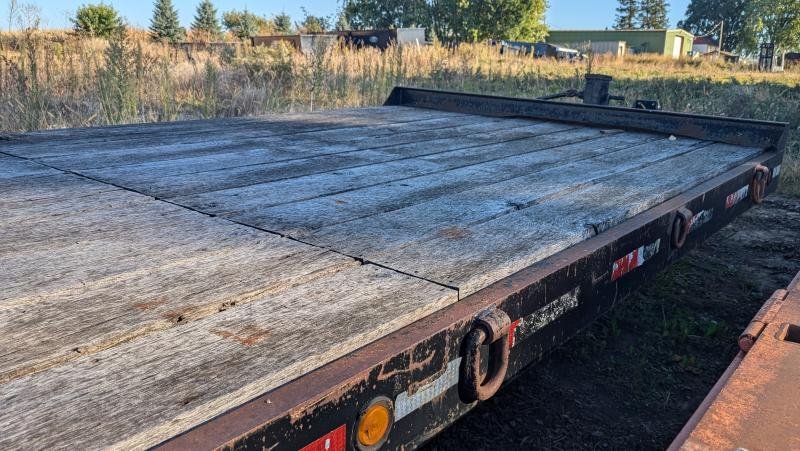

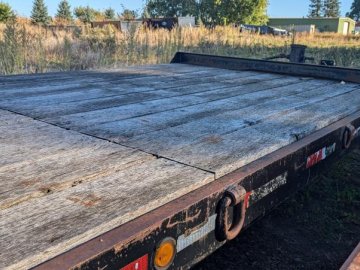

* 2" nominal white oak wood deck
* I-beam frame/tongue (formed)
* 3" Jr-Ibeam Crossmembers
* 36" / 34" deck height (empty)
* 102" deck width

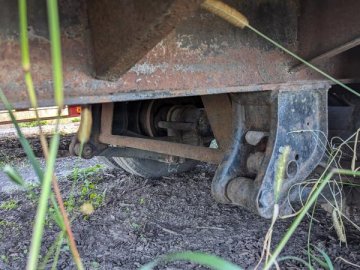

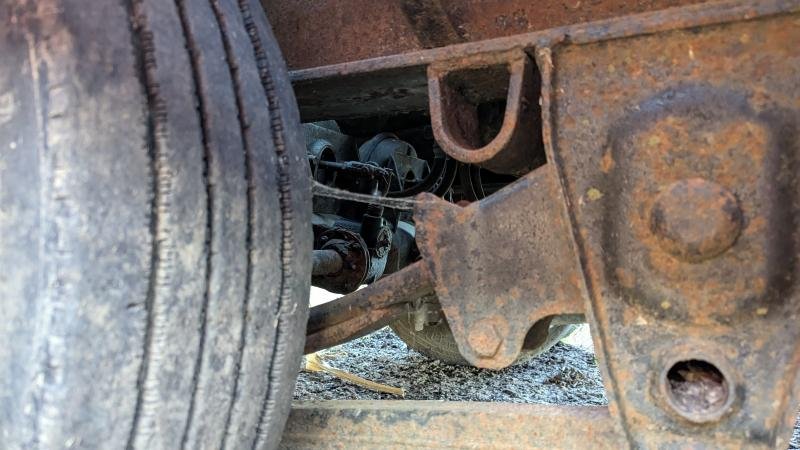

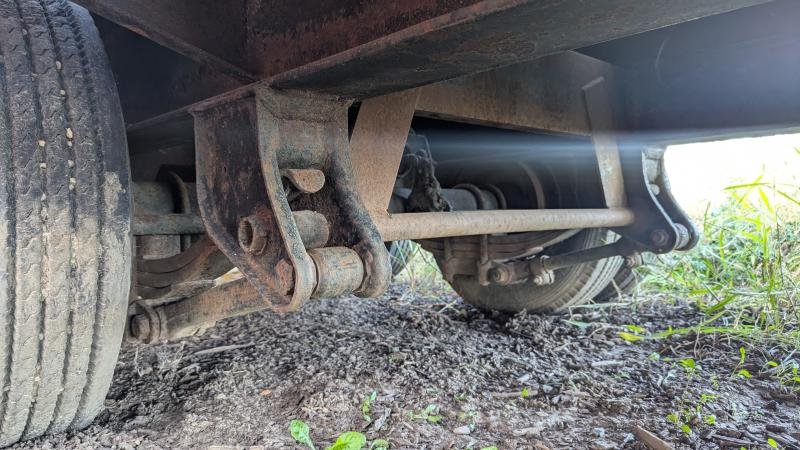

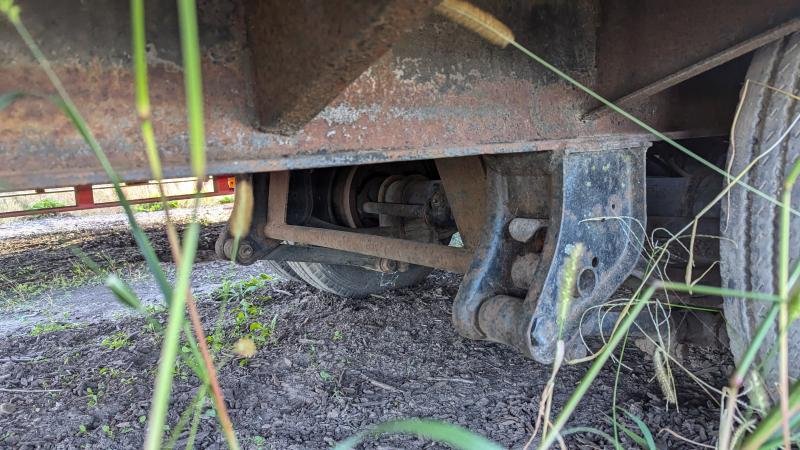

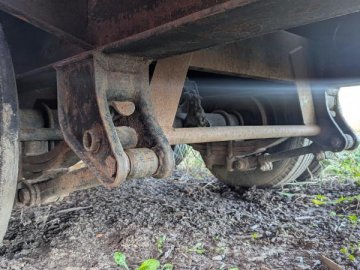

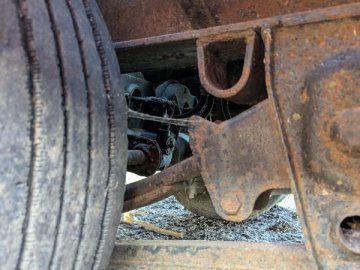

* Hutchens 9700 suspension

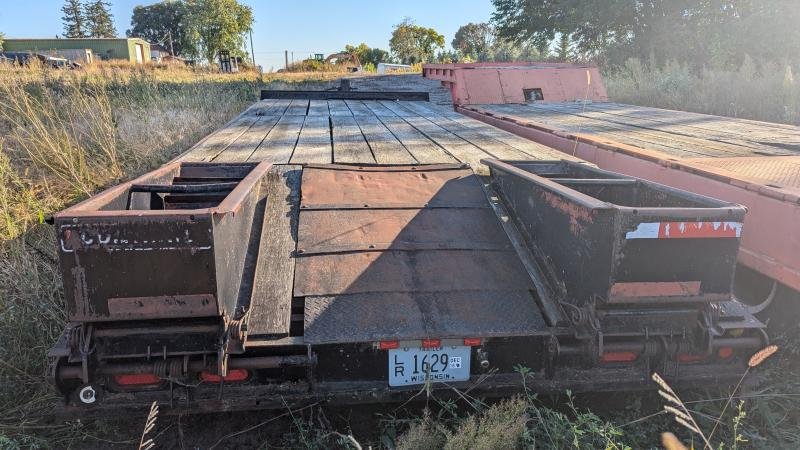

* Angle-iron beavertail

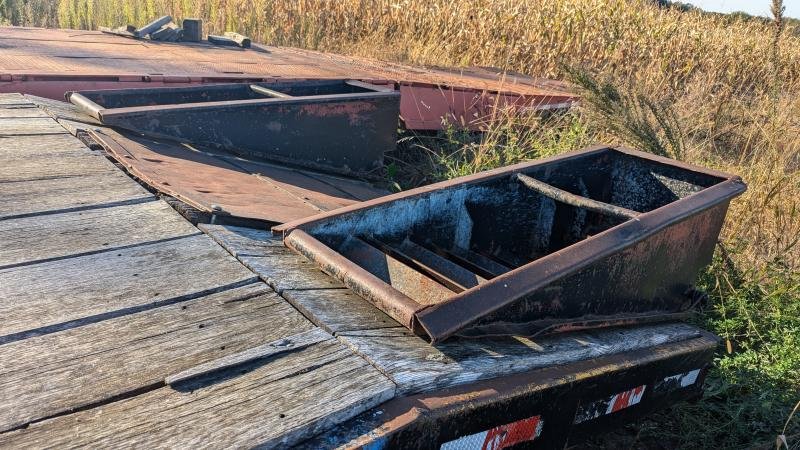

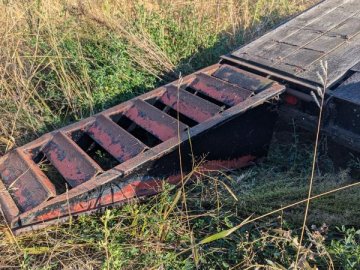

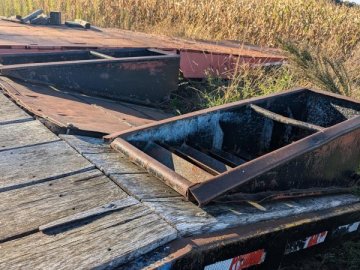

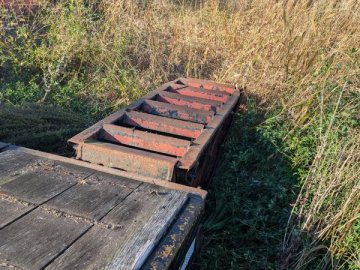

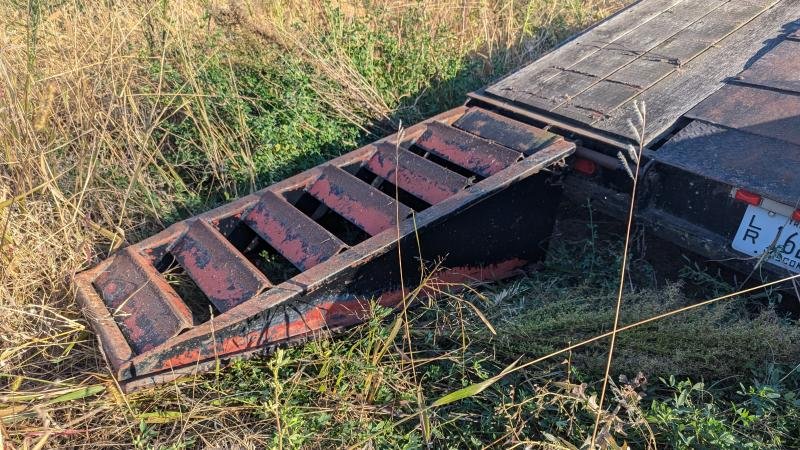

* Angle-iron cleat ramps
* Two-way spring-assist ramps
* LED lights
* Detailed Specifications

Specification T-40
Capacity (pounds) 40,000
GVWR (pounds) 49320
GAWR (pounds) 45,000
Avg. Weight (pounds) 8,800
Load Width (in) 102"
Deck Height (in) unloaded 36"
Std. Hitch Size (in) 3"
Tongue/Gooseneck Length (ft) 5'-2"
Safety Chain 1/2 Gr. 80
| Parking Jack| 25K|
1/2 Gr. 80|
| Bolted-on Parking Jack| Y| |
| Main Beam| W16x26 Beam| |
| Deck Type| Deck-Over| |
| Deck Safety Lip| N| |
| Deck Material| White Oak| |
| Added Stationary Deck| N/A| |
| Ramp Size (ft x i)| 5'-0"x21"| |
| Load Angle (degrees)| 18| |
| Dump Angle| N/A| |
| Beavertail| 5'-0"| |
| Ramp Hold-Up| N/A| |
| Ramp Spring Assist (off deck)| Std.| |
| Ramp Spring Assist (off ground)| Std.| |

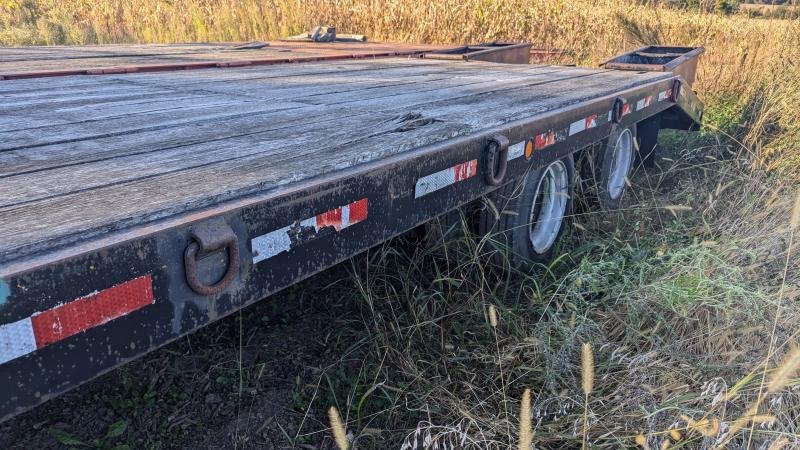

| Tie Downs| D-ring| |
| No. of Tie Downs| 8| |
| Axle Capacity| 22.5K| |
| No. of Axles| 2| |
| Axle Spread (i)| 49"| |
| Hubs| Oil Bath| |
| Brake Size| 12.25"x7.5"| |
| Electric Brakes| N/A| |
| Air Brakes| Std.| |

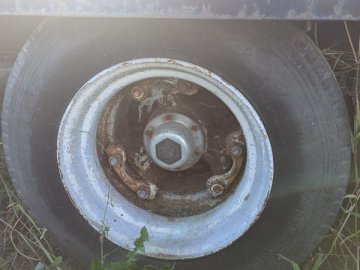

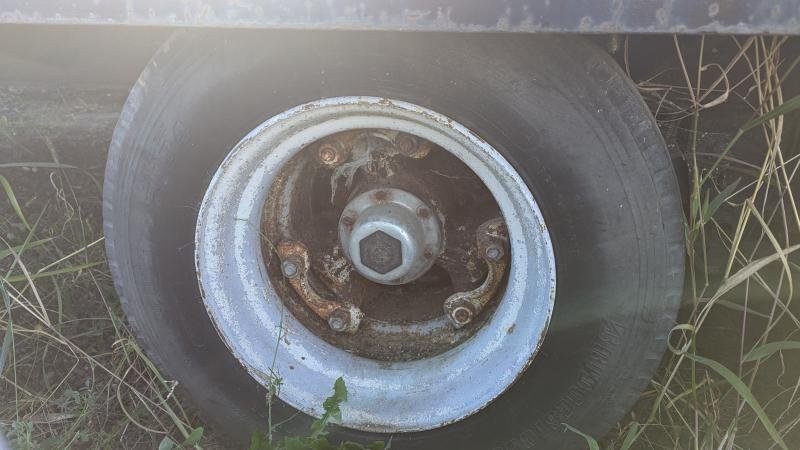

| Wheels (size)| 17.5"| |
| Wheel Bolt Patter| 8-bolt| |
| Tires| 235/75Rx17.5| |
| Tire Load Rating| H| |
| Lights| LED| |
