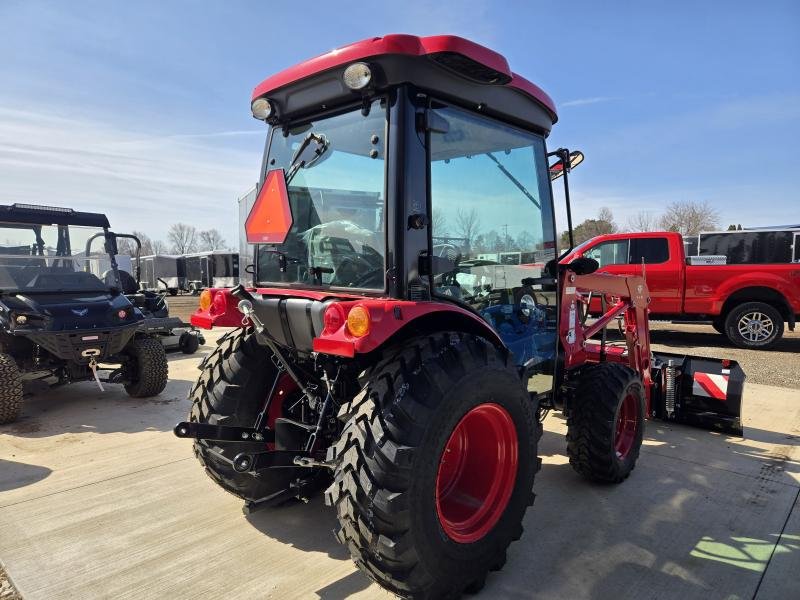

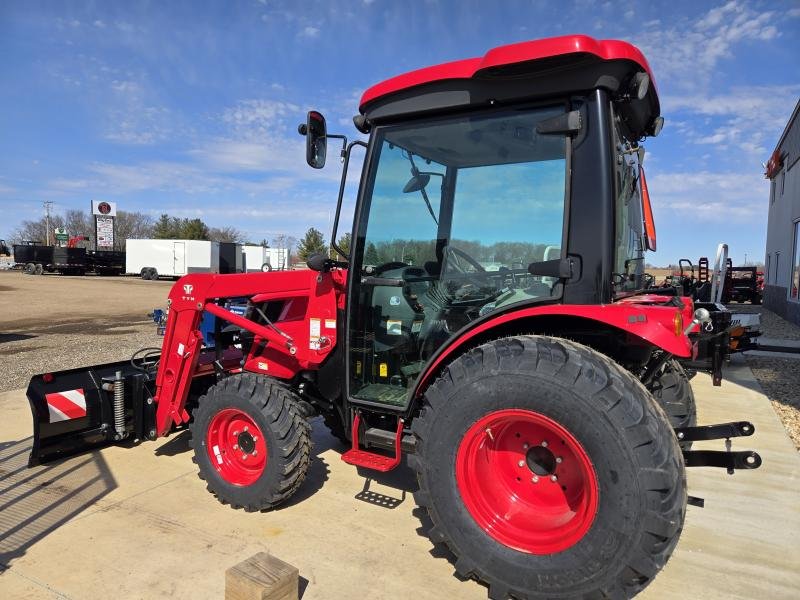

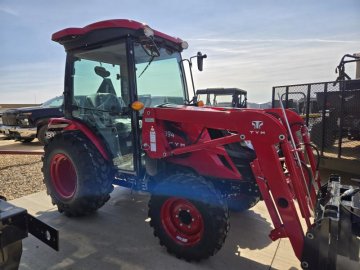

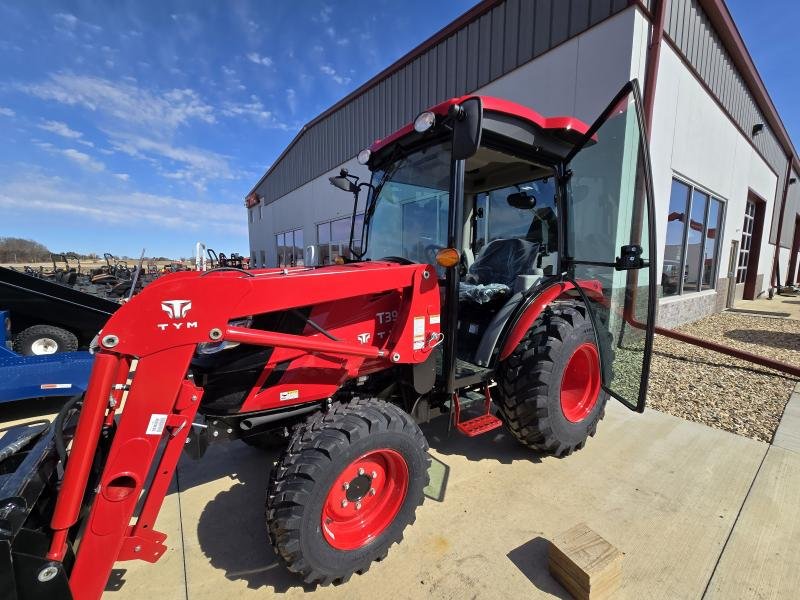

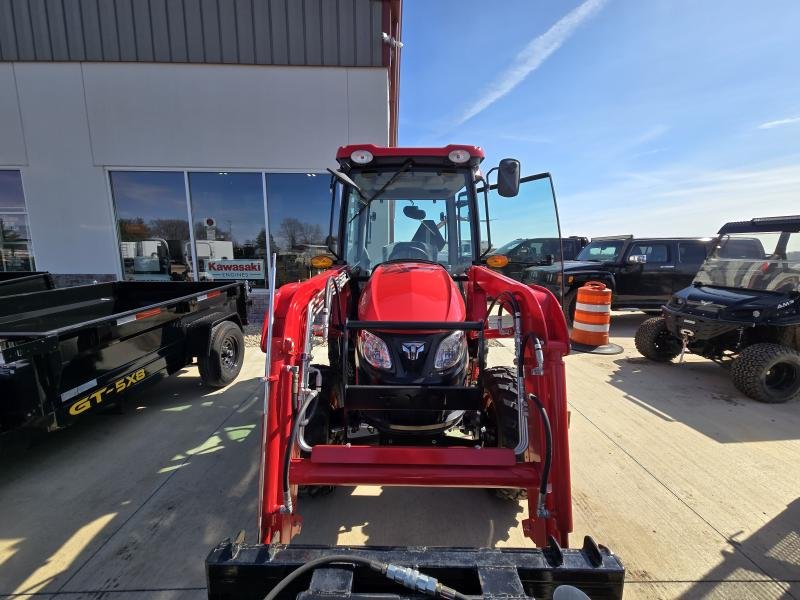

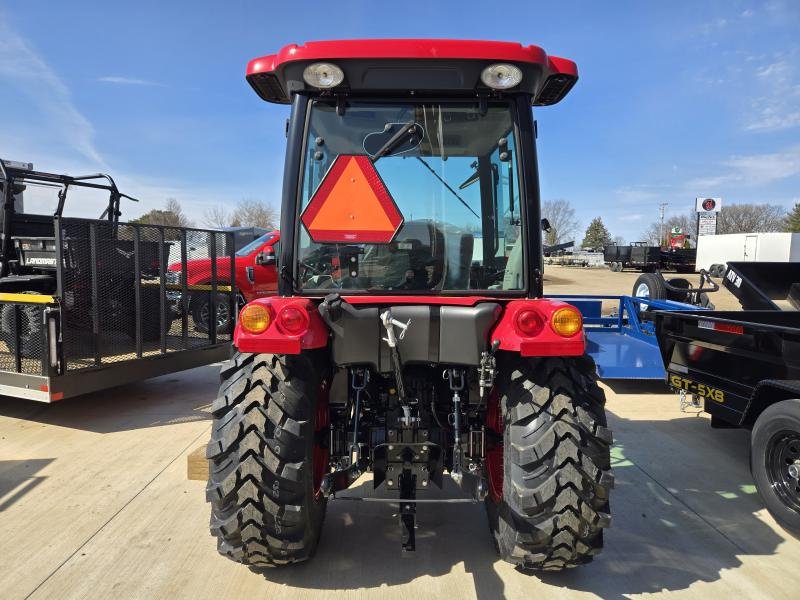

# T394CSeries 2, Compact Tractor

### Note: does not come with plow pictured, but comes with standard loader and bucket.


Take on harder tasks in smaller spaces with the T394, designed to be compact, proven to be durable and engineered to be efficient. This tractor is a workhorse in greenhouses, orchards and more.
LOADER: TX39 66" Bucket: T39HT01991

# Engine

Engine manufacturer: Yanmar 3TNV88-CR
Type: Natural Aspiration
Gross engine power: 37.4 hp | 27.5 kW
PTO power: 30.2 hp | 22.5 kW
Rated engine speed: 3000 rpm
No. of cylinders: 3
Displacement: 100.2 cu. in.
Air cleaner: Dual Dry
Alternator: R: 12V, 50A; C: 12V, 70A
Fuel system: CRDI

# Powertrain

Transmission type: HST
No. of speeds: F12xR12
Max. traveling speed: 15.0 mph
Brakes: Wet Disc
Steering: Hydrostatic
Clutch: Dry Single Plate

# Hydraulic System

Pump type: Dual Gear Pump
Implement flow: 6.1 gpm
Steering flow: 4.4 gpm
Total flow: 10.5 gpm
Category, 3-point hitch: I
Hitch lift capacity :2639 lb
Hitch lift capacity at 24 inches behind link ends: 1558 lb
Lift control type: Position
No. of standard remote valves: Optional (1 or 2)

# PTO

PTO type: Independent
PTO control: Electric/Hydro
PTO rear: 540 rpm

# Capacities

Fuel tank: 9.0 gal
Coolant: 7.4 qt
Crankcase: 6 qt
Transmission/Hydraulics system: 8.5 gal
Front axle: 8.7 qt
dimensions & weights
Overall length with 3-point hitch: 126 in.
Overall width: 53.5 in.
Wheelbase: 66.9 in.
Min. ground clearance: 12.8 in.
Min. turn radius with brakes: 94.4 in.
Min. turn radius without brakes: 116 in.
Weight: 3417 lb
Height to top of cabin: 92.5 in.

# Tires

# Multi-Trac CS 41x14.00-20 NHS TL 4PR

R4 Industrial - Front
Trac Chief 10-16.50 NHS TL 6PR
R4 Industrial - Rear
