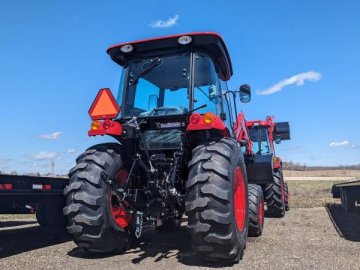

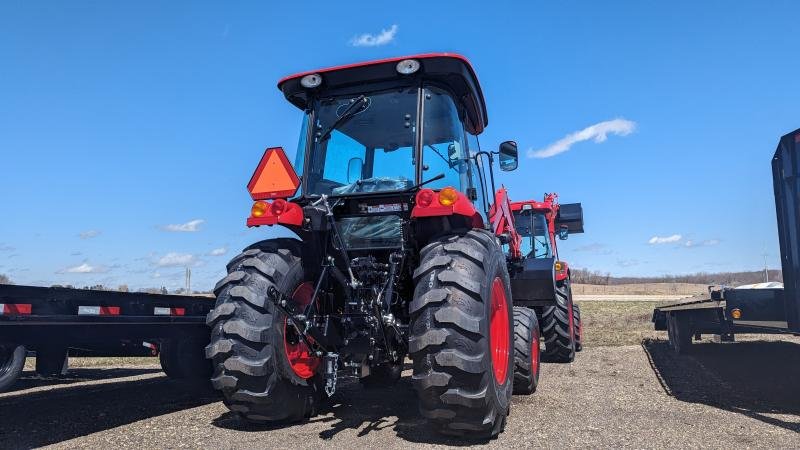

#### 2024 Hydrostatic T574 with Cab and Loader

Includes:

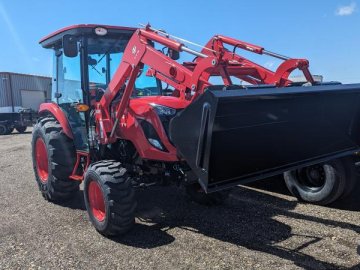

TX57 Loader: TX57T05432

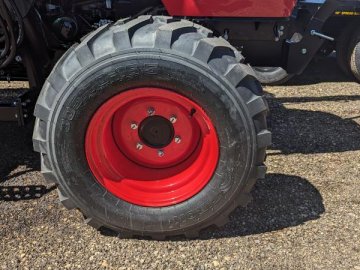

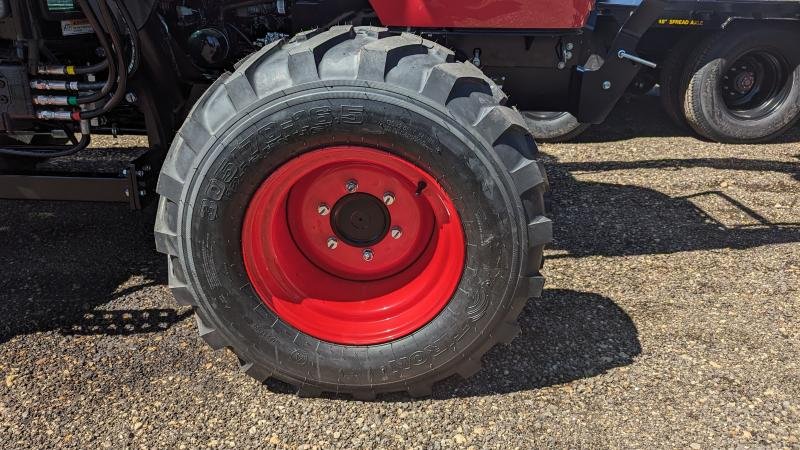

Industrial Tires: R4 Industrial - Front: Trac Chief 12-16.5 NHS TL 6PR

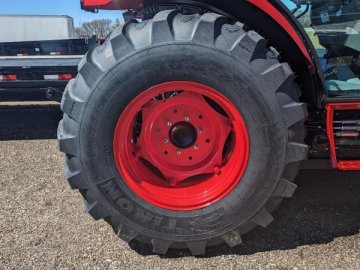

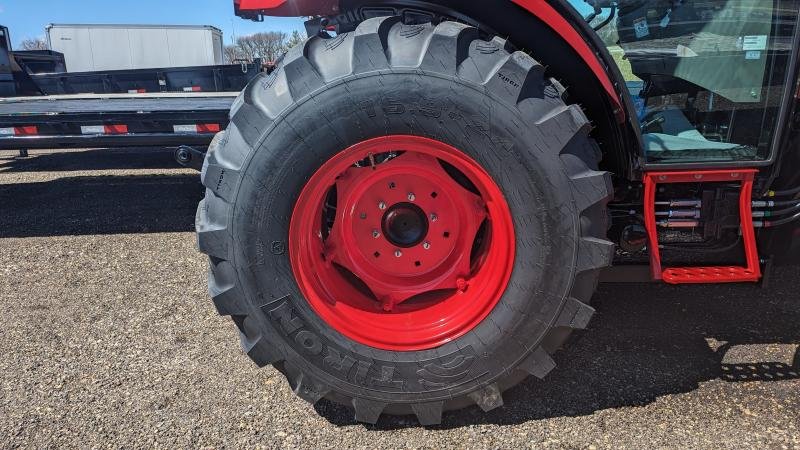

R4 Industrial - Rear: Xtra Grip 16.9-24 NHS TL 6PR

####

### ENGINE

Engine manufacturer TYM A2300T3
Type Turbo
Gross engine power 55 hp | 41 kW
PTO power 44.7 hp | 32.9 kW
Rated engine speed 2600 rpm
No. of cylinders 4
Displacement 139.5 cu. in.
Air cleaner Dual Dry
Alternator 12V, 70A
Fuel system IDI

### POWERTRAIN

Transmission type Sync Shuttle
No. of speeds F8xR8
Max. traveling speed 18.45 mph
Brakes Wet Disc
Steering Hydrostatic
Clutch Dry Single Plate

### HYDRAULIC SYSTEM

Pump type Dual Gear Pump
Implement flow 7.66 gpm
Steering flow 4.25 gpm
Total flow 11.91 gpm
Category, 3-point hitch I
Hitch lift capacity 3822 lb
Hitch lift capacity at 24 inches behind link ends 3057 lb
Lift control type Position/Draft
No. of standard remote valves 2

### PTO

PTO type Independent
PTO control Electric/Hydro
PTO rear 540 rpm

### CAPACITIES

Fuel tank 17.0 gal
Coolant 6.9 qt
Crankcase 6.8 qt
Transmission/Hydraulics system 9.2 gal
Front axle 10.5 qt

### DIMENSIONS & WEIGHTS

Overall length with 3-point hitch 141.3 in.
Overall width 63.8 in.
Wheelbase 76.2 in.
Height to top of ROPS 102.1 in.
Min. ground clearance 13.8 in.
Min. turn radius with brakes 121.2 in.
Min. turn radius without brakes 131.5 in.
Weight with ROPS 3887 lb
Weight with cab 4233 lb
