### UPGRADES INCLUDED:

* CLASSIC EDITION 4X2 - POLY BED
Content Included: Poly Bed, Tail Lights,â?‹ Hornâ?‹, Side Nets, 25" Cruiser Tires With Aluminum Rims
* Poly Roof
* Poly Carbonate Split Windshield

### STANDARD FEATURES:

POWER / MOTOR
AC Motor powered by a 48V Lithium-Ion battery powerplant (8.0kW)
SPEED
30MPH* (24MPH with Rear Flip Seat)
RANGE
Up to 50 miles*
STARTING
Keyed on/off
BATTERY
48V 160AH Lithium-Ion
TRANSMISSION
Direct drive
ALTERNATOR
Converter / 40 amps
TRANSAXLE
Model 24 Schafer
DIFFERENTIAL
Cable Activated Rear Locking
DRIVE
4wd (Switch engaged on demand, 4 wheel drive)

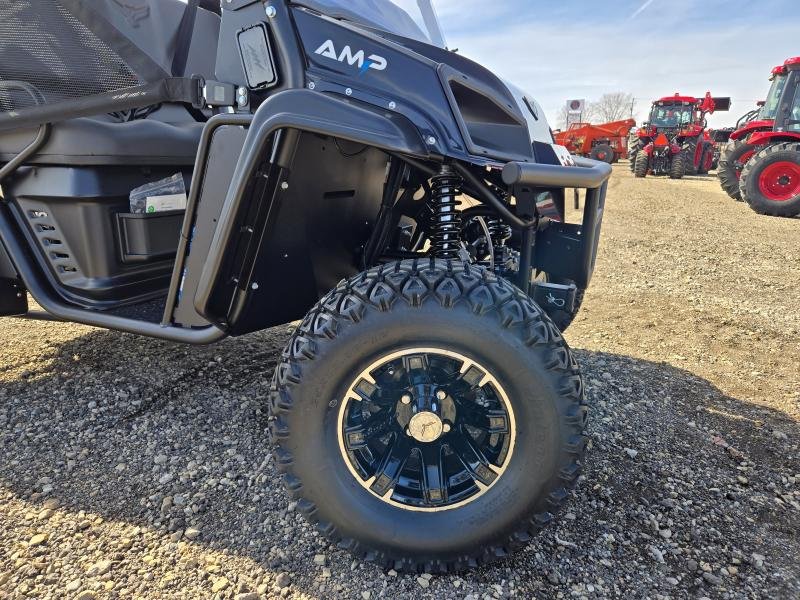

FRONT SUSPENSION
Double A-arms, adjustable coil over shock with up to 8" travel

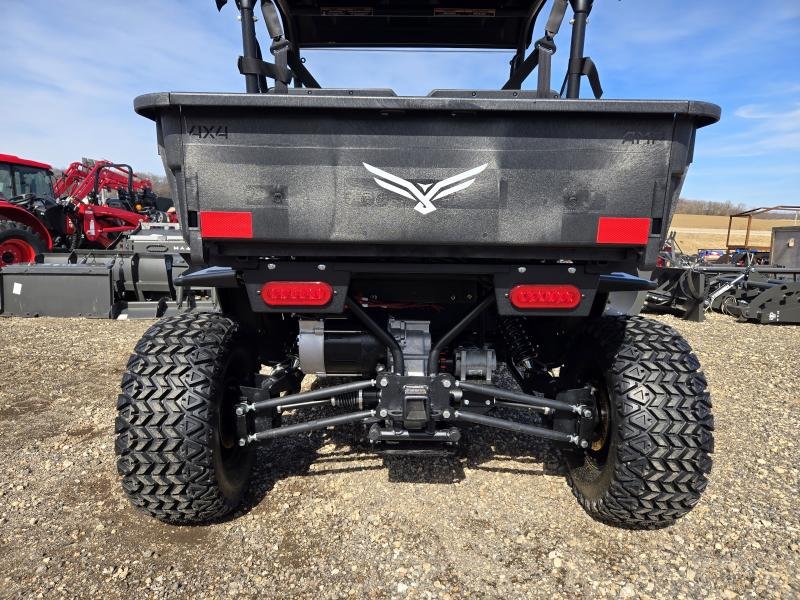

REAR SUSPENSION
Independent trailing arm, with radius rod, adjustable camber & tow control, dual-rate coil over shock with up to 8" of travel
BRAKE SYSTEM
4 wheel disc, hydraulic brake / hand-operated parking brake
TIRES
25" Standard HD DOT / Radial 8 Ply Tires on 12" Steel Wheels
DIMENSIONS
110" L x 58" W x 76" H (110" L with poly bed)**
WHEEL BASE
73"
TURNING RADIUS
9' inside radius
GVWR
2,220 lbs.
CURB WEIGHT
1,350 lbs.

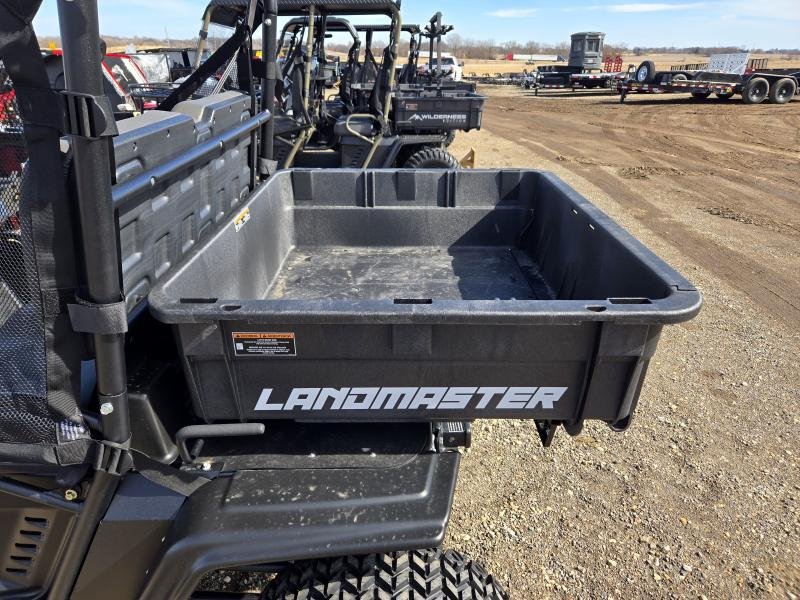

BED MATERIAL
"Poly Bed" with stake pockets
BED DIMENSIONS
35.25" L x 41.5" W x 11" D
GROUND CLEARANCE
11"
*BED CAPACITY
Poly - 9 cu.ft. / 500 lbs.
TOWING CAPACITY
1,500 lbs.
TOTAL CAPACITY
900 lbs.
WARRANTY
1 year motor / all other 1 year limited, 5 year Lithium battery
ADDITIONAL FEATURES

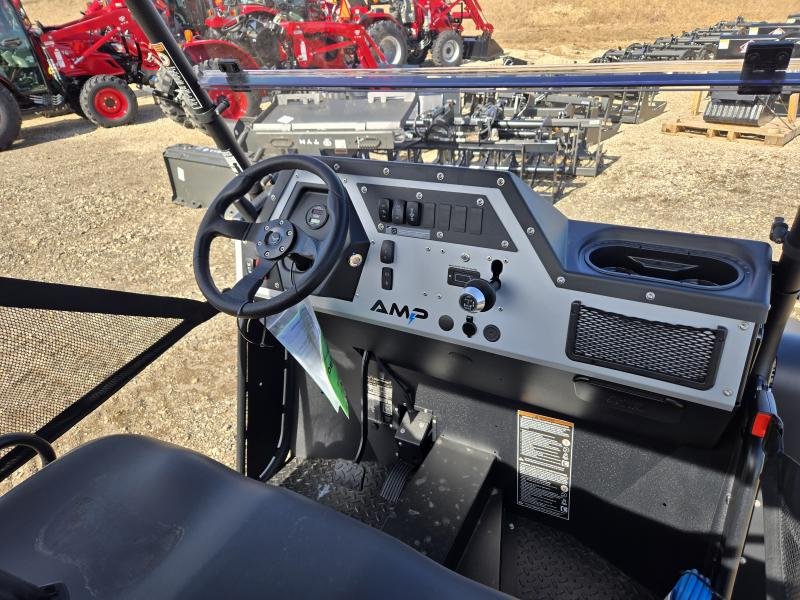

On-board charger, DOT certified 3pt lap / shoulder belts for driver & passenger, 12V/18W LED headlights, 2" rear and front receiver hitch, welded steel frame, Single 12V auxiliary outlet for accessories, polyurethane powder paint. Complete weather-sealed wiring connections. Wide slection of additional accessories available along with three bed options. In-dash, hour meter standard. LED true state of charge meter for the 48 volt system is standard. Low charge audible warning. Battery shut down switch. Electric accelerator pedal.
HILL CLIMBING CAPABILITIES
Your AMP is capable of climbing continuous inclines up to 25 degrees. Depending on the passenger(s) and cargo weight, expect top speed between 5-10 MPH.
