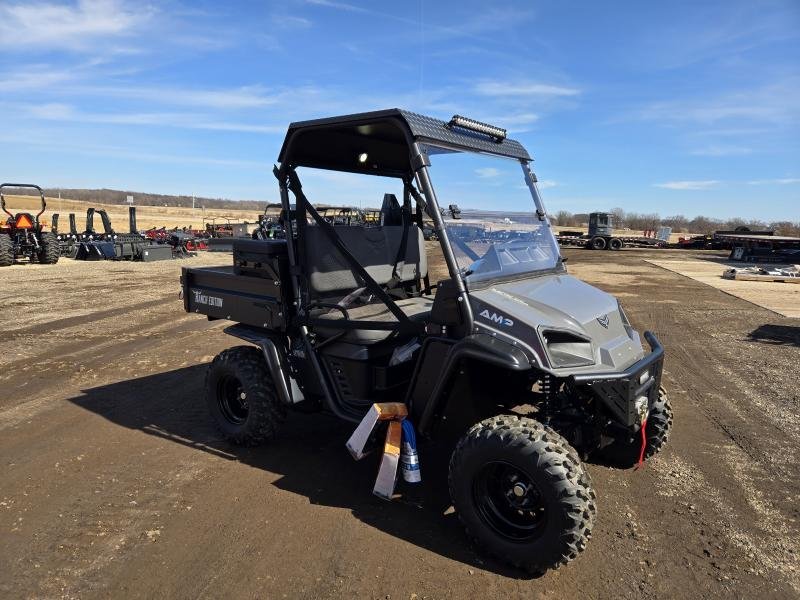

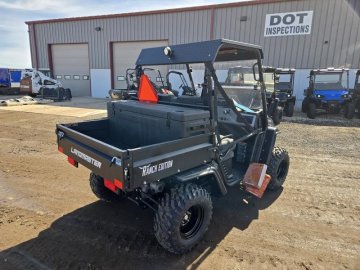

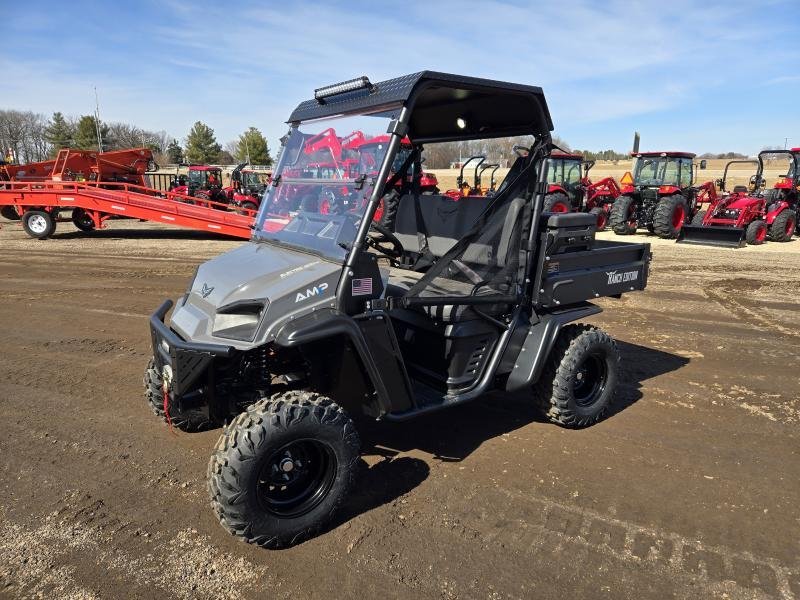

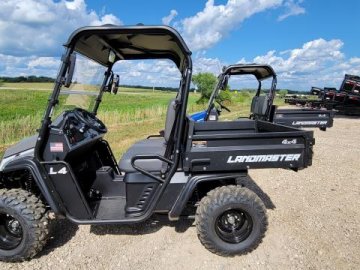

# American Landmaster AMP-Ranch Edition

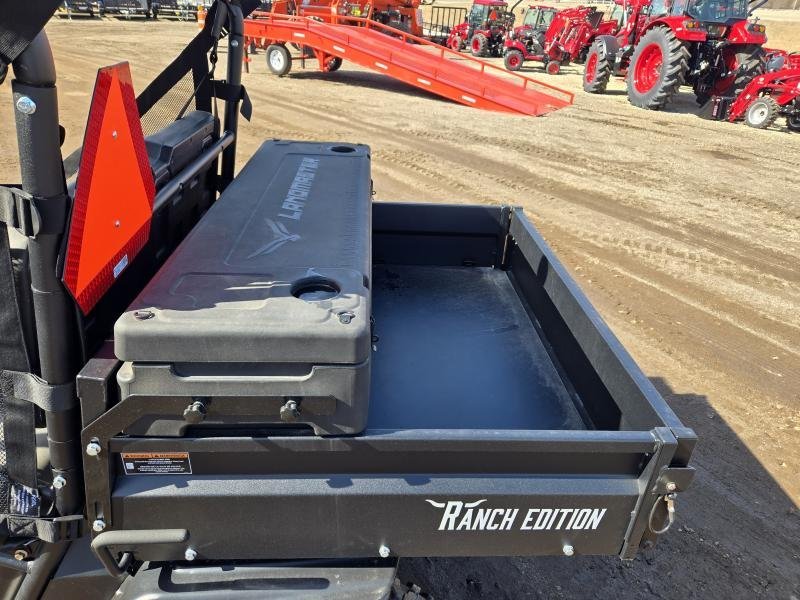

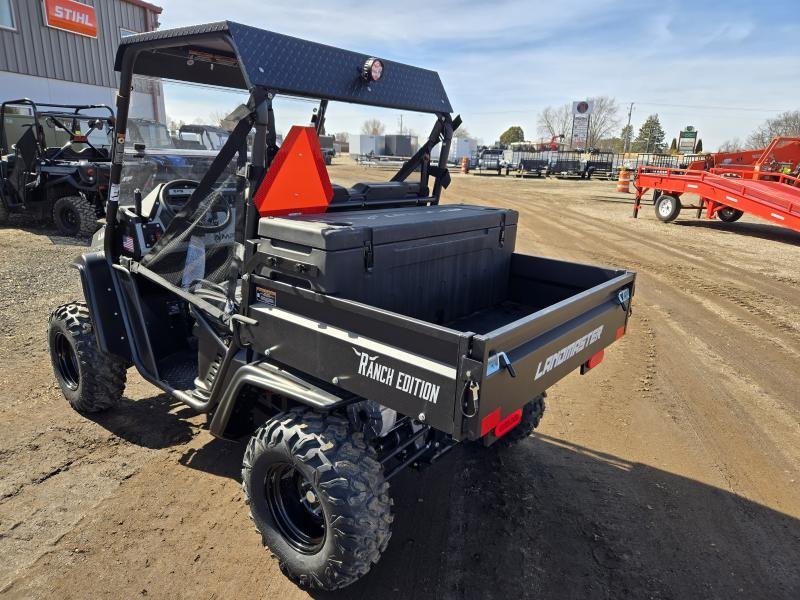

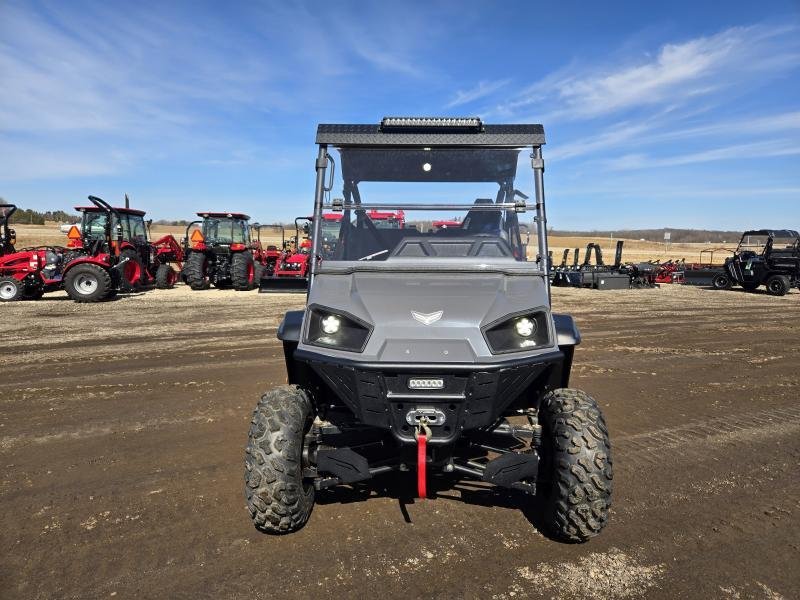

**Ranch Edition Content Included:** HD Bumper with LED Light, Convertible Steel Bed / Flat Bed, Grey Hood, Toolbox / Cooler, Split Windshield, CV Guards, Metal Roof, EPS Power Steering, Dome Light, Horn Kit, Roof-Mounted LED Bar, Rear Work Light, Tail / Brake Lights, 3,000 lbs. Winch, USB Charger, Center Console with Lockable Storage, Rearview Mirror, 4 Tool Clamps, Heavy Duty Shocks, 1,000ft. Distance Safety Triangle
Total Number Of Upgrades: **19**
Total Package Value: **$10,074**

### HIGH TORQUE MOTOR

##### BUILD FOR HARSH, HIGH-DEMANDING ENVIRONMENTS

Commercial-grade, direct drive motor to give you the most power and torque to your rear wheels.

### QUICK, EASY CHARGE

##### EASY 110V CHARGE SYSTEM

8hrs (extended range battery) when charging from 0 to 100%. Easily plugs into a standard 110v outlet in your garage, barn or other exterior outlet.

### OPTIMAL RANGE

##### ALL-DAY STOP & START

Our extended-range battery comes standard in the AMP Standard. With it, you'll get upwards of 50 miles in range. For basic use and stopping and starting, your Landmaster AMP will last all day. Traveling at faster speeds, hauling heavy loads, and driving up hills can limit your range and/or speed.

### DUAL-RATE SHOCKS

##### UNCOMPROMISED RIDE

Designed to provide adequate support and comfort without compromising your ride quality when under full load.

### EXTRA TRACTION

##### REAR-LOCKING DIFFERENTIAL

Provides additional traction by locking both rear wheels to spin together. Typically used when going through mud, snow, or other loose terrain.

### RANGE INDICATOR

##### 10% INCREMENTS TO MONITOR BATTERY LIFE

Know when you're low with our audible warning indicator that beeps at 20%.

### 4X4 ELECTRIC IS INCREDIBLY POWERFUL

##### EXPERIENCE THE POWER OF AMP

Go through mud, trenches, and snow with no problem. Our all-electric AMP UTVs bring all the capabilities and fun of a gas-powered unit minus the loud noises and fumes of a traditional motor.

## Specifications

* **POWER / MOTOR**
* **AC Motor powered by a 48V Lithium-Ion battery powerplant (8.0kW)**
*
* **SPEED**
* **30MPH* (24MPH with Rear Flip Seat)**
*
* **RANGE**
* **Up to 50 miles***
*
* **STARTING**
* **Keyed on/off**
*
* **BATTERY**
* **48V 160AH Lithium-Ion**
*
* **TRANSMISSION**
* **Direct drive**
*
* **ALTERNATOR**
* **Converter / 40 amps**
*
* **TRANSAXLE**
* **Model 24 Schafer**
*
* **DIFFERENTIAL**
* **Cable Activated Rear Locking**
*
* **DRIVE**
* **4wd (Switch engaged on demand, 4 wheel drive)**
*
* **FRONT SUSPENSION**
* **Double A-arms, adjustable coil over shock with up to 8" travel**
*
* **REAR SUSPENSION**
* **Independent trailing arm, with radius rod, adjustable camber & tow control, dual-rate coil over shock with up to 8" of travel**
*
* **BRAKE SYSTEM**
* **4 wheel disc, hydraulic brake / hand-operated parking brake**
*
* **TIRES**
* **25" Standard HD DOT / Radial 8 Ply Tires on 12" Steel Wheels**
*
* **DIMENSIONS**
* **110" L x 58" W x 76" H (110" L with poly bed)****
*
* **WHEEL BASE**
* **73"**
*
* **TURNING RADIUS**
* **9' inside radius**
*
* **GVWR**
* **2,220 lbs.**
*
* **CURB WEIGHT**
* **1,350 lbs.**
*
* **BED MATERIAL**
* **"Poly Bed" with stake pockets**
*
* **BED DIMENSIONS**
* **35.25" L x 41.5" W x 11" D**
*
* **GROUND CLEARANCE**
* **11"**
*
* ***BED CAPACITY**
* **Poly - 9 cu.ft. / 500 lbs.**
*
* **TOWING CAPACITY**
* **1,500 lbs.**
*
* **TOTAL CAPACITY**
* **900 lbs.**
*
* **WARRANTY**
* **1 year motor / all other 1 year limited, 5 year Lithium battery**
*
* **ADDITIONAL FEATURES**
* **On-board charger, DOT certified 3pt lap / shoulder belts for driver & passenger, 12V/18W LED headlights, 2" rear and front receiver hitch, welded steel frame, Single 12V auxiliary outlet for accessories, polyurethane powder paint. Complete weather-sealed wiring connections. Wide slection of additional accessories available along with three bed options. In-dash, hour meter standard. LED true state of charge meter for the 48 volt system is standard. Low charge audible warning. Battery shut down switch. Electric accelerator pedal.**
*
* **HILL CLIMBING CAPABILITIES**
* **Your AMP is capable of climbing continuous inclines up to 25 degrees. Depending on the passenger(s) and cargo weight, expect top speed between 5-10 MPH.**
