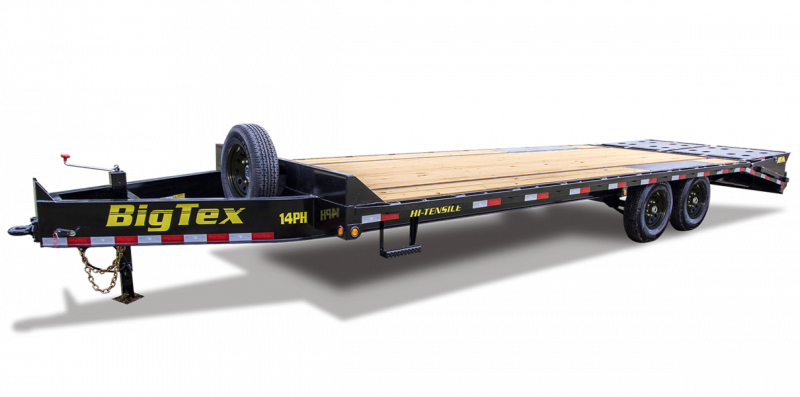

#### 14PH SINGLE WHEEL TANDEM AXLE PINTLE TRAILER

The 14PH from Big Tex Trailers is a tandem axle pintle hitch hauler. Standard features include two 7K axles, a spare tire and wheel, an LED lighting package and a low-profile bed with a pierced-beam frame. The 14PH delivers exceptional performance at a price that cant be beat.

#### SPECS

AXLE(2) 7,000# EZ Lube w/Electric Brakes

JACK 12,000# Drop Leg Jack - Top Wind

TIRE ST235/80 R-16 Load Range E

FLOOR 2" Treated Pine or Douglas Fir*

FRAME 12" I-Beam 14#

WHEEL 16" x 6"; Heavy Black Mod 8 Bolt

FINISH Superior Quality Finish is Applied for a Highly Decorative and Protective Finish.

LIGHTS L.E.D. D.O.T. Stop, Tail, Turn & Clearance

TONGUE Integral with Frame (12" I-Beam, 14#)

COUPLER 3" ID Pintle Ring

DOVETAIL 5 Cleated Dovetail w/5 Double Hinged, Spring-Assisted Flip-Over Ramps

G.V.W.R. 15,900#

ELEC. PLUG 7-Way RV

HITCH TYPE Pintle Hitch

SIDE RAILS 5" Channel w/Rub Rail, Stake Pockets, and Chain Spools

SUSPENSION Multi-Leaf Slipper Spring w/Equalizer

CROSSMEMBERS 3" Channel

FINISH (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish.

SAFETY CHAINS 3/8" Grd. 70 w/Safety Latch Hook (2 each)

G.A.W.R. (Ea. Axle) 7,000#
