7'x20' Big Tex Trailers 14EB-20 Equipment



Standard Feature

Axles

2 - 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs

Brakes

Forward Self-Adjusting Electric Brakes on All Hubs

Suspension

Multi-Leaf Slipper Spring w/ Equalizer

Coupler

Adjustable 2-5/16" Coupler

Safety Chains

3/8" Grade 70 w/ Safety Latch Hook (2 ea)

Jack

7,000# Top Wind Drop Leg Jack

Frame

6" Channel

Cross-Members

3" Channel on 16" Centers

Front Stop Rail

3/16" Fabricated Front Stop Rail

Floor

Treated Pine Floor

Fenders

9” x 72” 14 Ga. Diamond Plate Double Square Broke w/Back (Removable)

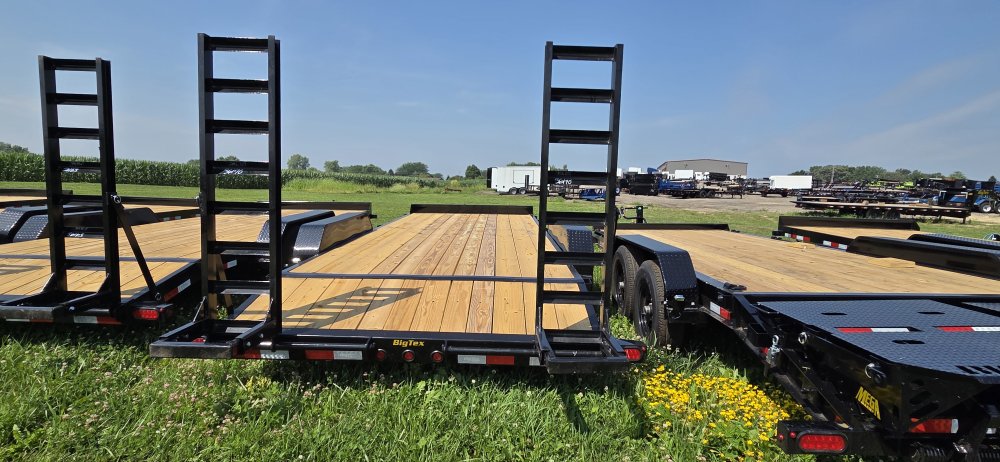

Ramps

5' Knee Ramps

Dovetail

32" Wood-Filled Dovetail

Stake Pockets

Stake Pockets Along Both Sides (Quantity Varies by Length)

Trailer Plug

7-Way RV

Lights

L.E.D. D.O.T. Stop, Tail, Turn & Clearance

Wiring

Sealed, Modular Cold-Weather Wiring Harness

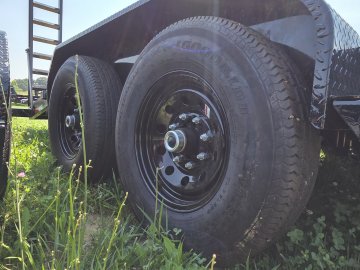

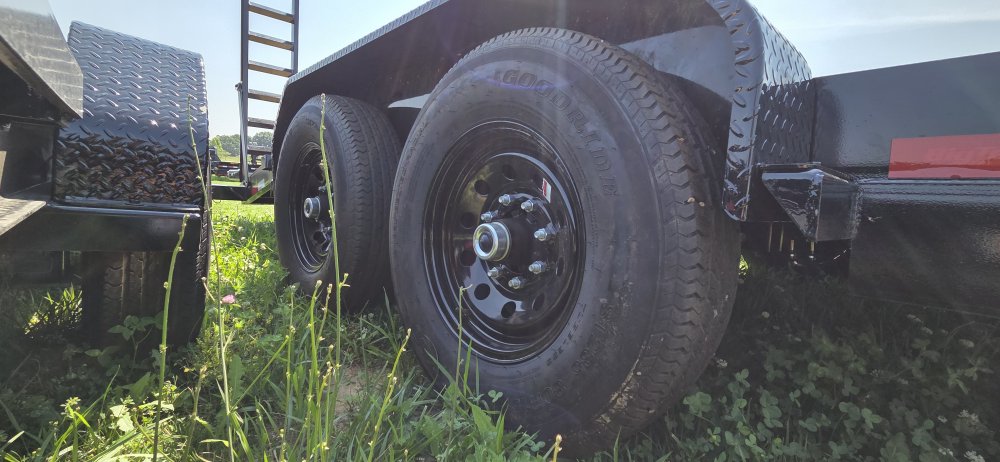

Tires

ST235/80 R-16 Load Range E Radial Tires

Bolt Pattern

8-Lug

Spare Mount

Front Spare Tire Mount

Spare Tire

Not Included

Paint Color

Black

Break-Away Kit

Complete Breakaway System w/ Zip Breakaway Cable
