#### 22PH TANDEM DUAL WHEEL PINTLE TRAILER

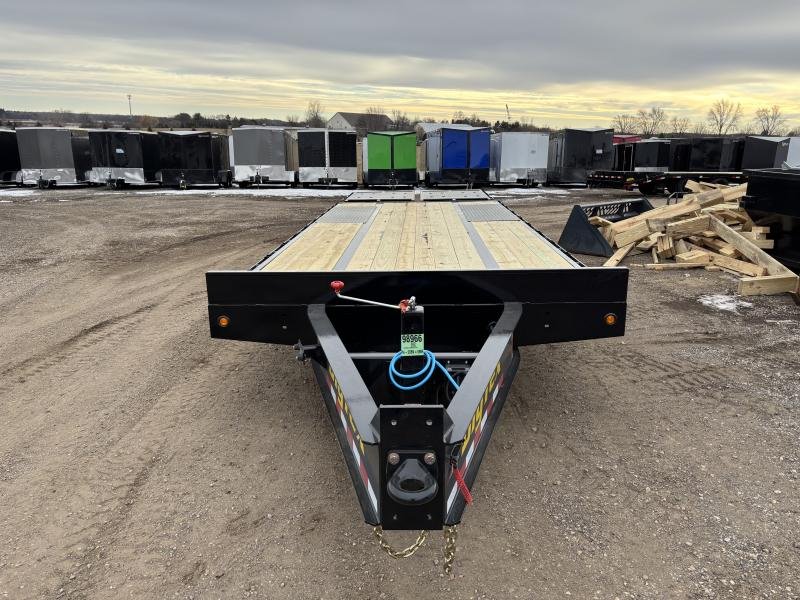

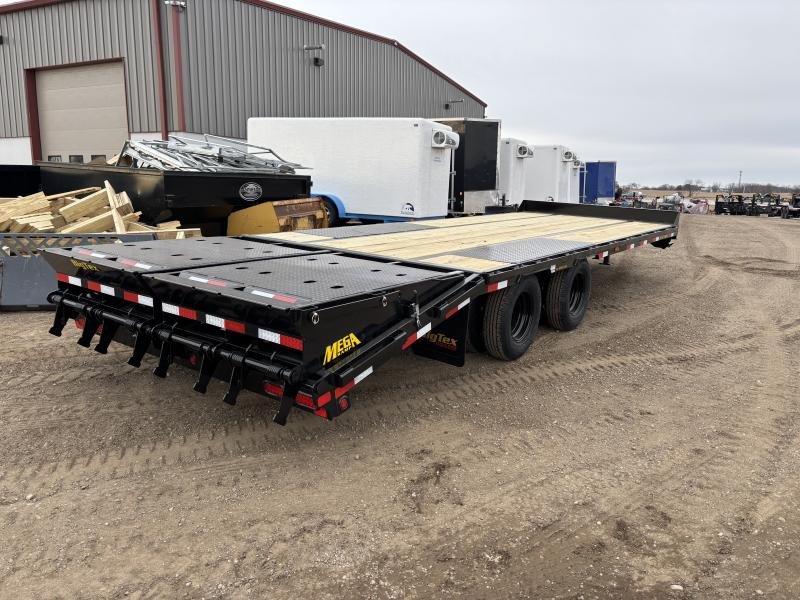

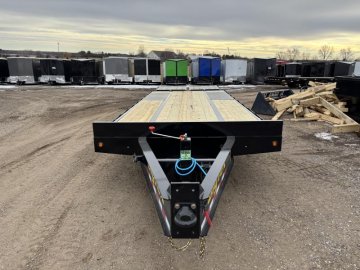

The 22PH from Big Tex Trailers is a tandem dual wheel pintle hauler. Standard features include two 10K axles, a spare tire and wheel, an LED lighting package and a low-profile bed with a pierced-beam frame.

#### SPECS

AXLE (2) 10,000# Dual Wheel w/ Electric Brakes (Oil Bath)

JACK 12,000# Drop Leg Jack (Bolted On)

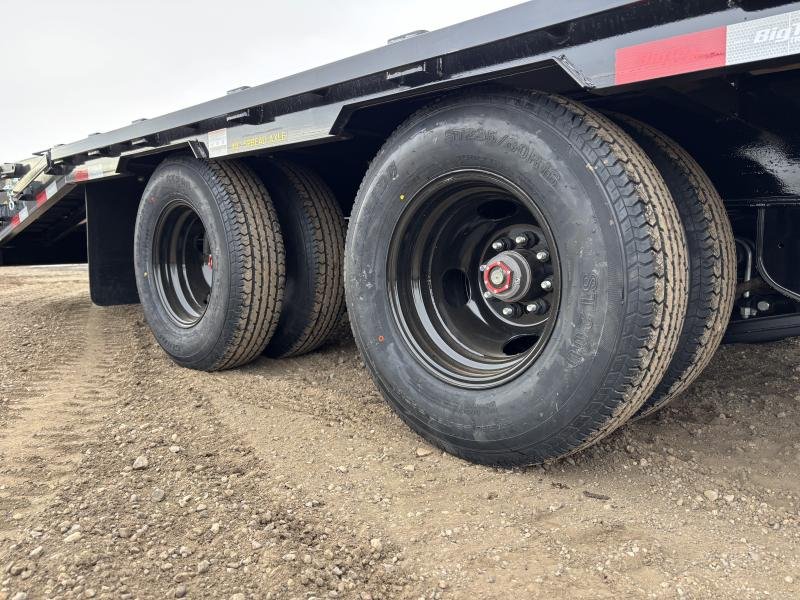

TIRE ST235/80 R-16 Load Range E Dual

FLOOR 2" Treated Pine or Douglas Fir*

FRAME 12" I-Beam

WHEEL 16" x 6"; Black Dual 8 Bolt

FINISH Superior Quality Finish is Applied for a Highly Decorative and Protective Finish.

LIGHTS L.E.D. D.O.T. Stop, Tail, Turn & Clearance

TONGUE 12" I-Beam, 16#

COUPLER 3" ID Pintle Ring

DOVETAIL 5 Cleated Dovetail w/5 Double Hinged, Spring-Assisted Flip-Over Ramps

G.V.W.R. 23,900#

ELEC. PLUG 7-Way RV

HITCH TYPE Pintle Hitch

SIDE RAILS 8" Channel w/Rub Rail, Stake Pockets, and Chain Spools

SUSPENSION Heavy Duty 30,000# Adjustable

CROSSMEMBERS 3" Channel

FINISH (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish.

SAFETY CHAINS 3/8" Grd. 70 w/Safety Latch Hook (2 each)

G.A.W.R. (Ea. Axle) 10,000#
