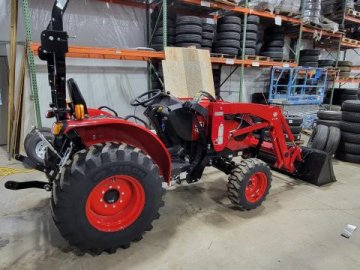

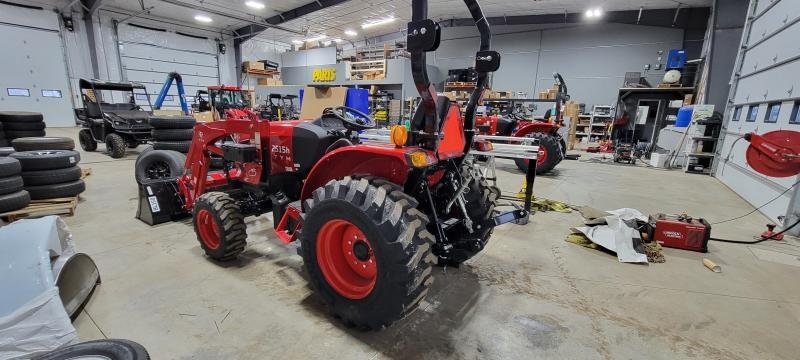

**FRONT END LOADER AND ATTACHEMENT INCLUDED:**
**BL150: Lift capacity 2,200 lb: B150U14139**
**Hybrid Tires**

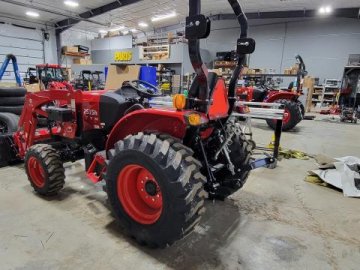

#### Series 2 Compact Tractor

The Series 2 tractors are built to take on more demanding tasks while maintaining the smallest frame possible, tackling routine jobs, and the occasional tougher challenges, in and around your property. Use the front loader to transport material around your property and use the rear hitch for tow-behind implements to complete tasks like cleaning efficiently

#### 2515

Mid-sized Series 2 tractor designed for lasting durability. This robust and efficient tractor is fit for a range of applications of varying intensities.

#### Standard Equipment

**Engine**

TYM A1700N6 IDI | 24 hp | 18 kW

**Transmission**

3-range HST

**Protection**

Foldable ROPS

**Standard Equipment**

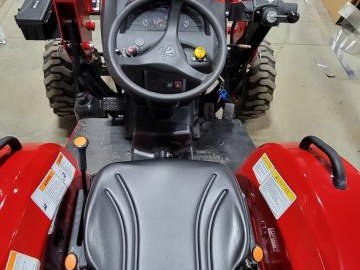

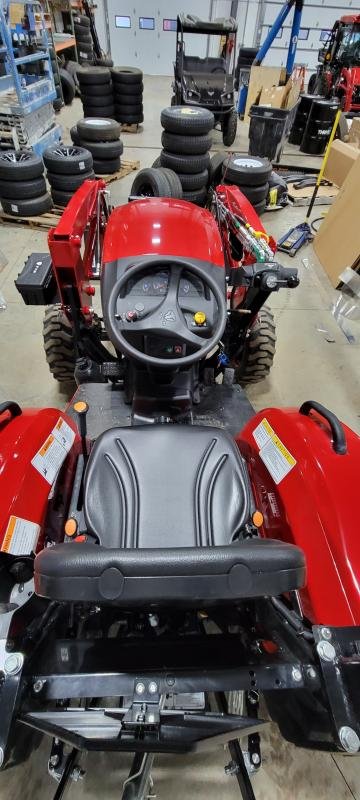

Ergonomic levers

Suspension seat

Differential lock

Selectable four wheel drive

540 rpm PTO selection

Independent PTO

Hydrostatic power steering

High-capacity fuel tank

Cruise control

Tilt steering wheel

**ENGINE**
Engine manufacturer TYM AN IDI
Type Natural Aspiration
Gross engine power 24 hp
PTO power 21 hp | 15.7 kW
Rated engine speed 2100 rpm
No. of cylinders 3
Displacement 104.5 cu. i. | 1714 cc
Air cleaner Dry Element
Alternator V, A
Fuel system IDI

**POWERTRAIN**
Transmission type HST
No. of speeds -Range
Max. traveling speed 15.2 mph | 24.5 kmph
Brakes Wet, Multi-disc
Steering Hydrostatic
Clutch No

**CAPACITIES**
Fuel tank 7.1 gal | 27 L
Coolant 5.3 qt | 4.9 L
Crankcase 4.5 qt | 4.2 L
Transmission/Hydraulics system 9.8 gal | 37.1 L
Front axle 1.7 qt | 1.6 L

**PTO**
PTO type Independent
PTO control Wet, Multi-disc
PTO rear 540 rpm

**HYDRAULIC SYSTEM**
Pump type Single Gear Pump
Implement ow 4 gpm | 15.1 l/min
Steering ow 7.5 gpm | 28.4 l/min
Total ow 11.5 gpm | 43.5 l/min

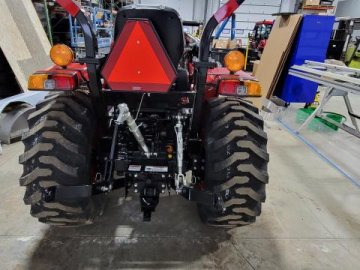

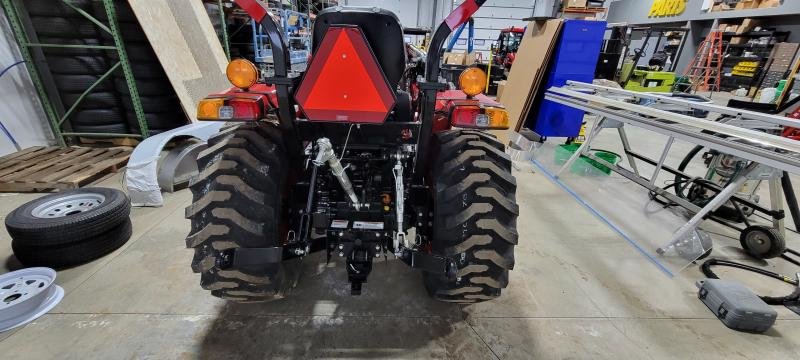

Category, -point hitch I
Hitch lift capacity 3306 lb | 1500 kg
Hitch lift capacity at 24 inches behind link ends 2425 lb | 1100 kg
Lift control type Position
No. of standard remote valves Optional (up to 4)

**DIMENSIONS & WEIGHTS**
Overall length with -point hitch 120.9 i. | 3071 mm
Overall width 56.3 i. | 1430 mm
Wheelbase 65.7 i. | 1670 mm
Height to top of ROPS 97.3 i. | 2471 mm
Mi. ground clearance 14.4 i. | 366 mm
Mi. turn radius with brakes 7.5 in | 2.3 mm
Mi. turn radius without brakes 104.7 in | 2659.4 mm
Weight with ROPS 2969 lb | 1347 kg

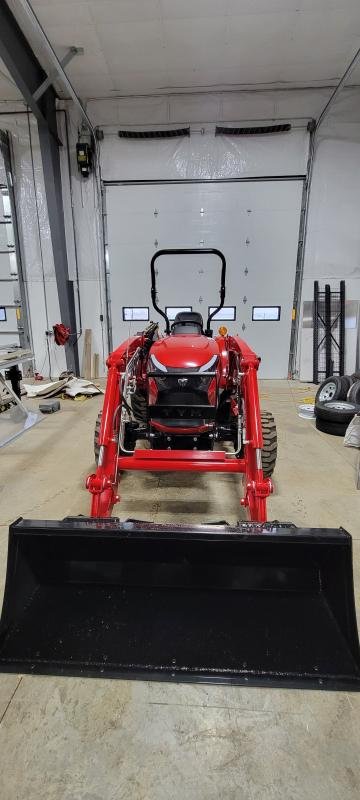

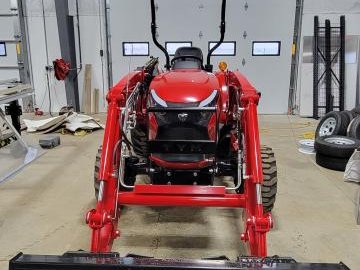

# **LOADER SPECS:**

**Capacities & Reach**
Lift height 2665 mm | 104.9 i.
Max. lift height under level bucket 2445 mm | 96.3 i.
Clearance with bucket dumped 1955 mm | 77.0 i.
Reach at maximum lift height 405 mm | 15.9 i.
Max. dump angle 55°
Reach with bucket on ground 1847 mm | 72.7 i.
Max. rollback angle 35°
Digging depth 119 mm | 4.7 i.
Lift capacity at pivot point (max. height) 998 kgf | 2200 lb
Breakout force at ground level, pivot pins 1552 kgf | 3422 lb
Bucket rollback force at ground line 1160 kgf | 2557 lb
Bucket capacity 0.23 cu. m | 8.1 cu. ft
Relief valve setting (loader control valve) 172 kg/sq. cm | 2446 psi
Compatible bucket sizes 66" Front-end loader bucket
**Dimensions & Weights**
Overall height in carry position 1295 mm | 51.0 i.
Depth of Attachment (to the back of the inner shell) 530 mm | 20.9 i.
Height of Attachment 530 mm | 20.9 i.
Length of Attachment (to pivot pi) 712 mm | 28.0 i.
Weight of boom & quick attach mechanism (1) 225 kg | 496 lb
Weight of mounting frame (2) 122 kg | 269 lb
Weight of bucket (3) 110 kg | 243 lb
Loader total weight (1+2+3) 457 kg | 1008 lb
Lift cylinder 55 x 30 mm | 2.2 x 1.2 i.
Bucket cylinder 50 x 30 mm | 2.0 x 1.2 i.
Attachment used for specification 1570 mm | 62 i.
**Cycle Times**
Boom raising time 4.4 sec
Boom lowering time 3.1 sec
Bucket rollback time 2.6 sec
Bucket dumping time 4.2 sec
