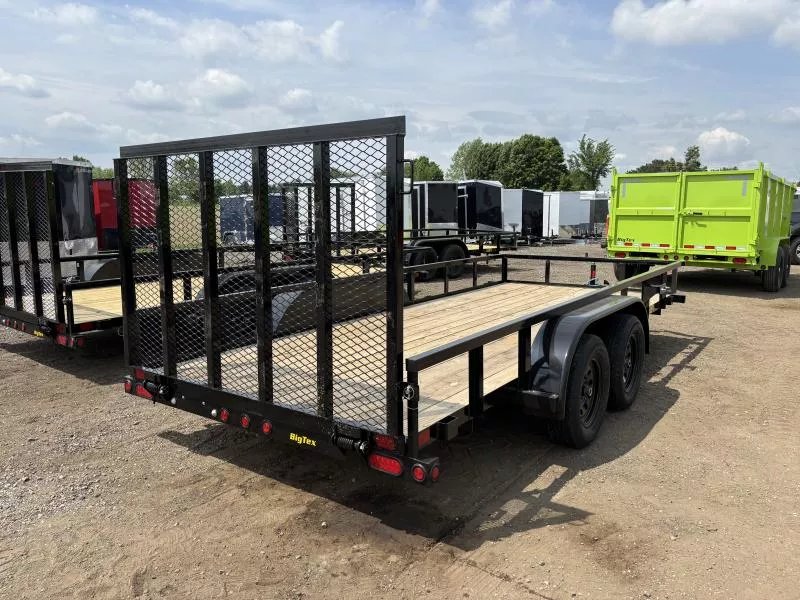

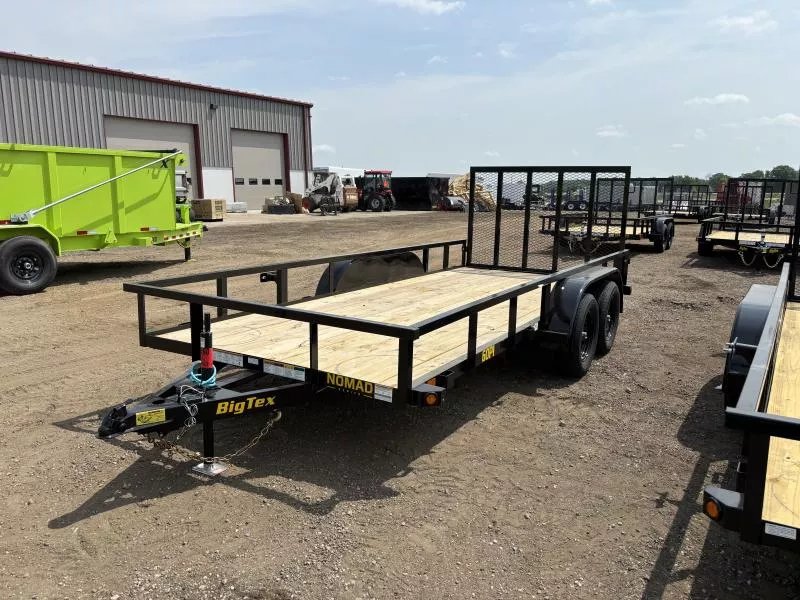

6' 4"x16' Big Tex Trailers 60PI-16 Utility



TANDEM AXLE PIPE TOP UTILITY TRAILER

Ready to haul light-duty equipment wherever a job needs doing, the durable and reliable 60PI Tandem Axle Pipe Top Utility Trailer is designed to make equipment transportation easy. It's built to tackle the toughest jobs with a 6,000 lbs G.V.W.R. and reinforced structure for enhanced strength. In other words, it has the brawn to safely and securely get small tractors and side-by-sides to where they need to go. Plus, optional slide-in ramps make loading and unloading even easier, helping you focus on the task at hand.

STANDARD FEATURE

Axles 2 - 3,500# Premium, Cambered Axles with Quick-Lubricating Hubs

Brakes Electric Brake on Front Axle

Suspension Multi-Leaf Spring w/ Equalizer

Coupler 2" A-Frame

Safety Chains1/4" Grd. 30 w/ Safety Latch Hook (2 ea)

Jack 2,000# Top Wind, Set-Back Jack with Removable Sand Foot

Frame 3" x 2" x 3/16" Angle

Cross-Members 3" x 2" x 3/16" Angle

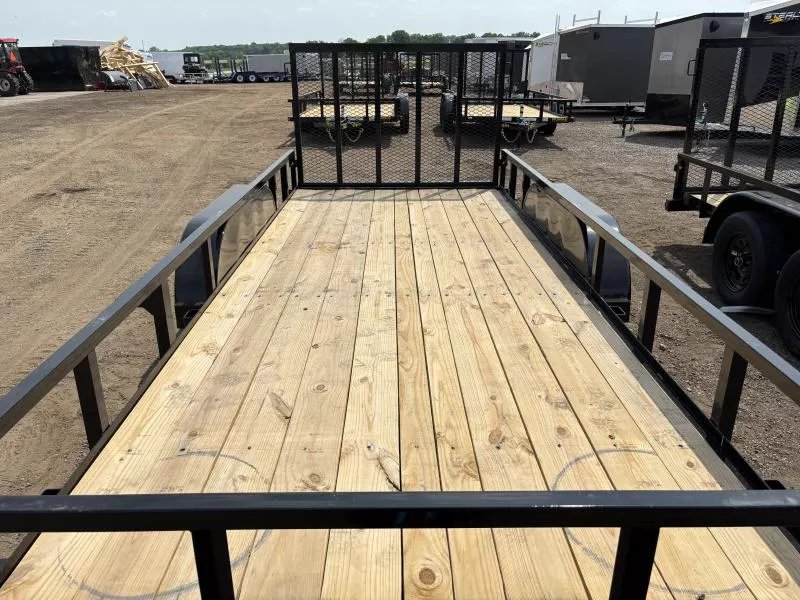

Floor Treated Pine Floor

Fenders 9" x 72" Rolled Formed w/ Back

Ramps

Stake Pockets

Trailer Plug 7-Way RV

Lights L.E.D. D.O.T. Stop, Tail, Turn & Clearance

Wiring Grommet-Mounted Lifetime L.E.D. Lighting

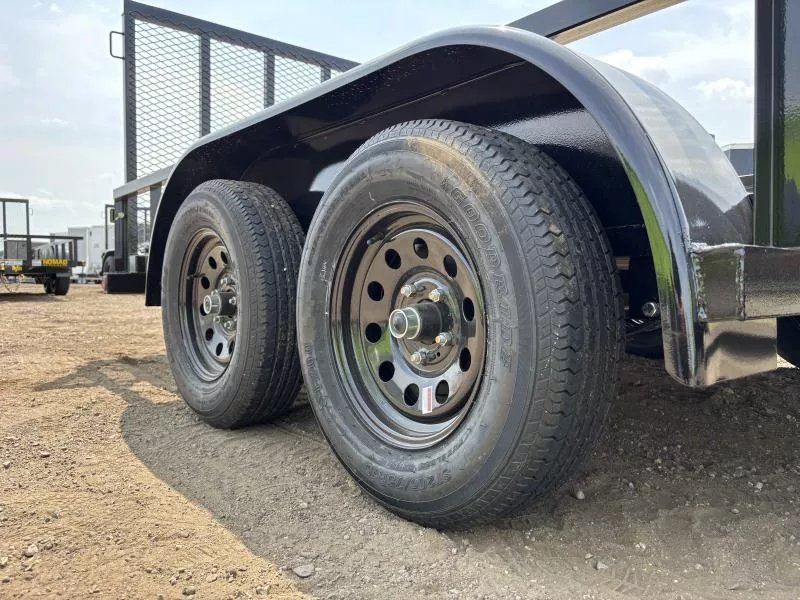

Tires ST205/75 R-15 Load Range C

Bolt Pattern 5 Bolt

Spare Mount

Paint Type Professional Finish w/ Primer Standard

Paint Color Black

Tie-Downs (4) Tie Down Loops Inside Bed

Sides 17" Tall Open sides with 2" Angle uprights and 2" x 2" Square Tubing Top Rail
