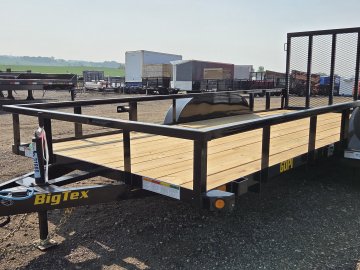

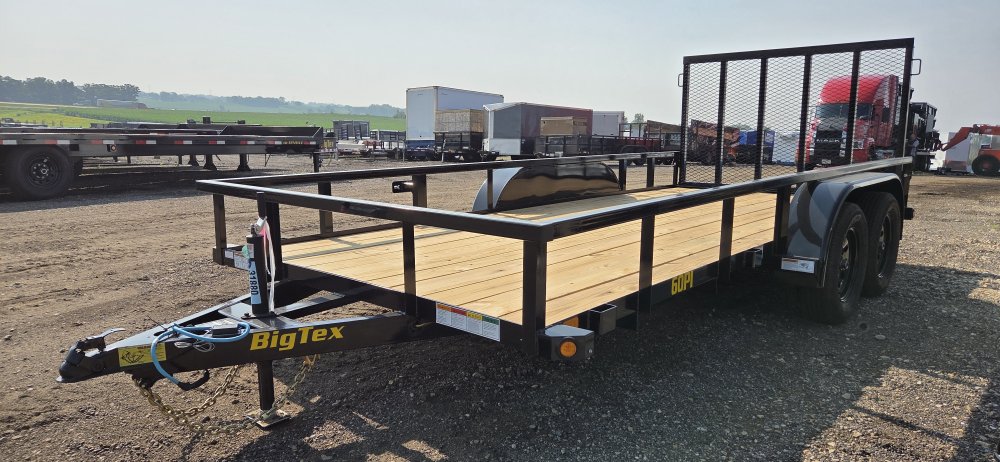

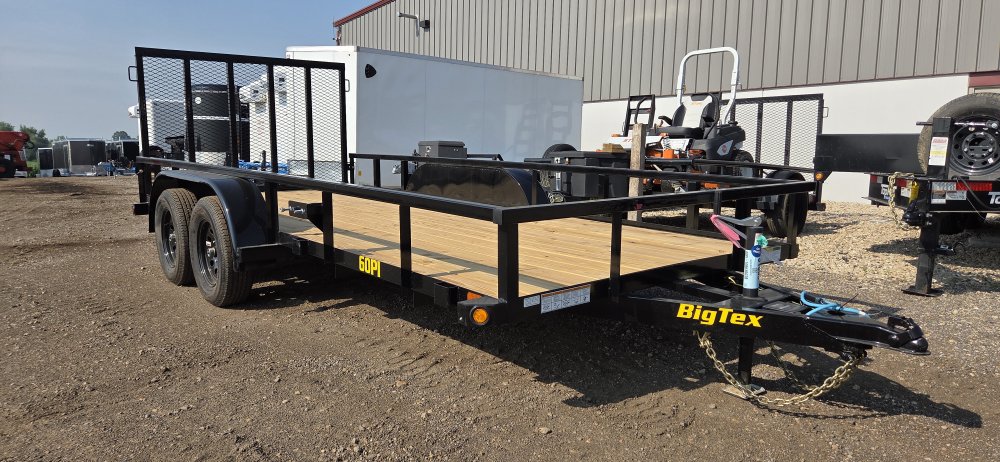

6.5'x16' Big Tex Trailers 60PI-16 Utility

Standard Feature

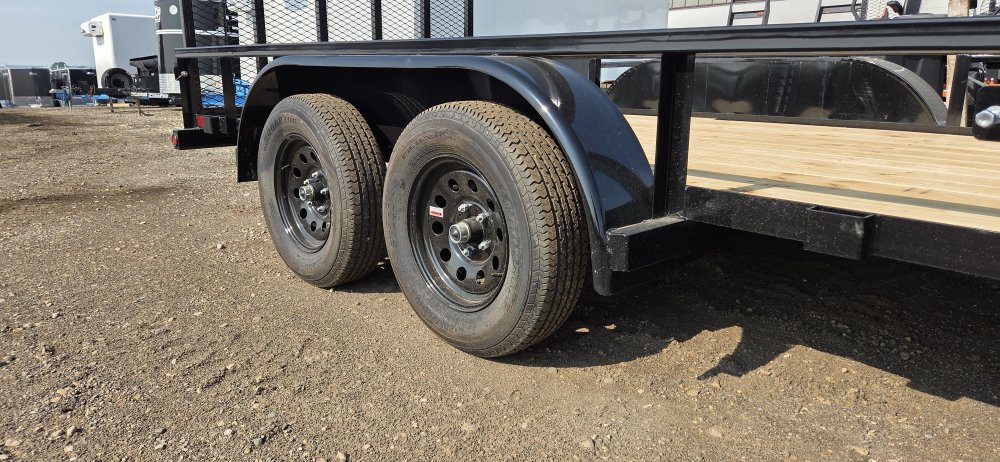

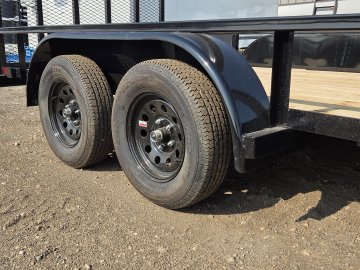

Axles

2 - 3,500# Premium, Cambered Axles with Quick-Lubricating Hubs

Brakes

Electric Brake on Front Axle

Suspension

Multi-Leaf Spring w/ Equalizer

Coupler

2" A-Frame

Safety Chains

1/4" Grd. 30 w/ Safety Latch Hook (2 ea)

Jack

2,000# Top Wind, Set-Back Jack with Removable Sand Foot

Frame

3" x 2" x 3/16" Angle

Cross-Members

3” x 2” x 3/16” Angle

Floor

Treated Pine Floor

Fenders

9" x 72" Rolled Formed w/ Back

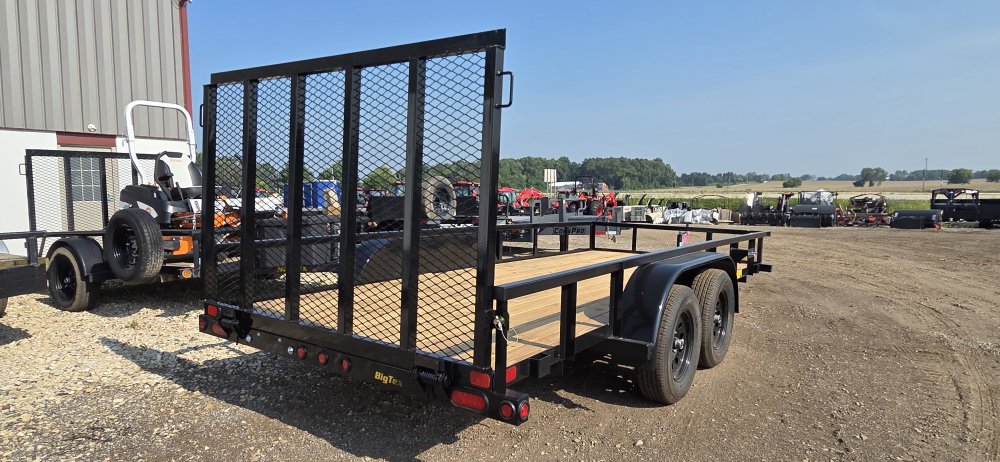

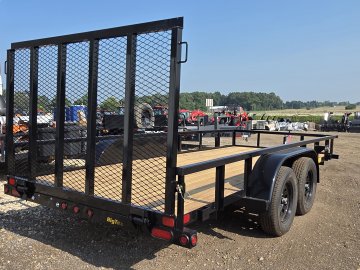

Ramps

4' Tall Rear Ramp Gate w/ Coil Spring Assist

Stake Pockets

Trailer Plug

7-Way RV

Lights

L.E.D. D.O.T. Stop, Tail, Turn & Clearance

Wiring

Grommet-Mounted Lifetime L.E.D. Lighting

Tires

ST205/75 R-15 Load Range C

Bolt Pattern

5 Bolt

Spare Mount

Side Spare Tire Mount

Spare Tire

Paint Type

Professional Finish w/ Primer Standard

Paint Color

Black

Tie-Downs

(4) Tie Down Loops Inside Bed

Sides

17" Tall Open sides with 2” Angle uprights and 2" x 2" Square Tubing Top Rail
