2022 Big Tex 7x14 Gooseneck Dump with 2' Sides
The 16GX Super Duty Tandem Axle Gooseneck Dump takes strength and durability to the next level. A heavy-weight hauler featuring a robust and long-lasting structure and frame, it’s built for heavy-duty hauling with 12,220 lbs of load capacity. And all that strength is matched together with a user-friendly experience; the 16GX is packed with a feature-rich dump box that makes loading, securing, and unloading easier than ever before. For professionals working in challenging working conditions, it’s a match made in heaven—a tough trailer made for tough jobs.
Axles
2 - 8,000# Premium, Cambered Axles with Oil Bath and Valcrum Caps
Brakes
Forward Self-Adjusting Electric Brakes on Both Axles
Suspension
Multi-Leaf Slipper Spring w/ Equalizer
Tongue
10" I-Beam Neck
Coupler
Round Adjustable Pin 2-5/16” Gooseneck Coupler
Safety Chains
3/8" Grade 70 w/ Safety Latch Hook (2 ea)
Jack
Dual 12,000# Drop-Leg Jack (Side Wind)
Frame
8" I-Beam (10#)
Cross-Members
3" Channel on 16" Centers

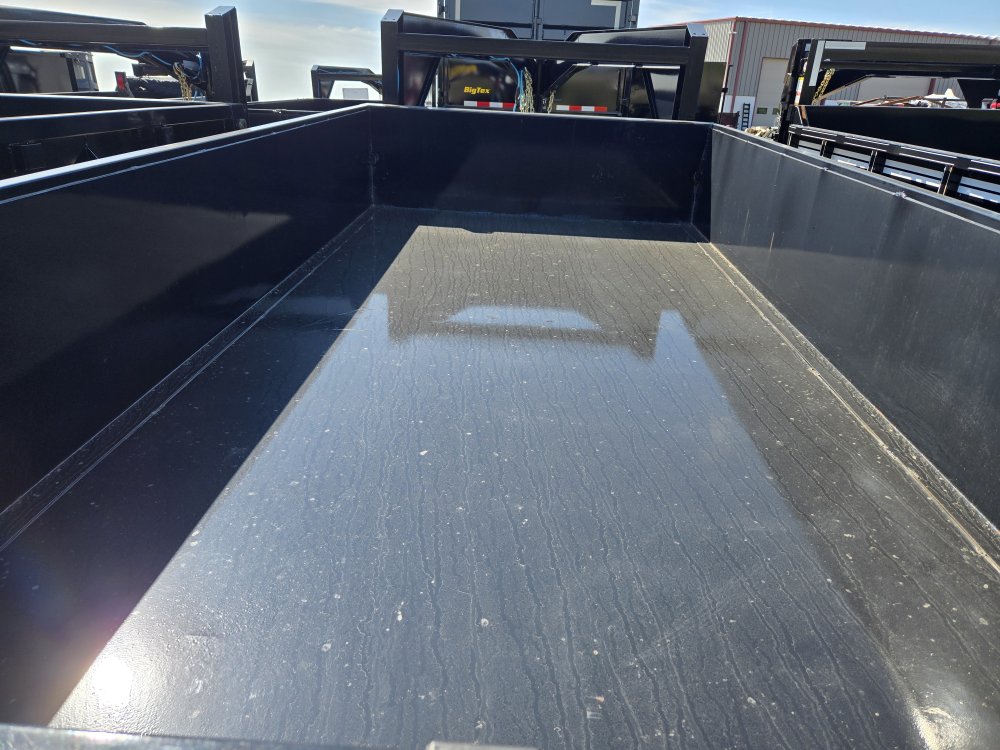

Floor
7 Gauge Smooth Steel
Fenders
9" x 72" 14 Ga. Diamond Plate Double Broke
Ramps
Slide In Ramp Package
Stake Pockets
Stake Pockets Along Both Sides (Quantity Varies by Length)
Trailer Plug
7-Way RV
Lights
Recessed, Grommet-Mounted L.E.D. Lighting
Wiring
Sealed, Modular Cold-Weather Wiring Harness

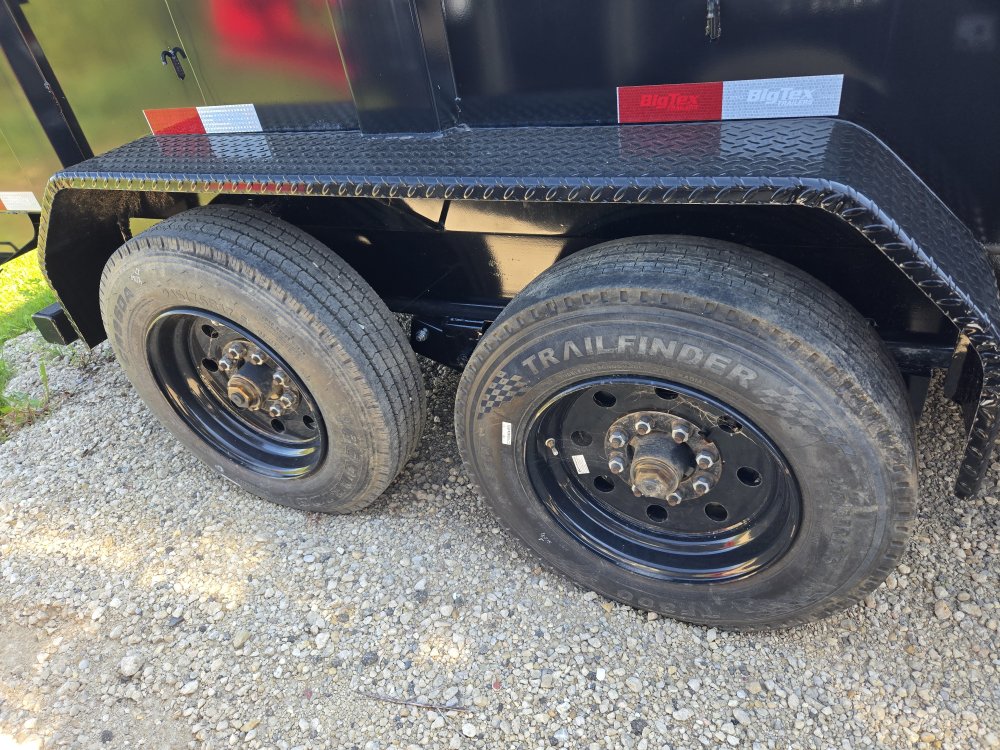

Tires
ST215/75 R-17.5 Load Range H Radial Tires
Bolt Pattern
8-Lug
Wheels
Black Mod Steel
Spare Mount
Side Spare Tire Mount
Spare Tire
Not Included
Paint Type
Professional Finish w/ Primer Standard
Paint Color
Black
Tie-Downs
(4) 1/2" D-Rings Inside Bed
Break-Away Kit
Complete Breakaway System w/ Zip Breakaway Cable
Battery
12V Deep Cycle
Charger
5A 110V on Board Battery Charger

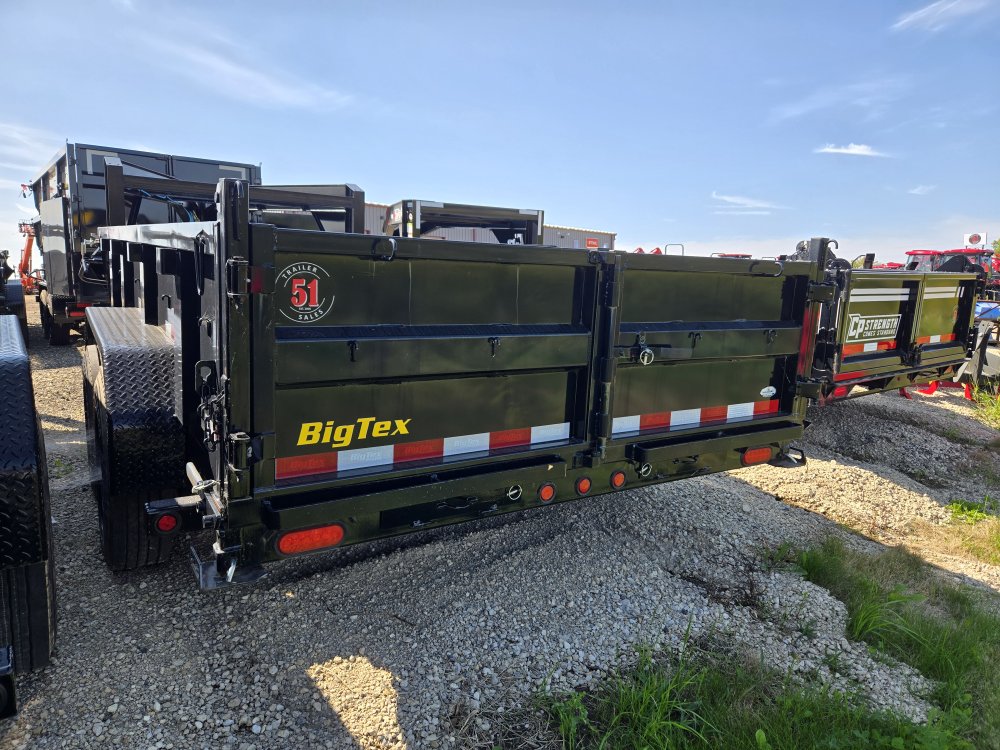

Gate
Rear Combo Gate (Barn Doors & Spreader Gate)
J-Hooks
Along sides and rear for Cargo Control
Ram
Self-Contained Scissor
Sides
24" Tall (10 Ga) with formed Channel Supports
Stabilizers
Rear Stabilizer Stands
Steps
Convenient Side-Step to Access Top Rail

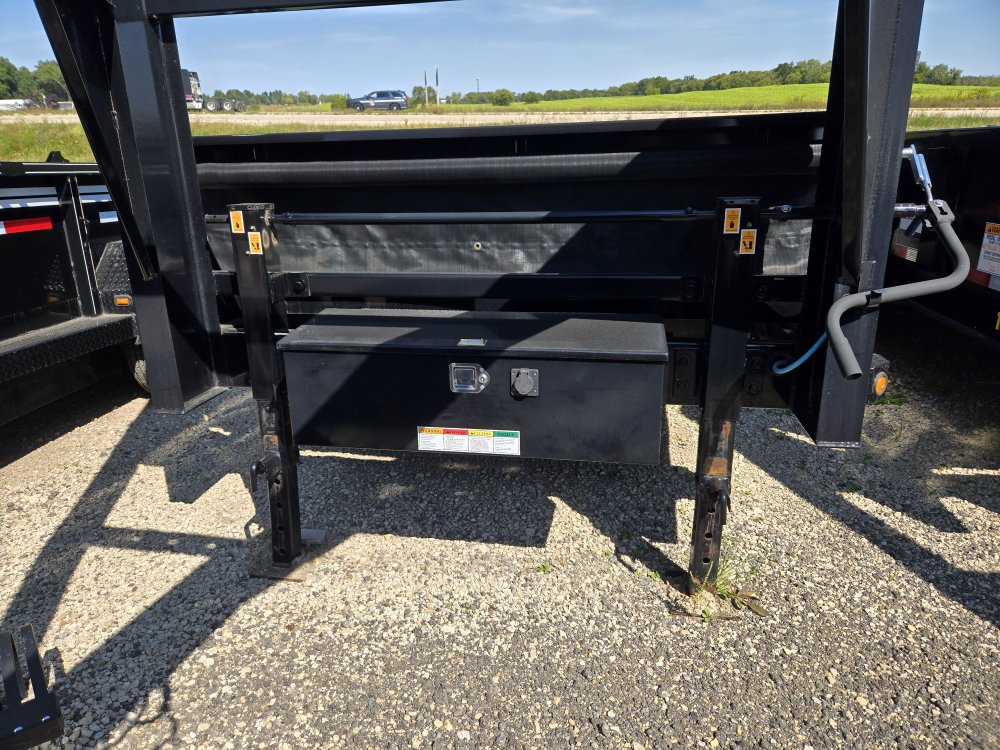

Storage
Lockable Pump and Battery Box mounted between front Jacks
Tarp
Fully-Formed Tarp Shroud with Tarp & Rear Tarp Rod Holders
Top Rail
3"x 2" Rectangular Tubing
Steps & Handles
Convenient Side-Step to Access Top Rail
