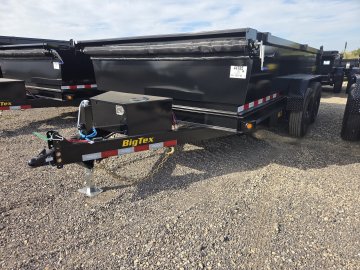

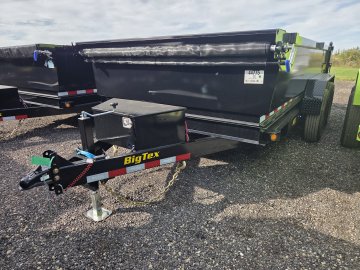

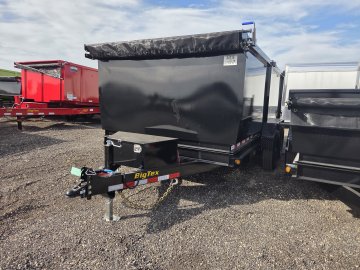

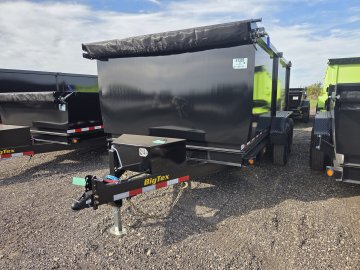

2024 Big Tex 7x14 Deckover Dump Trailer
14OD Heavy Duty Over The Axle Dump
Is your work always changing and requiring you to adapt on the fly? Then you need a trailer that does the same. Versatility is the name of the game for the 14OD Over-The-Axle Dump Trailer, built to ensure that you're prepared to take on whatever type of load comes your way, its full 96"-wide body is both strong and spacious---perfect for larger loads. And when faced with a heavy-duty haul, its fold-down side panels make loading and unloading it a snap. Ready for anything, the 14OD is here to change how you work.
STANDARD FEATURE
Axles 2 - 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs
Brakes Forward Self-Adjusting Electric Brakes
Suspension Multi-Leaf Slipper Spring w/ Equalizer
Tongue 6" Channel
8" Seamless I-Beam Integrated w/ Frame (10#)
Coupler Adjustable Forged 2-5/16"
Safety Chains3/8" Grade 70 w/ Safety Latch Hook (2 ea)
Jack12,000# Top Wind
Frame 12" I-Beam, 14#
Cross-Members 3" Channel on 16" Centers
Floor 10 Gauge Smooth Steel
Fenders 9" x 72" 14 Ga. Diamond Plate Double Broke
9" x 72" 14 Ga. Diamond Plate Double Square Broke
Ramps 7' Rear Slide-In Ramps
Stake Pockets Along Both Sides (Quantity Varies by Length)
Trailer Plug 7-Way RV
Lights Recessed, Grommet-Mounted L.E.D. Lighting
Wiring Sealed, Modular Cold-Weather Wiring Harness
Tires ST235/80 R-16 Load Range E Radial Tires
Bolt Pattern 8-Lug
Wheels Black Mod Steel
Side Spare Tire Mount
Spare Tire Not Included
Paint Type Professional Finish w/ Primer Standard
Paint Color Black
Tie-Downs (4) 1/2" D-Rings Inside Bed
Along Sides and Rear for Cargo Control
Break-Away Kit Complete System with Breakaway Cable
Battery 12V Deep Cycle
Charger 5A 110V on Board Battery Charger
Gate Rear Combo Gate (Barn Doors & Spreader Gate)
J-Hooks Along sides and rear for Cargo Control
Power Power Up/Power Down Movement
Ram Self-Contained Single Cylinder Lift
Sides 18" Tall, Drop-Down Sides (12 Gauge)
Stabilizers Rear Stabilizer Stands
Steps Convenient Side-Step to Access Top Rail
Storage Lockable Pump and Battery Box mounted in Front of Bed
Top Rail 2" x 2" Square Tubing
