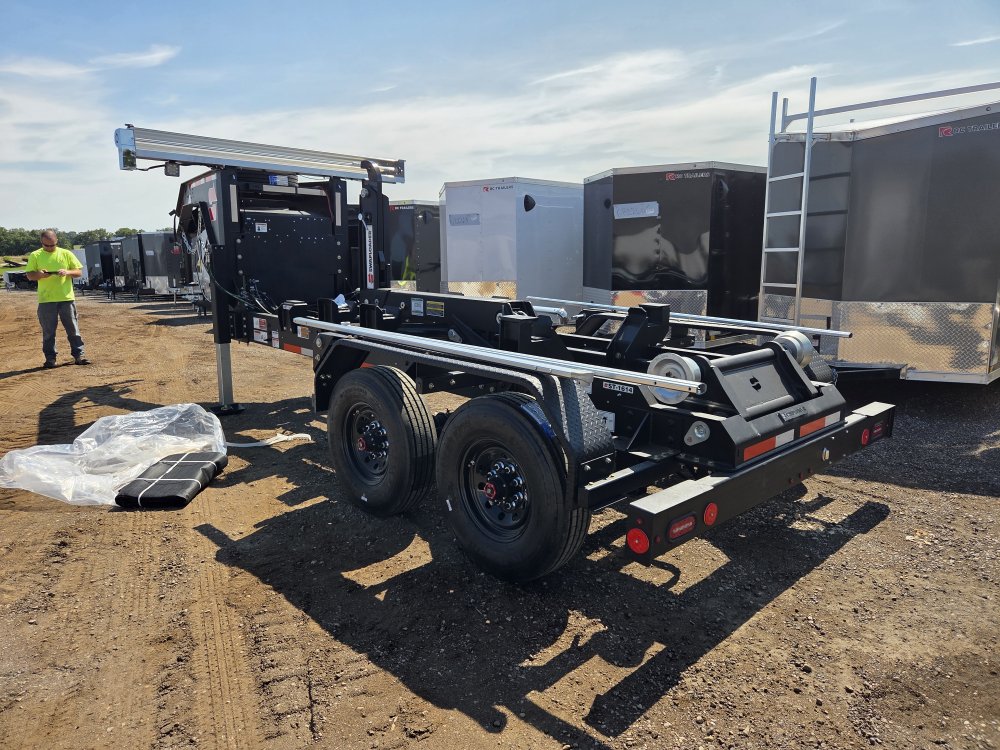

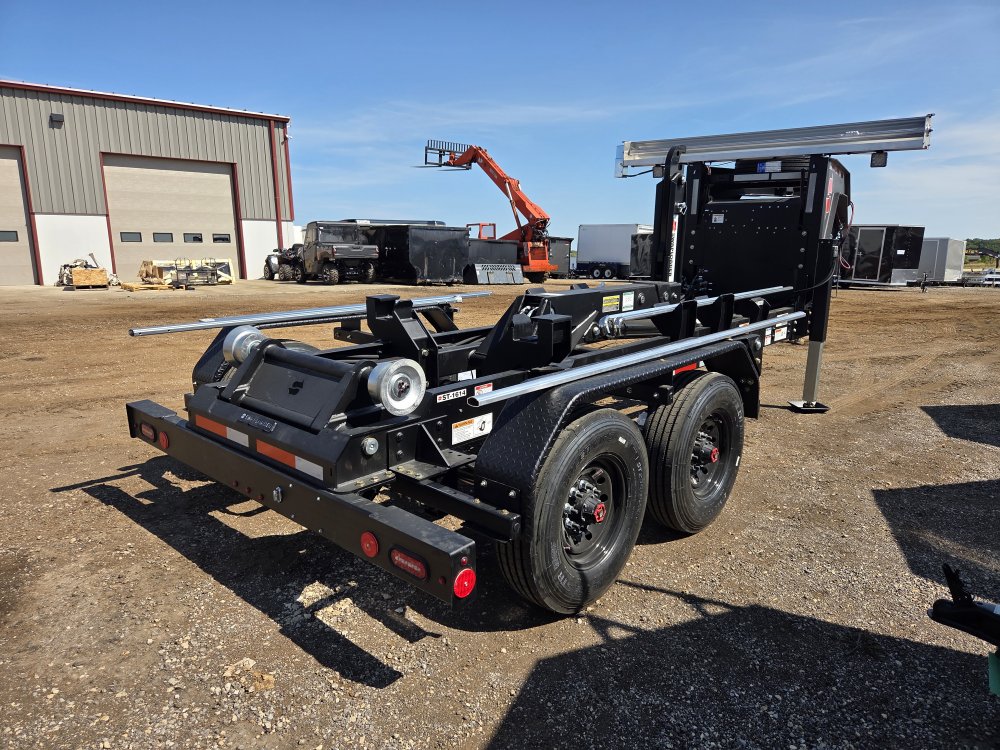

7'x14' SwapLoader ST-1614-GNA Roll-Off Dump

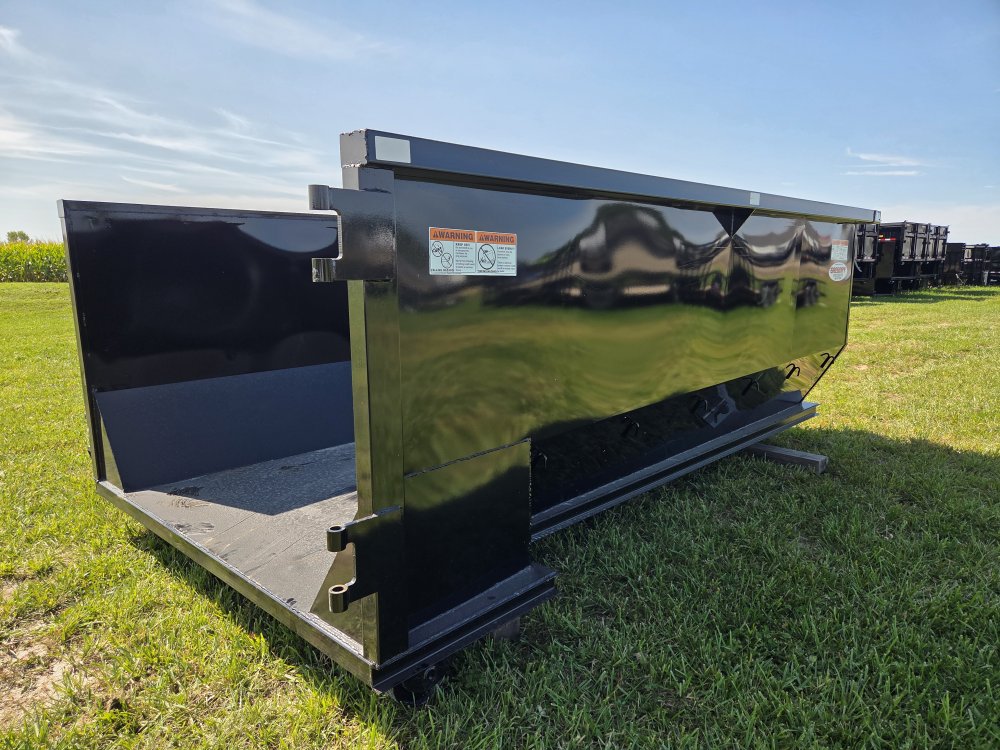

PRICE REFLECTS COST OF TRAILER AND ONE BIN

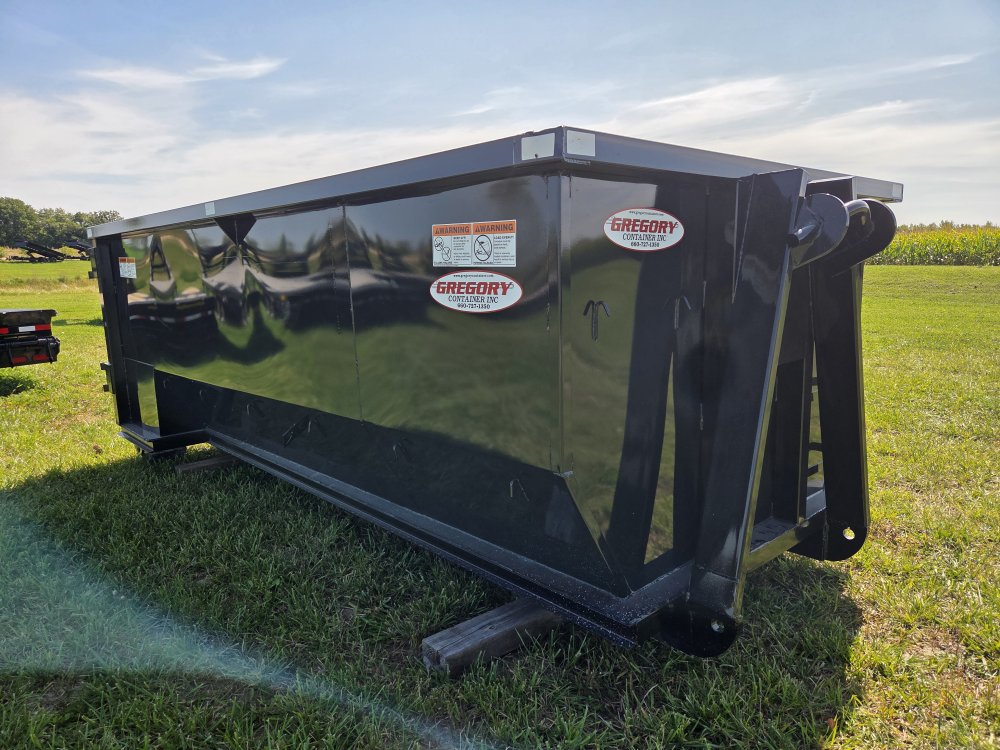

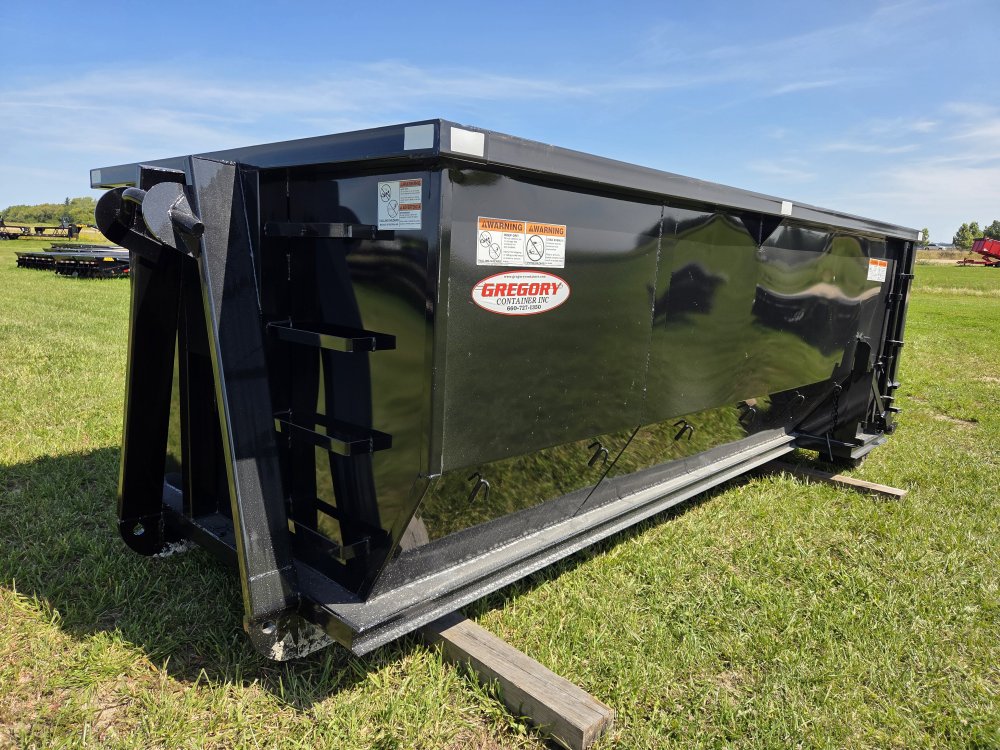

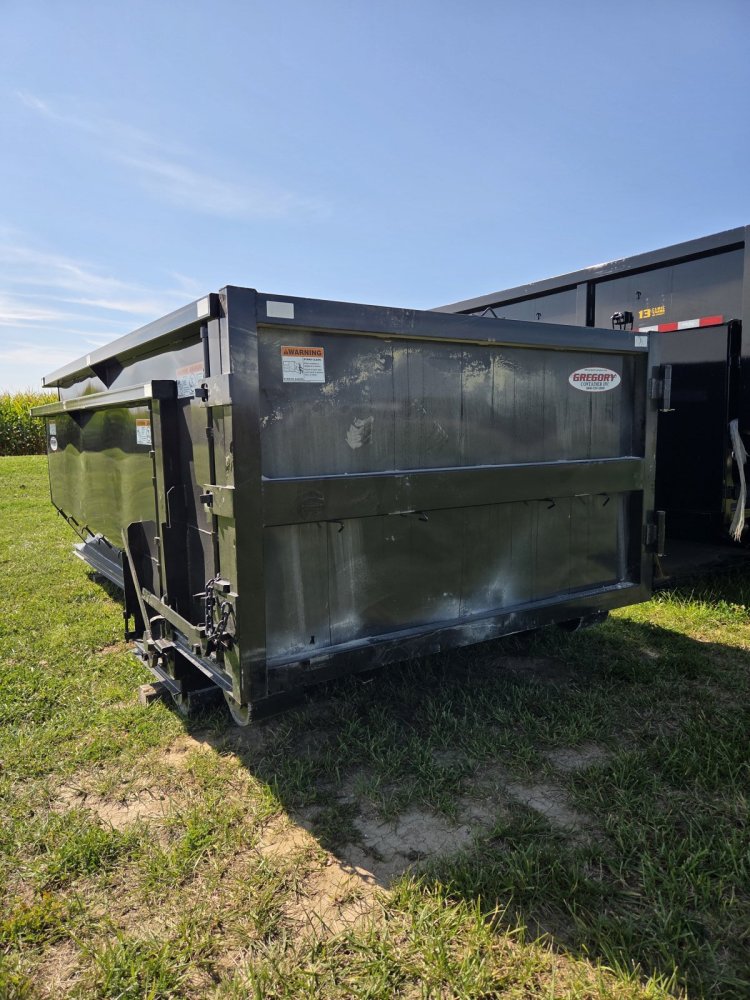

Link for Gregory Bins
About the ST-1614
The ST-1614 is an ideal entry point into the hooklift industry—perfect for contractors, landscapers, and waste haulers. With a GVW of 16,000 lb. and under, it’s well-suited for medium-duty applications. With a robust 12,000 lb. lift capacity and compatibility with 12′ to 14′ containers, the ST-1614 delivers the power and performance needed for daily jobs. Finished in a durable black powder coat, it’s built to perform—and built to last.
Specifications

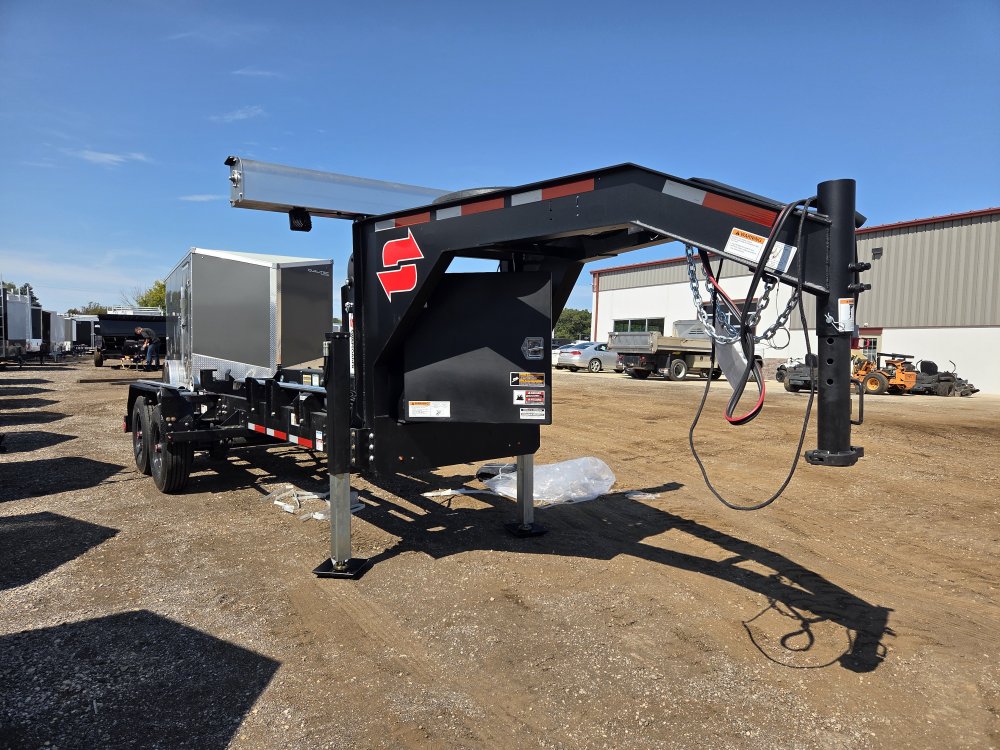

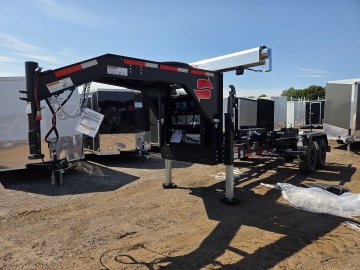

ST-1614-GNA – Gooseneck Adjustable Jib
GVWR
16,000 lb.
ESTIMATED TARE WEIGHT
5,500 lb. (option dependent)
HOIST CAPACITY (LIFT / DUMP)
12,000 lb.
BODY LENGTH
14′
HOOK HEIGHT
Fixed: 35 5/8″ or Adjustable: 35 5/8″ or 53 7/8″
HOOK TO ROLLER DISTANCE
168″
COUPLER TO BUMPER DISTANCE
287″
COUPLER
2-5/16” Round Adjustable Pin, 25,000 lb.

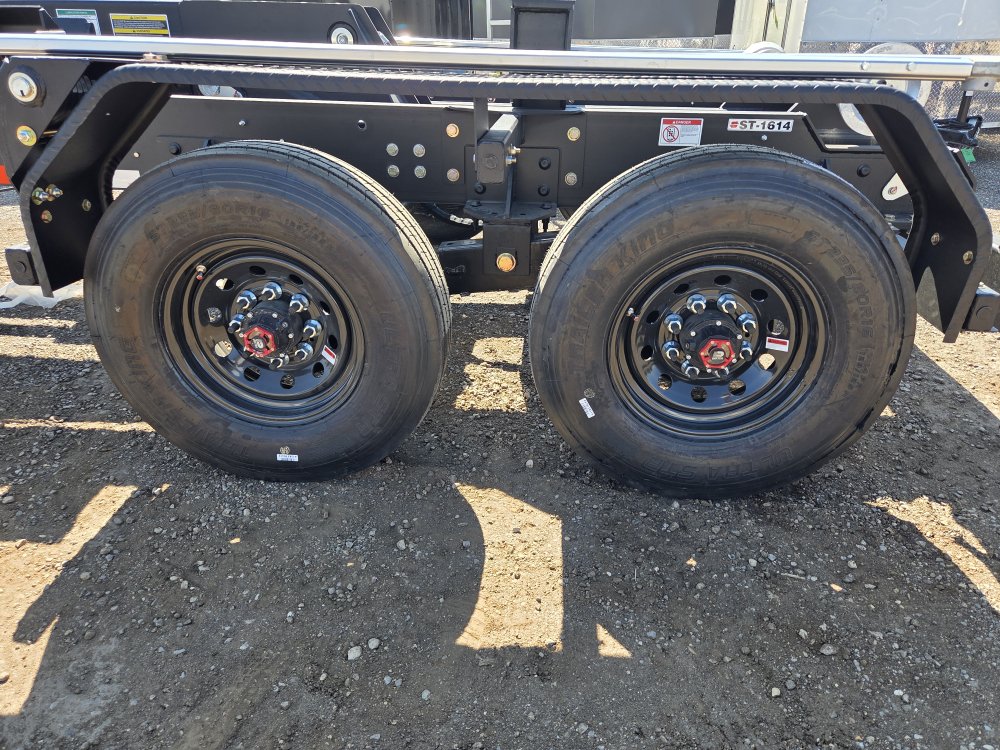

AXLES
Dexter, Tandem 10,000 lb., Greased
BRAKES
Electric
TIRES
14-ply, 16”, Black (ST235/80R G)
SAFETY CHAINS
3/8” x 35” Chains, 16,200 lb. Minimum Breaking Force
POWER UNIT
24V DC Bucher
PUMP
3 GPM, Gear
HOIST CONTROLS
Wireless Remote Controls Hoist & Tarp, Phone App w/ Diagnostics
CHARGING
110V AC Plug from Wall (Standard), 12V Anderson Connector from Truck Alternator (Optional)
BATTERIES
(2) 12V Deep Cycle AGM31 (100Ah)
OPERATING PRESSURE
3,500 PSI
JIB CYLINDER
3” Bore x 36” Stroke w/ Single Counterbalance Valve
LIFT CYLINDER
5” Bore x 51” Stroke w/ Dual Counterbalance Valves
LIGHTING
LED
ELECTRIC PLUG
7-way RV
TRAILER FINISH
Black Textured Powder Coat
TARP (OPTIONAL)
Shur-Co® Waste Warrior, Power Open/Close, Manual Gantry
