2022 Big Tex 7x16 Gooseneck Dump Trailer
SUPER DUTY TANDEM AXLE GOOSENECK DUMP
The 16GX Super Duty Tandem Axle Gooseneck Dump from Big Tex Trailers is a heavy weight hauler with an 8" I-Beam frame and 10" I-Beam neck. Adding to the strength is the feature-rich performance of the dump box providing easy loading, securement, and unloading.
SPECS
AXLE (2) 7,000# EZ Lube w/Elec. Brake
JACK 12,000# Top Wind Drop Leg- OD; Dual 12,000# Drop Leg- Side Wind- OD GN
TIRES T235/80 R-16 Load Range E
FLOOR 10 Gauge Smooth Steel
WHEEL 16" x 6"; Black Mod, 8 Bolt
FINISH Superior Quality Finish is Applied for a Highly Decorative and Protective Finish.
LIGHTS L.E.D. D.O.T. Stop, Tail, Turn and Clearance
TONGUE Integral with Frame(12" I-Beam, 14# )
COUPLER Adj. 2-5/16" 18,000# Demco EZ Latch- OD; 2-5/16? Round Adj. Pin (25K) - OD GN
G.V.W.R. 17,500
ELEC. PLUG 7-Way RV
MAIN FRAME 12" I-Beam, 14#
SUSPENSION Multi-Leaf Slipper Spring w/Equalizer
FINISH (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish.
SAFETY CHAINS 3/8" Grd. 70 w/Safety Latch Hook (2 each)
DUMP BODY SIDES 18" Tall, Drop-Down Sides (12 Gauge)
DUMP BODY TOP RAIL 2" x 2" Square Tubing
G.A.W.R. (Ea. Axle) 7,000
DUMP BODY CROSSMEMBERS 3" Channel, 16" Centers
SUPER DUTY TANDEM AXLE GOOSENECK DUMP
The 16GX Super Duty Tandem Axle Gooseneck Dump from Big Tex Trailers is a heavy weight hauler with an 8" I-Beam frame and 10" I-Beam neck. Adding to the strength is the feature-rich performance of the dump box providing easy loading, securement, and unloading.
SPECS
AXLE (2) 7,000# EZ Lube w/Elec. Brake
JACK 12,000# Top Wind Drop Leg- OD; Dual 12,000# Drop Leg- Side Wind- OD GN
TIRES T235/80 R-16 Load Range E
FLOOR 10 Gauge Smooth Steel
WHEEL 16" x 6"; Black Mod, 8 Bolt
FINISH Superior Quality Finish is Applied for a Highly Decorative and Protective Finish.
LIGHTS L.E.D. D.O.T. Stop, Tail, Turn and Clearance
TONGUE Integral with Frame(12" I-Beam, 14# )
COUPLER Adj. 2-5/16" 18,000# Demco EZ Latch- OD; 2-5/16? Round Adj. Pin (25K) - OD GN
G.V.W.R. 17,500
ELEC. PLUG 7-Way RV
MAIN FRAME 12" I-Beam, 14#
SUSPENSION Multi-Leaf Slipper Spring w/Equalizer
FINISH (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish.
SAFETY CHAINS 3/8" Grd. 70 w/Safety Latch Hook (2 each)
DUMP BODY SIDES 18" Tall, Drop-Down Sides (12 Gauge)
DUMP BODY TOP RAIL 2" x 2" Square Tubing
G.A.W.R. (Ea. Axle) 7,000
DUMP BODY CROSSMEMBERS 3" Channel, 16" Centers

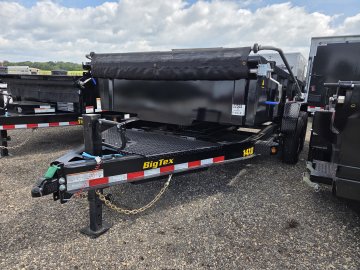

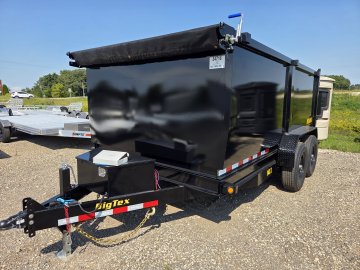

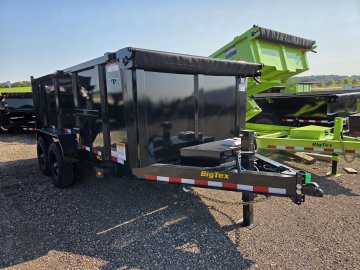

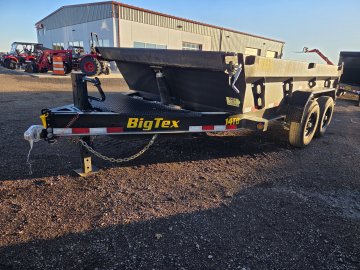

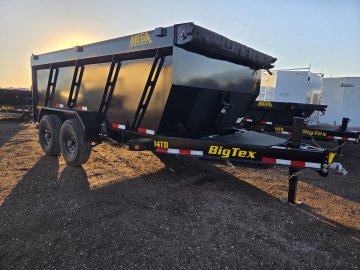

7'x16' Big Tex Trailers Dump 16GX-16
Price: $19,800
On Sale! $11,999
Black - Dump
Location
Specs
Stock Number: 196306
VIN: 16V3D2424N5196306
Condition: New
Year: 2022
Manufacturer: Big Tex Trailers
Model: 16GX-16
Length: 16'
Width: 7'
Height:
GVWR (lbs): 17,500
Weight (lbs): 5,940
Payload (lbs): 11,560
Features:
