7'x16' Frontier Trailers 7x16 Horse



Standard Trailer Features and Upgrades

• Box Length: 15'

• Box Width: 80"

• Interior Height: 84"

• Stall Width: 40-1/2"

• Bumper Pull,

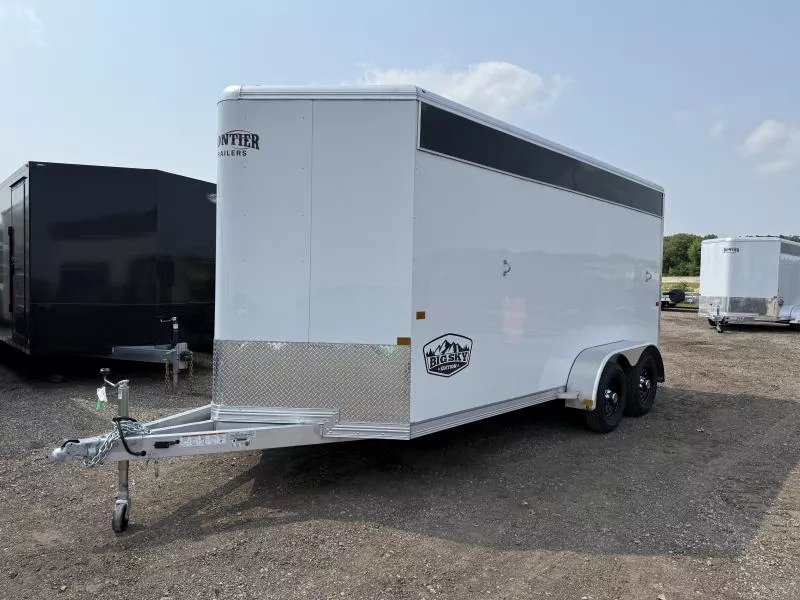

• V-Nose w/ 24" Stone Guard

• One Piece

• .024" Aluminum Roof w/ Heavy Duty Radius Roof Extrusion

• Slant Load - Step Up

• 2-3500k Dexter Leaf Spring Braked Axles

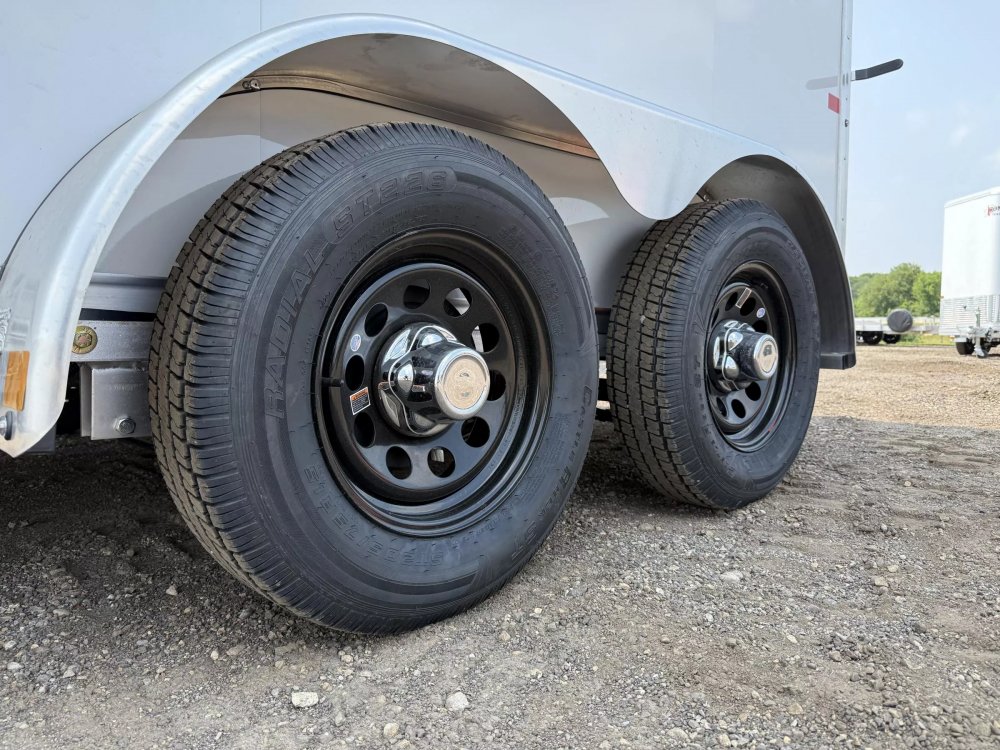

• Silver Mod (205/75R15)

• 2"x8" Pressure Treated Boards

• .030" Aluminum Skin: Pre-Painted

• Exterior Side Sheets

• All Box Tube Aluminum Chassis

• 16" O/C I-Beam Crossmembers

• Exterior LED Lighting

• Heavy Duty Rear Rubber Bumper

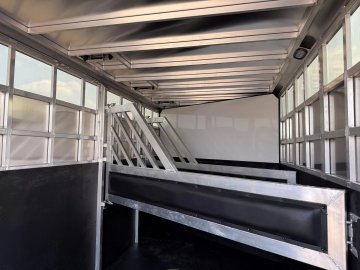

• Removable "New" Jail Bar Head and Shoulder Dividers w/ Pads (Custom Extrusion, New Latch System)

• Skinned Head Wall w/ Single Air Gap (Top of Wall, Plexiglass Optional)

• Skinned Rump Wall w/ Single Air Gap (Top of Wall, Plexiglass Optional)

• 1/2" Rubber Mats

• Heavy Duty Wall Liner and Rear Door Liner in Horse Area

• Safety Chains: Across Rear Opening

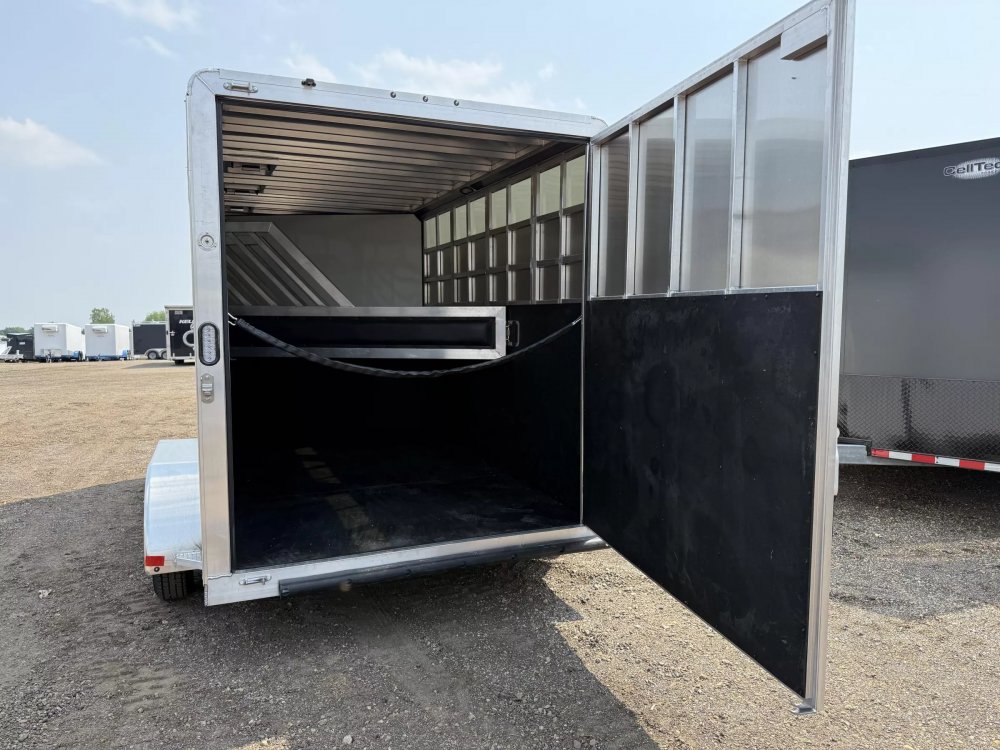

• Single Rear Barn Door w/ Aluminum Butt Hinges (Huck-Bolted, Plexiglass Optional)

• (2) Inside and (1) Outside per Horse (Interior Location: Driver's Side Wall, Just above Windows)

• (1) LED Dome Light in Horse Area with Exterior Cup Switch

• (1) Double Action Pop-Up Vent (per Stall)

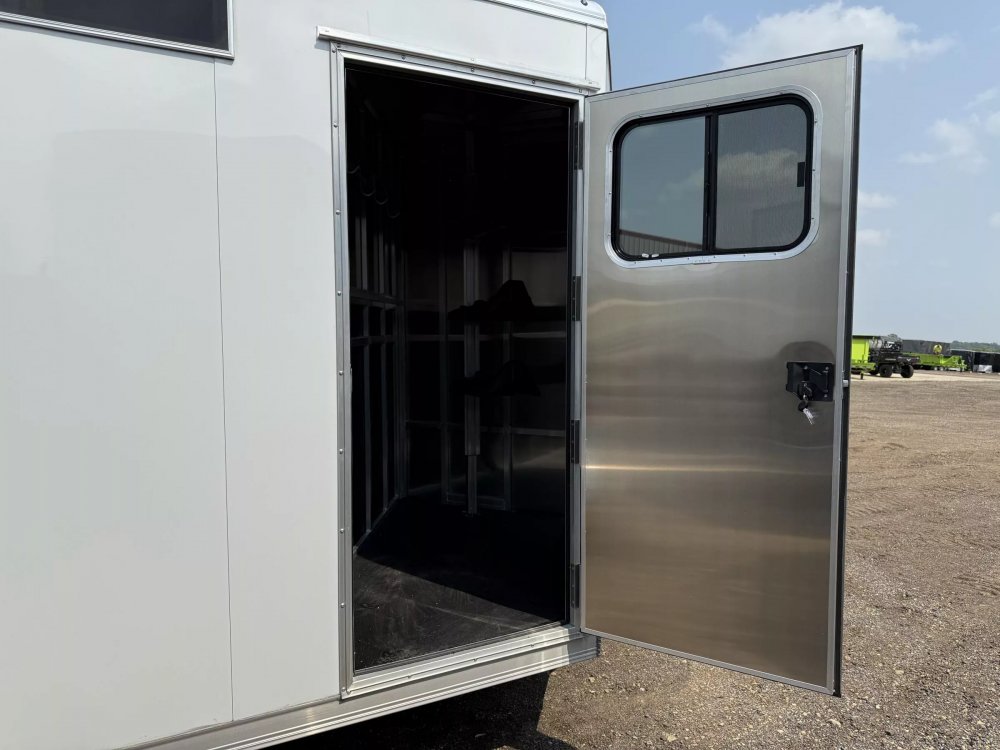

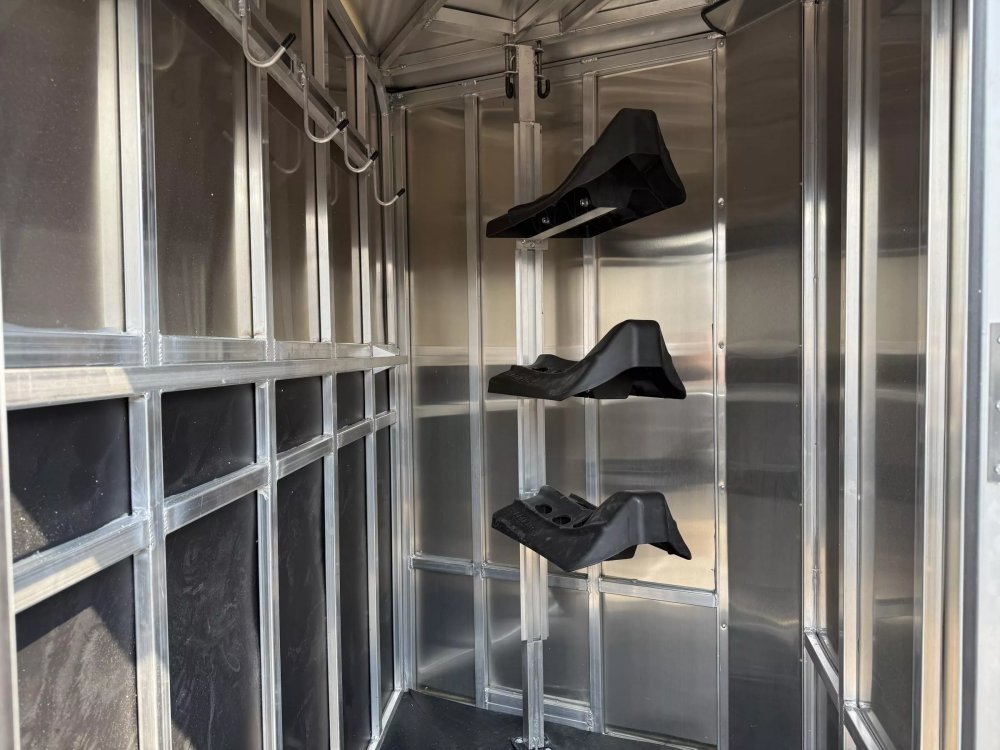

• Front Tack Area: 32" x 72" Side Access Door w/Sliding Window, 0" Short-Wall, 1/2" Rubber Mats, LED Dome Light, Removeable Saddle Tree, Bridle Hooks, Blanket Bar

• 5-Year Limited Warranty
