Brand

Midsota

GVWR (lbs)

15400 lbs

GAWR (lbs/axle)

7000 lbs/axle

Curb Weight

4850 lbs

Payload

10550 lbs

Width

82

Length

16

Overall Length

252.5

Deck Height

25

Coupler Height

11.5-19.5

Gate

Combo Barn Door Spreader Gate with Cambar, Spring-Loaded Door Hold-Backs

Length Deck

192

Height Coupler

11.5-19.5

Height Interior

24

Height Deck

25

Type

OPEN

110V Electrical

On-Board Charger 4 Amp (110V Plug In)

12V Electrical

12 Volt DC 31 Battery

Axle

(2) 7000 lb. Drop Slipper Spring Brake

Breakaway

Battery, Switch, and Lanyard

Connector Plug

Round 7-pin Cold Weather (-85)

Coupler

2-5/16'' Adjustable EZ Latch 4-Bolt Flat Plate

Crossmembers

3" Steel Channel, 16" On-Center

Decking

7-Gauge, One-Piece Smooth Steel

Exterior Finish

Industrial Grade Polymer Finish

Exterior Lights

Full LED, DOT Compliant

Exterior Storage

A-Frame Steel Lockable Toolbox, Pallet Fork Carrier, Spare Tire Carrier

Fenders

Double Break Tread Plate

Frame

6" x 4" Steel Tube

Hubs

Easy Lube

Hydraulic Components

Power Up, Gravity Down (Scissor Lift Hoist), Push Button Control with 15' Lead

Integrated Step(s)

Side Steps

Misc.

Greaseless Pivot Pins (Neverlube), Pallet Fork Holders

Mud Flaps

Yes

Ramp(s)

4" x 72" Steel Ladder Style (Slide-In with Carrier)

Safety Chains

DOT Compliant

Sides

11-Gauge Formed Sides, 24" Tall

Stabilizers

Zinc Plated, Rear Drop Leg Jacks

Tarp

18' Mesh Tarp Kit (Installed), Anti-Sail Kit with Integrated Tie-Down, Integrated Tarp Mount and Shroud, Tarp Brackets

Tie Downs

(6) 5/8" D-Rings, Stake Pockets

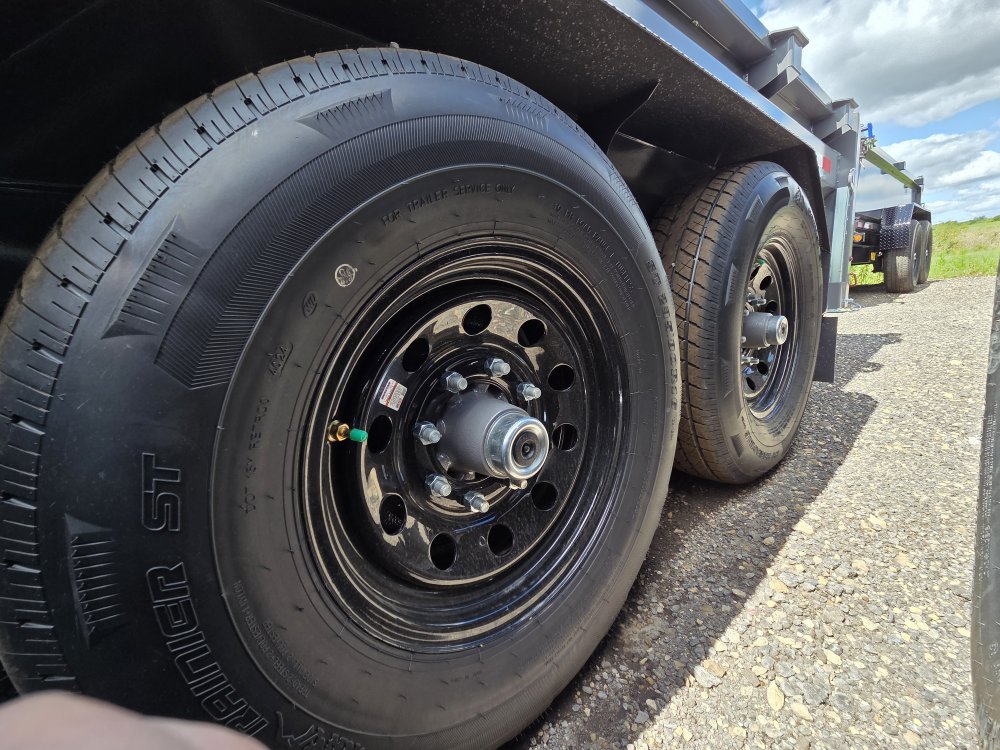

Tires

ST235/80R16E 10-PR

Tongue

6" x 3" Steel Tube

Tongue Jack

Hydraulic Tongue Jack

Top Rail

3" x 2" Steel Tube

Warranty

Limited 5-Year Warranty

Wheels

16", 8-Hole Steel

Wiring

Midsota Exclusive Indicator Module, No Exposed Wiring
