8.5'x28' Midsota NTBWB28-BP-176 Tilt
Brand
Midsota
GVWR (lbs)
17600 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
5160 lbs
Payload
12440 lbs
Width
102
Length
33
Overall Length
394
Deck Height
28
Coupler Height
11.5 - 19.5
Height Coupler
11.5 - 19.5
Height Deck
28
Width Between Fender
82
Load Angle
12
Type
OPEN
Axle
(2) 8000 lb. Slipper Spring Brake
Breakaway
Battery, Switch, and Lanyard
Connector Plug
Round 7-pin Cold Weather (-85)
Coupler
2 5/16" Adjustable Channel Mount, Demco EZ Latch
Crossmembers
3" Steel Channel, 16" On-Center
Decking
2" Pressure Treated Pine
Exterior Finish
Industrial Grade Polymer Finish
Exterior Lights
Full LED, DOT Compliant
Fenders
Square Rolled Steel Tread Plate
Frame
8" x 3" Steel Tube
Hydraulic Components
Hydraulic Lock
Tie Downs
Stake Pockets and Rub Rail

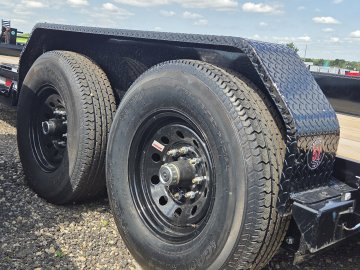

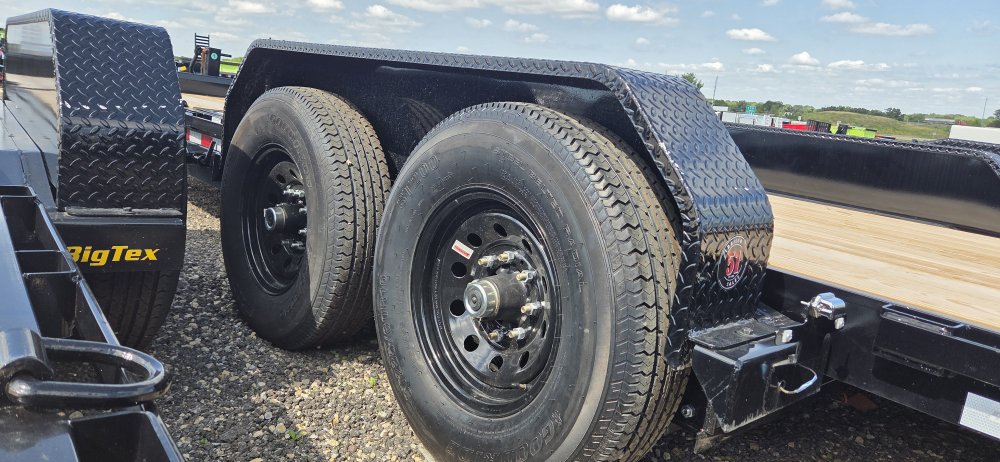

Tires
215/75R17.5J 18-PR
Tongue Jack
12K Drop Leg, Set-Back
Wiring
No Exposed Wiring
