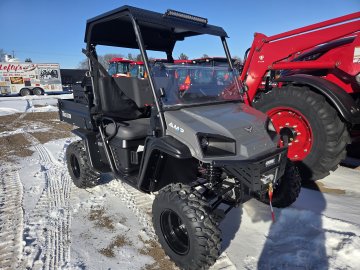

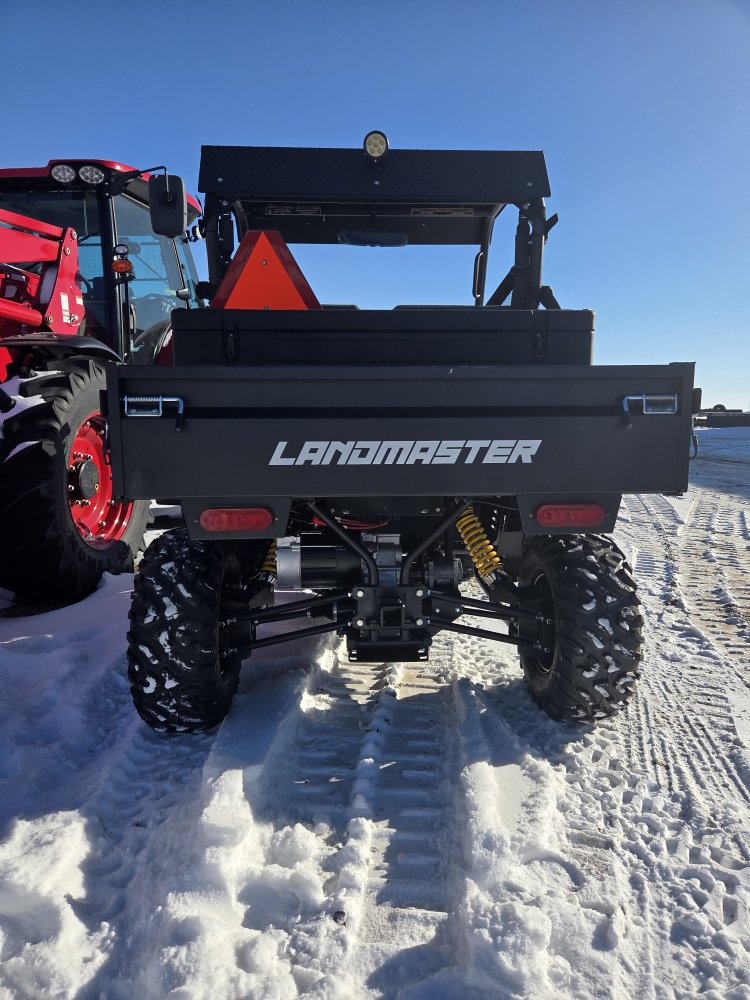

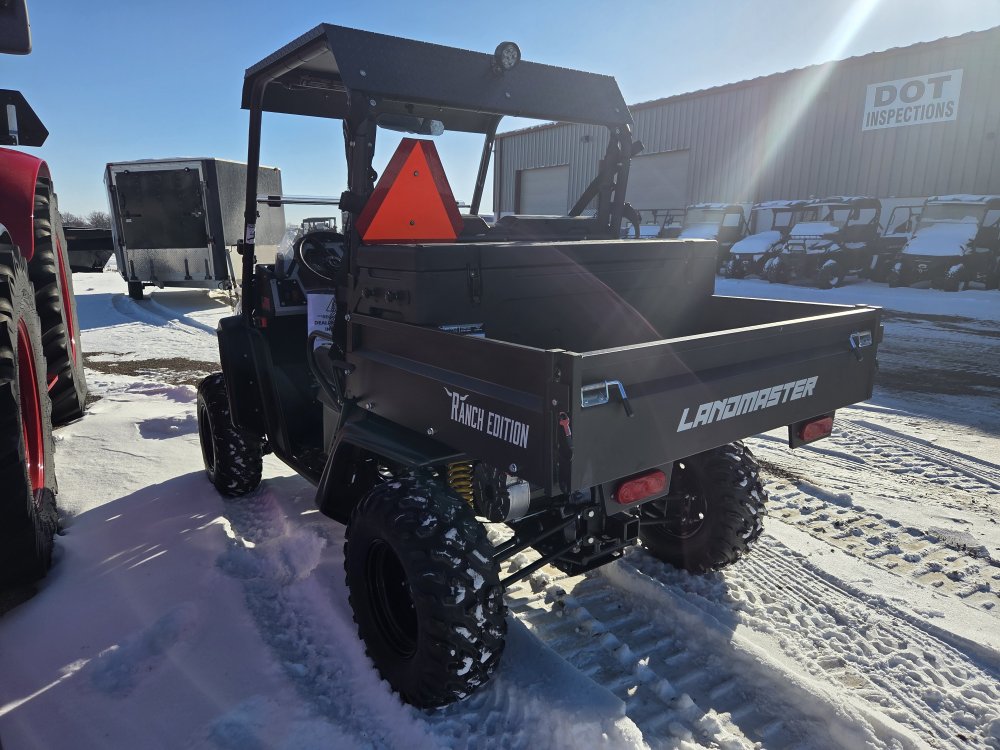

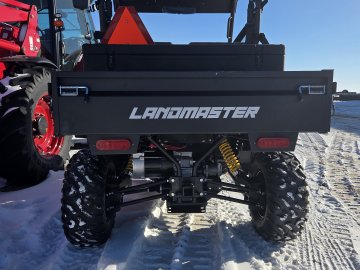

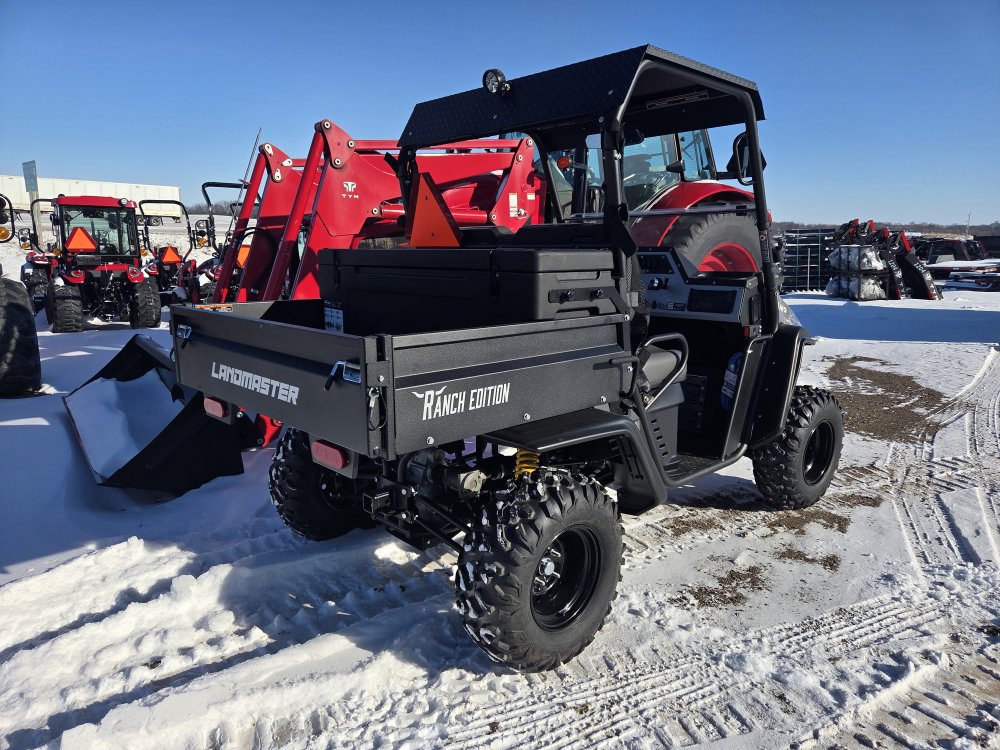

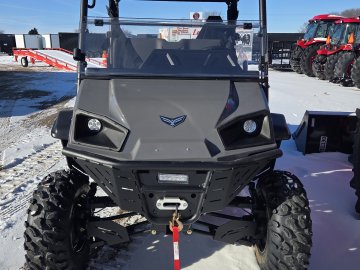

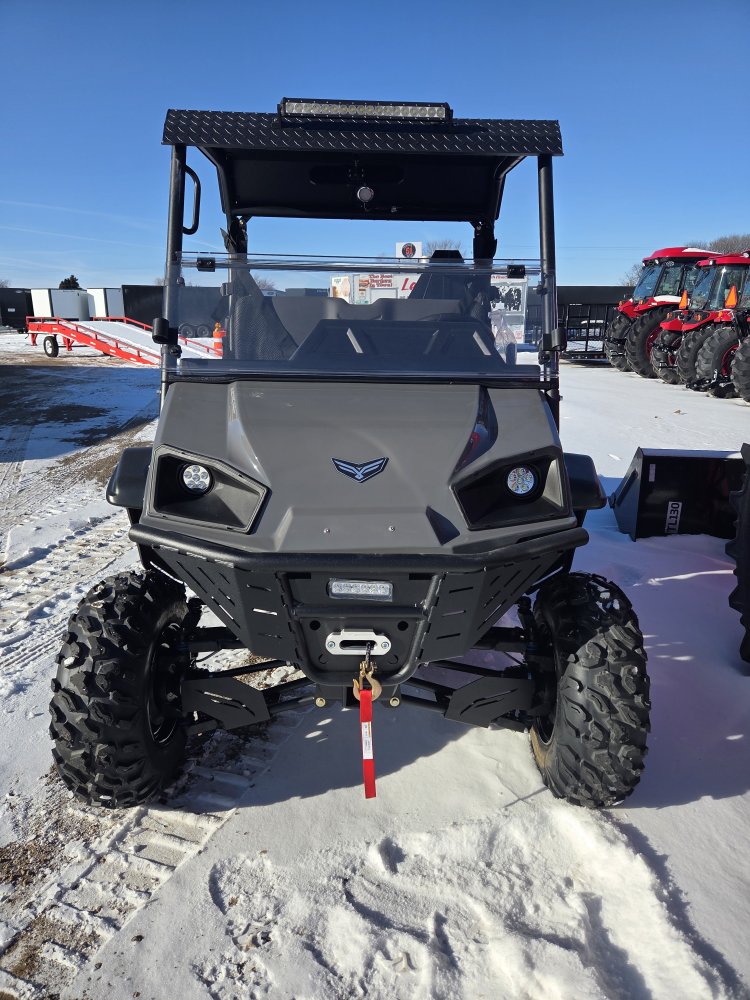

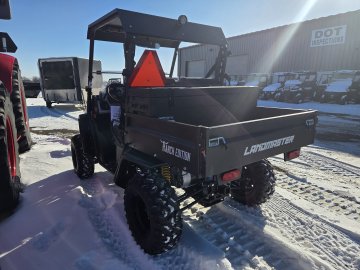

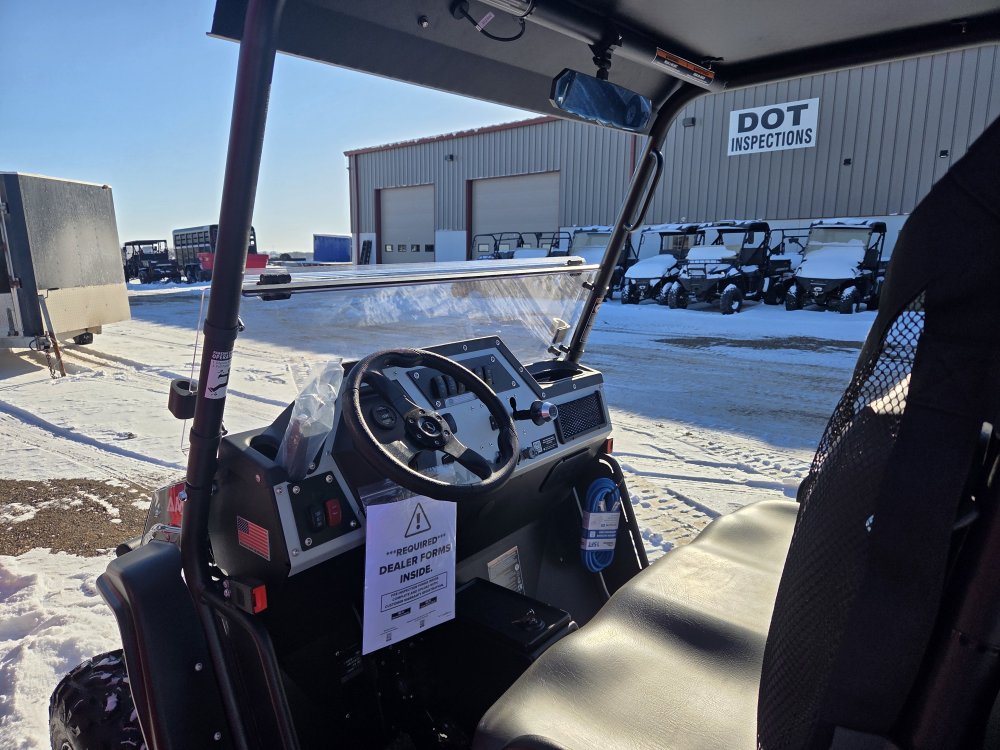

2026 American Landmaster AMP Ranch Edition

FEATURES:
Grey Hood (standard item)

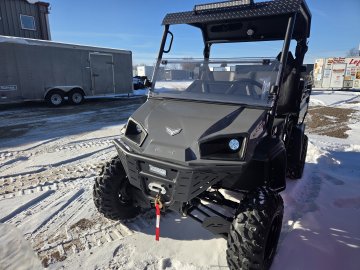

HD Bumper With LED Light
Convertible Steel Bed/Flat Bed

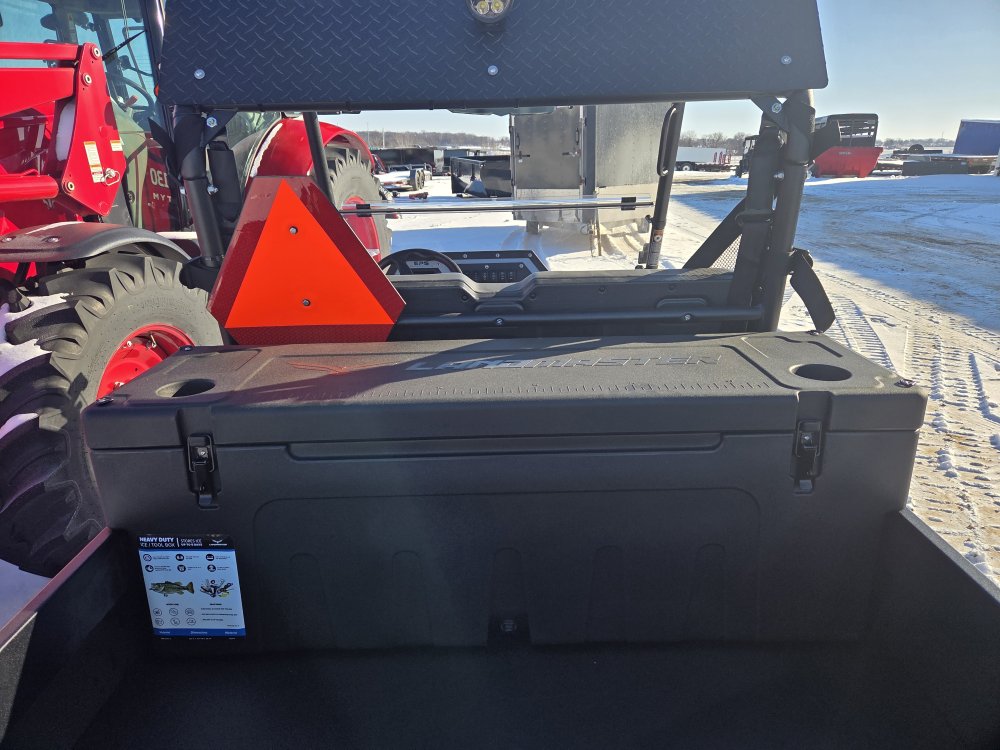

Toolbox / Cooler
Split Windshield
CV Guards

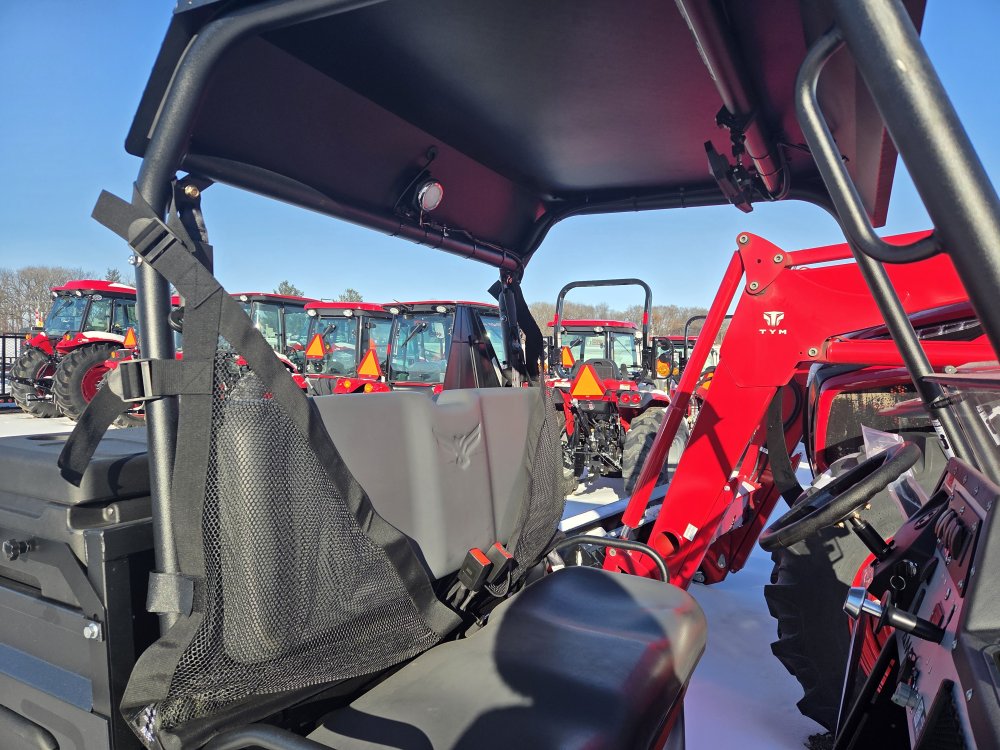

Aluminum Roof
(EPS) Electronic Power Steering
Dome Light
Horn Kit
Roof-Mounted LED Bar
Rear Work Light
Tail/Brake Lights
3,000 Lbs. Winch
USB Charger

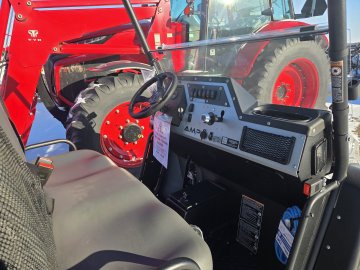

Center Console
Rearview Mirror
4 Tool Clamps
Heavy Duty Shocks
1,000ft Distance Safety Triangle
SPECS:
Power: 48V Lithium-Ion battery powerplant
Torque: 88.5Ft-Lbs
Drivetrain: 4x4 with Rear Locking Dierential
Bed Capacity: 700 Lbs.
Tow Capacity: 1,500 Lbs.
Speed: 30 Mph
Passengers: 2
Warranty: 1 Year Factory Warranty plus 3 Year
Extended Coverage
POWER/MOTOR
(18.0 kW peak) with 88.5Ft-Lbs motor rating - AC Motor powered by a 48V Lithium-Ion battery powerplant (8.0kW)
SEATING CAPACITY
2 Person
SPEED
30MPH* (24MPH with Rear Flip Seat)
RANGE
Up to 50 miles*
STARTING
Keyed on/off
BATTERY
48V 160AH Lithium-Ion
ALTERNATOR
Converter / 40 amps
TRANSMISSON
Direct drive
TRANSAXLE
Model 24 Schafer
DIFFERENTIAL
Cable Activated Rear Locking
DRIVE
4wd (Switch engaged on demand, 4 wheel drive)
FRONT SUSPENSION
Double A-arms, adjustable coil over shock with up to 8" travel
REAR SUSPENSION
Independent trailing arm, with radius rod, adjustable camber & tow control, dual-rate coil over shock with up to 8" of travel
BRAKE SYSTEM
4 wheel disc, hydraulic brake / hand-operated parking brake
TIRES
25" Standard HD DOT / Radial 8 Ply Tires on 12" Steel Wheels
DIMENSIONS
110" L x 58" W x 76" H
WHEEL BASE
73"
TURNING RADIUS
9" inside radius
CURB WEIGHT
1,350 lbs.
BED MATERIALS
Steel Bed
BED DIMENSIONS
37.125" L x 48.25" W x 10" D
BED CAPACITY
10.4 cu.ft. / 700 lbs.
TOWING CAPACITY
1,500 lbs.
TOTAL PAYLOAD
900 lbs.
WARRANTY
1 year motor / all other 1 year limited, 5 year Lithium battery
STANDARD FEATURES
On-board charger, DOT certified 3pt lap / shoulder belts for driver & passenger, 12V/18W LED headlights, 2" rear and front receiver hitch, welded steel frame, Single 12V auxiliary outlet for accessories, polyurethane powder paint. Complete weather-sealed wiring connections. Wide slection of additional accessories available along with three bed options. In-dash, hour meter standard. LED true state of charge meter for the 48 volt system is standard. Low charge audible warning. Battery
shut down switch. Electric accelerator pedal.
