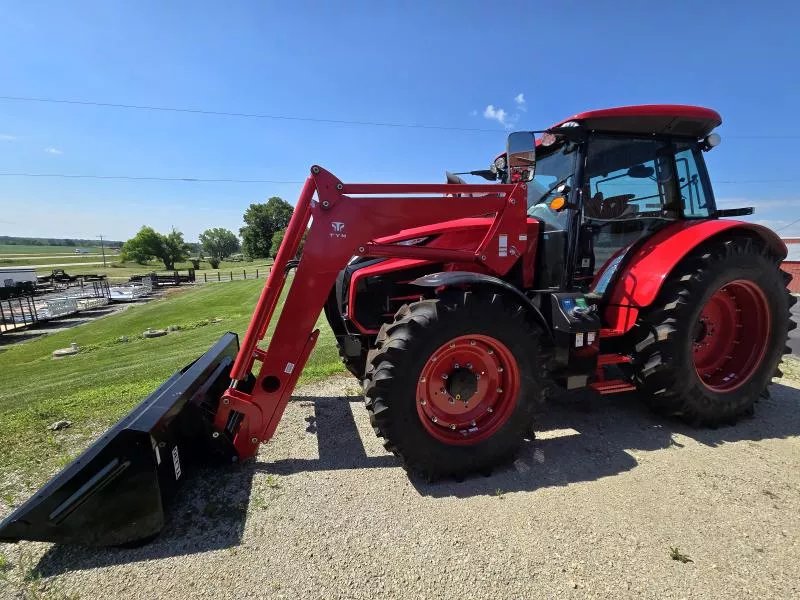

92.9"x176.8" TYM Tractors T130 Tractor
TL130 Loader Included: TL13U00073Ag Tires
Engine manufacturer Deutz TCD3.6L4
Type Water-cooled, 4-cylinder diesel engine
Engine power 127 hp | 95 kW
PTO power 118 hp | 87 kW
Rated engine speed 2200 rpm
No. of cylinders 4
Displacement 221 cu. in. | 3621.5 cc
Air cleaner Dual dry
Alternator 12V, 120A
Fuel system CRDI
Hydraulic System
Pump type Dual gear pump
Implement flow 20.1 gpm | 76.2 L/min
Steering flow 9.1 gpm | 34.4 L/min
Total flow 29.2 gpm | 110.6 L/min
Category, 3-point hitch II
Hitch lift capacity 8260.7 lb | 3747 kg
Hitch lift capacity at 24 inches behind link ends 8014.3 lb | 3635 kg
Lift control type Position/Draft
No. of standard remote valves 6
Powertrain
Transmission type Power shuttle & 6-speed shift APS
No. of speeds F36 x R36 w/Creep
Max. traveling speed 23 mph | 37 km/h
Brakes Wet, Multi disc
Steering Hydrostatic
Clutch Wet Multi Plate
PTO
PTO type Independent
PTO control Electro-hydraulic
PTO rear 540/540E/1000 rpm (Reversible shaft)
Capacities
Fuel tank 50.2 gal | 190 L
Coolant 19.1 qt | 18.1 L
Crankcase 8.5 qt | 8 L
Transmission/Hydraulics system 26.9 gal | 101.8 L
Front axle 6.3 qt | 6 L
Dimensions & Weights
Overall length with 3-point hitch 176.8 in. | 4490.7 mm
Overall width 92.9 in. | 2359.7 mm
Wheelbase 102 in. | 2938.8 mm
Height to top of cabin 115.7 in. | 2359.7 mm
Height to top of ROPS -
Min. ground clearance 16.1 in. | 410 mm
Min. turn radius with brakes (L) 165.8 in. | 4210 mm / (R) 165.5 in. | 4230 mm
Min. turn radius without brakes (L) 186.6 in. | 4740 mm / (R) 189 in. | 4800 mm
Weight with cab 10020 lb | 4545 kg
Weight with ROPS -
Standard Tires
R1 Agricultural - Front 380/85 R28
R1 Agricultural - Rear 460/85 R38(18.4R38)
LOADER SPECS:
Lift height: 4114 mm | 162 in.
Max. lift height under level bucket: 3873 mm | 152.5 in.
Clearance with bucket dumped: 3227 mm (127 in.)
Reach at maximum lift height: 379 mm | 14.9 in.
Max. dump angle: 60°
Reach with bucket on ground: 2513 mm | 98.9 in.
Max. rollback angle: 52°
Digging depth: 155 mm | 6.1 in.
Lift capacity at pivot point (max. height): 2456 kgf | 5415 lb
Breakout force at ground level, pivot pins: 3002 kgf | 6618 lb
Bucket rollback force at ground line: 3118 kgf | 6874 lb
Self leveling: Available
Relief valve setting (loader control valve): 210 kg/sq. cm | 2987 psi
Dimensions & Weights
Overall height in carry position: 2194 mm | 86.4 in.
Depth of Attachment (to the back of the inner shell): 579 mm | 22.8 in.
Height of Attachment: 563 mm | 22.2 in.
Length of Attachment (to pivot pin): 886 mm | 34.9 in.
Weight of boom & quick attach mechanism (1): 549 kg | 1210 lb
Weight of mounting frame (2): 268 kg | 591 lb
Weight of bucket (3): 203 kg | 448 lb
Loader total weight (1+2+3): 1020 kg | 2249 lb
Lift cylinder: 80 x 45 mm | 3.1 x 1.8 in.
Bucket cylinder: 75 x 40 mm | 3.0 x 1.6 in.
Attachment used for specification: 2330 mm | 92 in.
Cycle Times
Boom raising time: 4.4 sec
Boom lowering time: 2.8 sec
Bucket rollback time: 2.6 sec
Bucket dumping time: 3.6 sec
