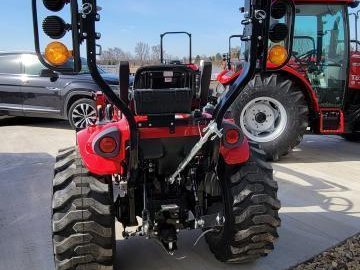

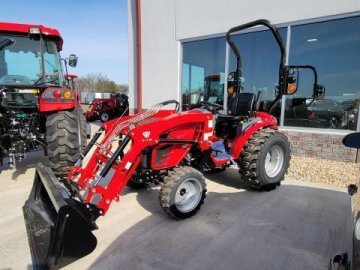

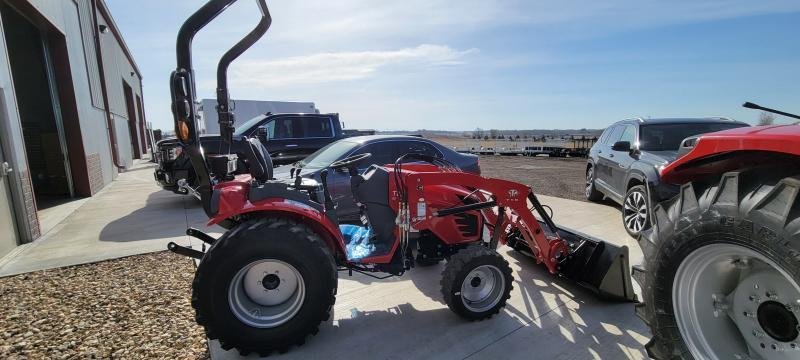

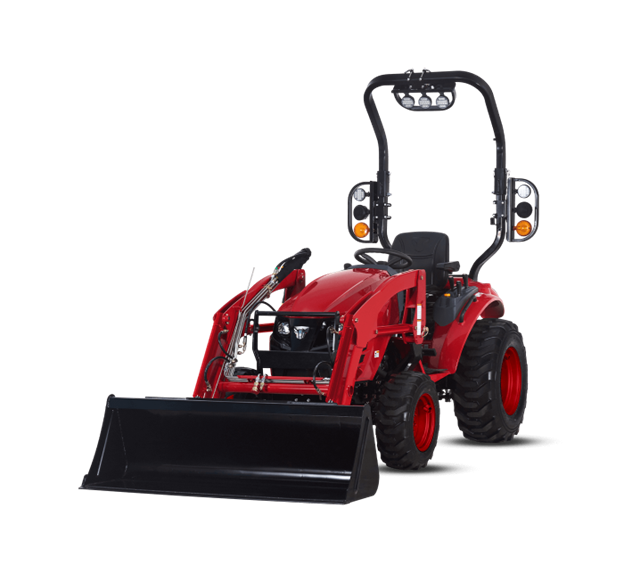

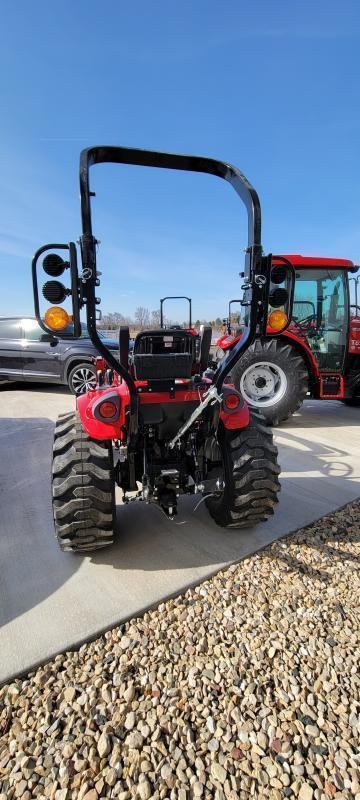

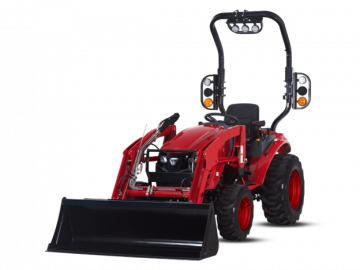

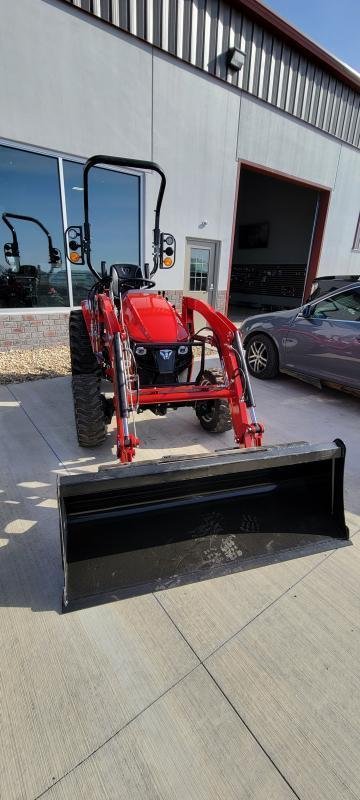

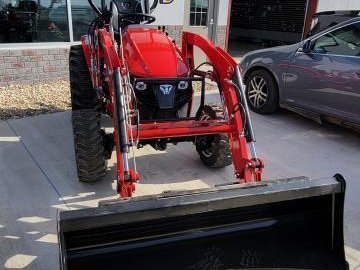

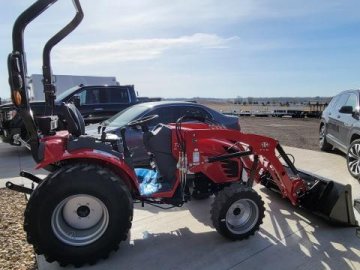

**THIS TRACTOR COMES WITH:** TL25 60" Bucket: 1,360 lb Capacity at Pivot Pin TL25U04157 Hydrostatic Industrial Tires

ENGINE Engine manufacturer Yanmar 3TNV80F

Type Natural aspiration

Gross engine power 24.7 hp | 18.4 kW

PTO power 18.3 hp | 13.6 kW

Rated engine speed 3000 rpm

No. of cylinders 3

Displacement 77.3 cu. in. | 1267 cc

Air cleaner Single dry

Alternator 12V, 40A

Fuel system IDI POWERTRAIN

Transmission type HST

No. of speeds Infinite 2-Range

Max. traveling speed 13.7 mph | 22 km/h

Brakes Wet disc

Steering Hydrostatic

Clutch N/A

CAPACITIES

Fuel tank 6.6 gal | 25 L

Coolant 3.8 qt | 3.6 L
Crankcase 2.9 qt | 2.7 L

Transmission/Hydraulics system 4.5 gal | 17 L

Front axle 4.7 qt | 4.5 L

PTO

PTO type Independent

PTO control Electric/Hydro PTO rear 540 rpm

HYDRAULIC SYSTEM

Pump type Single gear pump

Implement flow 4.2 gpm | 15.8 L/min

Steering flow 2.8 gpm | 10.5 L/min

Total flow 6.9 gpm | 26.3 L/min

Category, 3-point hitch I

Hitch lift capacity 1551.2 lb | 703.6 kg

Hitch lift capacity at 24 inches behind link ends 1229.7 lb | 557.8 kg

Lift control type Position No. of standard remote valves 1

DIMENSIONS & WEIGHTS

 Overall length with 3-point hitch 102.8 in. | 2610 mm

Overall width 50 in. | 1270 mm

Wheelbase 61 in. | 1550 mm

Height to top of ROPS 91.3 in. | 2320 mm

Height to top of cabin -

Min. ground clearance 10.2 in. | 260 mm

Min. turn radius with brakes 94.1 in. | 2390 mm

Min. turn radius without brakes 111.8 in. | 2840 mm

Weight with ROPS 2046 lb | 928 kg
