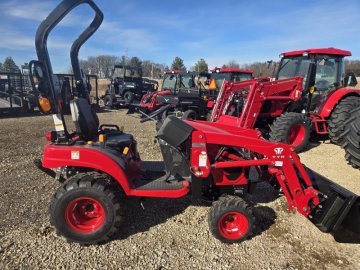

# T224 Seriers 1, Sub Compact Tractor

#### INCLUDES: TX22P Front-End Loader: T22PU01184

Front-end loader, 48â?3 skid-steer bucket

### ENGINE

Engine manufacturer Yanmar 3TNV74F
Type Natural aspiration
Engine power 21.5 hp | 16 kW
PTO power 15.1 hp | 11.3 kW
Rated engine speed 3200 rpm
No. of cylinders 3
Displacement 60.6 cu. i. | 993 cc
Air cleaner Single dry
Alternator 12V, 40A
Fuel system IDI

###

### HYDRAULIC SYSTEM

Pump type Single gear pump
Implement flow 4.6 gpm | 17.4 L/min
Steering flow 2.1 gpm | 8 L/min
Total flow 6.7 gpm | 25.4 L/min
Category, 3-point hitch I (N)
Hitch lift capacity 1100 lb | 499 kg
Hitch lift capacity at 24 inches behind link ends 679 lb | 308 kg
Lift control type Position
No. of standard remote valves Optional (1)

### POWERTRAIN

Transmission type HST
No. of speeds 2 Range
Max. traveling speed 8.4 mph | 13.5 kmph
Brakes Wet disc
Steering Hydrostatic
Clutch N/A

### PTO

PTO type Independent
PTO control Electric/Hydro
PTO rear 540 rpm

### CAPACITIES

Fuel tank 6.6 gal | 25 L
Coolant 3.7 qt | 3.5 L
Crankcase 1.9 qt | 1.8 L
Transmission/Hydraulics system 3.6 gal | 13.6 L
Front axle 2.6 qt | 2.5 L

### DIMENSIONS & WEIGHTS

Overall length with 3-point hitch 94.2 i. | 2394 mm
Overall width 44.5 i. | 1130 mm
Wheelbase 53.1 i. | 1350 mm
Height to top of ROPS 86.6 i. | 2200 mm
Height to top of cabin -
Mi. ground clearance 8.3 i. | 210 mm
Min. turn radius with brakes -
Mi. turn radius without brakes 86.6 i. | 2200 mm
Weight with ROPS 1472 lb | 668 kg
Weight with cab -

### STANDARD TIRES

Hybrid Tires - Front WT300 18x8.5-10 NHS TL 4PR
Hybrid Tires- Rear WT300 26x12.00-12 NHS TL 4PR

# **LOADER TECHNICAL SPECIFICATIONS**

### **CAPACITIES & REACH**

Lift height 1810 mm | 71.3 i.
Max. lift height under level bucket 1646 mm | 64.8 i.
Clearance with bucket dumped 1369 mm | 53.9 i.
Reach at maximum lift height 680 mm | 26.8 i.
Max. dump angle 37°
Reach with bucket on ground 1258 mm | 49.5 i.
Max. rollback angle 23°
Digging depth 105 mm | 4.1 i.
Lift capacity at pivot point (max. height) 280 kgf | 617 lb
Breakout force at ground level, pivot pins 560 kgf | 1235 lb
Bucket rollback force at ground line 470 kgf | 1036 lb
Bucket capacity 0.16 cu. m | 5.7 cu. ft
Self leveling NA
Relief valve setting (loader control valve) 130 kg/sq. cm | 1849 psi
Compatible bucket sizes 66" Front-end loader bucket

### **DIMENSIONS & WEIGHTS**

Overall height in carry position 1068 mm | 42 i.
Depth of Attachment (to the back of the inner shell) 484 mm | 19.1 i.
Height of Attachment 467 mm | 18.4 i.
Length of Attachment (to pivot pi) 525 mm | 20.7 i.
Weight of boom & quick attach mechanism (1) 92 kg | 202.8 lb
Weight of mounting frame (2) 46 kg | 101.4 lb
Weight of bucket (3) 52 kg | 114.6 lb
Loader total weight (1+2+3) 190 kg | 418.9 lb
Lift cylinder 40 x 25 mm | 1.6 x 1.0 i.
Bucket cylinder 40 x 25 mm | 1.6 x 1.0 i.
Attachment used for specification 1220 mm | 48 i.

### **CYCLE TIMES**

Boom raising time 3.7 sec
Boom lowering time 2.2 sec
Bucket rollback time 2.2 sec
Bucket dumping time 3.6 sec
