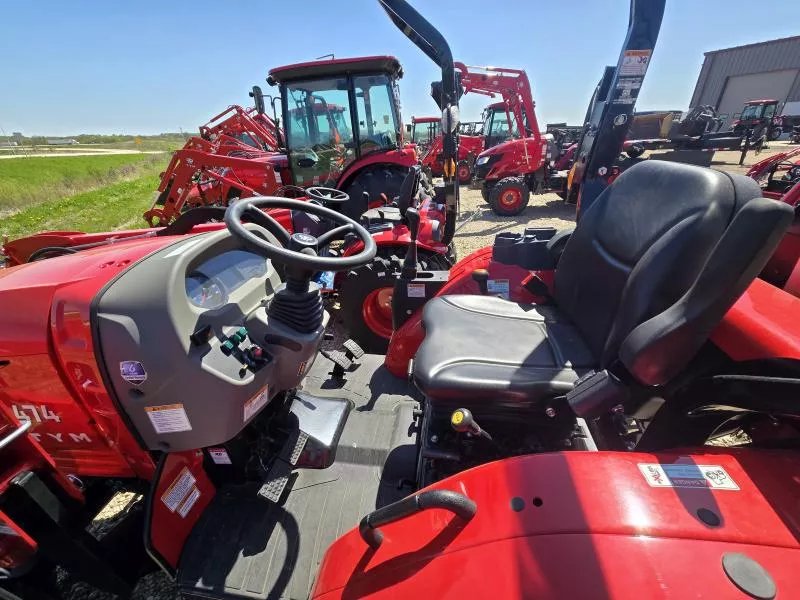

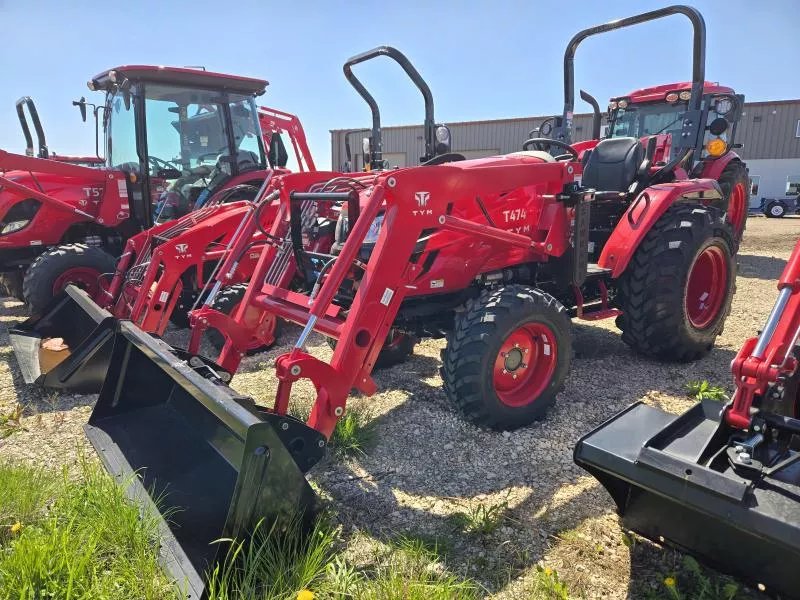

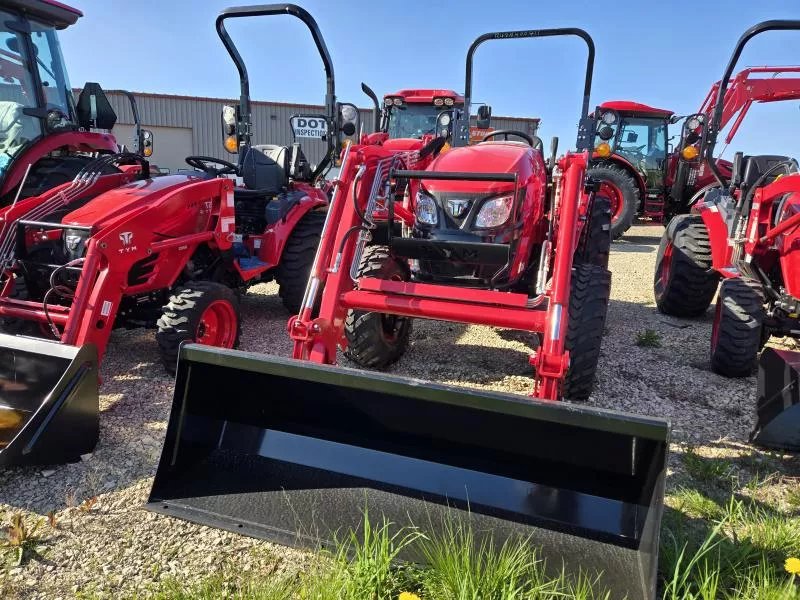

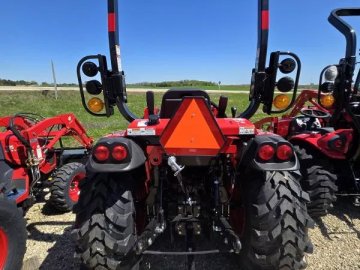

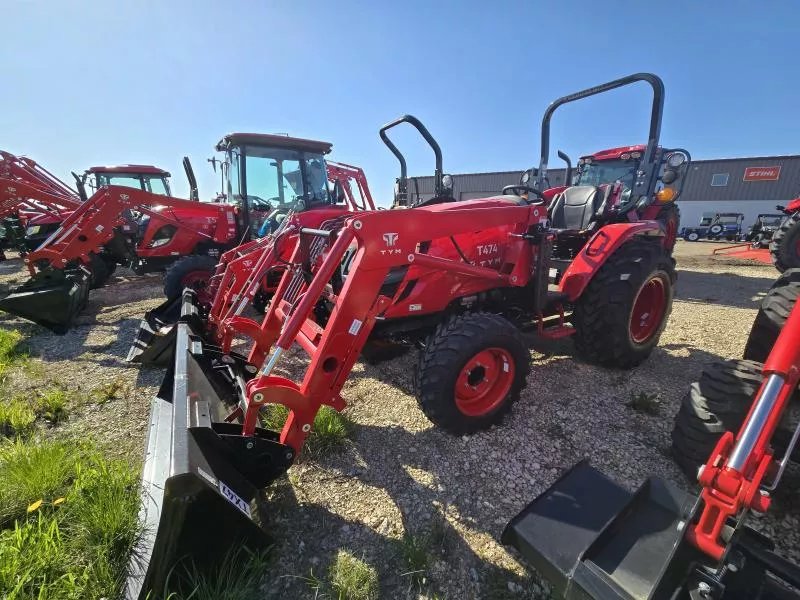

### 2024 TYM T474H Hydrostatic with Loader

Includes:
TX47 Loader: TX47U07504
Tires: Hybrid

###### ENGINE

Engine manufacturer TYM A2300N2
Type Natural Aspiration
Gross engine power 48.3 hp | 36 kW
PTO power 35.9 hp | 26.4 kW
Rated engine speed 2600 rpm
No. of cylinders 4
Displacement 139.5 cu. in.
Air cleaner Single Dry
Alternator 12V, 70A
Fuel system IDI

###### POWERTRAIN

Transmission type Mechanical
No. of speeds F12xR12
Max. traveling speed 14.9 mph
Brakes Wet Disc
Steering Hydrostatic
Clutch Dry Single Plate

###### HYDRAULIC SYSTEM

Pump type Dual Gear Pump
Implement flow 7.66 gpm
Steering flow 4.25 gpm
Total flow 11.91 gpm
Category, 3-point hitch I
Hitch lift capacity 2688.8 lb
Hitch lift capacity at 24 inches behind link ends 1508.4 lb
Lift control type Position
No. of standard remote valves 1

###### PTO

PTO type Independent
PTO control Electric/Hydro
PTO rear 540 rpm

###### CAPACITIES

Fuel tank 9.0 gal
Coolant 6.9 qt
Crankcase 6.8 qt
Transmission/Hydraulics system 8.5 gal
Front axle 8.6 qt

###### DIMENSIONS & WEIGHTS

Overall length with 3-point hitch 131 in.
Overall width 54.5 in.
Wheelbase 69.7 in.
Height to top of ROPS 94.5 in.
Min. ground clearance 12.8 in.
Min. turn radius with brakes 106.7 in.
Min. turn radius without brakes 117.5 in.
Weight with ROPS 3289 lb
Weight with cab 3607 lb
