Axles

2 - 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs

Brakes

Forward Self-Adjusting Electric Brakes on All Hubs

Suspension

Multi-Leaf Spring w/ Equalizer

Tongue

8" I-Beam (10#), Integral with Frame

Coupler

Adjustable 2-5/16” 18,000# Demco EZ Latch

Safety Chains

3/8" Grade 70 w/ Safety Latch Hook (2 ea)

Jack

12,000# Drop-Leg Jack (Side Wind)

Frame

8" I-Beam (10#)

Cross-Members

3" Channel on 16" Centers

Floor

7 Gauge Smooth Steel

Fenders

9” x 72” 14 Ga. Diamond Plate Double Square Broke

Ramps

6' Slide in Ramps with integrated Ramp Door

Stake Pockets

Stake Pockets Along Both Sides (Quantity Varies by Length)

Trailer Plug

7-Way RV

Lights

L.E.D. D.O.T. Stop, Tail, Turn & Clearance

Wiring

Sealed, Modular Cold-Weather Wiring Harness

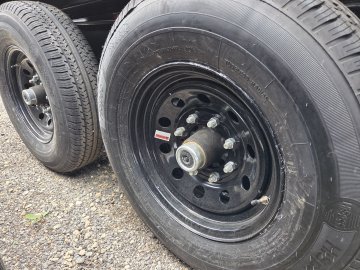

Tires

ST235/80 R-16 Load Range G

Bolt Pattern

8-Lug

Wheels

Black Mod Steel

Spare Mount

Side Spare Tire Mount

Paint Type

Professional Finish w/ Primer Standard

Paint Color

Black

Tie-Downs

(4) 5/8" D-Rings Inside Bed to Secure EquipmentAlong Sides and Rear for Cargo Control

Break-Away Kit

Complete Breakaway System w/ Zip Breakaway Cable

Battery

12V Deep Cycle

Charger

5A 110V on Board Battery Charger

Gate

Rear Combo Gate (Barn Doors & Spreader Gate)

J-Hooks

Along sides and rear for Cargo Control

Power

Power Up/Power Down & Gravity Down Hydraulic Pump

Ram

Self-Contained Scissor

Sides

24" Tall (10 Ga) with formed Channel Supports

Stabilizers

Rear Stabilizer Stands

Storage

Full Tongue Tool Box with Locking Lid

Tarp

Spring Loaded Swing Arm Tarp

Top Rail

3"x 2" Rectangular Tubing
