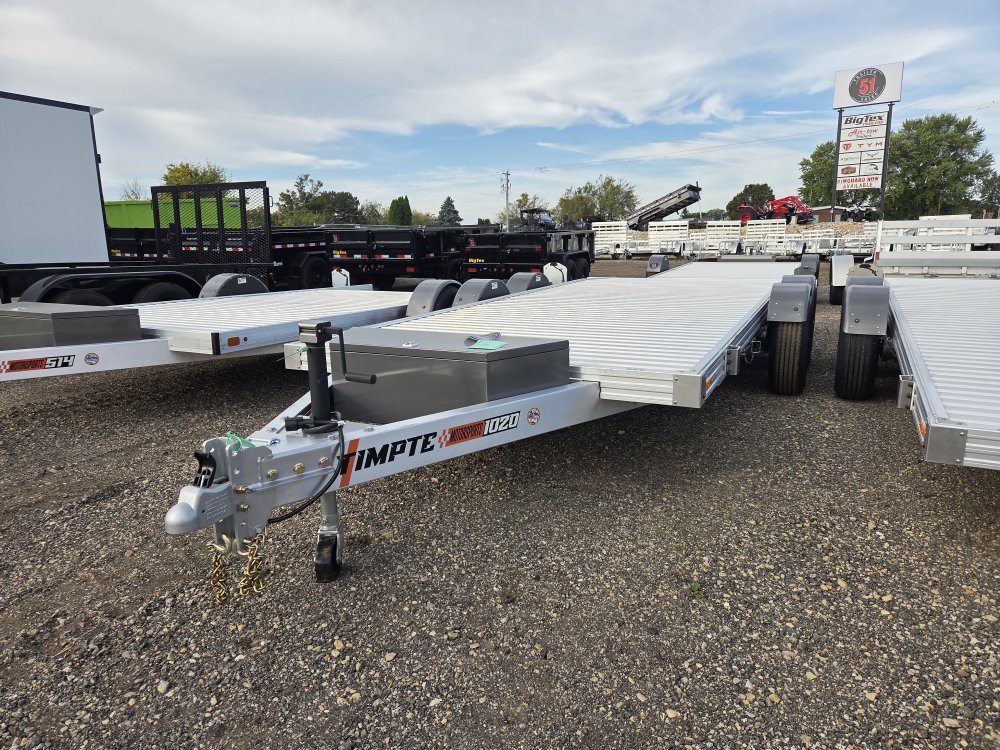

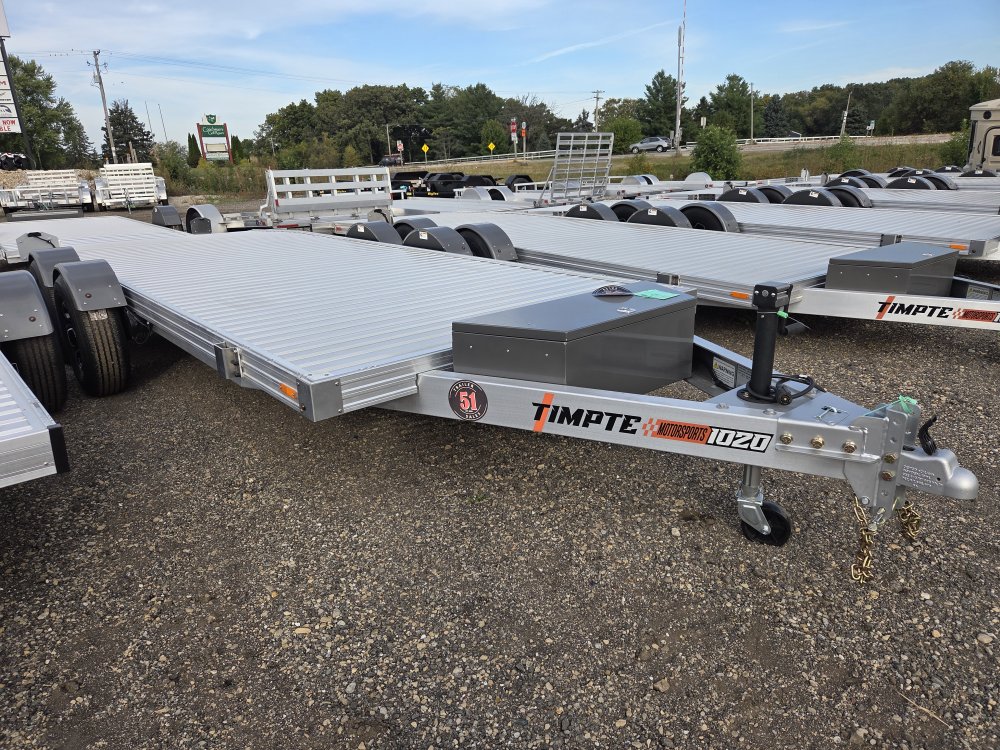

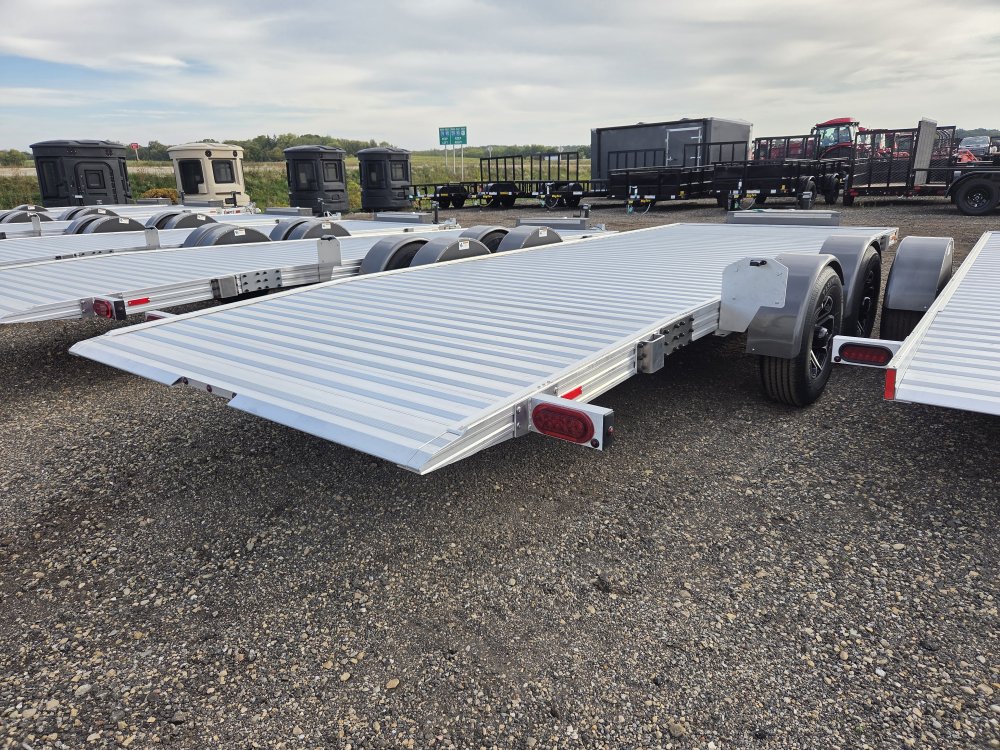

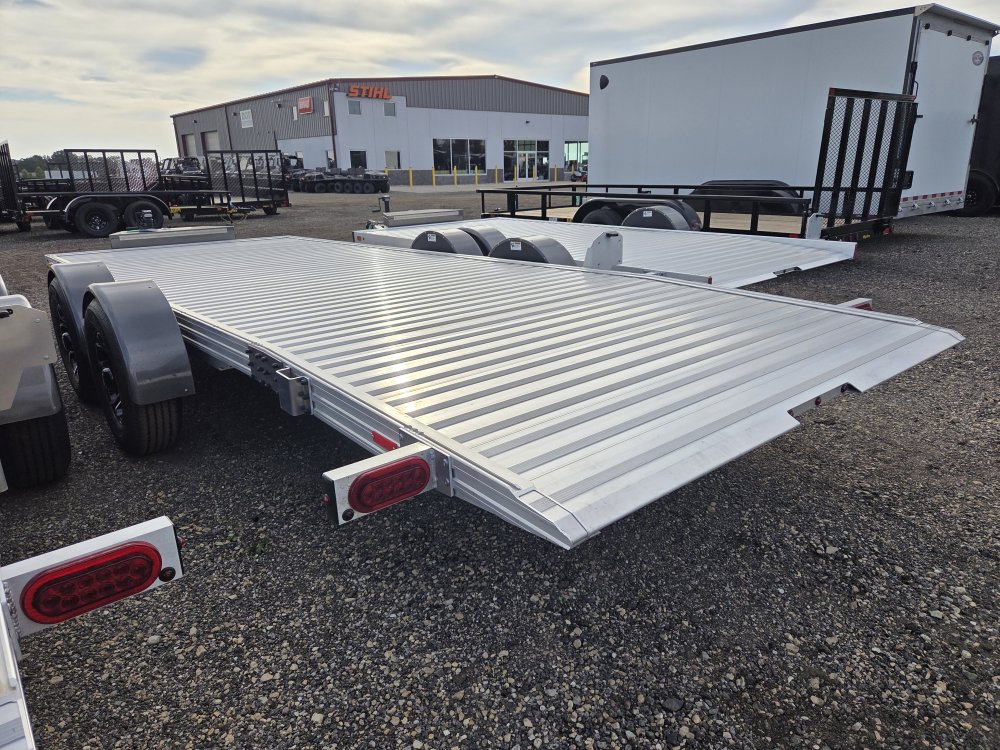

7'x20' Timpte 1020R3TSEZ Utility

1020

Overall Width 102”

Overall Length 24’ 6”

Payload Capacity 7,580 lbs.

Tongue Length 61”

Deck Height 24”

Distance between Fenders 85-1/4”

Loading Angle <4°

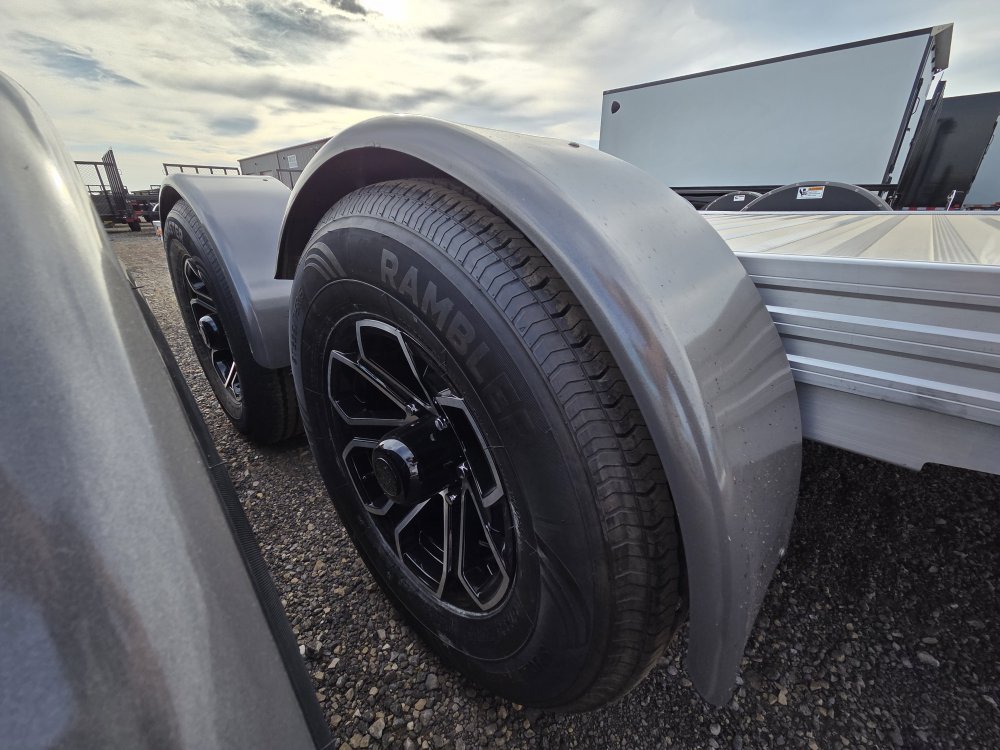

Wheel Size 15”

Tire Size ST225/75R15E - 10 ply

Number of Lug Bolts 6 per wheel (24)

Axle/Suspension Torsion

Brakes Electric Self-Adjusting

Coupler 2-5/16”

Coupler Position Adjustable

Jack Style Side Crank

Jack Rating 2,000 lbs.

Tie-Downs Standard with (4) movable D-Rings

and an integrated L-Track on the

front and on both sides of the deck.

Stake Pockets 4

Lighting LED
