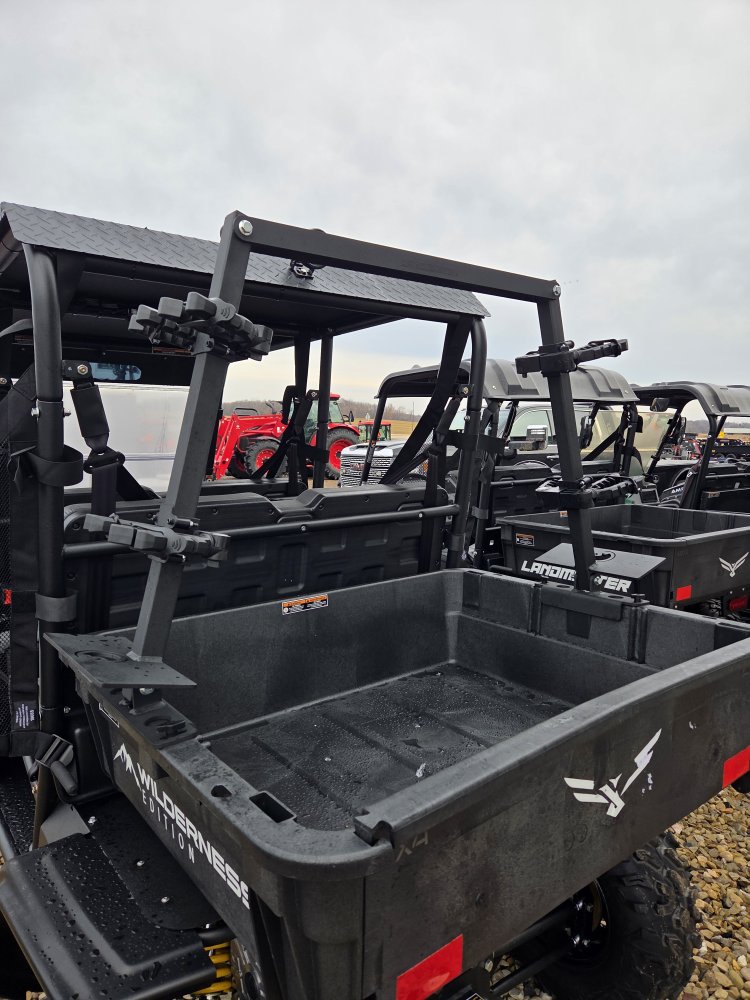

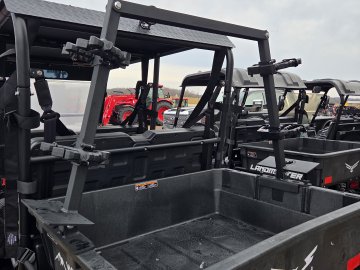

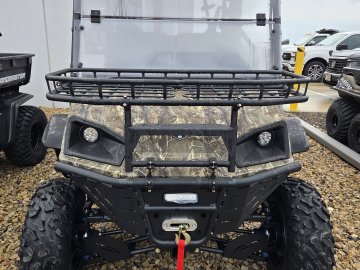

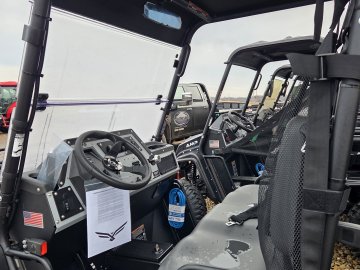

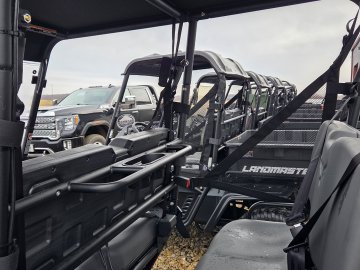

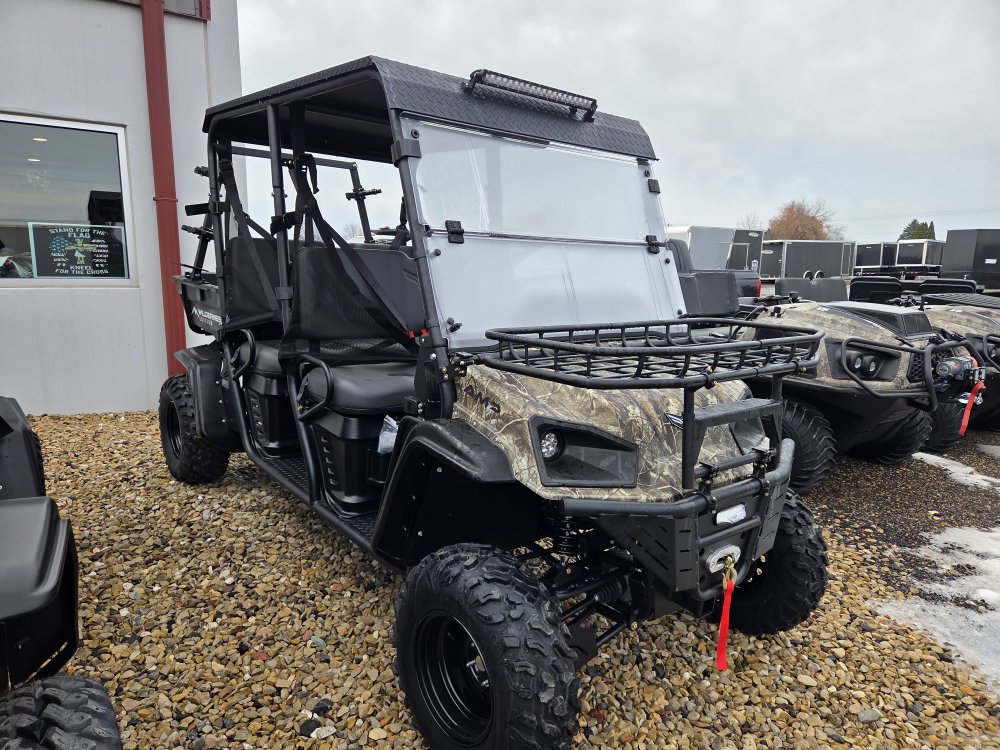

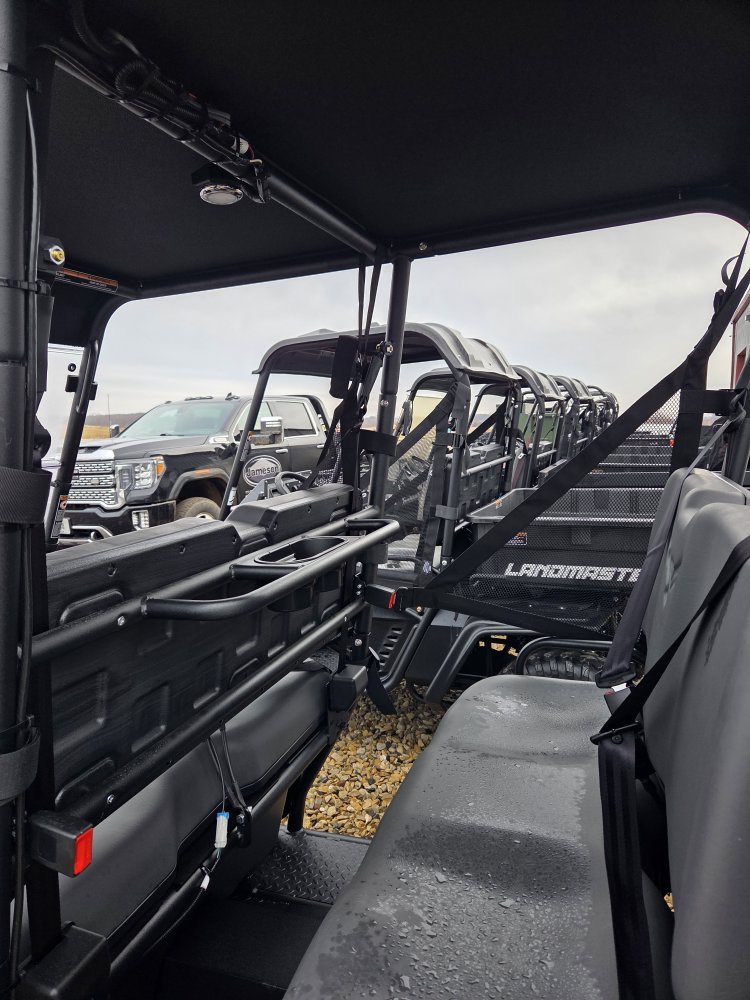

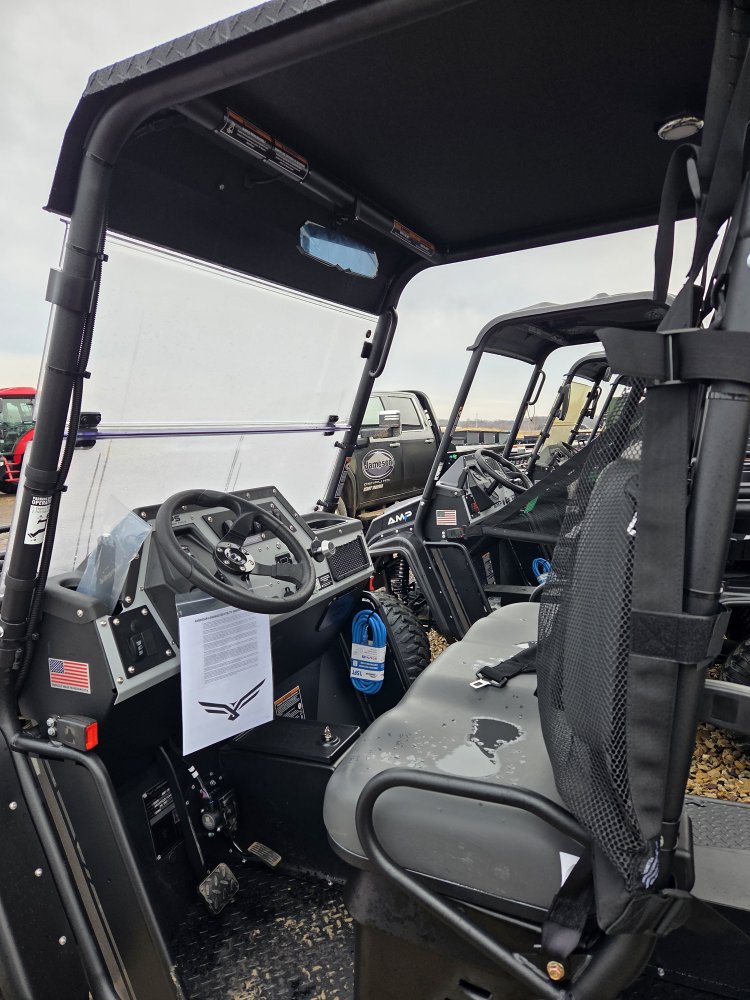

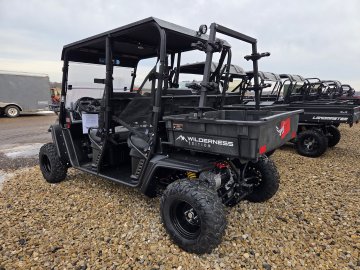

x Landmaster Amp 4WD UTV


POWER/MOTOR

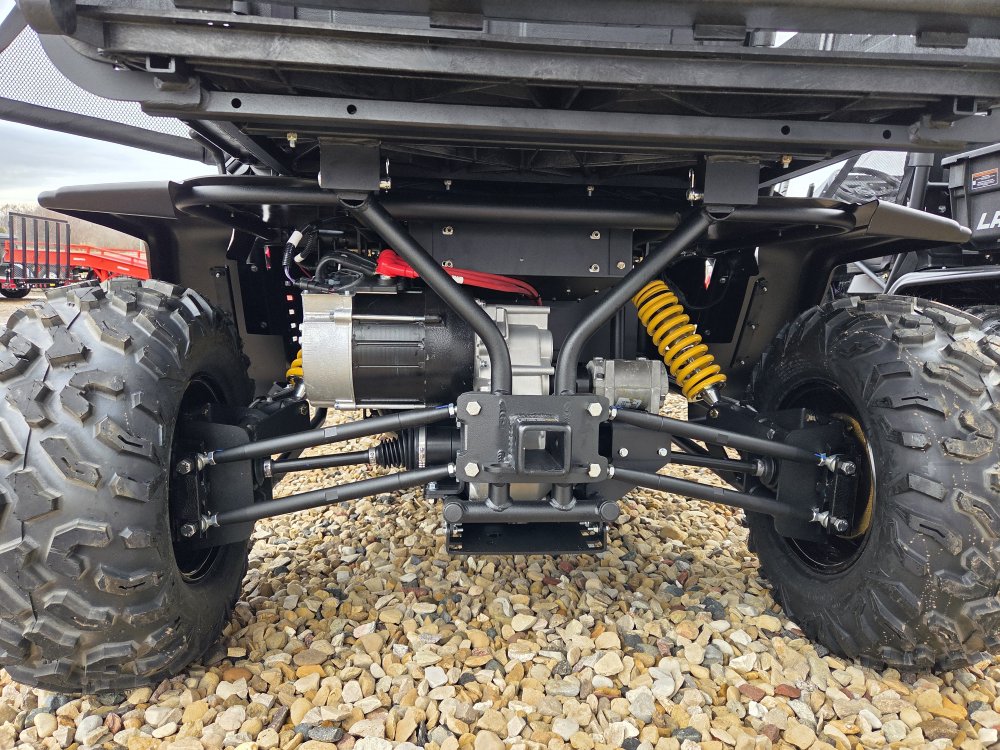

(18.0 kW) with 88.5Ft-Lbs torque rating – AC Motor powered by a 48V Lithium-Ion battery powerplant (8.0kW)
SEATING CAPACITY
4 Person
SPEED
30MPH* (24MPH with Rear Flip Seat)
FUEL CONSUMPTION
N/A*
RANGE
Up to 50 miles ( 160 ah battery)*
STARTING
Keyed on/off
BATTERY
48V 160AH Lithium-Ion
SPARK PLUG
N/A
FUEL CAPACITY
N/A
ALTERNATOR
Converter / 40 amps
TRANSMISSION
Direct drive
TRANSAXLE
Model 24 Schafer
DIFFERENTIAL
Cable Activated Rear Locking
DRIVE
4wd (Switch engaged on demand, 4 wheel drive)
FRONT SUSPENSION
Double A-arms, adjustable coil over shock with up to 8" travel
REAR SUSPENSION
Independent trailing arm, with radius rod, adjustable camber & tow control, dual-rate coil over shock with up to 8" of travel
BRAKE SYSTEM
4 wheel disc, hydraulic brake / hand-operating parking brake
TIRES
25” Standard Max-Terrain HD DOT / Radial 8 Ply Tires on 12” Steel Wheels
DIMENSIONS
127” L x 58” W x 76” H
WHEEL BASE
105”
TURNING RADIUS
14’ inside radius
GVWR
2,530 lbs.
CURB WEIGHT
1,530 lbs.
BED MATERIALS
“Poly Bed” with stake pockets
BED DIMENSIONS
35.25” L x 41.5” W x 11” D
BED CAPACITY
Poly - 9 cu.ft. / 500 lbs.
TOWING CAPACITY
1,500 lbs.
TOTAL PAYLOAD
1,000 lbs.
WARRANTY
1 year motor / all other 1 year limited, 5 year Lithium battery
ADDITIONAL FEATURES
On-board charger, DOT certified 3pt lap / shoulder belts for driver & passenger, 12V/18W LED headlights, 2” rear and front receiver hitch, welded steel frame,
Single 12V auxiliary outlet for accessories, polyurethane powder paint. Complete weather-sealed wiring connections. Wide slection of additional

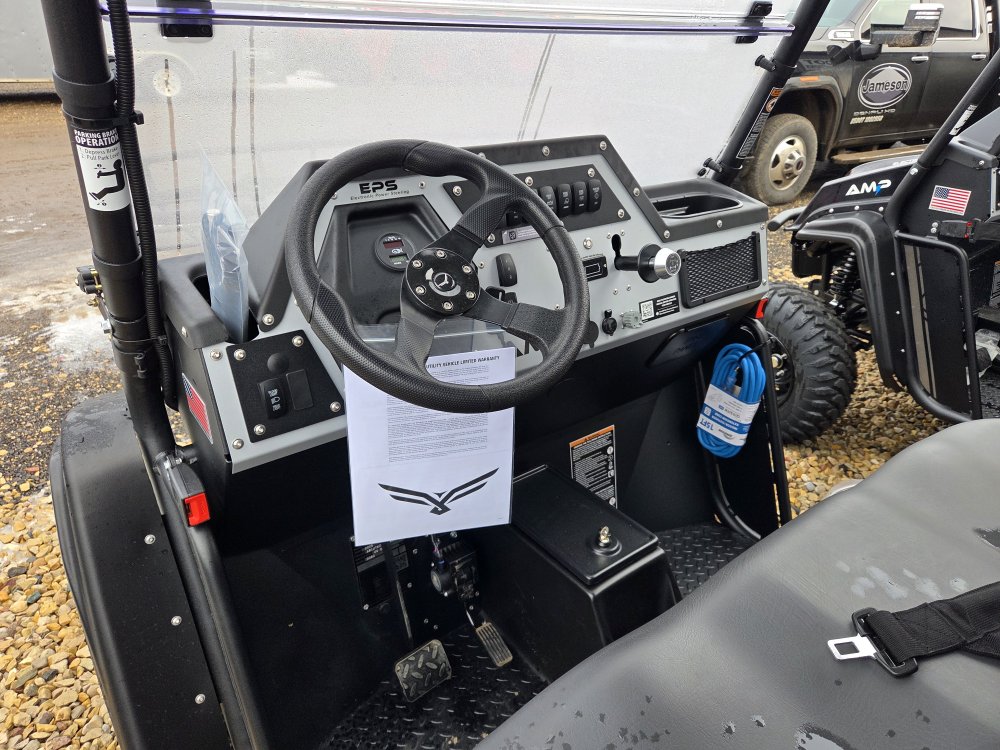

accessories available along with three bed options. In-dash, hour meter standard. LED true state of charge meter for the 48 volt system is standard. Low charge
audible warning. Battery shut down switch. Electric accelerator pedal.
