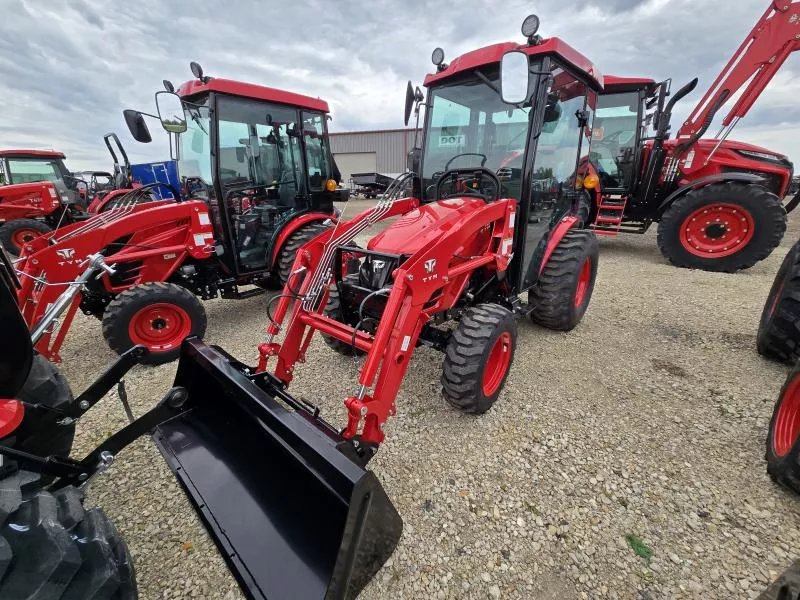

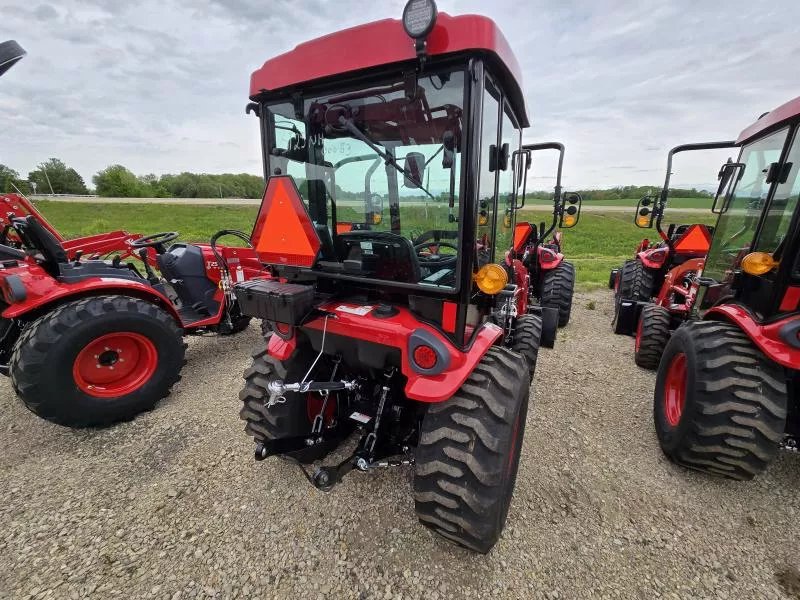

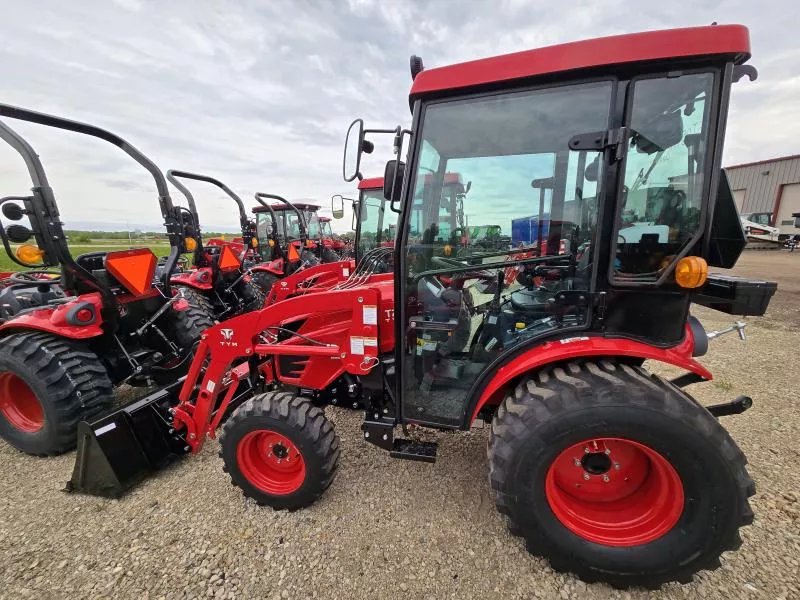

52.8"x107.8" TYM Tractors T25 HST Tractor
THIS TRACTOR COMES WITH:
TL25 60" Bucket: 1,360 lb Capacity at Pivot Pin TL25V06153

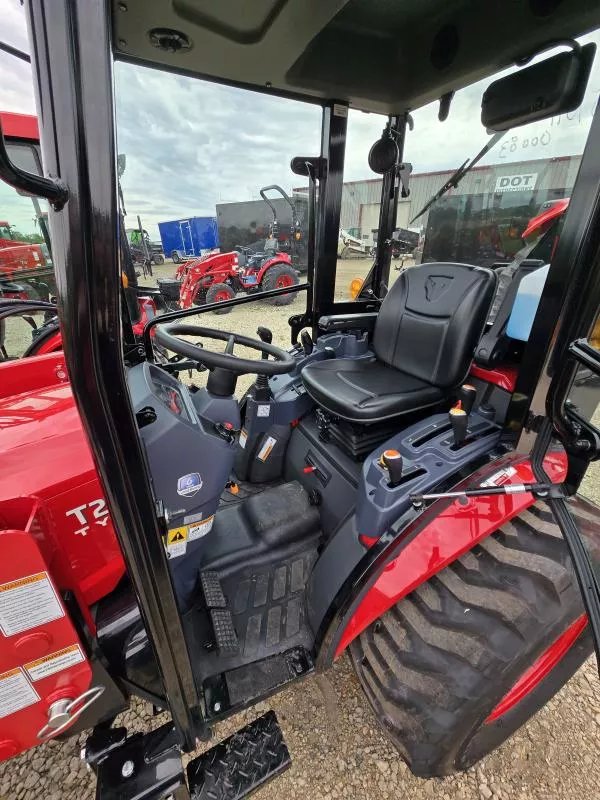

Heated Cabin CAB25H: X81400881
Hydrostatic
Industrial Tires
DETAILED SPECS OF THE T25
ENGINE
Engine manufacturer Yanmar 3TNV80F
Type Natural Aspiration
Gross engine power 24.7 hp | 18.4 kW
PTO power 18.3 hp | 13.6 kW
Rated engine speed 3000 rpm
No. of cylinders 3
Displacement 77.3 cu. in.
Air cleaner Single Dry
Alternator 12V, 40A
Fuel system IDI
POWERTRAIN
Transmission type Synchro-Shuttle/HST
No. of speeds Infinite 2-Range
Max. traveling speed 13.7 mph
Brakes Wet Disc
Steering Hydrostatic
Clutch N/A
HYDRAULIC SYSTEM
Pump type Single Gear Pump
Implement flow 4.18 gpm
Steering flow 2.77 gpm
Total flow 6.95 gpm
Category, 3-point hitch I
Hitch lift capacity 1534 lb
Hitch lift capacity at 24 inches behind link ends 1102 lb
Lift control type Position
No. of standard remote valves Optional (1)
PTO
PTO type Independent
PTO control Electric/Hydro
PTO rear 540 rpm
CAPACITIES
Fuel tank 6.6 gal
Coolant 3.8 qt
Crankcase 2.9 qt
Transmission/Hydraulics system 5.8 gal
Front axle 4.7 qt
DIMENSIONS & WEIGHTS
Overall length with 3-point hitch 107.8 in.
Overall width 52.8 in.
Wheelbase 61 in.
Height to top of ROPS 89.8 in.
Min. ground clearance 7.71 in.
Min. turn radius with brakes 102.4 in.
Min. turn radius without brakes 109.5 in.
Weight with ROPS 1881 lb
Weight with cab 2399 lb
