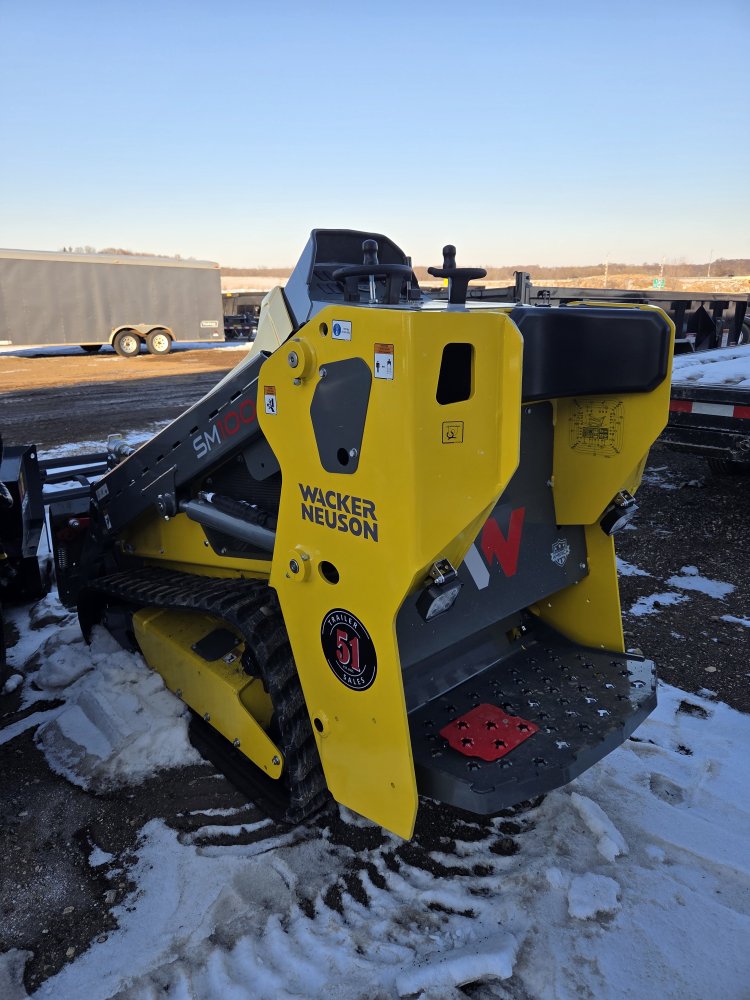

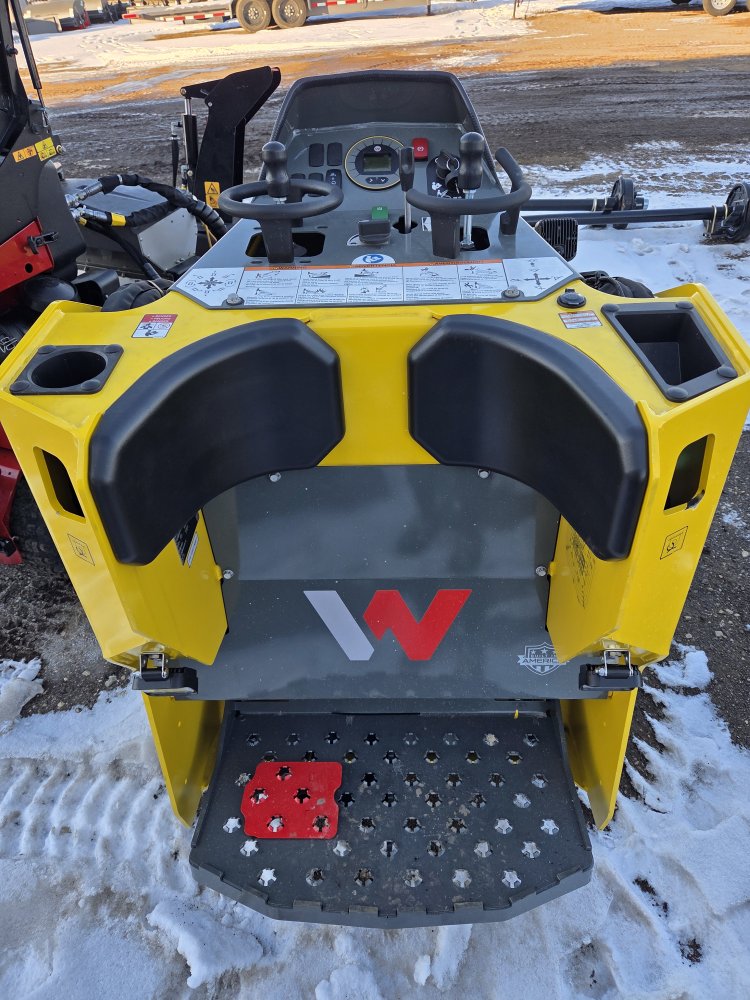

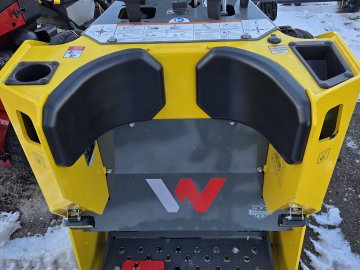

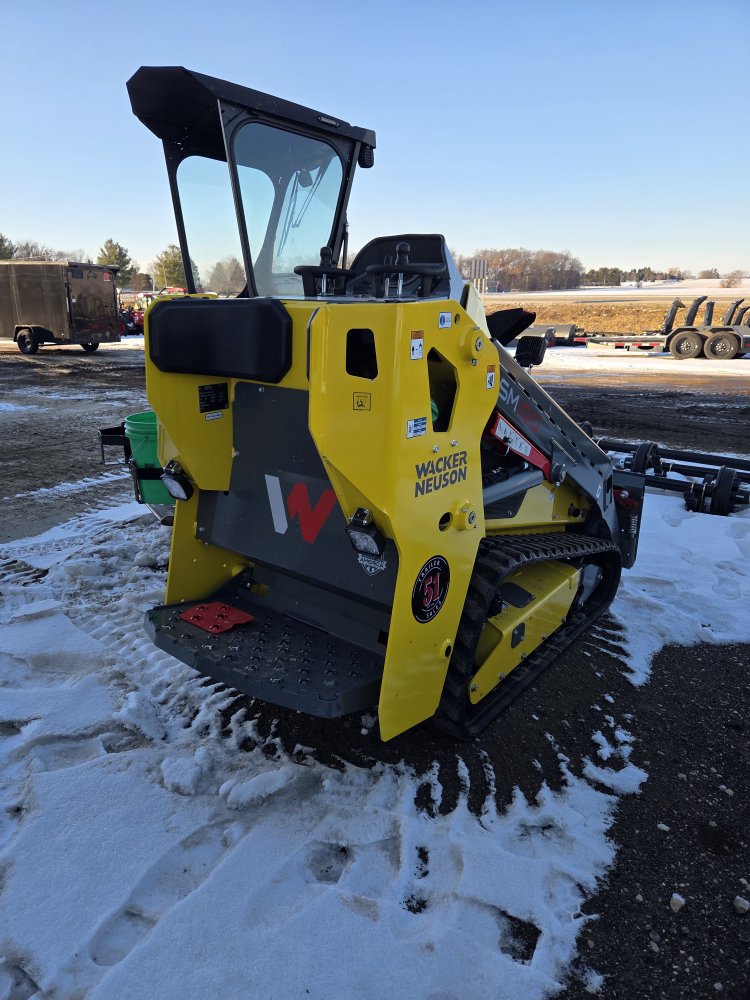

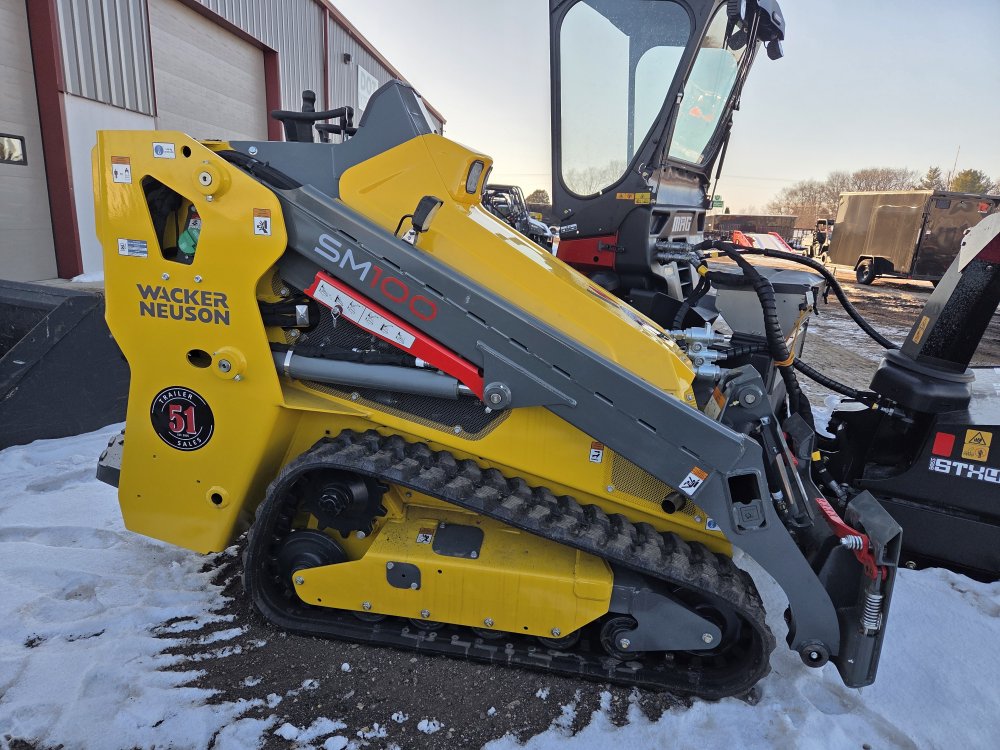

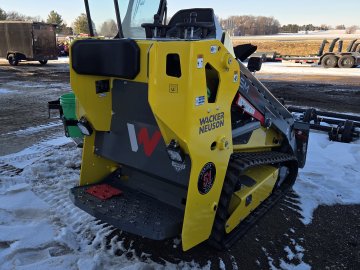

x Wacker Neuson SM100 Contractor Equipment


INCLUDES ISO COUPLER KIT AND WORK LIGHTS KIT

Highlights

• Compact Design
• Industry Leading Safety Features
• All Day Comfort

Standard Components
General

24.7 hp [18.4 kW] Yanmar 3TNV80FT diesel engine, Water-cooled, T4F, 3-cylinder, TurbochargedEH Joystick controls, hand and foot throttles

ISO Control Pattern Joystick Controls

Operator Presence Foot Pedal

3" mono-color display

Standard Auxiliary Hydraulics - 13.0 gpm

11" [280mm] Wide Tracks w/Low-mounted Undercarriage Counterweights

• Operator's Manual



  OPERATING FLUIDS


  Fuel Tank capacity

  16,9 gal




  NAMEPLATE

  Company

  PUM




  ENGINE

  Cylinder

  3

  Power rating max.

  24,8 hp

  Cooling

  Water-cooling

  Engine Manufacturer

  Yanmar

  Cylinder capacity

  77,3 Inch3

  Operating Engine speed

  2.600 1/min

  Operating power

  24,7 hp

  Engine Designation

  3TNV80 FT

  Maximum torque

  63,0 lb/ft

  Engine type

  Diesel engine




  MECHANICAL - OUTPUT DETAILS

  Breakout force - tilt

  3.108.434,0 lbf

  Ground Pressure

  4,1 psi

  Breakout force - lift

  3.108,4 lbf

  Travel speed

  5,2 m/H




  HYDRAULIC

  Flow rate

  12,9 gal/mi

  Auxiliary hydraulics relief pr

  3.045,0 psi




  MECHANICAL DETAILS
  Length Without Bucket

  84,3 "

  Track Width

  9,1 "

  Length with Bucket

  108,0 "

  Bucket roll back at height max

  92 °

  Length of Track on Ground

  43,0 "

  Underclearance

  7,8 "

  Operating weight

  3.300,3 lb

  Bucket height at height max.

  62,8 "

  Angle of departure

  25 °

  Buck. dump angle at height max

  42 °

  Height

  58,2 "

  Overall width without bucket

  35,5 "

  Dump reach at max. height

  21,9 "

  Max bucket roll back at ground

  25 °

  Bucket Hinge Pin Height

  85,7 "




  CHASSIS

  ROC at 35% Tip Load

  998,7 lb

  ROC at 50% Tip Load

  1.426,4 lb

  Tip Load

  2.855,0 lb
