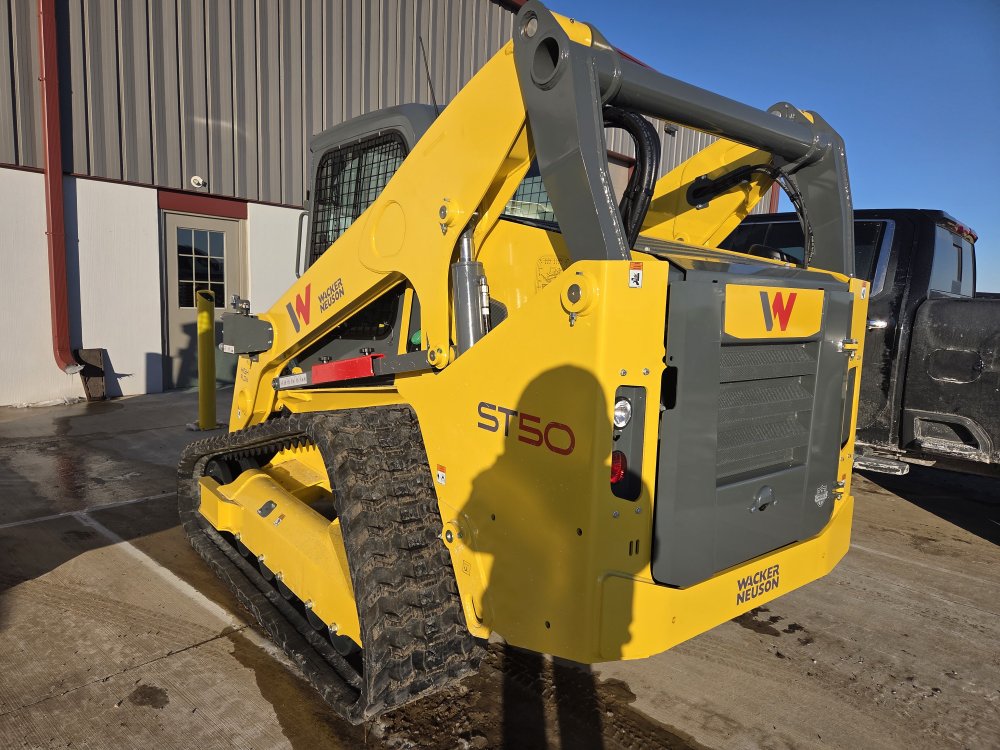

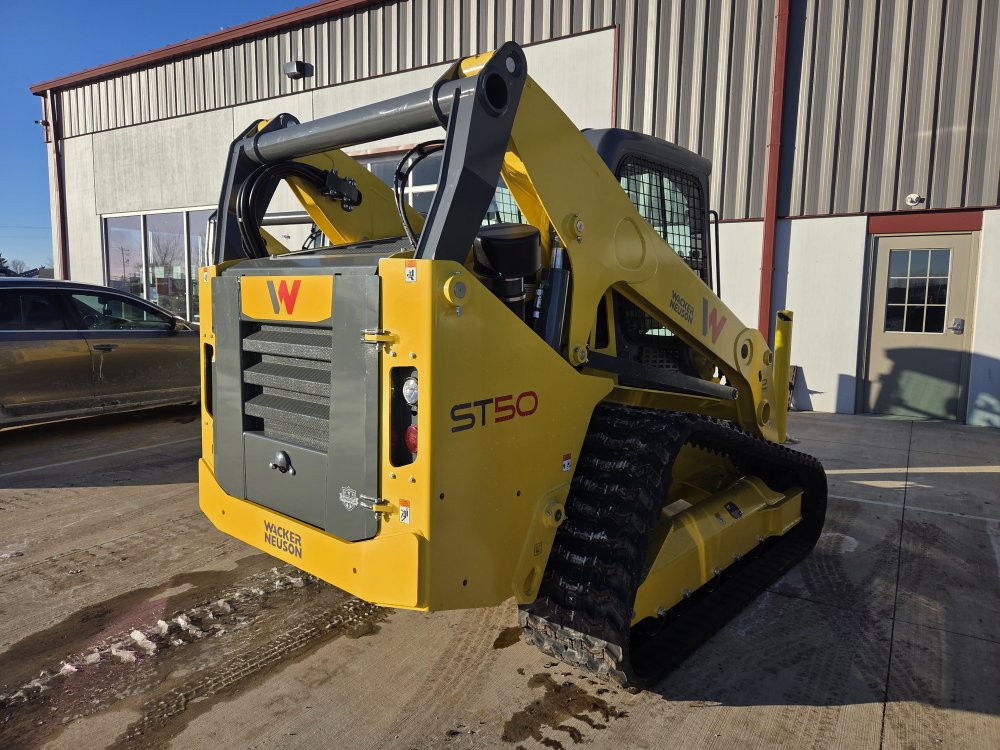

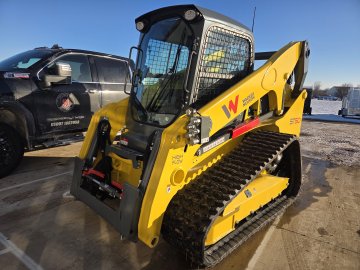

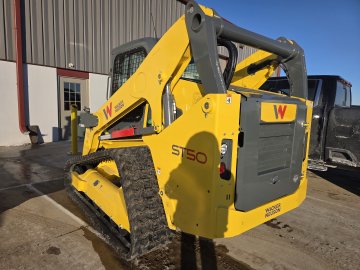

x Wacker Neuson ST50 Contractor Equipment


UNIT DOES NOT INCLUDE ATTACHMENT

PREMIUM CAB:
Heat & AC
Air Ride Seat
Rearview Camera
Radio--AM/FM/USB & Bluetooth Streaming (does not allow handsfree calling)
Cyclonic Engine Pre-Cleaner
Block Heater, 110V
HP High Flow Auxiliary Hydraulics
Hydraulic Coupler
Auto Ride Control
One-Way Hydraulic Bucket Leveling
14-Pin Attachment Control
STANDARD SPECS:
Engine:
100hp Kohler KDI 3404 TCR-SCR diesel engine, water-cooled, F, 4-cylinder, turbocharged, aftercooled
Diesel Oxidation Catalyst + selective catalytic reduction - exhaust aftertreatment
Auto-idle
Variable Speed Cooling Fan
Dual element air cleaner
Automatic Engine Preheat
High capacity fuel tank - 50gal
Alternator 120 Amp
Master Battery Disconnect Switch
4 Micron Fuel Filter
Remote engine oil drain

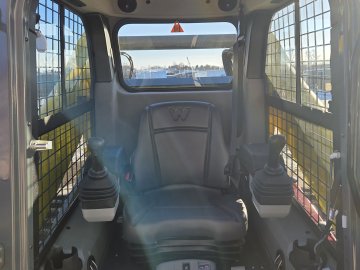

Operator Environment:
Forward tilting, ROPS / FOPS level 1 canopy w/ side screens
Keyed start ignition
Mechanical Suspension Seat w/: Integral Armrests, 3-point, 2" Seatbelt
2 Cup Holders
Electric Park Brake & Lockout Control
12V power socket
Horn
Roof window
Rear window with emergency exit
5.7" Color display with the following:
Engine RPM
Fuel Level
Engine coolant temperature
Operating hour meter
Service hour meter
Enhanced service & diagnostic codes w/ descriptions & occurrences
Operating Status
Full suite of machine vitals
Operator adjustable drive & workgroup profiles

Warming indicators including:
Hydraulic charge pressure, hydraulic oil temperature, engine oil pressure, engine coolant temperature, air filter restriction, hydraulic oil restriction

2 Front LED & 2 rear Halogen work lights
Back-up alarm
Controls:
EH joystick controls
Dial hand throttle
Foot throttle pedal
Auxiliary control circuit standard on the joystick
Boom float
Hydraulics:
Mechanical universal attachment plate SSL
Standard auxiliary hydraulics - 25.1 gmp
Zero-drift hydraulic valve
3 micron hydraulic filter
Auxiliary hydraulic disconnects, ISO Flat face coupler with connect-underpressure & case drain
Cushioned boom & tilt cylinders
Cold system shield - hydraulic component protection
Powertrain & Undercarriage
Radial piston hydraulic motors
Two speed drive transmission
Spring applied, pressure release, wet-disk park brake
Forged roolers & idlers
17.7" Wide tracks
Other Standard Features
Vertical lift path
Non-locking fuel & hydraulic oil cap
2 heavy duty battery
Lockable heavy duty rear door
Easy access tie down points
Operators Manual
TECHNICAL SPECS:
