#### PRICE DOES NOT INCLUDE DESTINATION & SET UP CHARGE OF $2,000.

## DOESN'T FEEL LIKE WORK.

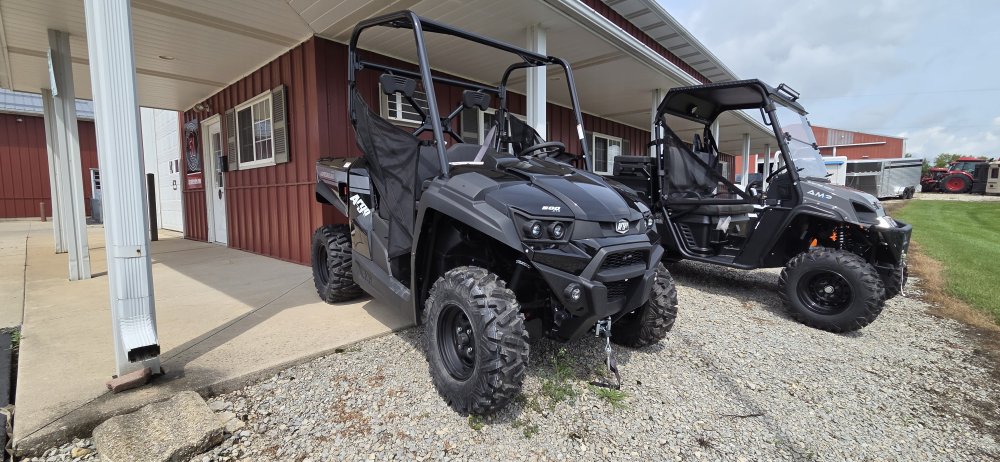

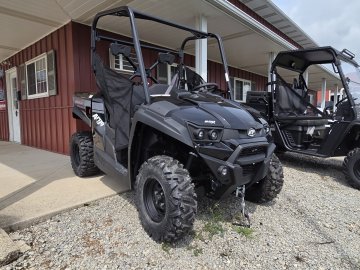

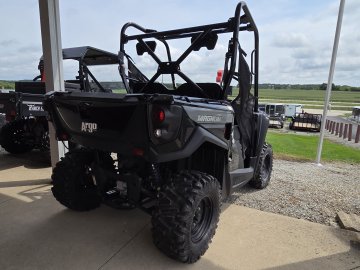

From point A to B to Z. The Magnum Pro 500 XTX makes it easier to get things done around any job site. Not to mention, it is pretty fun driving around, from sunrise to sunset. ARGO outhustles SSV competitors by offering you more for your money.

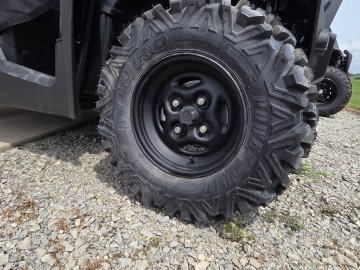

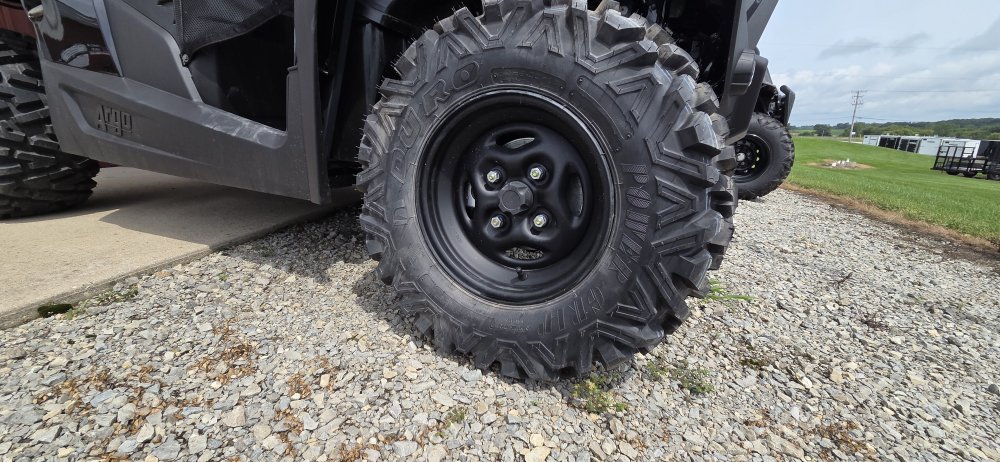

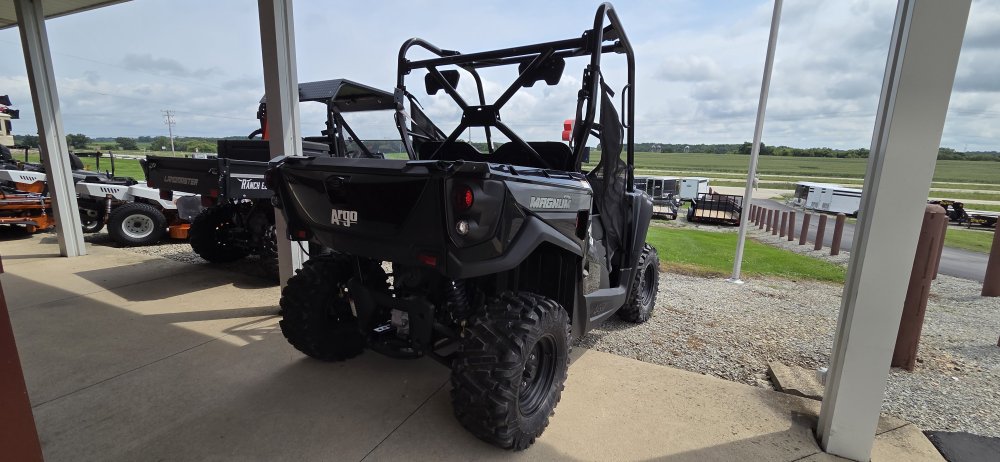

The Magnum Pro 500 XTX is equipped with super-durable painted plastics, Electronic Power Steering (EPS), 25" steel wheels on aggressive Duro tires, a heavy-duty rear bumper, a heavy-duty front brushguard and a 3,000 lb. winch - all standard, straight from the factory. All that, plus, our certified Roll-Over Protective Structure (ROPS) and three-point seatbelts. ARGO has redefined what a complete, high-quality SxS should be because we know you don't appreciate being nickeled-and-dimed for everything. Let's keep it simple and straightforward because you have too much to check off on that to-do list.

### *Specifications*

ENGINE 443CC 4-STROKE
CYLINDER SOHC SINGLE-CYLINDER
FUEL SYSTEM EFI
COOLING SYSTEM LIQUID
BORE X STROKE 89 X 71.2 MM
COMPRESSION RATIO 9.1:1
START METHOD ELECTRIC START
TRANSMISSION TYPE CVT AUTOMATIC
FINAL DRIVE SHAFT DRIVE
DIFFERENTIAL FUNCTION FRONT DIFFERENTIAL
DRIVE SYSTEM TYPE ELECTRONIC 2WD/ 4WD /LOCK
ENGINE BRAKING SYSTEM (EBS) STANDARD
LENGTH 106.3 IN (2,700 MM)
WIDTH 56.7 IN (1,440 MM)
HEIGHT 72.8 IN (1,850 MM)
GROUND CLEARANCE 10 IN (254 MM)
WHEELBASE 72 IN (1,829 MM)
TOWING CAPACITY 1,200 LB. (545.5 KG)
DRY WEIGHT 1,286 LB. (583 KG)
WET WEIGHT 1,332 LB. (604 KG)
FUEL TANK CAPACITY 8.5 GAL (32 L)
RIDER CAPACITY 2
SUSPENSION - FRONT & REAR INDEPENDENT DOUBLE A-ARM
SUSPENSION TRAVEL - FRONT 6.9 IN (176 MM)
SUSPENSION TRAVEL - REAR 6.8 IN (172 MM)
BRAKE - FRONT DUAL HYDRAULIC â?‹â?‹DISC
BRAKE - REAR HYDRAULIC â?‹DISC
TIRE SIZE (FRONT) AT25X8-12
TIRE SIZE (REAR) AT25X10-12
WHEEL RIM STEEL
ELECTRIC POWER STEERING YES
REAR BOX STORAGE 46" x 29.75" x 11.5" (1168 x 755 x 292 mm) 441 LB. (200 KG) CAPACITY
HITCH STANDARD/2" RECEIVER
WINCH 3,000 LB.
LIGHTING DUAL 12V 35 W HIGH/LOW BEAMDUAL WITH BRAKE LIGHT
STORAGE UNDERHOOD, UNDERSEAT, TAILGATE, GLOVE BOX
WARRANTY 1 YEAR
COLOR YELLOW, BLACK
