DISPLACEMENT 561CC
ENGINE STROKE 4-STROKE
CYLINDER ARRANGEMENT SOHC SINGLE CYLINDER
VALVE CONFIGURATION 4 VALVE
FUEL SYSTEM EFI
COOLING SYSTEM LIQUID
BORE X STROKE 95 X 79.2 MM
COMPRESSION RATIO 10.2:1
START METHOD ELECTRIC START
IGNITION ECU
OVER RIDE BUTTON YES
TRANSMISSION TYPE CVT AUTOMATIC
FINAL DRIVE SHAFT DRIVE
DIFFERENTIAL FUNCTION FRONT DIFFERENTIAL
DRIVE SYSTEM TYPE 2WD/4WD/LOCK
ELECTRIC DIFF LOCK YES
GEAR SELECTION L/H/N/R/P
REVERSE YES
ENGINE BRAKING SYSTEM (EBS) STANDARD
LENGTH 92.9 IN (2,360 MM)
WIDTH 48.6 IN (1,235 MM)
HEIGHT 49.2 IN (1,250MM)
SEAT HEIGHT 36.8 IN (935 MM)
GROUND CLEARANCE 13.2 IN (335 MM)
WHEELBASE 57.1 IN (1,450 MM)
TOWING CAPACITY 1,225 LB (557 KG)
DRY WEIGHT 851 LB (387 KG)
WET WEIGHT 988 LB (448KG)
FUEL TANK CAPACITY 4.2 GAL (16 L)
RIDER CAPACITY 2
SUSPENSION - FRONT INDEPENDENT DOUBLE A-ARM
SUSPENSION - REAR INDEPENDENT DOUBLE A-ARM
SUSPENSION TRAVEL - FRONT 8.7 IN (220 MM)
SUSPENSION TRAVEL - REAR 9.4 IN (239 MM)
BRAKE - FRONT HYDRAULIC â?‹â?‹DISC
BRAKE - REAR HYDRAULIC â?‹DISC
FOOT BRAKE 2 WHEEL REAR BRAKE
TIRE SIZE (FRONT) AT25X8-12
TIRE SIZE (REAR) AT25X10-12
WHEEL RIM ALUMINUM
ELECTRIC POWER STEERING YES
BATTERY 12V 18ah AGM
FRONT RACK 99 LB (45 KG)
REAR RACK 165 LB (75 KG)
FRONT BUMPER STANDARD
HITCH STANDARD/2" RECEIVER
HAND GUARD NO
12V CHARGER DC 12V 10A 120W X2
DAYLIGHT STRIP STANDARD
SKID PLATE PLASTIC
PASSENGER HANDLES YES
PASSENGER BACKREST YES
STORAGE FRONT FENDER X2
FRONT BRUSH GUARD ACCESSORY
REAR BUMPER N/A
FRONT RACK EXTENTION N/A
REAR RACK EXTENTION N/A
USB CHARGING PORT N/A
REAR BOX STORAGE N/A

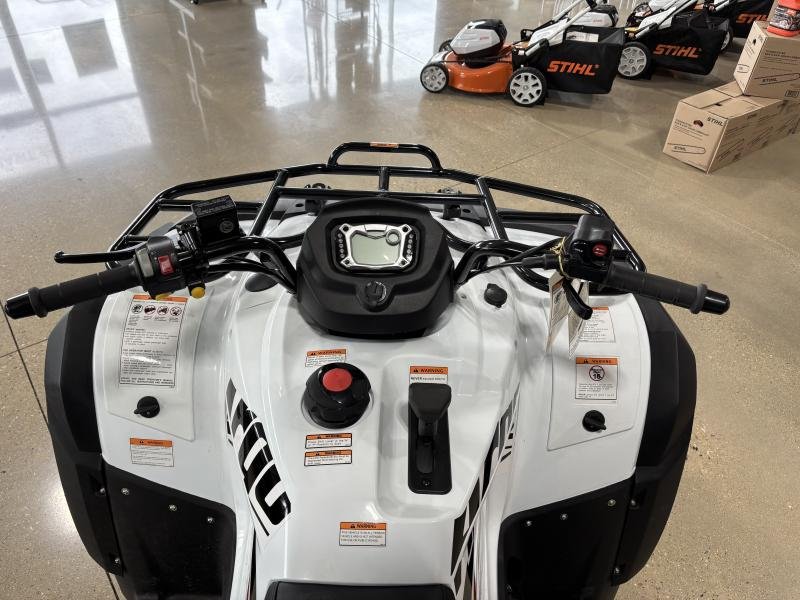

INSTRUMENTATION DIGITAL INSTRUMENT PANEL WITH ODOMETER, SPEEDMETER, TRIPMETER, RPM, TRANSMISSION POSITION, FUEL GAUGE, HI-TEMP/LOW-BATT LIGHTS, HIGH BEAM LIGHT, EFI CHECKING, DIFFERENTIAL INDICATOR, 2WD/4WD INDICATOR, EPS INDICATOR
LIGHTING DUAL 60W LOW/HIGH BEAM LIGHTS, DUAL BRAKELIGHTS, TAILLIGHTS
WARRANTY 1 YEAR
COLOR WHITE
