#### PRICE DOES NOT INCLUDE DESTINATION & SET UP CHARGE OF $1,100.

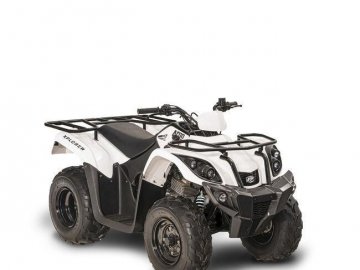

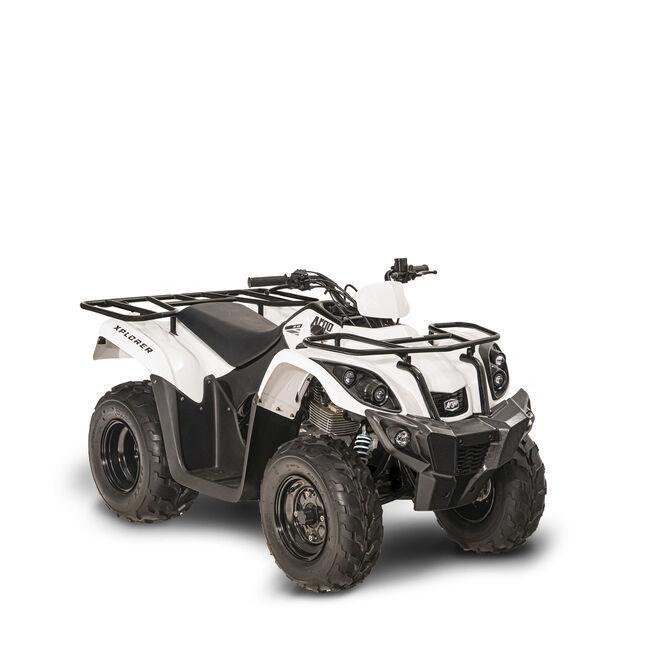

# XplorerXR 150

## FUN ON A NEW LEVEL.

Wow, are you serious!?!? This expression will be surrounded by disbelief, awe and happiness when a teen sees their new ARGO XR 150 for the first time. For ages 14 and older, this ATV is the next level up to feed their appetite for trail riding and exploring with the rest of the ATV herd. The rush they get from the 150cc fan-cooled 4-stroke engine will stick in their heads for a lifetime.

The XR 150 features dual hi/low beam headlights, as well as dual taillights and brake lights. Plus, front and rear steel racks to strap on gear for new adventures. The XR 150 is new for 2024 and will provide teenagers a transitional ATV that is set up for the fun they crave.

### ***Specifications***

DISPLACEMENT 151CC
ENGINE STROKE 4-STROKE
CYLINDER ARRANGEMENT SOHC SINGLE-CYLINDER
VALVE CONFIGURATION 3-Valve
FUEL SYSTEM CARBURETOR
COOLING SYSTEM FAN
BORE X STROKE 62X49.5 MM
COMPRESSION RATIO 9.1:1
START METHOD ELECTRIC START/KICK START
IGNITION CDI
OVER RIDE BUTTON N/A
TRANSMISSION TYPE CVT AUTOMATIC
FINAL DRIVE CHAIN DRIVE
DIFFERENTIAL FUNCTION N/A
DRIVE SYSTEM TYPE 2WD
ELECTRIC DIFF LOCK N/A
GEAR SELECTION F/N/R
REVERSE YES
ENGINE BRAKING SYSTEM (EBS) N/A
LENGTH 70.9 IN (1,802 MM)
WIDTH 38.0 IN (965 MM)
HEIGHT 40.0 IN (1,015 MM)
SEAT HEIGHT 29.8 IN (756 MM)
GROUND CLEARANCE 6.3 IN (160 MM)
WHEELBASE 44.1 IN (1,115 MM)
TOWING CAPACITY 300 LB. (136 KG)
DRY WEIGHT 379 LB. (172 KG)
WET WEIGHT 399 LB. (181 KG)
FUEL TANK CAPACITY 2.14 GAL (8.1 L)
RIDER CAPACITY 1
SUSPENSION - FRONT INDEPENDENT SINGLE A-ARM
SUSPENSION - REAR SWING ARM
SUSPENSION TRAVEL - FRONT 3.5 IN (88.9 MM)
SUSPENSION TRAVEL - REAR 3.5 IN (88.9 MM)
BRAKE - FRONT DUAL DRUM
BRAKE - REAR HYDRAULIC DISC
FOOT BRAKE N/A
TIRE SIZE (FRONT) 21X7-10
TIRE SIZE (REAR) 22X10-10
WHEEL RIM STEEL
ELECTRIC POWER STEERING NO
BATTERY YUASA YTX5L-BS (4.2 Ah)
FRONT RACK 33 LBS (15KG)
REAR RACK 44 LBS (20KG)
FRONT BUMPER STANDARD
HITCH TOW HITCH BRACKET
WINCH N/A
HAND GUARD N/A
12V CHARGER N/A
DAYLIGHT STRIP N/A
SKID PLATE N/A
PASSENGER HANDLES N/A
PASSENGER BACKREST N/A
STORAGE N/A
FRONT BRUSH GUARD N/A
REAR BUMPER N/A
FRONT RACK EXTENTION N/A
REAR RACK EXTENTION N/A
USB CHARGING PORT N/A
REAR BOX STORAGE N/A
INSTRUMENTATION GEAR POSITION INDICATOR
LIGHTING DUAL 12V 35W HIGH/LOW BEAM, SINGLE WITH BRAKE LIGHT
WARRANTY 1 YEAR
COLOR WHITE
