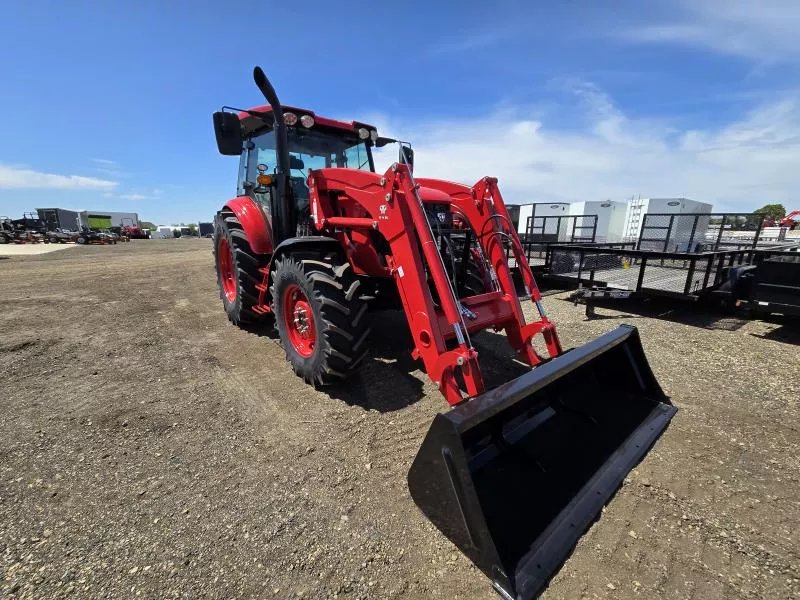

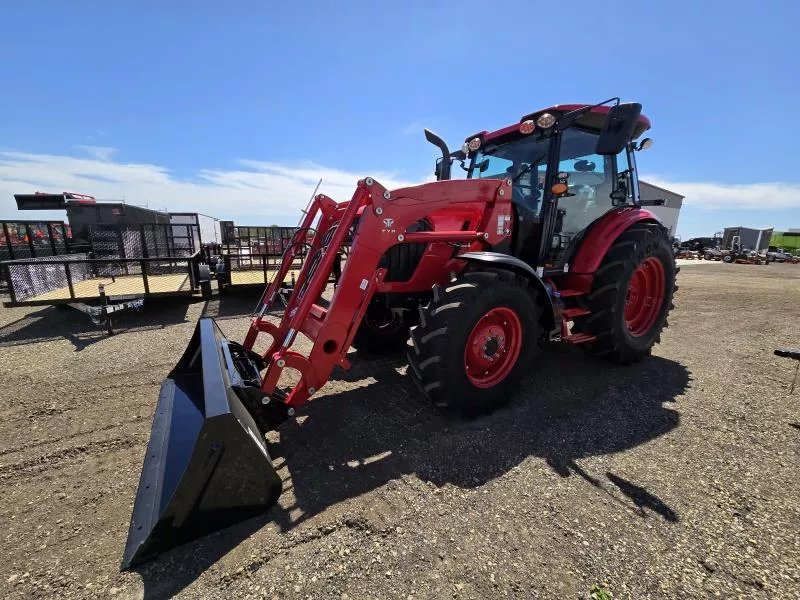

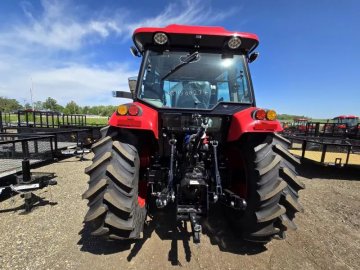

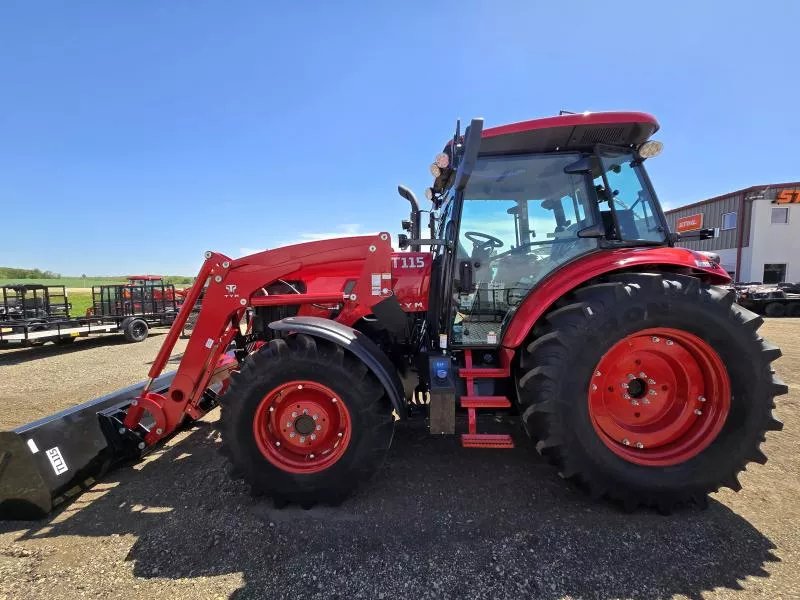

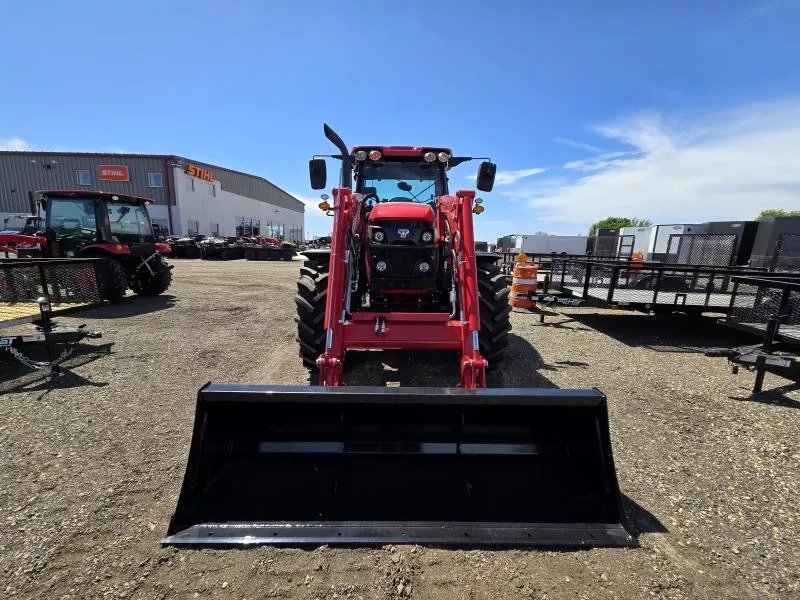

89.4"x175.2" TYM Tractors T115 Tractor
A powerful utility tractor designed to conquer the most demanding tasks
The T115 is a powerful tractor engineered to meet the demands of modern agriculture, combining operational efficiency with robust performance. Its enhanced lift capacity and updated hydraulic top link handle heavy-duty tasks with ease, while telematics enables efficient farm management.
Front-end loader: TL11U00125
The TL115SL is a self-leveling front-end loader designed for the T115. Engineered to lift more, the TL115SL is optimized for superior material handling with a lift capacity of 4,129 lb.
Engine
Engine manufacturer Deutz TCD 3.6L4-C5VT83E
Type Water-cooled, 4-cylinder diesel engine
Engine power 111 hp | 83 kW
PTO power 109 hp | 80 kW
Rated engine speed 2200 rpm
No. of cylinders 4
Displacement 221 cu. in. | 3621.5 cc
Air cleaner Dual dry
Alternator 12V, 120A
Fuel system CRDI
Hydraulic System
Pump type Dual gear pump
Implement flow 14.3 gpm | 54.1 L/min
Steering flow 7.1 gpm | 27.0 L/min
Total flow 21.4 gpm | 81.1 L/min
Category, 3-point hitch II
Hitch lift capacity 7294.9 lb | 3309 kg
Hitch lift capacity at 24 inches behind link ends 6006.8 lb | 2722 kg
Lift control type Position/Draft
No. of standard remote valves 6
Powertrain
Transmission type Power shuttle & Hi-Lo shift
No. of speeds F32 x R32 w/Creep
Max. traveling speed 23 mph | 37.1 km/h
Brakes Wet, Multi disc
Steering Hydrostatic
Clutch Wet multi-plate
PTO
PTO type Independent
PTO control Electro-hydraulic
PTO rear 540/540E/1000 rpm (Reversible shaft)
Capacities
Fuel tank 31.7 gal | 120 L
Coolant 19.1 qt | 18.1 L
Crankcase 8.5 qt | 8 L
Transmission/Hydraulics system 23.8 gal | 90.1 L
Front axle 18.4 qt | 17.4 L
Dimensions & Weights
Overall length with 3-point hitch 175.2 in. | 4450 mm
Overall width 89.4 in. | 2270.8 mm
Wheelbase 93.7 in. | 2380 mm
Height to top of cabin 112.2 in. | 2850 mm
Height to top of ROPS - - -
Min. ground clearance 16.7 in. | 424.2 mm
Min. turn radius with brakes (L) 133.9 in. | 3400 mm / (R) 134.3 in. | 3410 mm
Min. turn radius without brakes (L) 159.5 in. | 4050 mm / (R) 161 in. | 4090 mm
Weight with cab 8940 lb | 4055.1 kg
Weight with ROPS -
Standard Tires
R1 Agricultural - Front 13.6-24
R1 Agricultural - Rear 18.4-34
