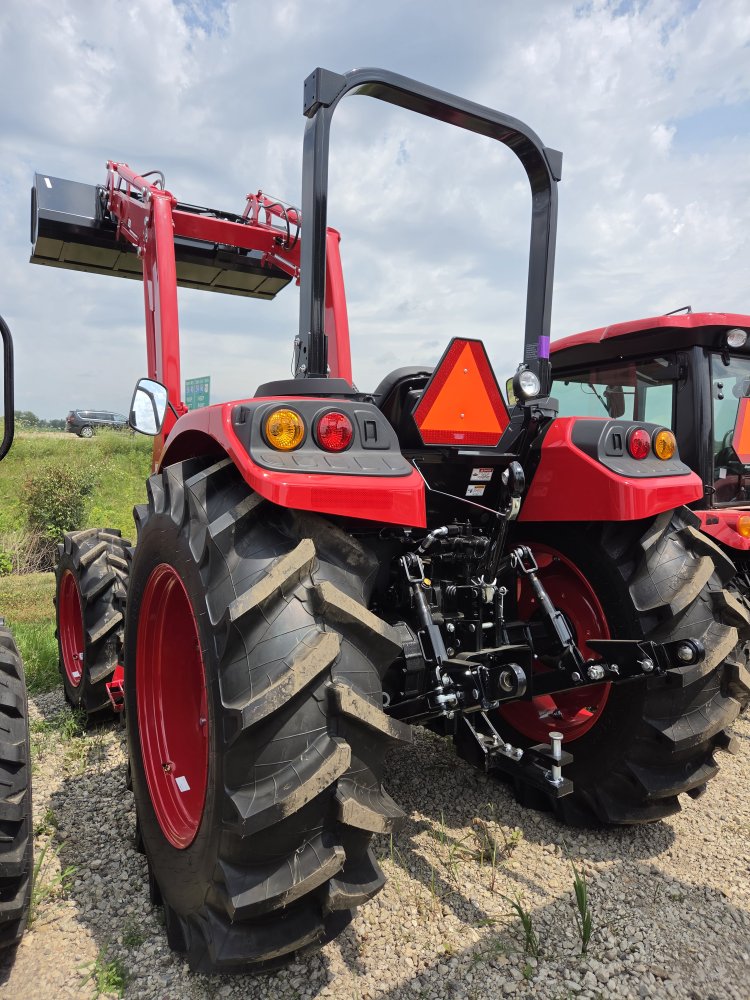

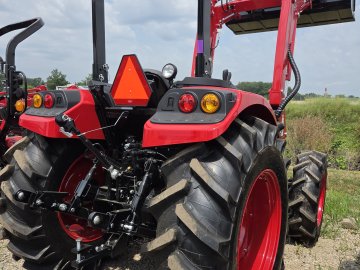

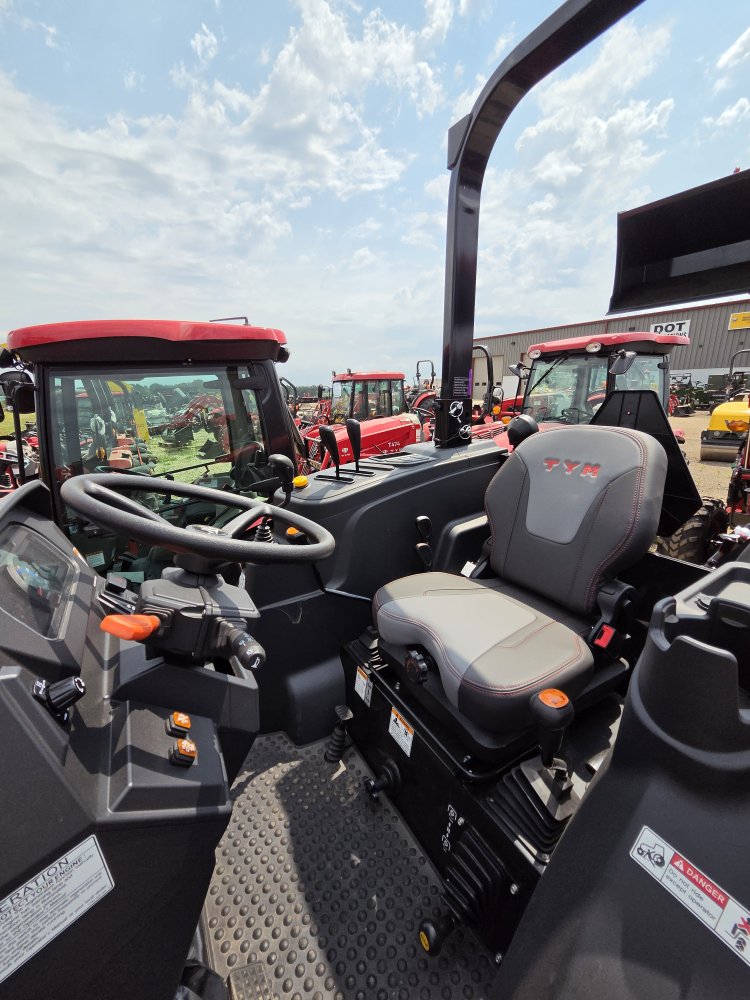

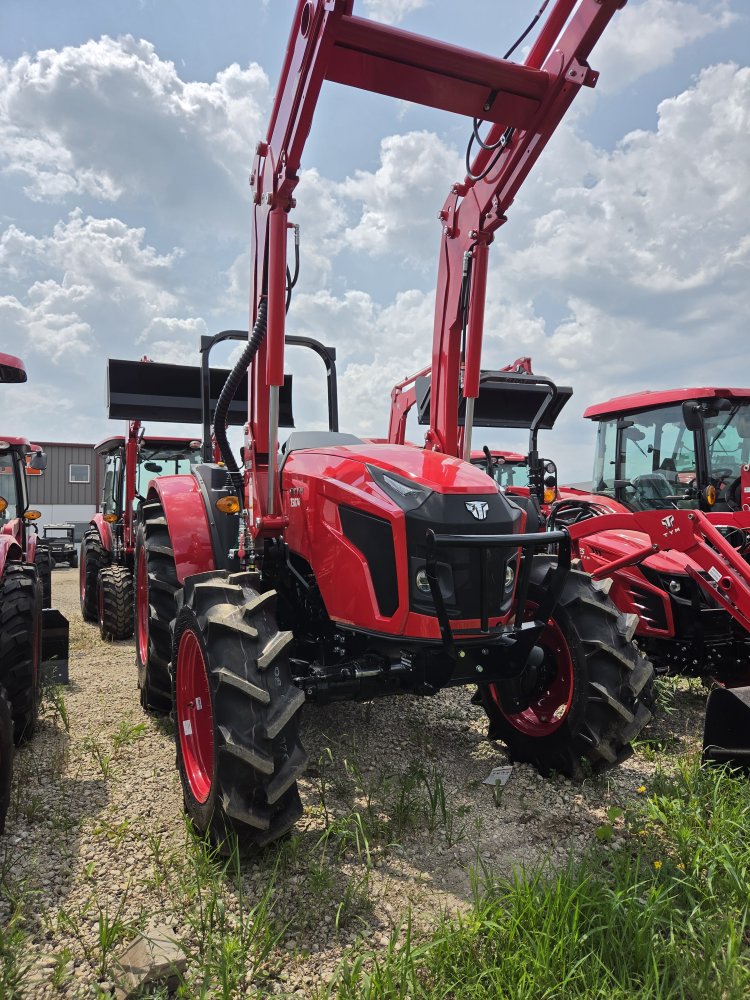

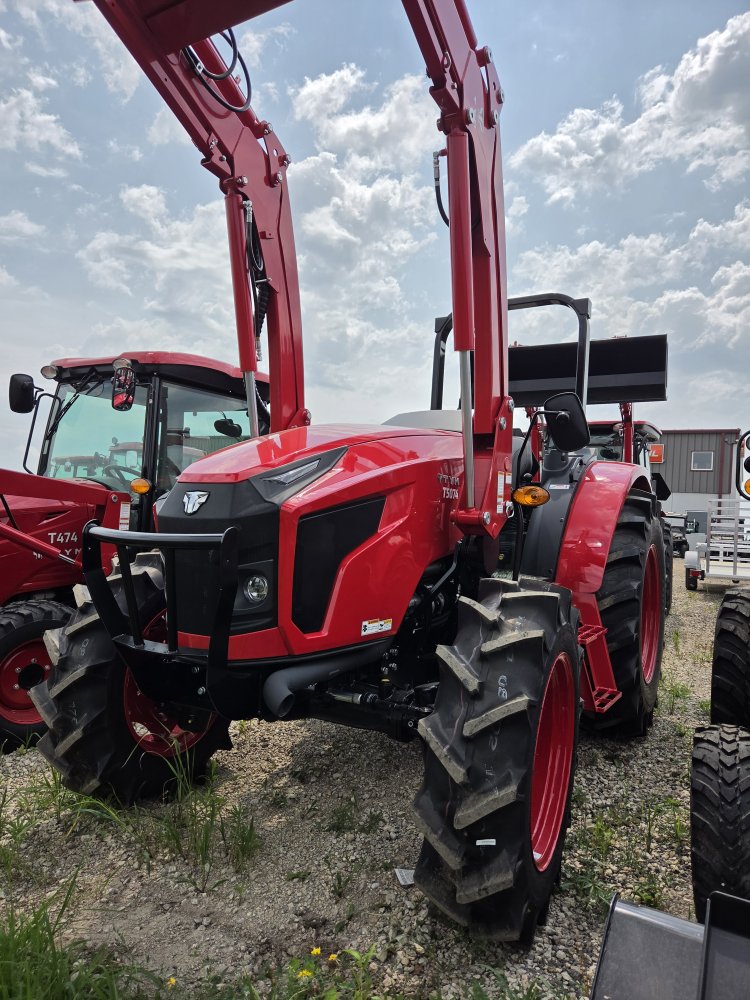

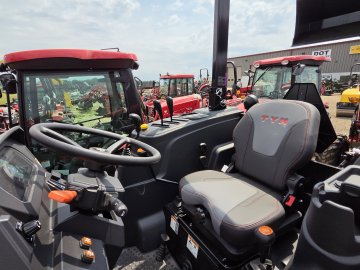

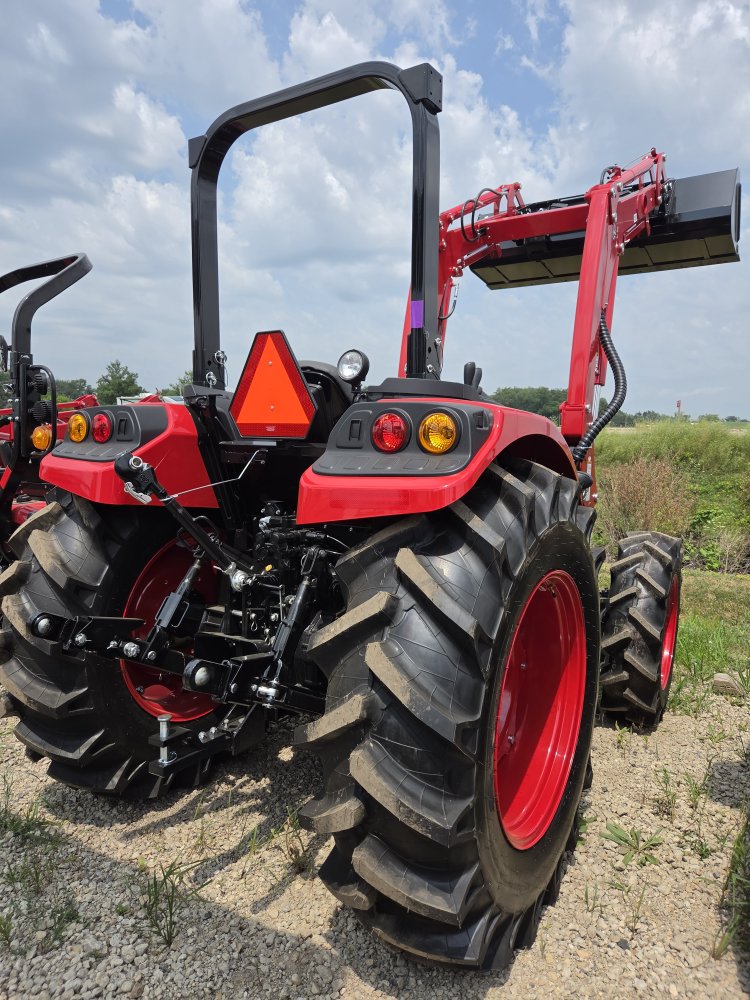

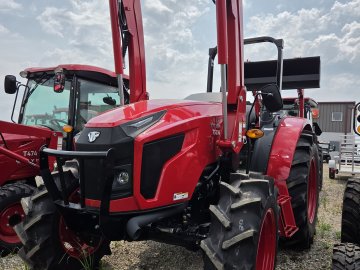

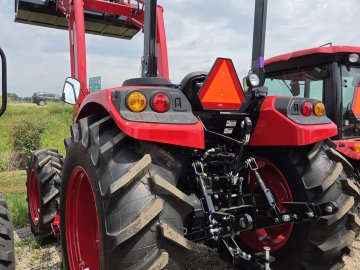

x TYM Tractors T5074 Tractor
Engine Manufacturer
Yanmar 4TN98CT-7PKTF
Type
Turbo Charger
Engine power
71.5 hp | 53.3 kW
PTO power
60.2 hp | 44.8 kW
Rated engine speed
2400 rpm
No. of cylinders
4
Displacement
202.5 cu. in. | 3319 cc
Air cleaner
PowerCore Type
Alternator
12V, 70A
Fuel system
CRDI
Pump type
Dual gear pump
Implement flow
10.3 gpm | 38.9 L/min
Steering flow
5.8 gpm | 21.9 L/min
Total flow
16.1 gpm | 60.9 L/min
Category, 3-point hitch
II
Hitch lift capacity
4329 lb | 1964 kg
Hitch lift capacity at 24 inches behind link ends
3159 lb | 1433 kg
Lift control type
Position/Draft
No. of standard remote valves
4/4
Transmission type
Power shuttle
No. of speeds
F12 x R12
Max. traveling speed
13.5 mph | 21.7 km/h
Brakes
Wet disc
Steering
Hydrostatic
Clutch
PTO type
Independent
PTO control
Electro-hydraulic
PTO rear
540/750 rpm
Fuel tank
19 gal | 72 L
Coolant
3 gal | 11.6 L
Crankcase
9.3 gal | 2.4 L
Transmission/Hydraulics system
13.7 gal | 52 L
Front axle
2.4 gal | 9.3 L
Overall length with 3-point hitch
148.1 in. | 3764 mm
Overall width
81.4 in. | 2068 mm
Wheelbase
84.6 in. | 2150 mm
Height to top of Cabin
-
Height to top of ROPS
106.8 in. | 2715 mm
Min. ground clearance
17.6 in. | 447 mm
Min. turn radius with brakes
41.7 | 145.7 in. | 3600 | 3700 mm
Min. turn radius without brakes
164.2 | 169.3 in. | 4170 | 4300 mm
Weight with ROPS
5463 lb | 2478 kg
