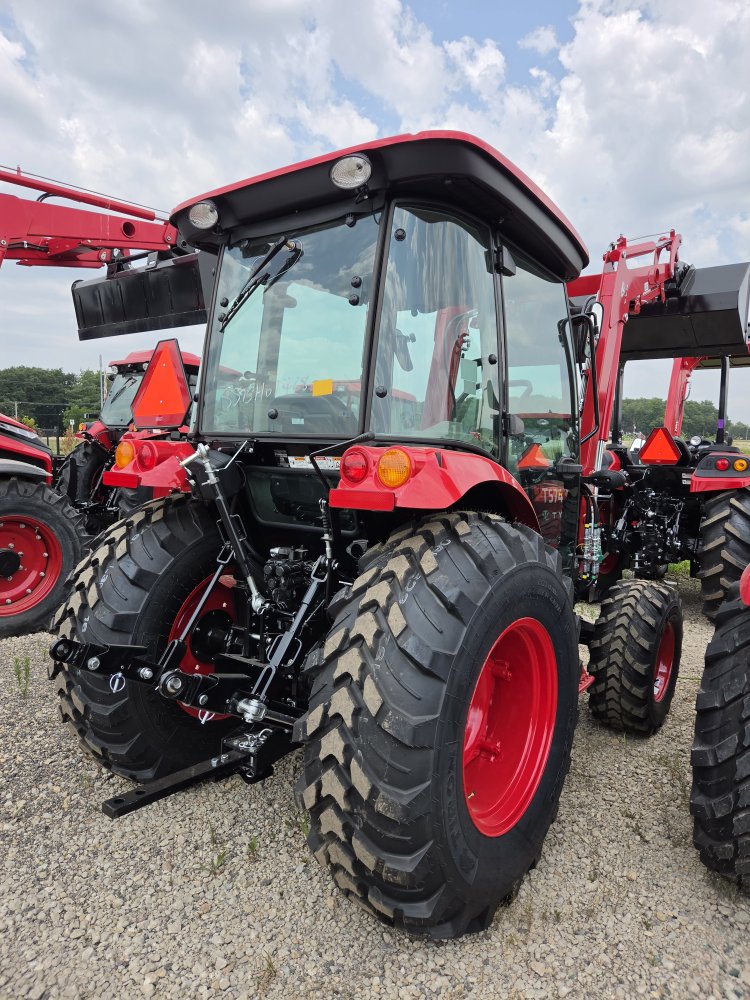

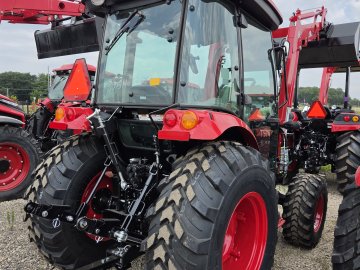

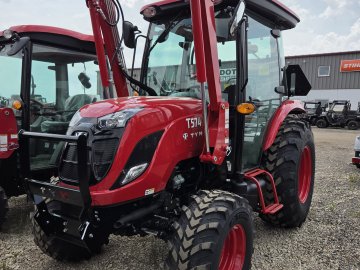

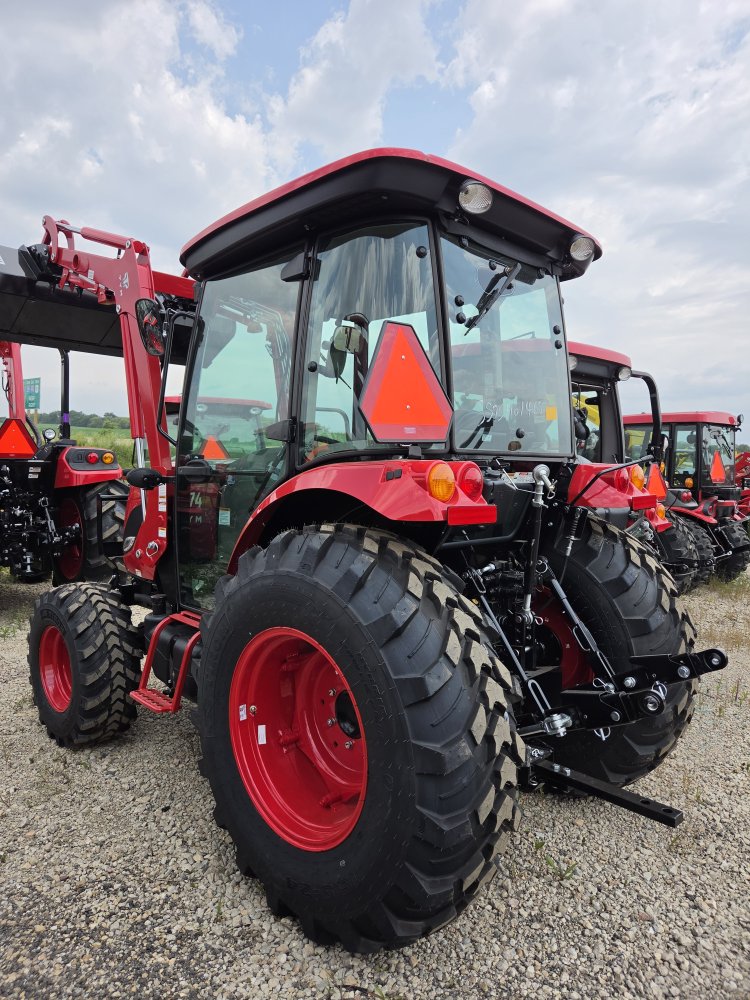

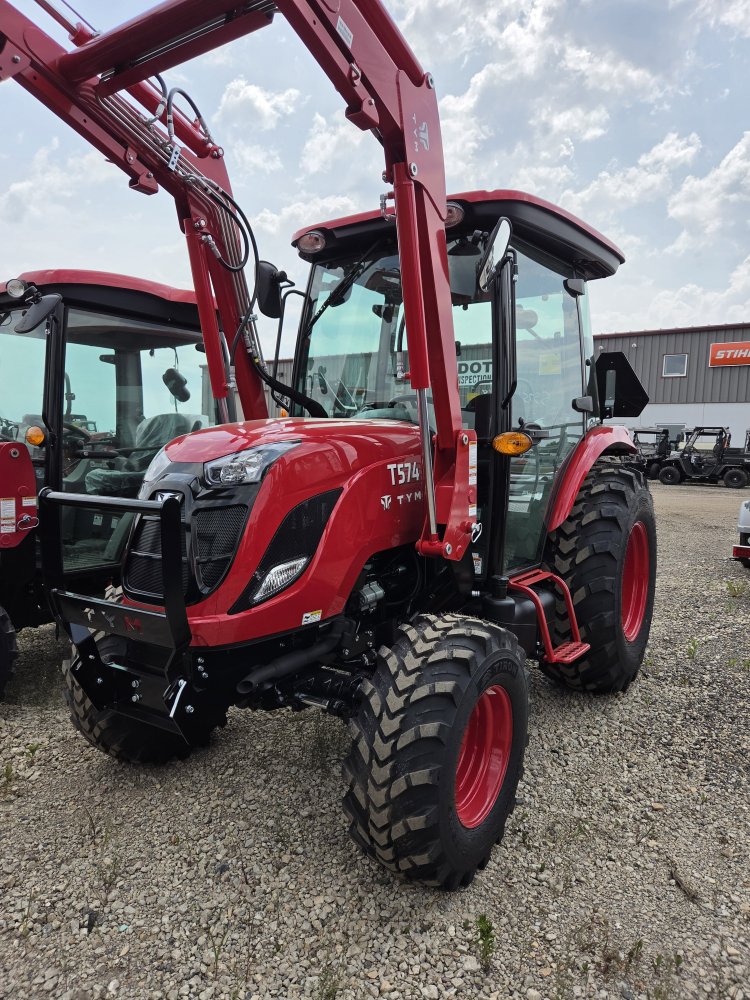

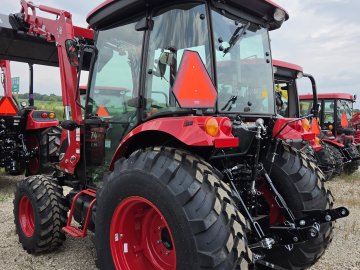

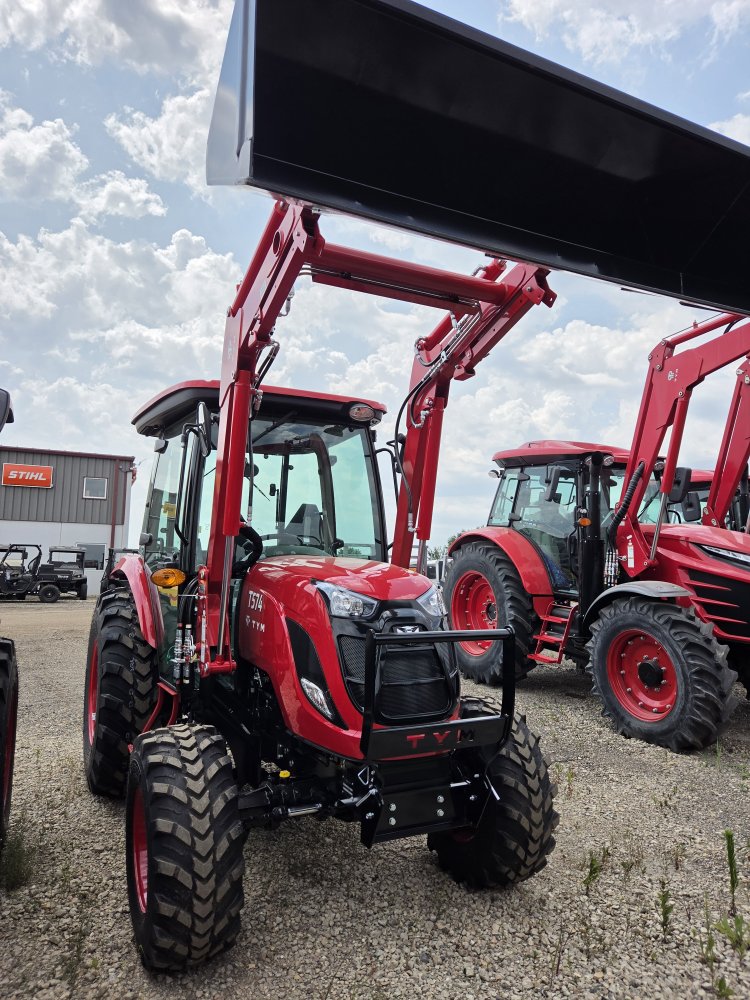

x TYM Tractors T574HC Tractor
Engine Manufacturer
TYM T2300T2
Type
Turbo Charger
Engine power
55 hp | 41 kW
PTO power
44.7 hp | 32,9 kW
Rated engine speed
2600 rpm
No. of cylinders
4
Displacement
139.5 cu. in. | 2286 cc
Air cleaner
Single dry
Alternator
12V, 70A
Fuel system
IDI
Pump type
Dual gear pump
Implement flow
7.7 gpm | 29 L/min
Steering flow
4.3 gpm | 17.8 L/min
Total flow
11.9 gpm | 46.8 L/min
Category, 3-point hitch
I
Hitch lift capacity
3822 lb | 1733 kg
Hitch lift capacity at 24 inches behind link ends
3050.6 lb | 1387 kg
Lift control type
Position/Draft
No. of standard remote valves
Transmission type
Synchro-shuttle
No. of speeds
F8 x R8
Max. traveling speed
18.6 mph | 30.0 km/h
Brakes
Wet disc
Steering
Hydrostatic
Clutch
Dry single plate
PTO type
Independent
PTO control
Electric/Hydro
PTO rear
540 rpm
Fuel tank
15.9 gal | 60 L
Coolant
6.9 qt | 6.5 L
Crankcase
6.8 qt | 6.4 L
Transmission/Hydraulics system
9.2 gal | 34.8 L
Front axle
10.5 qt | 9.9 L
Overall length with 3-point hitch
141.3 in. | 3590 mm
Overall width
63.8 in. | 1620 mm
Wheelbase
76.2 in. | 1935 mm
Height to top of Cabin
98 in. | 2490 mm
Min. ground clearance
13.8 in. | 350 mm
Min. turn radius with brakes
121.2 in. | 3080 mm
Min. turn radius without brakes
131.5 in. | 3340 mm
Weight with cab
4233 lb | 1920 kg
