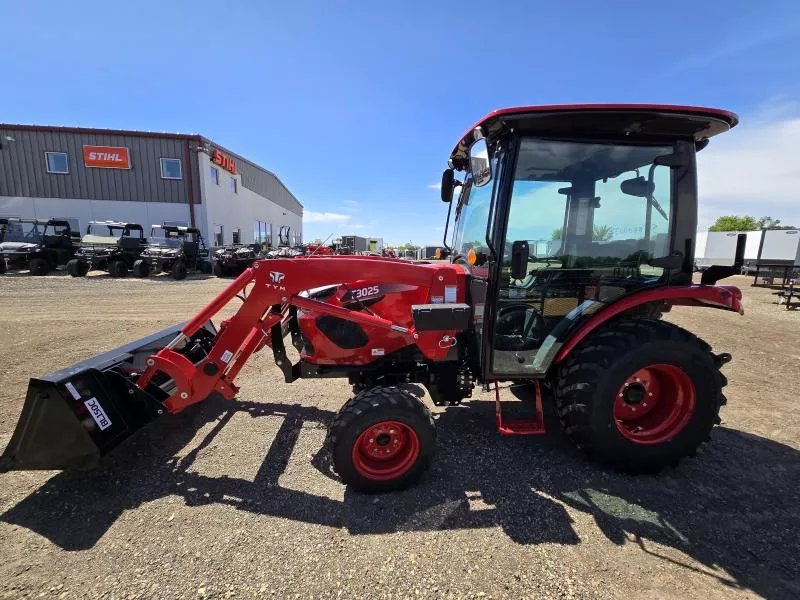

56.6"x120.9' TYM Tractors T3025 Tractor
A compact tractor robust enough to take on challenges of all sizes
The 3025C tractor is designed for peak performance through versatility and durability. Offering customizable options throughout, this mid-sized Series 3 compact tractor helps you achieve your goals in applications of varying intensities.
LOADER INCLUDED BL150C: B15CU01634TIRES: HYBRID
Engine manufacturer
TYM T1700N6
Type
Natural aspiration
Engine power
24 hp | 18 kW
PTO power
21 hp | 15.7 kW
Rated engine speed
2100 rpm
No. of cylinders
3
Displacement
104.5 cu. in. | 1714 cc
Air cleaner
Dry element
Alternator
12V, 70A
Pump type
Dual gear pump
Implement flow
7.7 gpm | 29.3 L/min
Steering flow
4.2 gpm | 15.8 L/min
Total flow
11.9 gpm | 45.1 L/min
Category, 3-point hitch
I
Hitch lift capacity
3306 lb | 1500 kg
Hitch lift capacity at 24 inches behind link ends
2425 lb | 1100 kg
Lift control type
Position
No. of standard remote valves
Loader: 4 / Rear: 0
Transmission type
HST
No. of speeds
3-Range
Max. traveling speed
14.6 mph | 23.6 km/h
Brakes
Wet, Multi disc
Steering
Hydrostatic
Clutch
N/A
PTO type
Independent
PTO control
Wet/Multi disc
PTO rear
540 rpm
Fuel tank
7.1 gal | 27 L
Coolant
5.3 qt | 5 L
Crankcase
4.5 qt | 4.3 L
Transmission/Hydraulics system
9.8 gal | 37 L
Front axle
6.8 qt | 6.4 L
Overall length with 3-point hitch
120.9 in. | 3071 mm
Overall width
56.6 in. | 1413 mm
Wheelbase
65.7 in. | 1670 mm
Height to top of ROPS
Height to top of cabin
89.3 in. | 2267 mm
Min. ground clearance
13.1 in. | 334 mm
Min. turn radius with brakes
(L) 105.51 in. | 2680 mm / (R) 104.72 in. | 2660 mm
Min. turn radius without brakes
(L) 105.51 in. | 2680 mm / (R) 104.72 in. | 2660 mm
Weight with ROPS
Weight with cab
3313 lb | 1503 kg
