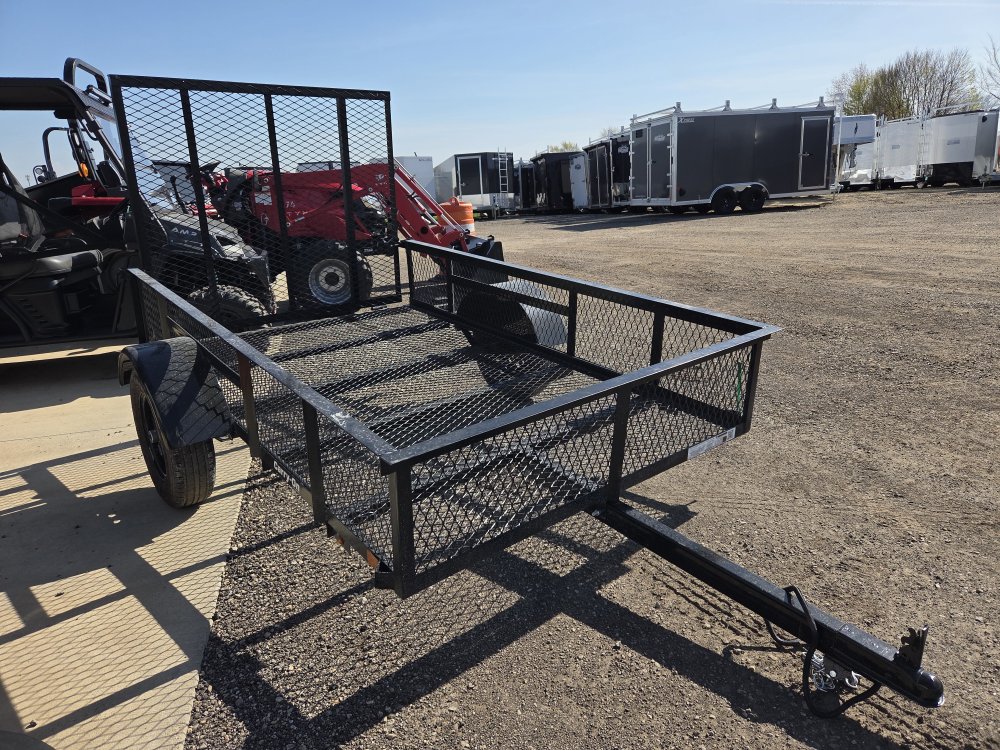

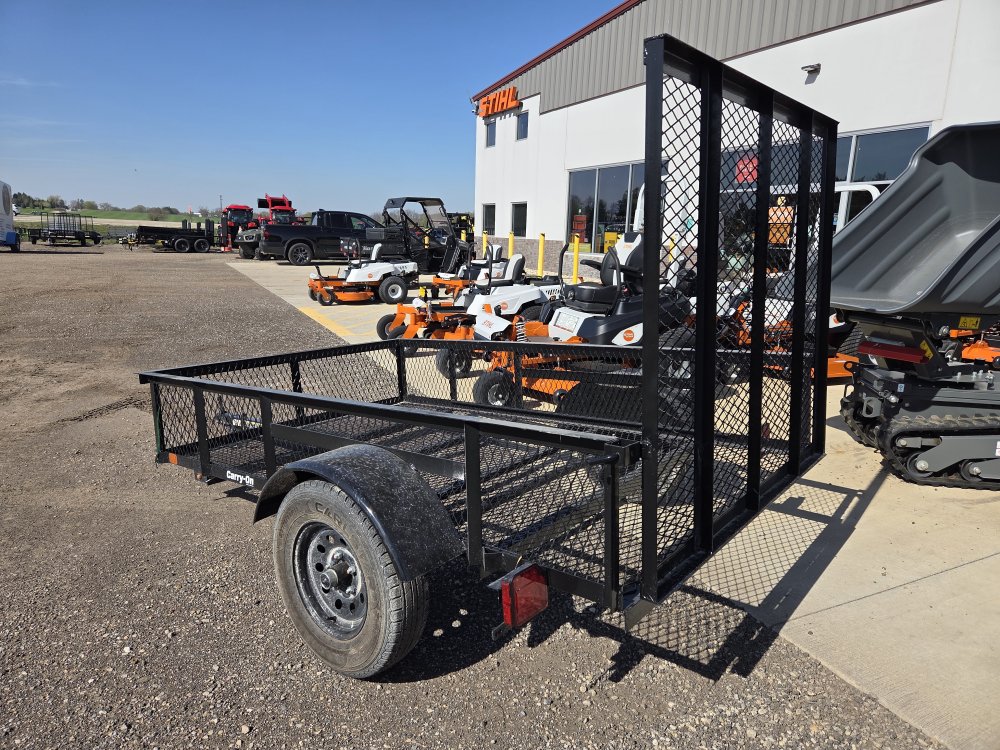

5'x8' Carry-On 5X8SPHS Utility

• Overall W x L:78-3/4" x 138-1/2"
• Deck W x L:60" x 96"
• Gate W x L:57" x 49"
• Empty Weight:400 lbs.
• Payload Capacity:1,600 lbs.
• Coupler:2" Straight (199T)
• Tongue Type:Straight 2" x 3" Steel Tube
• Length: Frame to Coupler:37-3/4"
• Level Tongue Height:13-3/4"
• Safety Chains:Class I, 24" x 3/16" w/ Hooks (638T)
• Flooring Material:Steel Mesh
• Deck Height from Ground:15-1/4"
• Frame:2" x 2" x 1/8" Steel Angle
• Uprights:1-1/2" x 1-1/2" x 1/8" Steel Angle
• Upright Height:16"
• Sides:Steel Mesh
• Top Rail:2" x 2" x 1/8" Steel Angle
• Cargo Hold:4 Steel Angle Brackets
• Fenders:9" x 32" Steel Round w/ Back (9320T)

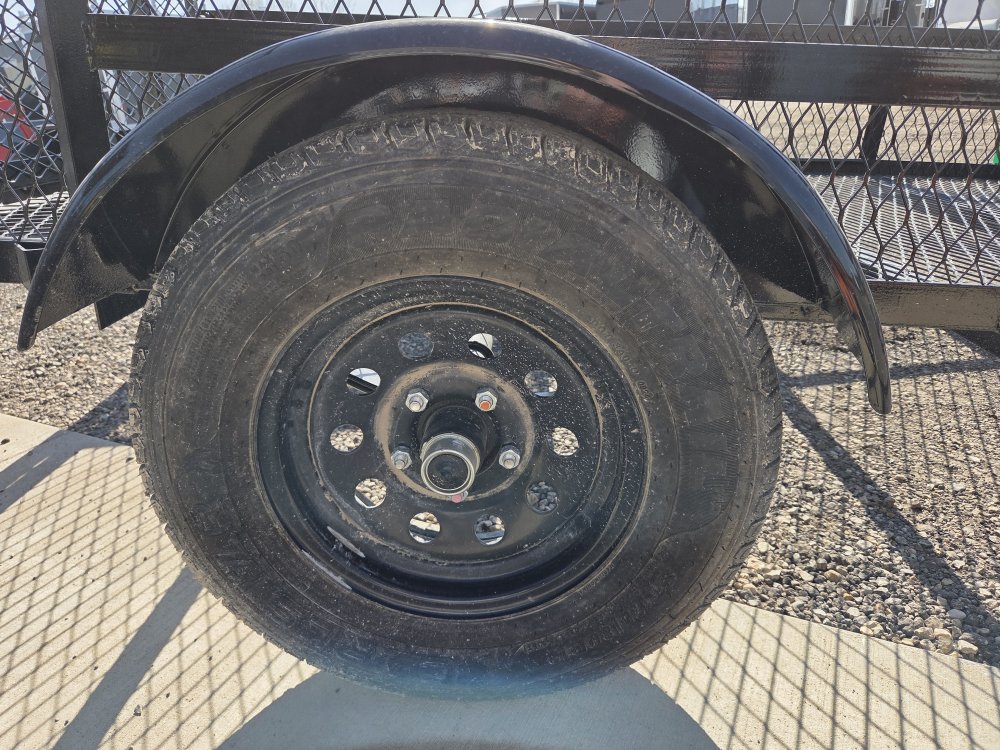

• Tires:13" ST175/80D13 (175X13PTW-BLACK)
• Wheels:Black Mod
• Axle Type:Single 2,000 Lbs. E-Z Lube, 71"/58-1/2" (2K7158EZ)
• GVWR:2,000 Lbs.
• Leaf Springs:2-Leaf Eye-to-Slipper (351T)
• U-Bolt:3/8" Round (652T)
• Tie Plate:Small 3-1/2" x 3-1/2" (648T)
• Hub Kit:5 Lugs on 4-1/2" Pattern, 1,250 Lbs. (155T)
• Dust Cap:E-Z Lube (851T)
• Spindle:1-1/16", Max 1,250 Lbs. Capacity (151T)
• Bearing:1-1/16" Inner and Outer Bearing Kit (500T)
• Grease Seal:1-1/2" (495T)

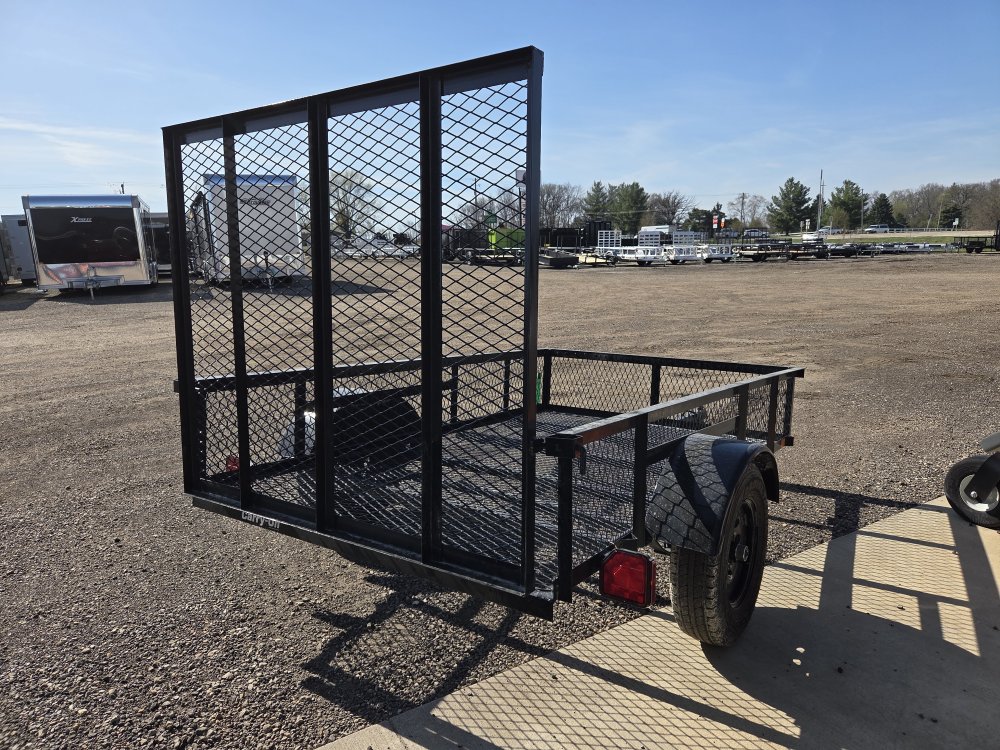

• Gate Style:Fixed Ramp Gate
• Rear Latch:Spring Latch (847T)
• Plug Type:4-Way Flat
• Tail Lights:Roadside (813T), Curbside (814T)
• License Plate Illumination:Incorporated with Roadside Tail Light
• Marker Lights:Amber, Surface Mount (817-2T)
