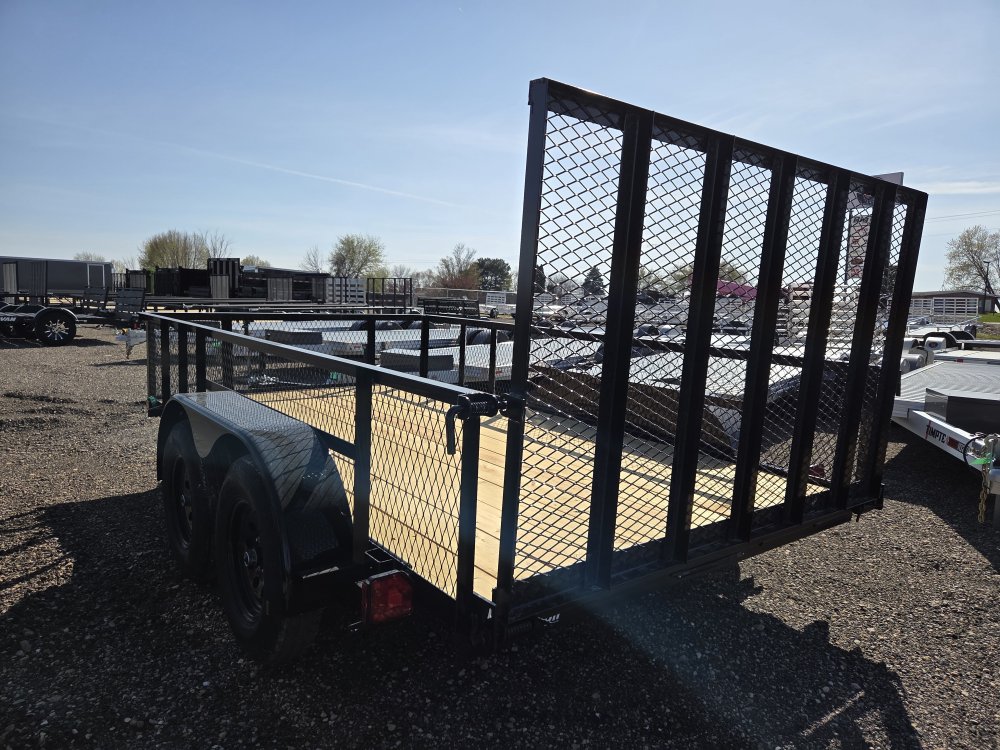

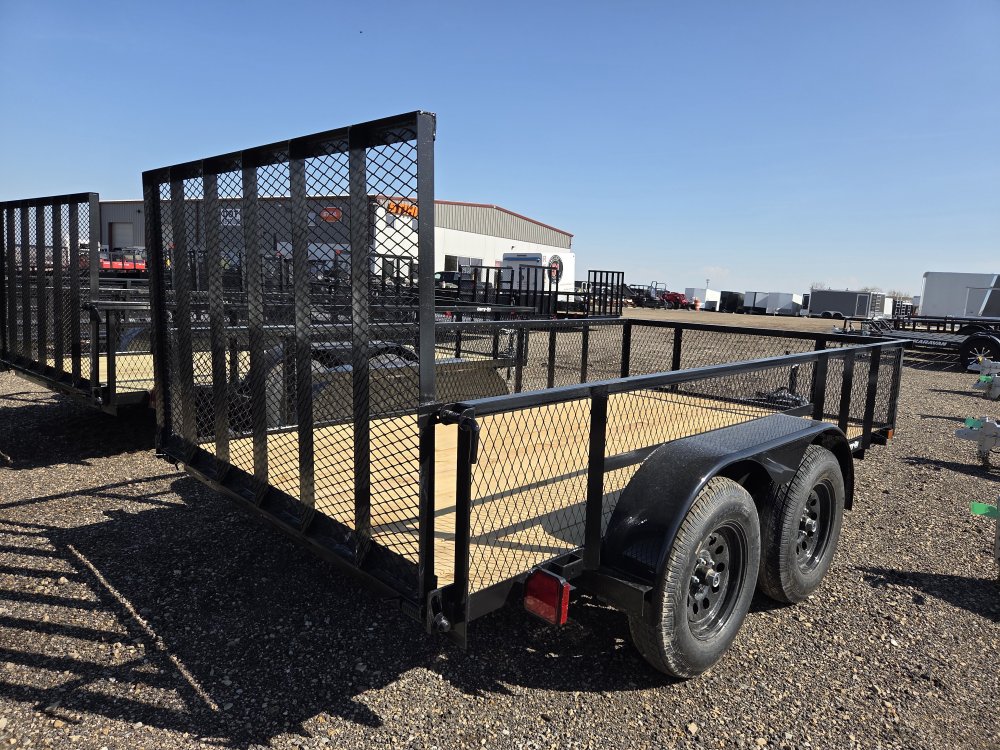

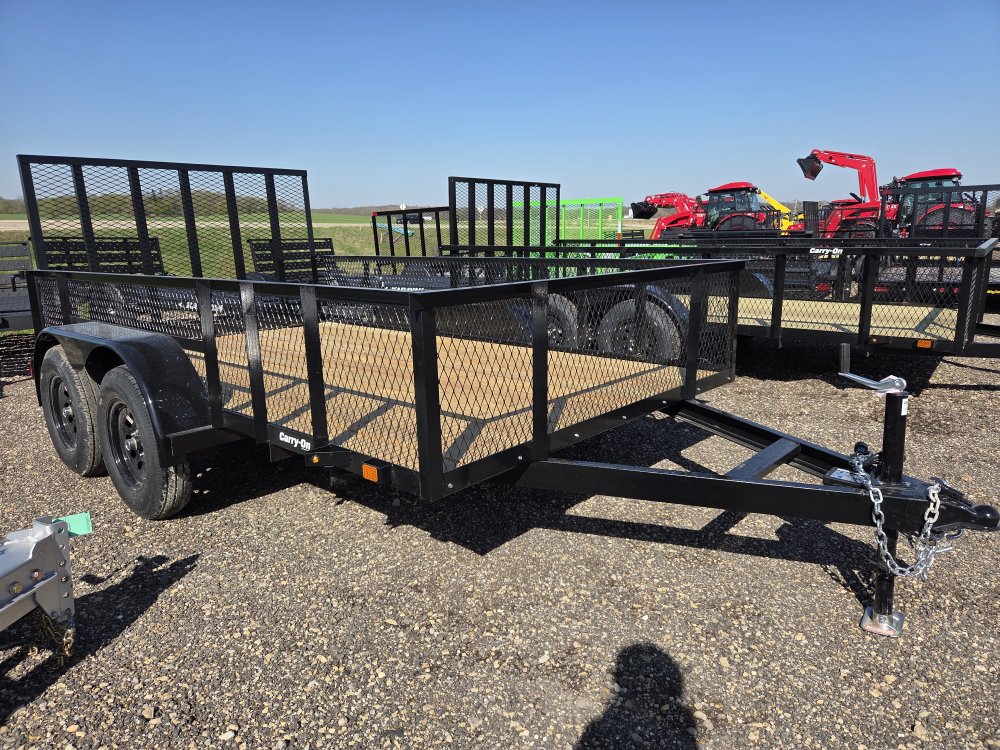

7'x12' Carry-On Utility

• Overall W x L:101" x 198"
• Deck W x L:82" x 144"
• Gate W x L:79" x 49"
• Empty Weight:1,575 lbs.
• Payload Capacity:5,425 lbs.
• Coupler:2-5/16" A-Frame (256T)
• Tongue Type:A-Frame 4" Steel Channel
• Length: Frame to Coupler:49"
• Level Tongue Height:16-1/4"
• Safety Chains:GVWR 7,600 Lbs., 30" x 5/16" with Hooks
• Jack:2,000 Lbs. Top-Wind (741)
• Breakaway System:Electric Kit w/ Battery Charger (701T)
• Flooring Material:2x Treated Wood
• Deck Height from Ground:18-3/4"
• Frame:2" x 3" x 3/16" Steel Angle
• Uprights:2" x 2" x 1/8" Steel Angle
• Upright Height:24"
• Sides:Steel Mesh
• Top Rail:2" x 2" x 1/8" Steel Angle
• Cargo Hold:4 Stake Pockets
• Fenders:9" x 66" Steel Teardrop w/ Back (9660T)

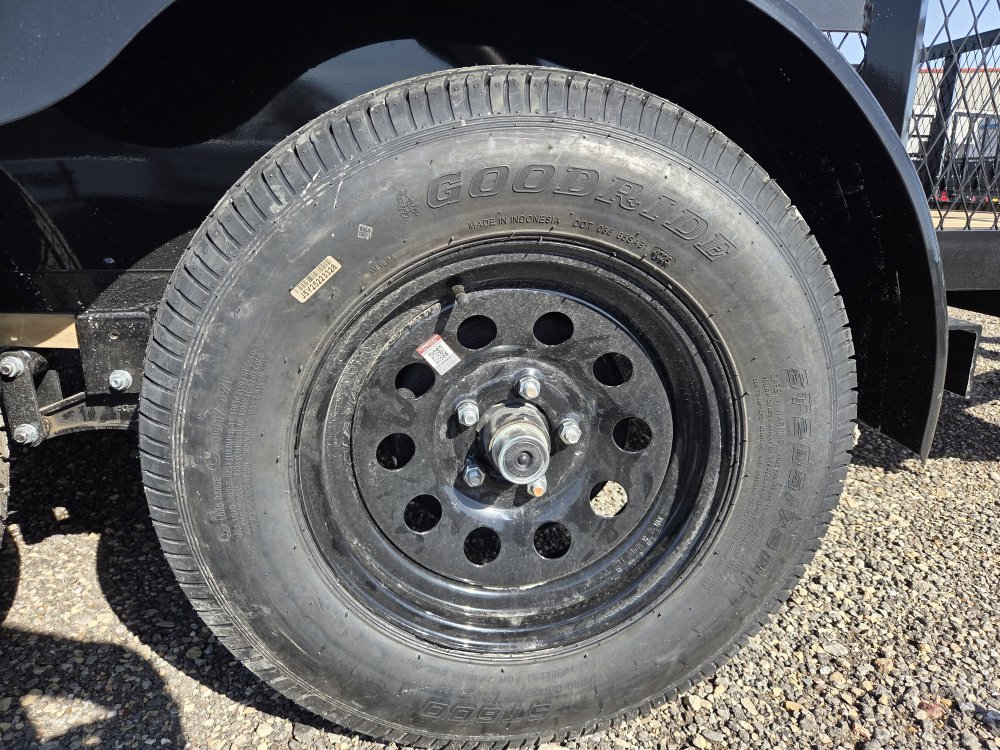

• Tires:15" ST205/75D15 (205X15BLACK)
• Wheels:Black Mod
• Axle Type:Two 3,500 Lbs. E-Z Lube Axles
• Brake Axle:93"/80" (3K9380EZB)
• Idler Axle:93"/80" (3K9380EZ)
• GVWR:7,000 Lbs.
• Leaf Springs:3-Leaf Eye-to-Eye (504T)
• U-Bolt:1/2" Round (514T)
• Tie Plate:Medium 4" x 5-1/2" (513T)
• Hub Kit - Brake Axle:10" Hub and Drum w/ 5 Lugs on 4-1/2" Pattern (605T)
• Hub Kit - Idler Axle:5 on 4-1/2", 1,750 Lbs. (545T)
• Dust Cap:E-Z Lube (851T)
• Spindle:1-3/8", Max 1,750 Lbs. Capacity (350T)
• Bearing:1-3/8" Inner, 1-1/16" Outer Bearing Kit (502T)
• Grease Seal:1.719" (496T)
• Gate Style:Fixed Ramp Gate
• Rear Latch:Heavy-Duty Spring Latch
• Plug Type:7-Way Round
• Tail Lights:LED 80"+W Roadside, LED 80"+W Curbside
• License Plate Illumination:Incorporated with Roadside Tail Light
• Marker Lights:LED Amber Penny Light (881T)
• Clearance Lights:LED Amber Penny Light (881T)
• ID Lights:LED Red 3-Light ID Bar (438T)
