Model

9400

Hitch Type

Bumper pull

Load Type

Slant

Trailer Width

7′ 0″

Trailer Length

2H = 13’10”

Inside Height

7′ 0″

Horse Stalls

2

Stall Width

43″

Dressing Room Size

24″

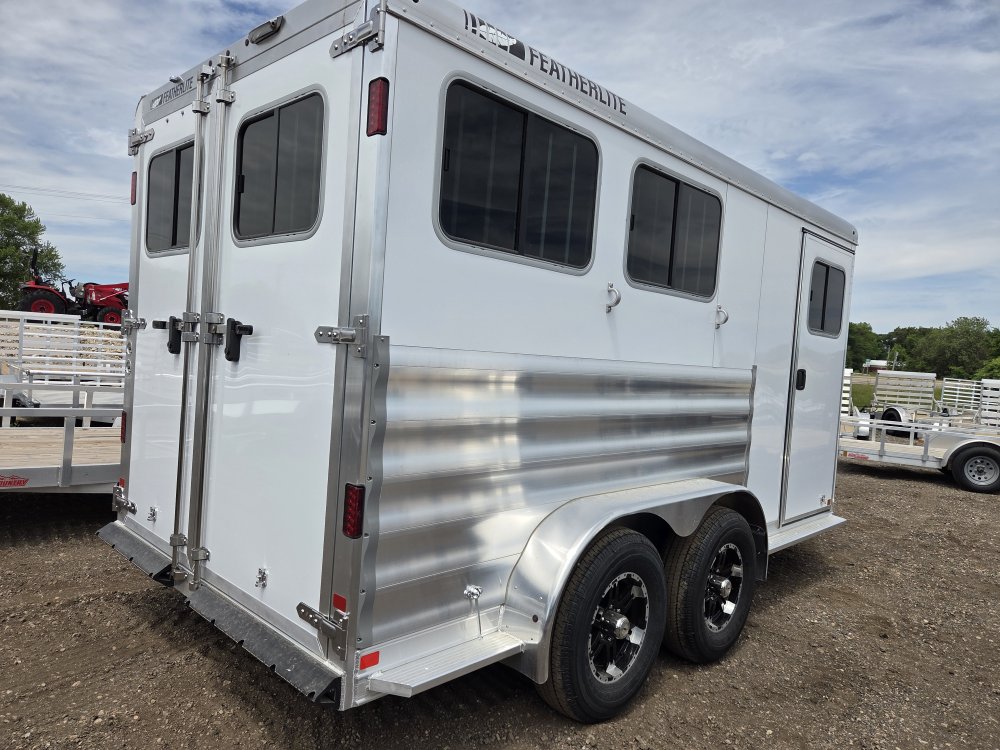

Exterior Sides

White .040 rivetless aluminum exterior sheets with aluminum wave panels below

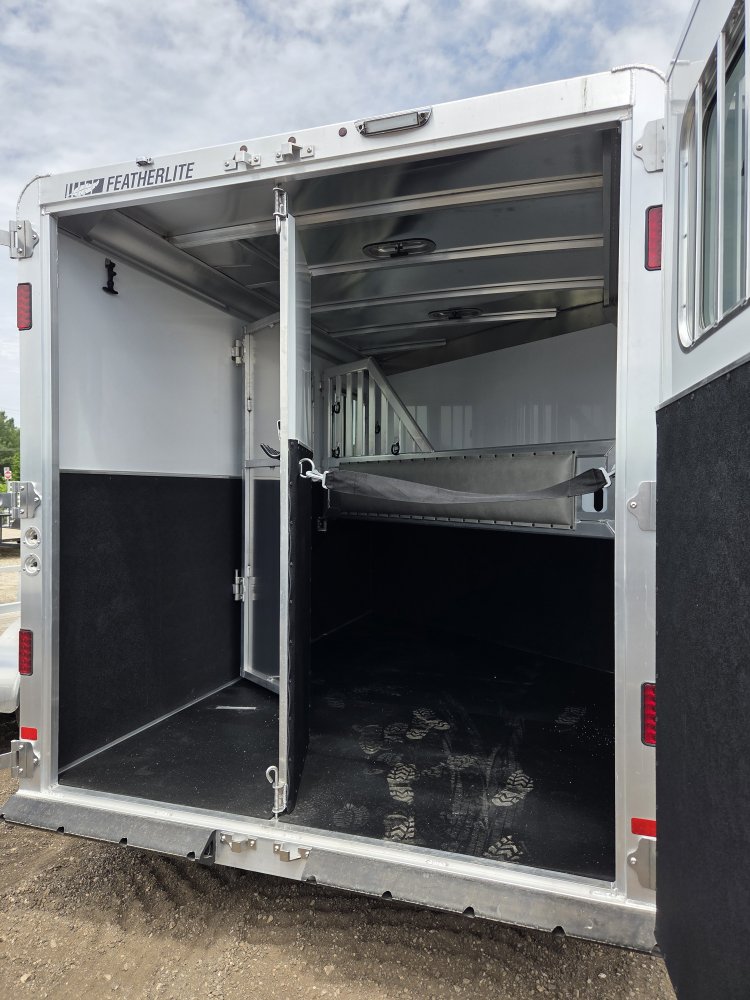

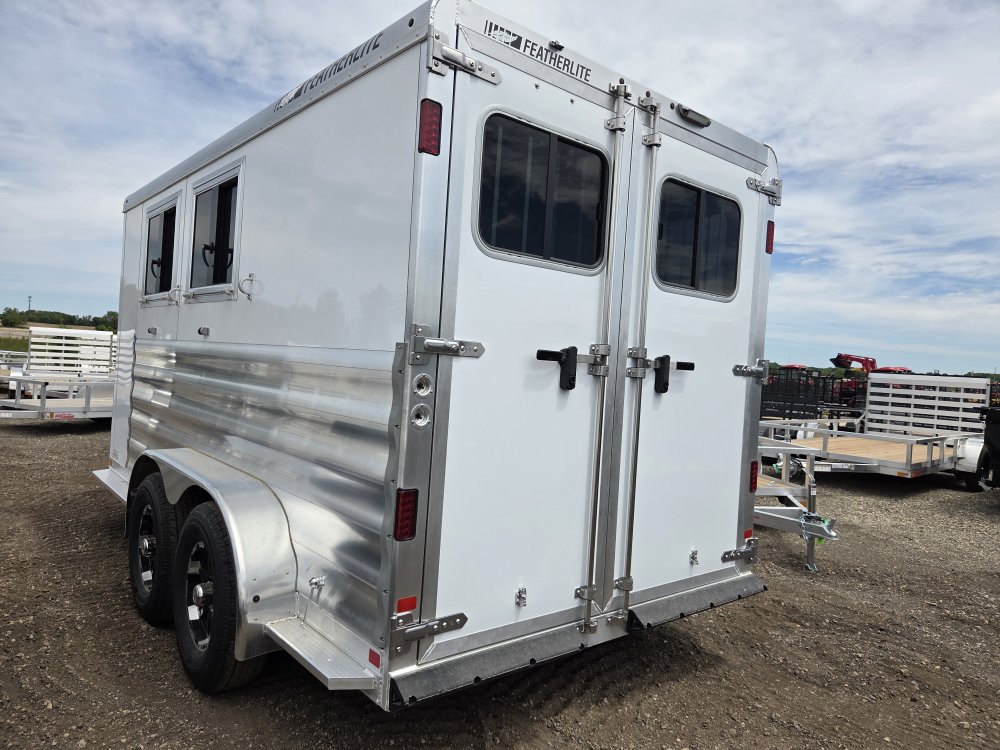

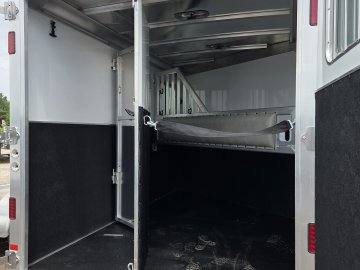

Rear Doors

Double rear doors with windows, stainless double pipe hardware and no center post

Windows

Square cornered drop down feed door with drop down bars in front of each horse; 34 1/4″ x 22″ window with bars behind each horse

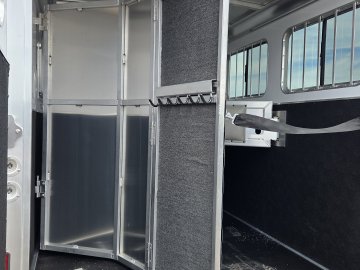

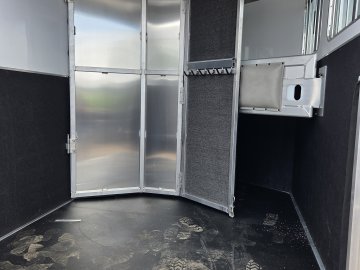

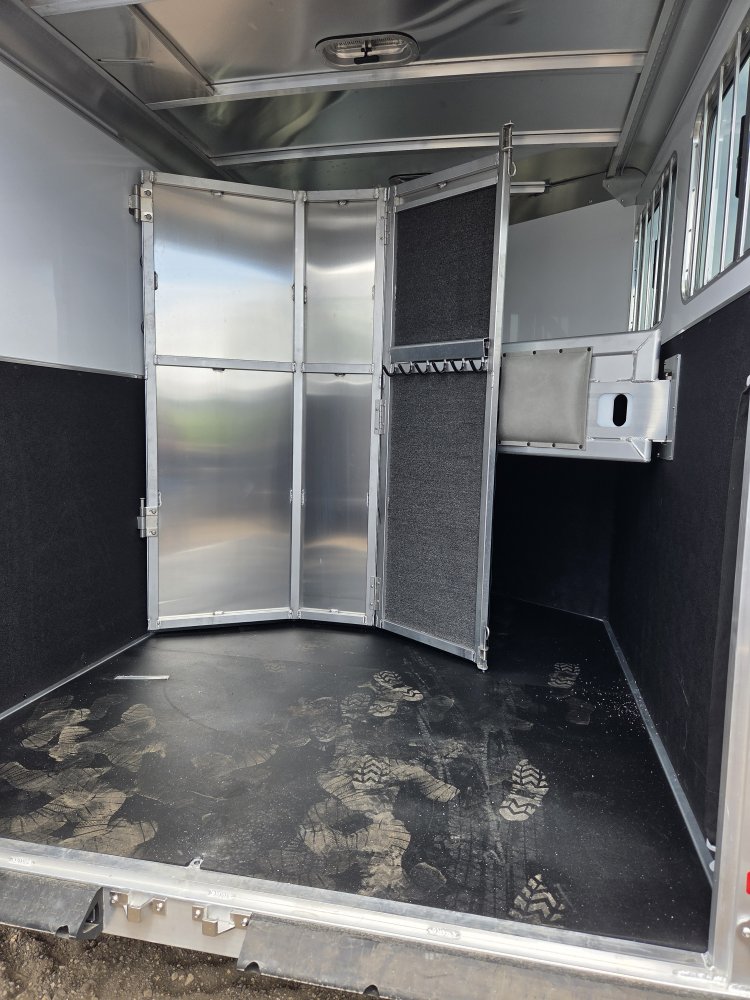

Tack Area

Folding rear tack wall lined on horse area side with white aluminum; Includes turf behind halter hooks in rear tack.

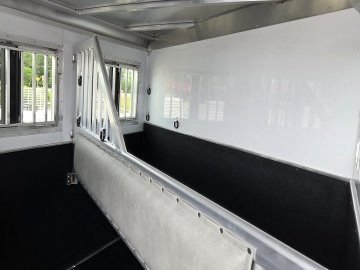

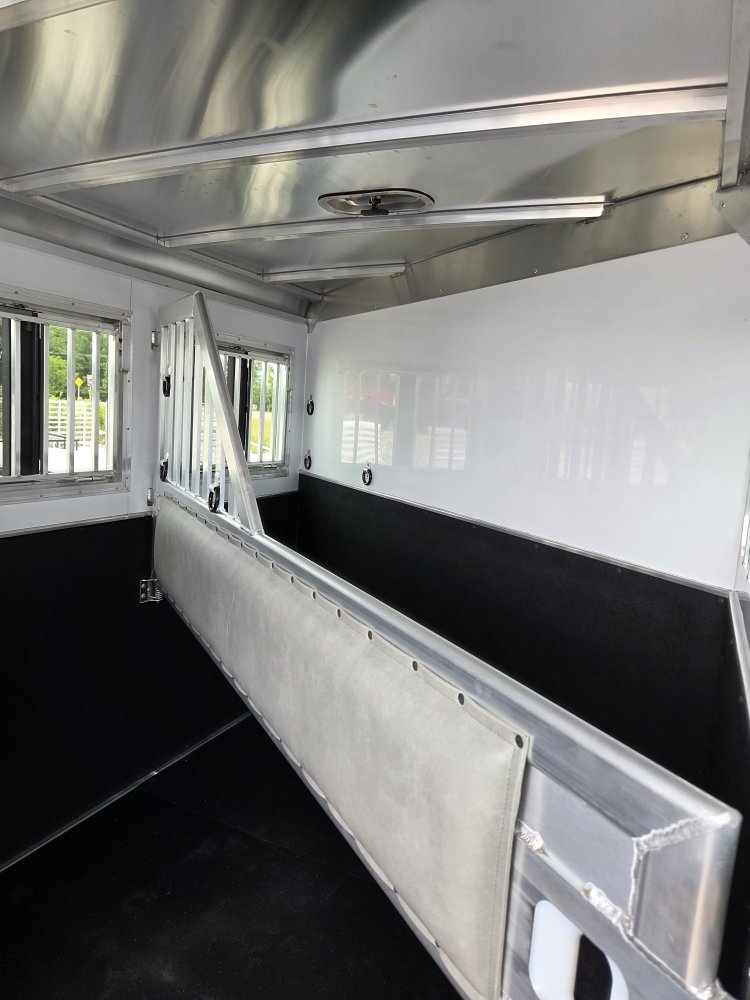

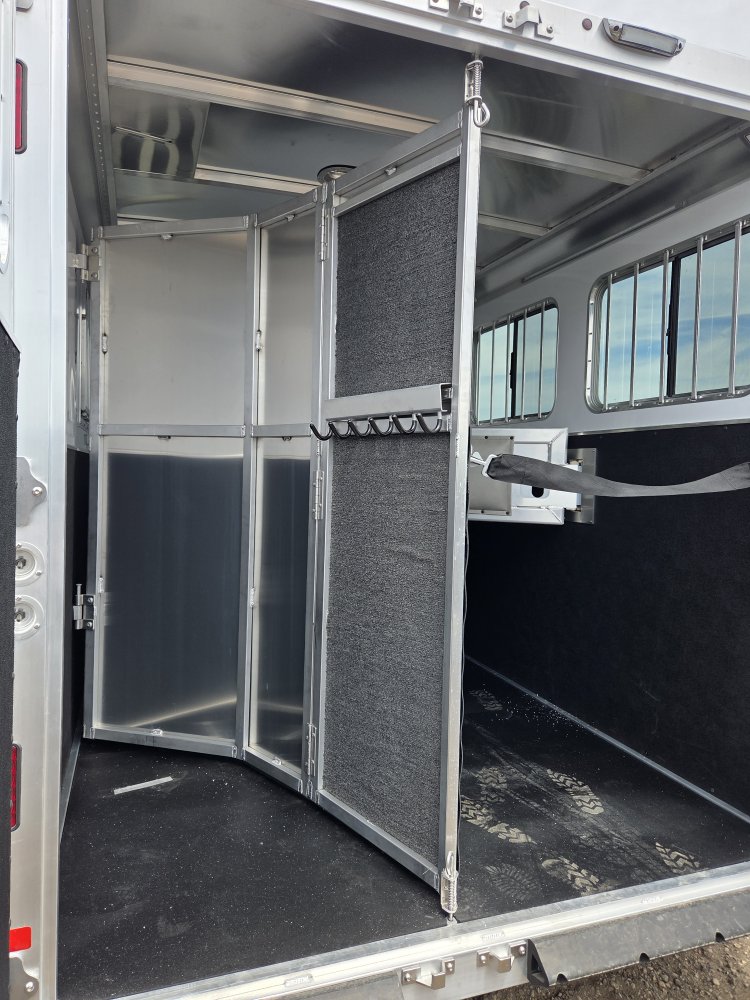

Stall Dividers

Padded Air Flo slant stall dividers with shoulder separator & spring-loaded slam latch

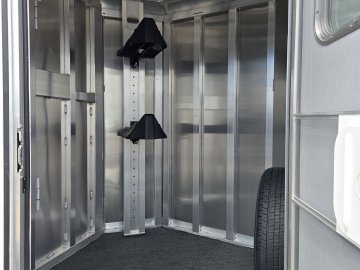

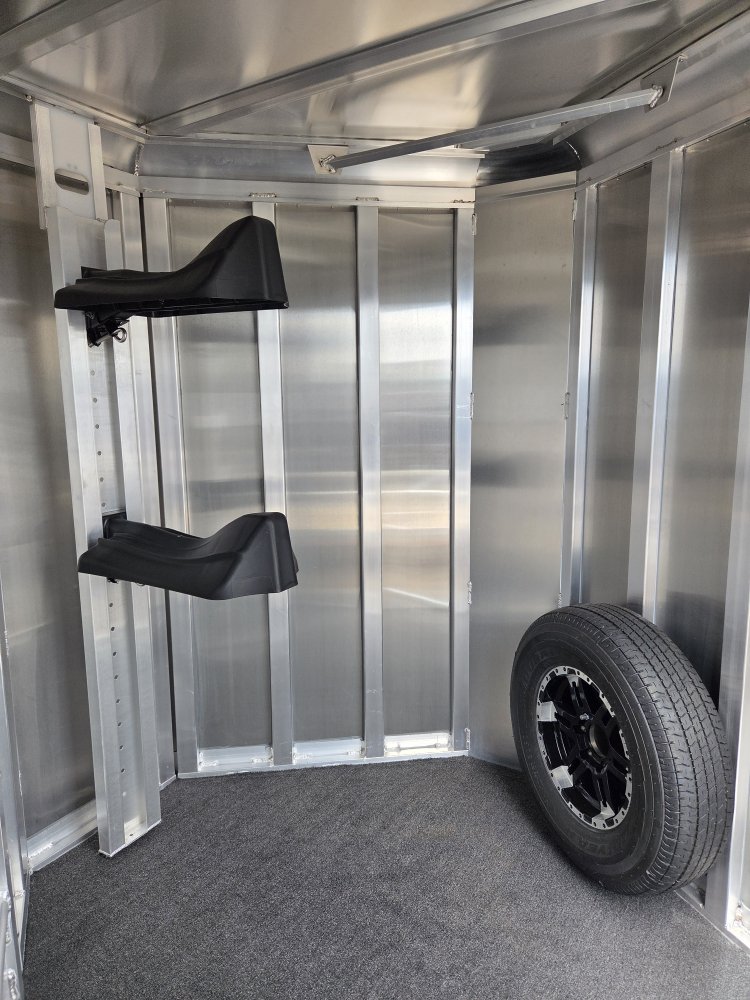

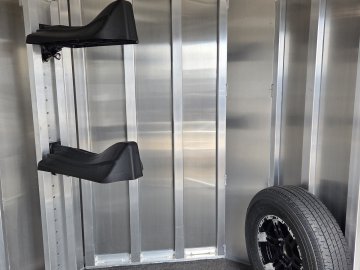

Saddle Rack

Adjustable saddle rack for each horse mounted on removable post. Extra location for post in dressing room

Walls

Rubber up 44″ on wall in front of horses; Rubber up 48″ on wall behind horses; .090 aluminum up 48″ on the wall in front and behind horses; 1 5/8″ wall insulation; White .040 aluminum lining above the wall rubber

Doors

36″ x 74″ square camper door with window & deadbolt. UPGRADE: Swinging Screen Door

Floor/Floor Mats

Interlocking smooth extruded aluminum floor; Rubber floor mats in horse area

Roof Vents

One pop-up roof vent per horse

Interior Lights

LED light strip in horse area (one per 2 horses); LED light strip in rear tack; LED light strip in dressing room; Lights are 12V/20W

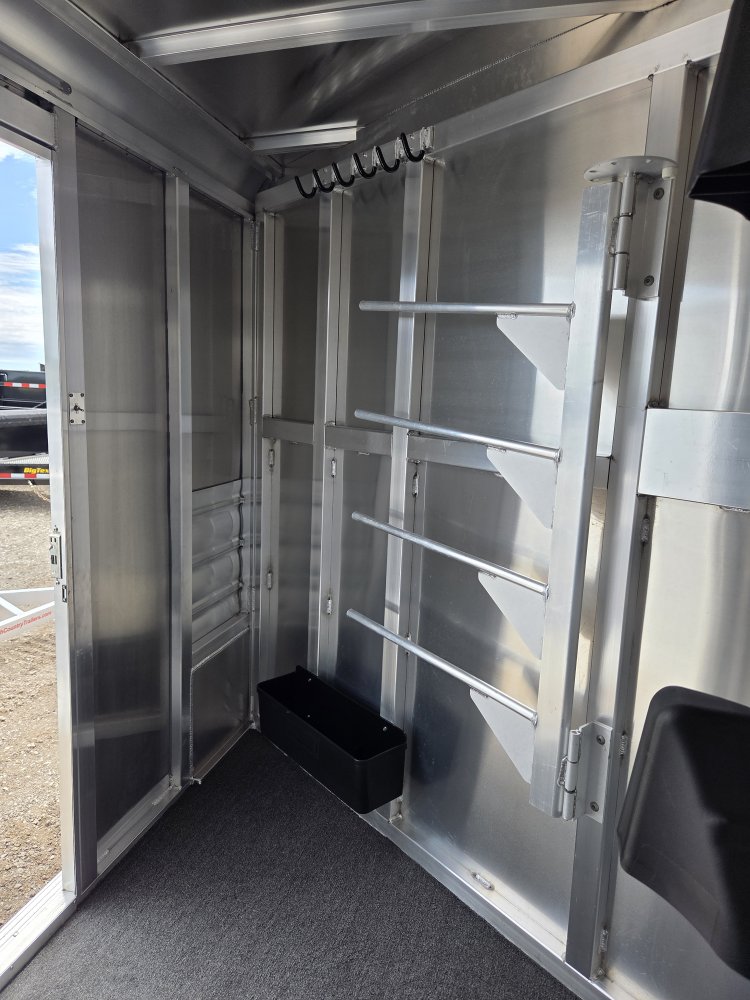

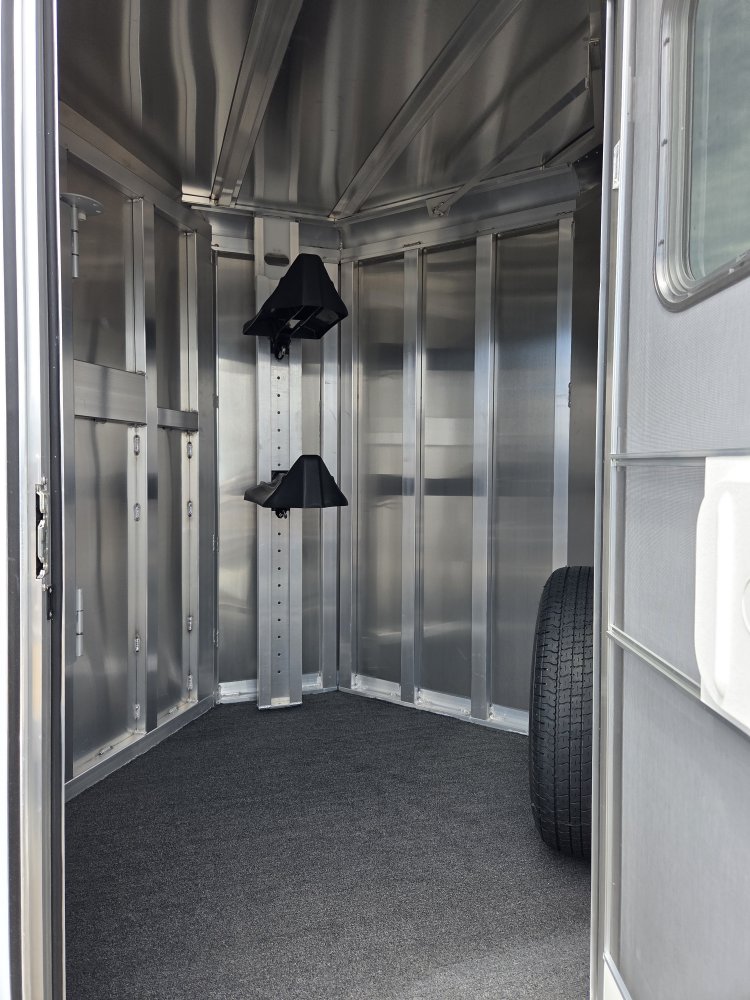

Dressing Room

Clothes rod; Turf on floor; Brush tray; One swinging blanket bar; Aluminum halter hooks

Tie Rings

Five inside tie rings per horse & 1 outside tie ring per horse per side

Axles

Two rubber torsion axles with electric brakes / 2H = 3500#

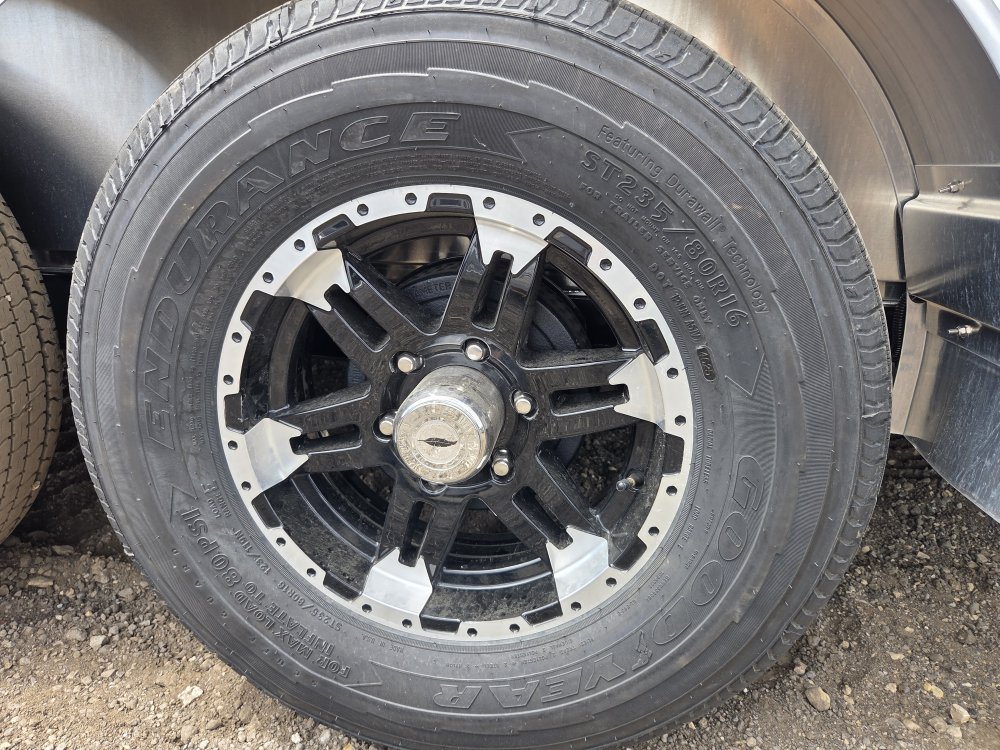

Tire/Rim

16″ 6-hole aluminum wheels with Goodyear ST235/80R16 Load Range E tires (Qty: 4); Matching spare tire and tire carrier standard - Black Aluminum Rims ILO Silver

Exterior Lights

LED clearance lights and 4 LED stop/turn lights; LED load light above rear load door with switch at rear

Butt/Chest Bars

Optional; Nylon strap behind rear horse

Gravel Guard

Standard

Coupler

2 5/16″ coupler; Crank type jack with wheel

Other

Rubber dock bumper; Aluminum running boards; 1 5/8″ side posts

Warranty

10-year limited structural warranty; 3-year hitch-to-bumper warranty. Transferable warranty** available on qualified trailers. See warranty page or dealer for more info.
